VAJRA80 user's manual

SHENZHEN SPEEDWOLF TECHNOLOGY CO.LTD

WWW.SPEEDWOLF.NET

Table of Contents

Need help?

Do you have a question about the VAJRA80 and is the answer not in the manual?

Questions and answers

Summary of Contents for SHENZHEN SPEEDWOLF TECHNOLOGY VAJRA80

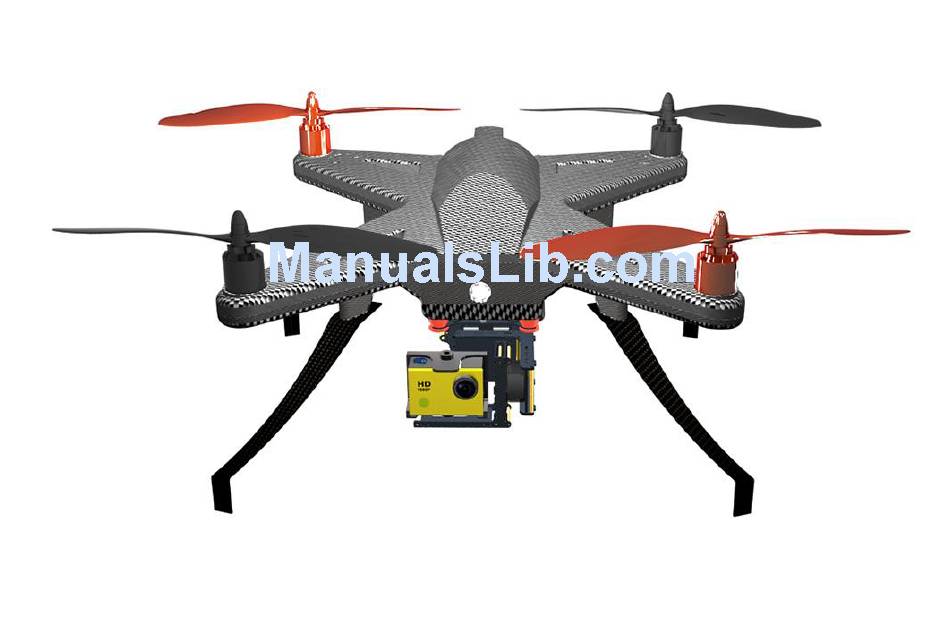

Page 1 VAJRA80 user's manual SHENZHEN SPEEDWOLF TECHNOLOGY CO.LTD WWW.SPEEDWOLF.NET...
Page 2: Table Of Contents
Install prop-guard ..................................11 VIII. Charger and battery .................................. 13 Battery Indicator and Maintenance and use of the battery ..................14 The aircraft interface ................................. 16 Landing and Lock VAJRA80 ..............................17 XII. Unlock VAJRA80 ..................................18 XIII. VAJRA80 operating steps ..............................19 XIV.
Page 3: Disclaimer
I. Disclaimer these products. Dear users, Thank you so much for choosing our VAJRA80.Our company do not assume all the loss from the situations as below, so please carefully read the disclaimer before the flight to avoid bring you some troubles.
Page 4: Vajra80 Drone
RERURN CONTENTS VAJRA80 Drone User's manual II. VAJRA80 drone Image 1 VAJRA80-Top 4 / 54...
Page 5 VAJRA80 Drone User's manual RERURN CONTENTS Image 2 VAJRA80-Back 5 / 54...
Page 6: The Remote Controller
VAJRA80 Drone User's manual RERURN CONTENTS III. The Remote controller Image 3 Remote controller 6 / 54...
Page 7: Flight Mode
VAJRA80 Drone User's manual RERURN CONTENTS Flight Mode 1.Manual: Must be locked & unlocked in this mode. and In this mode, GPS will have no functions during flight. 2.GPS: the aircraft must be detected the GPS signal and keep in a good condition at the same time in this mode. Users will be easier to control the plane with the GPS signal, and you can accomplish a lot of stable operations by coordinating the rocker of direction and throttle, such as spot hover, take off and landing, etc.
Page 8: Installation Of The Blade Holder
VAJRA80 Drone User's manual RERURN CONTENTS V. Installation of the blade holder (Video:http://youtu.be/gjYXGi4P2rU 1.Installation of the blade holder and propeller. Image4 Installation of the blade holder1 2.The VAJARA80 motor rotation have two ways: clockwise rotation and contra rotation. (Drone can not damage because screws out the motor.
Page 9 VAJRA80 Drone User's manual RERURN CONTENTS Image5 Installation of the blade holder2 3.How to find out the clockwise rotation and contra rotation: Please note red blade holder needs to install into the red motor,the black blade needs install into the black motor.
Page 10: The Installation Of The Propeller
RERURN CONTENTS VAJRA80 Drone User's manual The Installation of the propeller (Video:http://youtu.be/nGZ9IPLyuyc) Image 6 The Installation of the propeller The methods of recognizing the propeller 1. There is identification 11X4.7R 11X4.7 on propeller, please install the propeller following the picture above.
Page 11: Install Prop-Guard
VAJRA80 Drone User's manual RERURN CONTENTS VII. Install prop-guard (Video: https://youtu.be/-R_n9mQdUQA) Image 7 Prop-guard 11 / 54...
Page 12 VAJRA80 Drone User's manual RERURN CONTENTS Image 8 Install prop-guard 12 / 54...
Page 13: Charger And Battery
VAJRA80 Drone User's manual RERURN CONTENTS VIII. Charger and battery 1. Charger (1)Please pay close attention to the battery terminal and the charger socket before charging, and then gently insert the battery terminal; forcing the battery terminal to be inverted insertion is strictly prohibited to avoid damaging the charger.
Page 14: Battery Indicator And Maintenance And Use Of The Battery
VAJRA80 Drone User's manual RERURN CONTENTS Battery Indicator and Maintenance and use of the battery 1. Battery Indicator There is two ways the show Battery Indicator: The door of battery, The bottom of motor,As shown below: Image 9 Battery indicator...
Page 15 Recommendations to save battery power for 3-4 grid. If more than 4 cell battery, can be mounted to VAJRA80, using about 1-2 minutes.
Page 16: The Aircraft Interface
VAJRA80 Drone User's manual RERURN CONTENTS X. The aircraft interface There are six plug interfaces at the bottom of the aircraft fuselage as shown below. Power supply for gimbal or Power supply for camera 5.8G vedio receiver Power supply for gimbal Gimbal date interface or 5.8G vedio receiver...
Page 17: Landing And Lock Vajra80
Three kinds of flight mode can be carried out on the aircraft landing, the specific operation of landing as below. (1) Manual: slowly lower the throttle; adjust the location where is suitable for landing; then quickly lock VAJRA80 when landing to the ground.
Page 18: Unlock Vajra80
(Video: http://youtu.be/yYRGMUWCOlw) Operate the rocker of throttle and direction to position as shown below (pulling the rocker inward, to the down ), and locked VAJRA80 after keeping 6 seconds. (about the indicator light after being locked: if no GPS signal, yellow and red light alternating flashing; if...
Page 19: Vajra80 Operating Steps
Step4:Unlock VAJRA80: Turn on the Remote controller,Pulling the rocker of throttle and direction inward, to the down, locked VAJRA80 after keeping 6 seconds. If no GPS signal, yellow and red light alternating flashing ; if there is GPS signal, yellow is always flashing) Step5: Take off: Directly push up the throttle to take off;...
Page 20: Led Status Light
VAJRA80 Drone User's manual RERURN CONTENTS XIV. LED status Light (Video: http://youtu.be/PUtmik3aMWE) Instruction light :There are two mold light flash:. No-GPS and GPS Mold 1.Initialization:the tail of red light start flashing after connecting battery about 5s. then red flashing about 3s 2.
Page 21: 1080P Sport Waterproof Camera
RERURN CONTENTS VAJRA80 Drone User's manual XV. 1080P sport waterproof camera Image 14 Introduce of Camera 21 / 54...
Page 22 RERURN CONTENTS VAJRA80 Drone User's manual 1.Warning (1)It is a high-precision product, do not fall or cash. (2)Do not expose the unit to strong magnetic objects, such as magnet and electrical motor. Avoid strong radio waves. Strong magnetic fields may cause the products breakdown or images and sounds damage.
Page 23 RERURN CONTENTS VAJRA80 Drone User's manual (10)Multiple video recording formats: 1080P/720P/WVGA (11)Recorded in AVI format. (12)ultiple photo shooting modes: single shot, snapper. (13)Video encryption enabled (14)Mini appearance, diversified colors available. 4.Parameters of Camera Liquid Crystal Display 2.0 LTPS Lens 170°A+HD wide-angle lens Language Options English/Español/Português/Chinese...
Page 24 RERURN CONTENTS VAJRA80 Drone User's manual 5.Operation (1)Inserting Micro SD cards Note:please choose branded Micro-SD card and format it on computer before use. Neutral cards are not guaranteed to work normally. (2)Installing and removing batteries a.Press on battery cap to open it.
Page 25 RERURN CONTENTS VAJRA80 Drone User's manual Shooting Pattern: Single shot/Self-timer (2s/5s/10s)/Continuous Shooting c.File Storage & Playing After you are done recording, use a USB cable to export the videos onto a computer to play. Or you take Micro SD card out and access the image data with a card reader.
Page 26 RERURN CONTENTS VAJRA80 Drone User's manual 7.Connect 5.8G transmitter(FPV) （Video: http://youtu.be/8sWD64rWgis） 7inch display with receiver Image 14 Connection 5.8G diagram Image 16 FPV button of camera If press 3 second FPV button,the camera will change to FPV mode,5.8G transmitter;If press 3second FPV button again,the camera will automatically quit FPV button.then the display need to choose "C-8".
Page 27 VAJRA80 Drone User's manual RERURN CONTENTS 8.FPV display with 5.8G receiver Image 17 FPV button of camera ： (1)GROPU/ Default mode , click the GROUP option , A, b, c, d cycle selection ; MEUN pressed , this button is used as number +；...
Page 28 VAJRA80 Drone User's manual RERURN CONTENTS buttons will not operate ; (5)SOURCE DIVERSITY： true diversity reception mode , RF A and RF B the signal strength of a display , to achieve the best radio reception ; corresponding to the RF A and RF B indicator LED will flash alternately ;...
Page 29: Install Hd Camera
VAJRA80 Drone User's manual RERURN CONTENTS XVI. Install HD camera Image19 HD camera 29 / 54...
Page 30: Gimbal
VAJRA80 Drone User's manual RERURN CONTENTS XVII. Gimbal ( Install Video: http://youtu.be/eu5X1BQspps ) Image20 Gimbal Screw hole 30 / 54...
Page 31 VAJRA80 Drone User's manual RERURN CONTENTS Image21 Gimbal 31 / 54...
Page 32: Install Gimbal
VAJRA80 Drone User's manual RERURN CONTENTS XVIII. Install Gimbal ① ② 32 / 54...
Page 33 VAJRA80 Drone User's manual RERURN CONTENTS ③ Image22 Gimbal install 33 / 54...
Page 34 VAJRA80 Drone User's manual RERURN CONTENTS Reset/Calibration button 5.8Ghz Transmitter Pitch and Roll Plug Image23 Gimbal interface introduce 34 / 54...
Page 35 VAJRA80 Drone User's manual RERURN CONTENTS Image24 Gimbal pitch and Roll introduce 35 / 54...
Page 36: Reset/Calibration Gimbal
VAJRA80 Drone User's manual RERURN CONTENTS XIX. Reset/Calibration Gimbal Reset/Calibration button Image25 Reset/calibration button After press the Reset/Calibration button ,the gimbal will in non-work state in 5 seconds,at this moment to put the camera to the para llel state,waiting for the gimbal to work again then make the gimbal power on.
Page 37: Wifi Setting
VAJRA80 Drone User's manual RERURN CONTENTS XX. WIFI Setting (Video: https://youtu.be/bg2puE_QcYc) 1.IOS System(Iphone,Ipad) (1) Find "Fametech" in APP Store; (2)Install "Fametech" software; (3) Remote control turn on (4)Connect WLAN:Setting->WLAN,Then find "HDAV..." link.（This Link no password） Image26 WIFI connection for IOS...
Page 38 VAJRA80 Drone User's manual RERURN CONTENTS (5)Open Fametech software： Take photo Video Picture and Video file Image27 software interface 38 / 54...
Page 39 VAJRA80 Drone User's manual RERURN CONTENTS 2. Android System (1)Please download APK software(Click here), (2)Install APK Software; (3) Remote control turn on. (4)Connect WLAN:Settings->WLAN. Then find "HDAV..." link.（This Link no password） Image28 WIFI connection for Android 39 / 54...
Page 40 VAJRA80 Drone User's manual RERURN CONTENTS (5)Open Fametech software： Take photo Enlargement Inversion screen Video Settings Picture and Video file Image29 software interface 40 / 54...
Page 41: Install Fpo
VAJRA80 Drone User's manual RERURN CONTENTS XXI. Install FPO (Video:https://youtu.be/x7PtaKSr5fk) Power supply for gimbal or Power supply for camera 5.8G vedio receiver Power supply for gimbal Gimbal date interface or 5.8G vedio receiver Camera by USB 5.8Ghz transmitter Image30 The bottom Interface of drone...
Page 42: Install Fish Finder And Dispenser
VAJRA80 Drone User's manual RERURN CONTENTS Image31 The display interface XXII. Install fish finder and Dispenser (Vedio:http://youtu.be/CuqNfjxnEJQ) 42 / 54...
Page 43: Calibration Accel
VAJRA80 Drone User's manual RERURN CONTENTS XXIII. Calibration Accel ( Calibration accel video: http://youtu.be/RQoI-fGkZag ) 1.Install software This software does not need to install,directly use it after decompressing files,please follow the steps below to operate. (1)Install the driver that is included in "Drivers".
Page 44 RERURN CONTENTS VAJRA80 Drone User's manual Image33 download .NET Framework 4.5 (3)Decompress the files "speedwolf.rar" , then find "speedwolf.exe" in the folder "speedwolf".,and direcly double-click to open ‘speedwolf.exe’ 44 / 54...
Page 45 Meanwhile, under the guidance of calibration from our technicians, please have a comprehensive test in an unmanned, open, safe zone after calibration. 2.When VAJRA80 improper operation or collision resulting in serious wrestling machine, it may lead to flight instability, there are situations such as flight tilt, tilt takeoff seriously.
Page 46 VAJRA80 Drone User's manual RERURN CONTENTS 3.The Connectivity Software 1. Please find USB interface in plane's tail. Image35 Find the USB plug of drone 46 / 54...
Page 47 VAJRA80 Drone User's manual RERURN CONTENTS 2.Connect computer use USB Extension cord. 3.Follow steps 1 to find the "speedwolf.exe" in speedwolf folder, double-click to open the software as follows: Image36 Connection 47 / 54...
Page 48 RERURN CONTENTS VAJRA80 Drone User's manual 4.Select the port Image36 Select COM Port 48 / 54...
Page 49 VAJRA80 Drone User's manual RERURN CONTENTS 5.Click "Connect" pop-up connection status dialog box that displays "Done" If successful in loading external data, otherwise check the line if there are problems. Image37 Connecting 49 / 54...
Page 50 RERURN CONTENTS VAJRA80 Drone User's manual 6. Select "Calibration" option Image38 Select Calibration tab 50 / 54...
Page 51 VAJRA80 Drone User's manual RERURN CONTENTS 4.Calibration Accel Image39 Select Calibration Accel tab 51 / 54...
Page 52 VAJRA80 Drone User's manual RERURN CONTENTS 1.Select “Calibration Accel”, according to the order of the drawing to make the calibration. ① ② Press any key 52 / 54...
Page 53 VAJRA80 Drone User's manual ③ ④ Press any key RERURN CONTENTS ⑤ ⑥ Press any key Image40 Calibration Accel 53 / 54...
Page 54 VAJRA80 Drone User's manual ADD:14Floor,A Flat,Haide Bldg, Nanxin Rd,Nanshan District,Shenzhen,China Tell:0755-26400198 Fax: 0755-26411001 Website: WWW.SPEEDWOLF.NET Nick Ouyang Ice Wu Wilson Wei 54 / 54 Email: speedwolf1@speedwolf.net Email: speedwolf3@speedwolf.net Email: speedwolf5@speedwolf.net TradeManager: cnoptostar TradeManager: cn1001129838 TradeManager: cn1510609381...
