- Page 1 User's Manual...
-
Page 3: Table Of Contents
Index Philosophy Safety Vehicule description Components EIVA General operation Maintenance Warranty... -
Page 4: Philosophy
Philosophy The Rayvolt Philosophy is to promote alternative transportation by offering our customers a clean, high tech and stylish way to commute. The name comes from the Sun Ray and the electrical unit Volt and put together sounds like its homonym “Revolt”. The Sunray, the Voltage and the Revolt are the fundamentals behind our brand. - Page 5 Responsible Manufacturing Our products are clean in every way from the manufacturing process using 100% solar energy to build the bukes and banning all poluting materials like PVC which is the most common plastic used in the most bike parts and Cadmium, which is a very poluting chemical used in many batteries.
-
Page 6: Safety
The owner of this bicycle is the only responsible of its use. Make sure you read this manual before your first ride. The seller of this Rayvolt Cruzer or Rayvolt Bike S.L. will not be responsible for the misuse or negligence when using this bicycle. -
Page 7: Vehicule Description

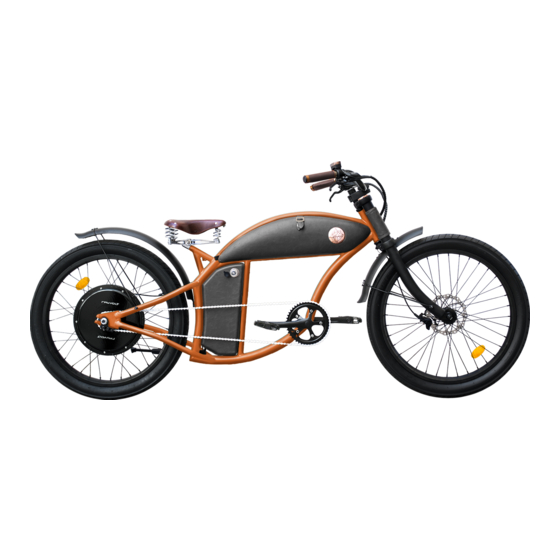

Welcome to the Rayvolution! Your Rayvolt Bike Cruzer is the original model that inspired Rayvolt. Its design is influenced by the first motorcycle era, the 60’s café racer and surfing beach cruiser. This vintage design combined to the innovative technology from EIVA and the Rayvolt Hub makes this bike a timeless piece that will definitely mark an era. - Page 8 Bettery level Indicator Display Rayvolt App Direct connection to the motor hub + Bluetooth using the Rayvolt app 4.5 inch full color HD built-in touch screen, trip log, battery state, EIVA Controller settings, GPS, Music, Security App, geolocation, wheellock Speed Control...
-
Page 9: Components
Components Pure Sine Controlleur Built in Hub Thumb throttle Bluetouth Communication from Controller to Smart Phone For Motor and Batteries Data and Settings Brake levers communication with Controller For Regenerative Braking Starter plug Charger plug Smart Pedal Assist with Coils on most outter rim multiple choices power assistance For Ultimate Efficiency and giroscope Hill detection... - Page 10 Pedelec/Moped Hybrid Battery Your Rayvolt Bike fitted with a Power Rayvolt bikes are fitted with all Custom Hub can be used in Pedelec Mode 100% sizes top quality batteries. compliant with the EU Regulation for E-bikes: EN15194. All our batteries use Samsung SDI Cells...
- Page 11 Motor Rayvolt Hub is a very complexe Brushless 3 phase DC Motor counting 48 different copper coils and magnets placed on the very outer part of the Regen Brake System motor perimeter for the best possible torque. The Built in Controller receive...
-
Page 12: Eiva
The entire Rayvolt technology is built around EIVA. As her name says, EIVA is your Intelligent Virtual Assistant that converts your bike into a real Smart Bike. EIVA is wirelessly connected to the controller at all time, displaying basic information as speed, battery state and much more. Also lets you customize your ride experience to its finest settings. -
Page 13: General Operation
General Operation Riding your Rayvolt Bike First of all, check all your Rayvolt components as break and wheel status. Start your battery using the key. The display will show the battery level as high, medium or low. Pull the throttle to give an extra push to start. -
Page 14: Maintenance
Maintenance Motor Bike components Rayvolt Bike comes with an overheat Clean, adjust, inflate, charge and grease. protection. Remember that you will You should follow these steps for the not be able to run the motor if break proper function of your Rayvolt Cruzer. -
Page 15: Warranty
Rayvolt Bike S.L. and the damage was caused original accessories installed at the time There are operations that cannot be by a delay to repair. - Page 16 Rayvolt. You can check the dealers list on value of the goods if there was no lack of - If the security seal, located on some our web site www.rayvoltbike.com...
