HOW TO USE YOUR CARAVAN'S EQUIPMENT
Set the required temperature
The temperature can be set from +5ºC to
+30ºC in steps of 0.5ºC. Warm water is
always available (50ºC) when the boiler is on
and running on LPG or electricity. During
summer, when only warm water is required,
adjust the temperature setting to below the
surrounding temperature so that the central
heating pump does not start.
+22°C
2 kW
ON
Off

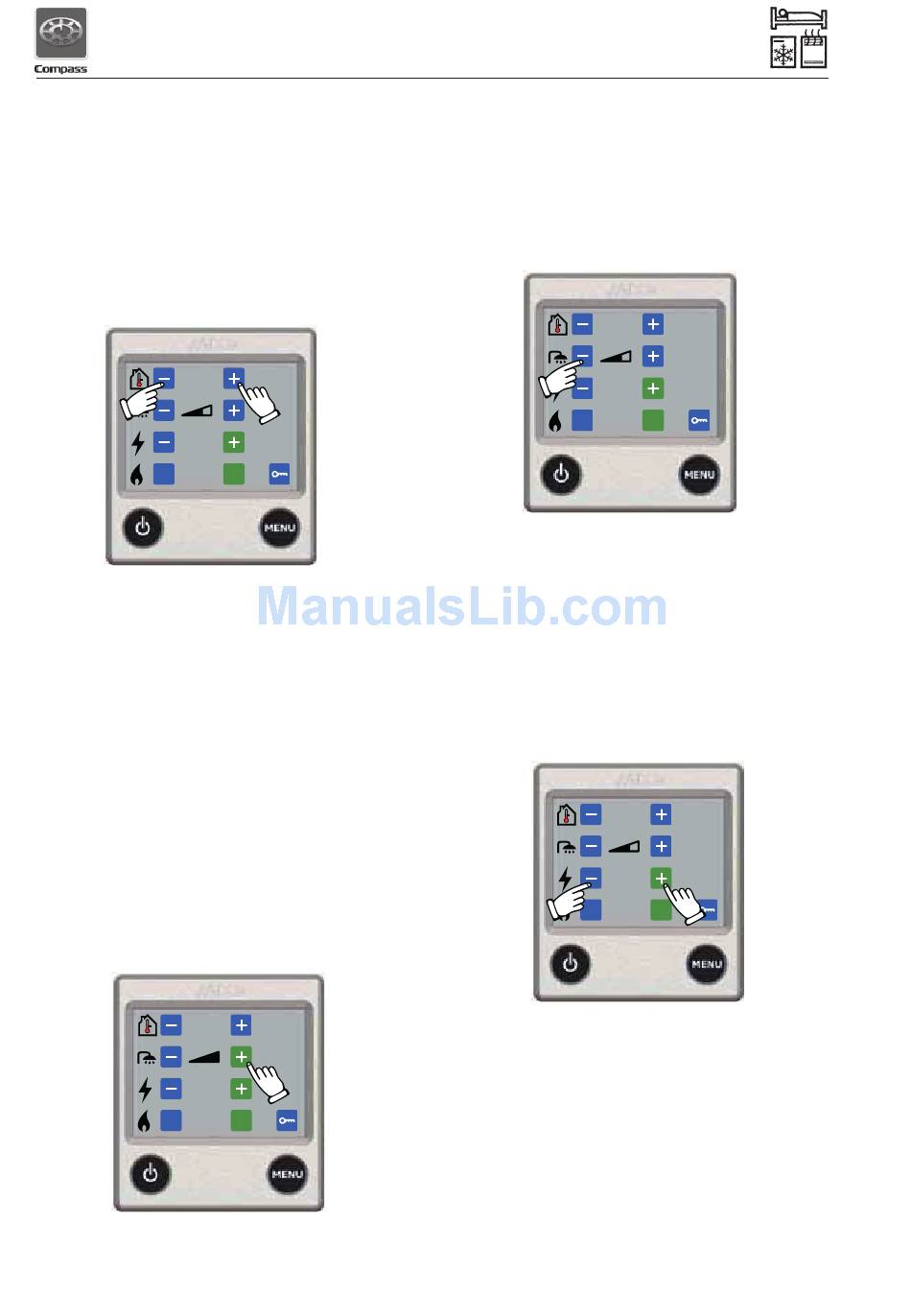

1. The temperature displayed is the
temperature which is set at present (in
this case 22.0ºC).
2. Raise the temperature by pressing the +
button. Lower the temperature by
pressing the - button.
3. The settings are ready and the central
heating pump will work at the set
temperature.
Extra warm water
If you need more warm water, you can raise
the water temperature temporarily from 50ºC
to 65ºC. After 30 minutes, the boiler reverts
to normal operation. When you have selected
more warm water the circulation pump stops.
+22°C
2 kW
ON
Off
On
On
1. Increase the quantity of warm water by
pressing the + button. When activated
the plus symbol changes colour to green.
2. The settings are ready.
If you wish to revert to the basic warm water
settings before 30 minutes have expired.
Off
1. Reset the warm water by pressing the -
button.
2. The settings are ready.
Heating with electricity
Do as follows to activate heating with
electricity. The greater the power, the better
the heating performance. In choosing
between electricity and gas, electricity is
given priority.
Off
1. Start and step between the various power
steps (Off, 1kW, 2kW or 3kW) with the +
button or - button. The set value is
displayed on the screen. When activated
the plus symbol changes colour to green.
(Certain boilers are equipped with max.
2kW).
2. The settings are ready and the boiler is
working at set temperature.
3. In order to switch off gas operation, press
Off.
