Summary of Contents for Himoto VIPER X2S

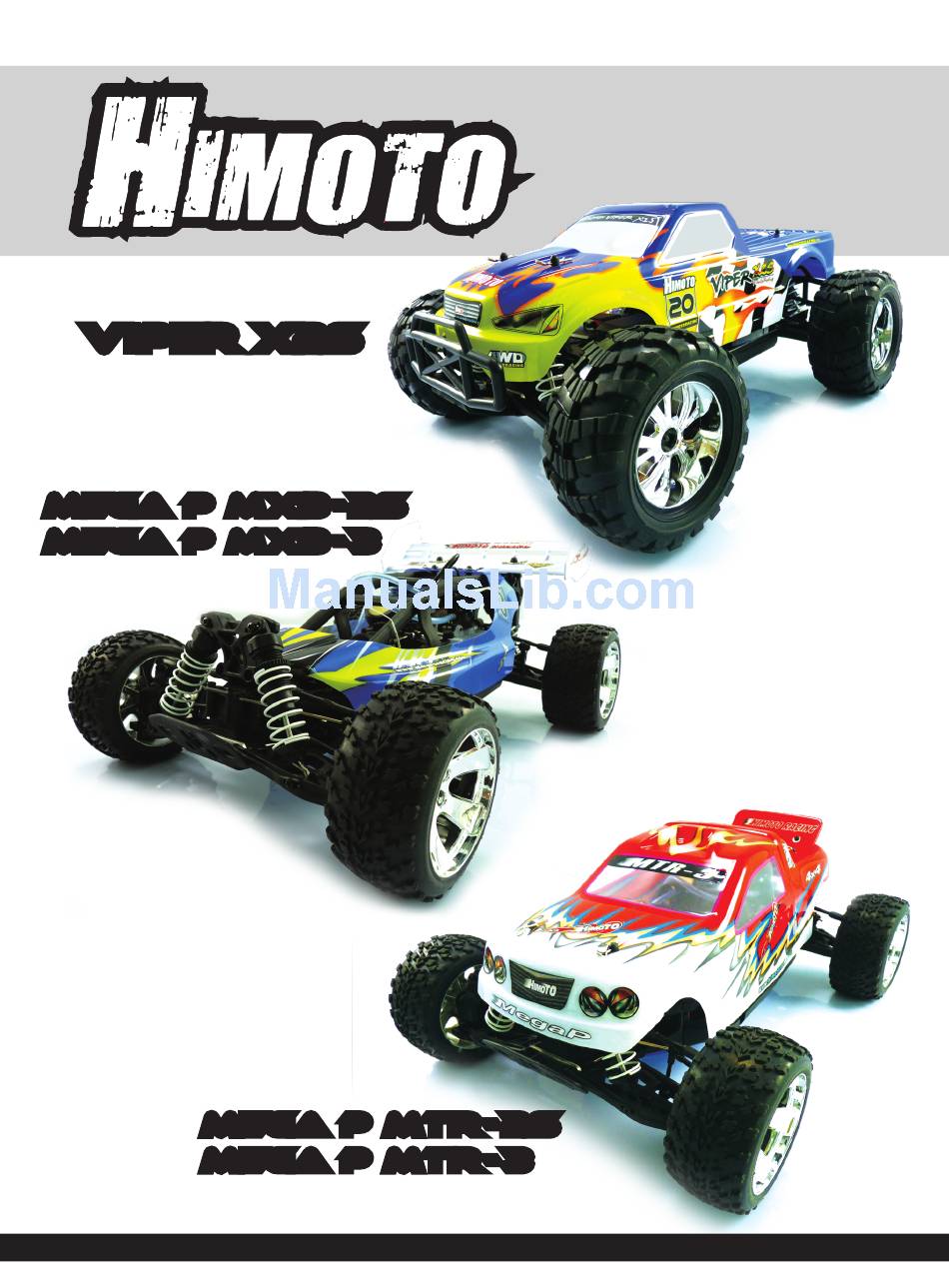

- Page 1 VIPER X2S VIPER X2S Monster Truck mega p mxb-2s mega p mxb-2s mega p mxb-3 mega p mxb-3 BUGGY mega p mtr-2s mega p mtr-2s mega p mtr-3 mega p mtr-3 TRUGGY...
- Page 2 Instruction Manual 1/10 4WD NITRO-POWERED OFF-ROAD MONSTER TRUCK VIPER X2S HI908T 2-Speed Transmissions 1/10 4WD NITRO-POWERED OFF-ROAD BUGGY MEGA P MXB-2S MEGA P MXB-3 HI905T 2-Speed Transmissions HI935T Three Differential Case 1/10 4WD NITRO-POWERED OFF-ROAD TRUGGY MEGA P MTR-2S MEGA P MTR-3...
- Page 3 Warning! Do not use a power screw driver to install screws into nylon or plastic materials. The fast locking may heat up the screws being installed that may break the molded parts or strip the threads during installion. IMPORTANT!!! Check all the screw are tight before playing the car! Use thread lock on all screws that work loose.
- Page 4 HTX-242 (Not Included) HTX-RX...
- Page 6 RC Operating Procedures 1. Load the battery on the transmitter. 2. Install the charged battery on the car. 3. Turn on the power switch before turning on the receiver. 4. Please raise the tires off the ground and check if the control is responding. 5.
- Page 7 Engine Tuning Guide High-speed Needle The “high-speed” needle is sticking up from the carburetor, This controls the fuel air mixture of the carburetor. The needle is pre-set for break-in from the factory at 2-1/2 turns out from fully closed,. Once the engine is broken-in, the high speed needle would typically run from 2 to 2-1/2 turns out from closed, depending on the weather, humidity and altitude above sea level.
- Page 8 STOPPING THE ENGINE Pinch the fuel line that runs to the carburetor. Pinching this line will restrict fuel flow and the engine will quit within a few seconds. Never place your finger over the exhaust to stop the engine. This could result in serious burns on your finger. It also causes fuel to back up in the engine, making it harder to start the next time you run your truck,.
-
Page 9: Tuning Tips
TANK 3 Lean the high-speed needle another 1/52 turn from ‘tank 2’setting . Run the car for the complete tank and then let it cool. TANK 4 Lean the high-speed needle another 1/2 turn from “tank3” setting. Run the car for the complete tank and then let it cool. - Page 10 OPTION PARTS MPO-01 MPO-02 MPO-03 MPO-04 MPO-05 C Hub, C Hub Pin, Wheel Hex Set Stainless Steel Stainless Steel Knuckle Arm Set Rear Hub Set Stainless Steel Shock Stay Mount MPO-06 MPO-08 MPO-09 MPO-10 MPO-11 Front Suspension Mount MPO-07 Special Brake Pads Rear Front Suspension Steel Brake Disk Stainless Steel Stainless Steel...
- Page 11 COMMOM PARTS 903-003 903-005 903-007 903-008 903-010 Shock Absorber Unit Suspension Arm Mount (Plastic) Brace 1P Body Clip 6P Upper Susp. Arm Set 2P Block 2P 903-011 903-012 903-013 903-014 903-015 Upper Susp. Arm Mount-Fr/Rr 2P Rim Hub W/Pin 2*10 4P Axle W/Pin 2P Ball Bearing 6*12*4 2P Fr/Rr Steering Arm 2P...
- Page 12 COMMOM PARTS 903-032 903-033 903-034 903-035 903-036 Receiver/Battery Case Upper Deck-Fr 1P Battery Case 1P Switch 1P Cover Handle 1P 903-037 903-038 903-039 903-040 903-042 Steering Servo Horn And Steering Servo Linkage Mount-A/B 2P Upper Deck-Center 1P Upper Deck Mount 2P Chassis 1P 903-043 903-044...
- Page 13 COMMOM PARTS 903-066 903-067 903-068 903-069 903-070 Flat Cross Screw Flat Cross Screw Flat Cross Screw Flat Cross Screw Flat Cross Screw (TPF3*14) 12P (TPF3*16) 12P (ISO3*10) 12P (TPF3*8) 12P (TPF3*10) 12P 903-071 903-072 903-073 903-074 903-075 B-Head Cross Screw B-Head Cross Screw B-Head Cross Screw B-Head Cross Screw...
- Page 14 COMMOM PARTS 903-092 903-093 903-094 903-095 903-096 Nylon SelfLock Nut Washer B (4.2*8*0.2) 12P (M4*4) 6P Double Way Ball End (7*8) 6P Set Screw M4*4 12P Set Screw M4*8 6P 903-097 903-098 903-104 903-105 903-106 Diff. Gearbox Bulkhead- Driving/Driven Gear, Diff.
- Page 15 903T 905T 908T 2speed 903-027 903-045 903-046 903-047 903-048 Throttle Servo Horn And Center Drive ShaftFr. 1P Linkage Set Center Drive ShaftRr 1P Center Gearbox Unit 1P Throttle Linkage Set 1P 903-056 903-099 903-100 903-101 903-102 Gearbox Bulkhead-Fr./Rr. Spur Gear 39T/Spring/Nylon Upper DeckRear 1P (Same As Rc-009F) 1P SelfLocknut...
- Page 16 t ruggy buggy/ buggy onl y t ruggy onl y 10712 903-006 10514 905-002 905-005 Truggy Body 1P Fr/Rr Body Mount 2P Buggy Body 1P Rollcage Beam-A/B/C Rollcage Set 10713 903-009 10515 905-003 905-006 Truggy Body 1P Fr. Bumper 1P Buggy Body 1P Tail Wing Mount Tail Wing 1P...
- Page 17 908t SPARE PARTS LIST 801-008 Fr/Rr Body Mount ( for 908T only) 903-060 Fuel Pipe 1P 901-066 Nylon Nut M3 5P 903-061 Rear Suspension Arm Pin-Short 4P 901-067 Antenna Pipe W/Cap 4P 903-065 Flat Cross Screw (TPF2.6*10) 12P 902-031 Air Filter W/Insert 1P 903-066 Flat Cross Screw (TPF3*8) 12P 902-051...
- Page 18 903t, 933T SPARE PARTS LIST 901-066 Nylon Nut M3 5P Rear Bumper 1P 903-062 901-067 Antenna Pipe W/Cap 4P Flat Cross Screw (TPF2.6*10) 12P 903-065 902-031 Air Filter W/Insert 1P Flat Cross Screw (TPF3*8) 12P 903-066 902-051 Screw BT3*10 12P Flat Cross Screw (TPF3*10) 12P 903-067 903-002...
- Page 19 905t, 935T SPARE PARTS LIST 901-066 Nylon Nut M3 5P 903-068 Flat Cross Screw (TPF3*14) 12P 901-067 Antenna Pipe W/Cap 4P 903-069 Flat Cross Screw (TPF3*16) 12P 902-031 Air Filter W/Insert 1P 903-070 Flat Cross Screw (ISO3*10) 12P 902-051 Screw BT3*10 12P 903-071 B-Head Cross Screw (BT2.6*6) 12P 903-002...
- Page 22 908t T RUCK explode diagram 903-055 HTX-RX 02060SH18B SERVO3KG SERVO3KG 10341L(White) 10351L(Blue) 10352L(Red) 02060SH18B...
- Page 23 903t 2speed 903-095 903-099 903-086 903-060 903-088 903-101 933t 3diff 903-086 903-099 903-082 903-090 t ruggy 903-036 903-100 903-074 903-102 903-003 903-093 903-008 903-022 903-086 903-007 903-005 903-006 903-098 explode diagram 903-103 903-005 903-103 903-073 903-007 903-012 903-069 903-083 903-087 903-008 903-013 903-091...
- Page 24 905t 2speed 935t 3diff bUGGY explode diagram 903-055 HTX-RX 02060SH18B SERVO3KG SERVO3KG 02060SH18B 10514(Red) 10515(Blue)
