Portable Stand Scanner

3R-SSA300

Manual

Table of Contents

Need help?

Do you have a question about the 3R-SSA300 and is the answer not in the manual?

Questions and answers

Summary of Contents for 3R system 3R-SSA300

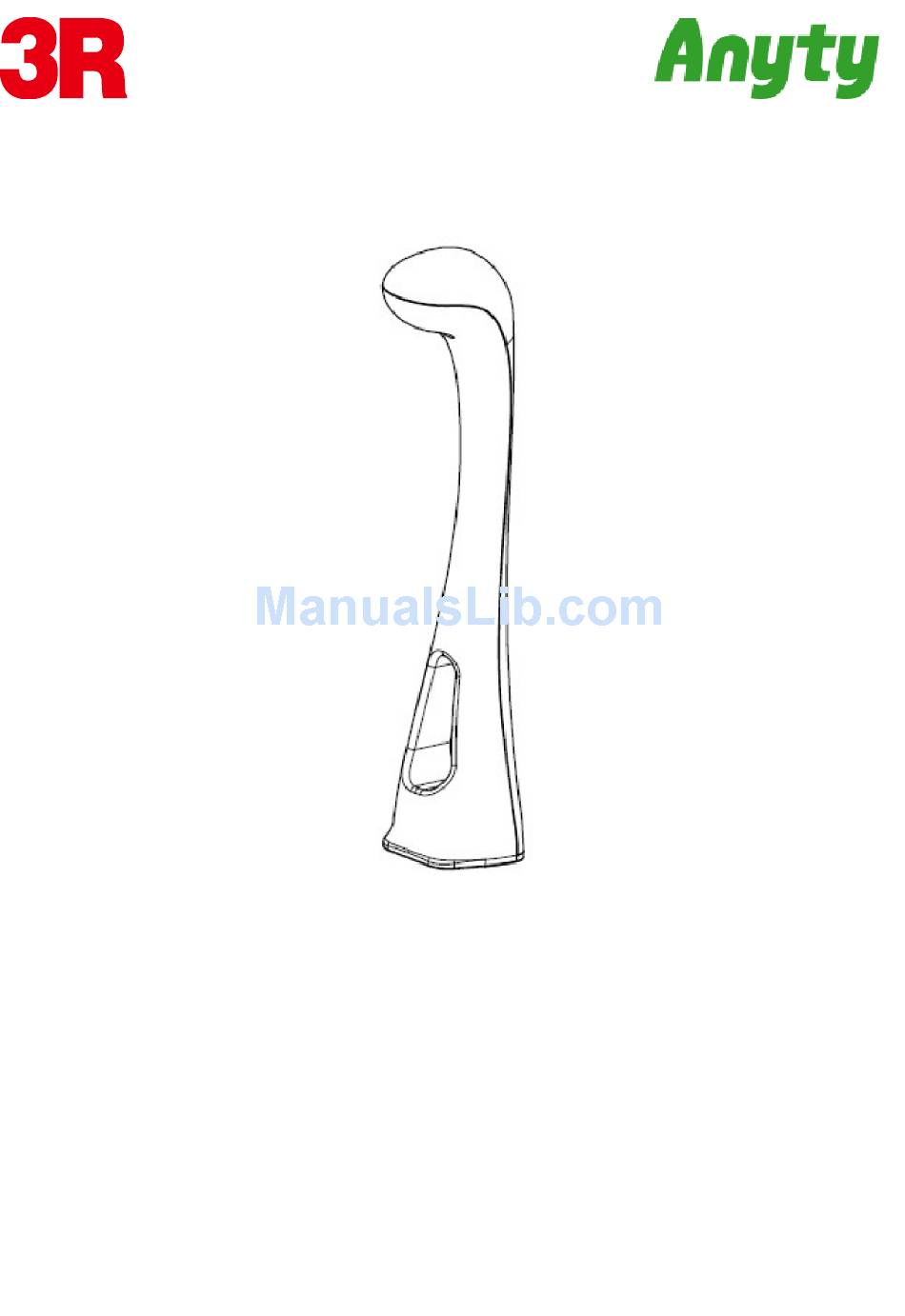

Page 1 Portable Stand Scanner 3R-SSA300 Manual...
Page 2: Table Of Contents
－ Index ― Contents Name of each parts Installation of Anyty Mini Scan Use Anyty Mini Scan（Setup and launch） Use Anyty Mini Scan（Capture tab, Image scan） Use Anyty Mini Scan（Preview scanned image and Editing） Use Anyty Mini Scan（Other function） Q&A Caution 10.
Page 3: Contents
● 3R-SSA300 ● Installation CD ● Manual（This book） Name of each part Name of each part of 3R-SSA300 is noted below. （Attention）The USB cable of this product could not be removed so please DO NOT pull it. Power lamp（inner） Sensor USB cable －...
Page 4: Installation Of Anyty Mini Scan
‘ ’ ‘ ’ （） ‘ ’ （） ① （）（）－－...
Page 5 ② Auto play will be launched. Please click ‘Open folder to view files’ ③Please click ‘install’ to start installation （Attention）UAC might be activated if you use Windows 7/Vista. Please press ‘Allow’ or ‘continue’ to start installation － 4 －...
Page 6 ④Install program will be launched. Please click ‘Next’. ⑤You need to select where to install first. Normally, press ‘Next’ and continue. － 5 －...
Page 7 ⑥Click ‘Next’ in next screen to start installation ⑦ The Window below will be shown as installation is complete. Please click ‘Close’ to finish install program － 6 －...
Page 8 ⑧As installation is complete, please connect Anyty Mini to your PC with USB port. That is all about set up. （ Attention ） If the device could not be identified properly, please see ‘Q&A’ on page 15. － 7 －...
Page 9: Use Anyty Mini Scan（Setup And Launch
Use Anyty Mini Scan（Preparation and launch） ①After completion of installing ‘Anyty Mini Scan’, please place 3R-SSA300 on somewhere flat and stable. Then put the object you want to scan as below. Scan Document （Attention）Please adjust the position of document after launch Anyty Mini Scan ②...
Page 10: Use Anyty Mini Scan（Capture Tab, Image Scan
Use Anyty Mini Scan(Scan preview, Image scan） ①The window of which is shown below will be shown when the Anyty Mini Scan is launched. The image through sensor will be shown at left side of the window and capture button. At the right hand side, the capture data and folders will be shown, The image under the scanner（Scan preview）...
Page 11 ②The contents of image tab will be change as you move the scan object. Let’s try scanning this time. Please click scan button. ③As you capture the image, the data will be saved. The saved data will be shown as thumbnail at right hand side of the Main window.
Page 12 ④You are able to adjust brightness and the direction by ‘Preview tool window’ under the Scan preview a. Quality adjustment You are able to adjust exposure, brightness, contrast and sharpness. To adjust exposure manually, please eliminate the check of ‘AE’ b.
Page 13: Use Anyty Mini Scan（Preview Scanned Image And Editing
Use Anyty Mini Scan （Preview and edition） ① Please double click thumbnail in ‘Browse’ to view captured data ※Switch the tab Click the name on the tab to switch between scan mode and preview mode. ②The ‘Picture tool window’ will be at bottom of the main window during preview mode.
Page 14 a. Clipping of the image To clip out only a necessary part from preview data, please click scissor icon. Preview data will go dark so please drag choose the part you want to clip out and double click to create clipped data.
Page 15: Use Anyty Mini Scan（Other Function
Use Anyty Mini Scan （ Other functions） Other functions are noted in this section a. Recording movie To record an animation with Anyty Mini Scan, please click red-round button next to scan button. It will start recording image under the sensor as movie. To stop recording, please press the button once again.
Page 16: Caution
Q&A Q. Install program does not activate. →Installation program or installation data might be blocked if anti-virus software is active. Please disable the anti-virus software and try again. →You might need to grant permission to install the software. In this case, please take counsel with your system manager.
Page 17: Spec
Spec Product specification Image sensor 5 million pixel CMOS sensor Light source Ambient light Corresponding color 24bit Corresponding size Maximum A4 size Resolution Maximum 2592x1944 pixel Saving format（picture） JPEG、PNG、BMP、TIFF Saving format（Movie） Other functions Save as PDF Interface USB2.0 Power USB Port Shape（Unfold）...
