Summary of Contents for Global CR728W

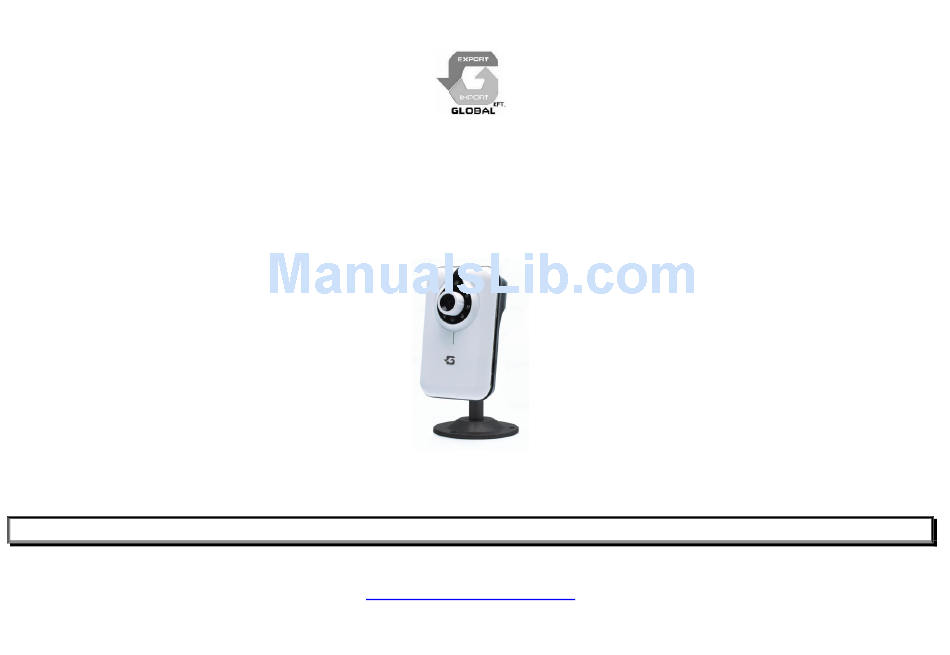

- Page 1 Quick Guide P2P IP Cameras ART. NO. CR728W This Quick Guide is to help you set up your IP camera in a basic manner. Please see the Compelete User Manual in included CD for more detailed instructions. THANK YOU FOR YOUR PURCHASING OUR PRODUCT...
- Page 2 PRODUCT SPECIFICATIONS Model NO. CR728W Image Sensor 1/6" Color CMOS Sensor Compression MJPEG simple stream Resolution VGA（640*480）/QVGA（320*240）optional TF Card Record Suport Max. 32GB Lens Fixed 4mm Mini Sensitivity 0Lux ( IR ON ) / 0.5Lux ( Normal ) 8 × Ф3...
-
Page 3: Product Appearance
1. Product Appearance LENs CDS sensor TF card slot IR LED light (Optional) Microphone Bracket Indoor Model Alarm Output Ground: left 1 Alarm Output +5V: left 2 Alarm Input +5V/+3.3V: left 3 Alarm Input Ground: left 4 (Optional) RESET Button RJ45 Net AUDIO AUDIO... -
Page 4: Hardware Connection
3. Hardware Connection Please refer to below picture to connect camera and router. Modem Router Internet 4. View from Computer Client For Windows, insert CD and double click to install Windows Client software. If you are outside without the CD, or your PC Client is old version, go to www.myp2pcam.com and click to download the newest version Windows client. - Page 5 (Picture 1) (Picture 2) (Picture 3) Secondly, double click the camera ID of the WAN for monitoring. (Picture 4). (Picture 4) Blue shows the camera is online. Red shows the video is being monitored. Grey shows the camera is offline. 5.
- Page 6 (Picture 5) (Picture 6) 6. View from Mobile Phone 1) Search app keyword “MyP2PCam” on PlayStore or AppleStore to download app and installed on your Android Phone or iPhone. 2) Open the app in your phone. Press “SCAN” button to scan the barcode on the camera to login. Or enter your “User Name” and “Password” on the camera and click “Login”...
- Page 7 (Picture 7) (Picture 8) 7. View from Browser (For IE and FireFox browser only) on your browser. For FireFox browser, Click “How to make firefox to support OCX plugin” to setup. 1) Input www.myp2pcam.com 2) Enter your “User Name” and “Password” on the camera and select your language, then click “Login” button to login.
-
Page 8: Email Alert
3) Allow to run the ActiveX. Click “View Video” button to view video. 8. Email Alert Enter software interface and click “LAN” button, right click the camera icon and select “Alarm Alert” (Picture 9). Select “Motion detection”, input Receiver E-mail, Sender E-mail, SMTP user, SMTP password. - Page 9 13). Select the “Start time” and “End time” and press “Search” button find recorded files in the SD card. And In all cases, for more details, please refer to the electronic user manual on the CD. Thank you! COUNTRY OF ORIGIN: CHINA IMPORTER / DISTRIBUTOR: GLOBAL EXPORT – IMPORT LTD. http://www.global-export-import.eu...
