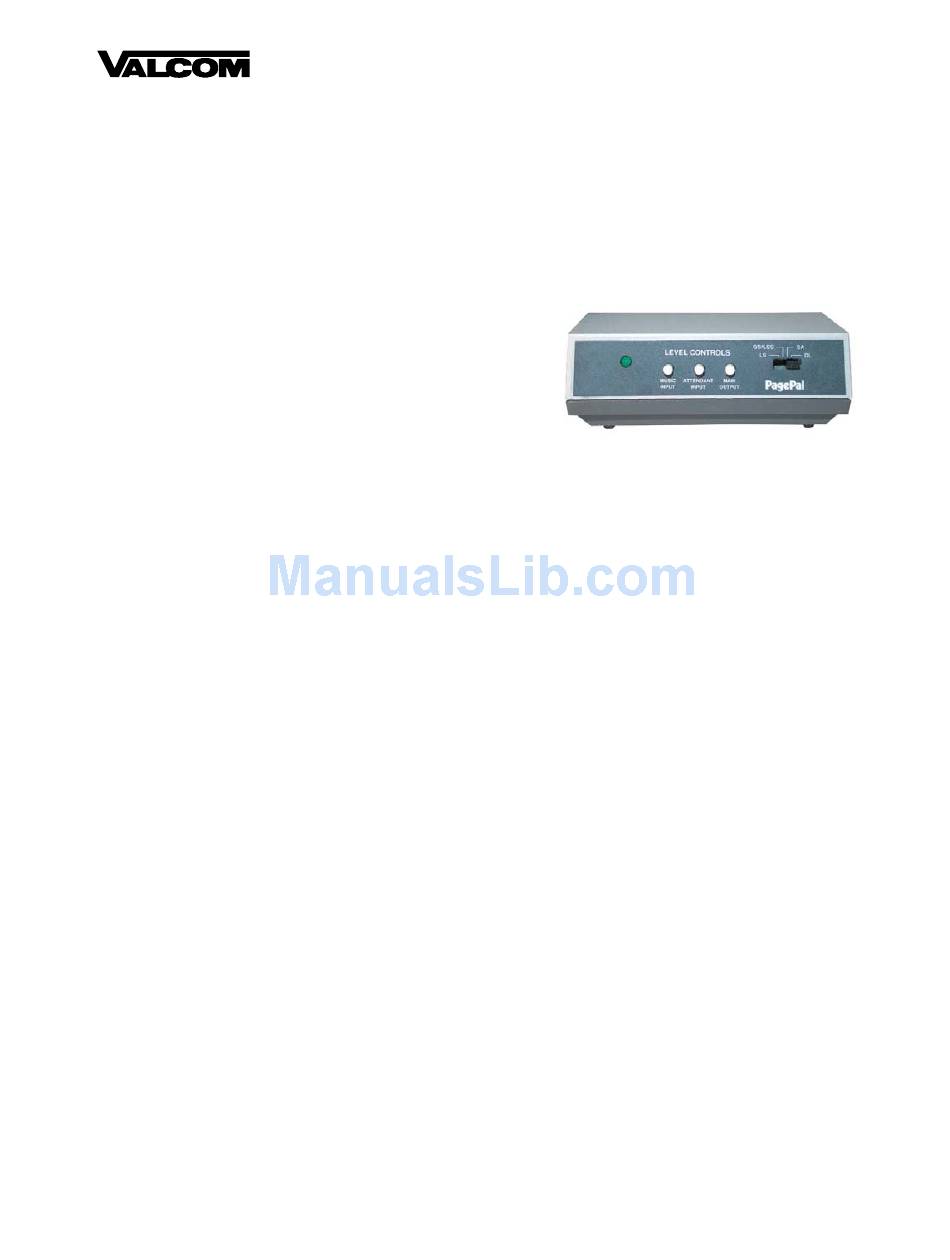

INTRODUCTION
®

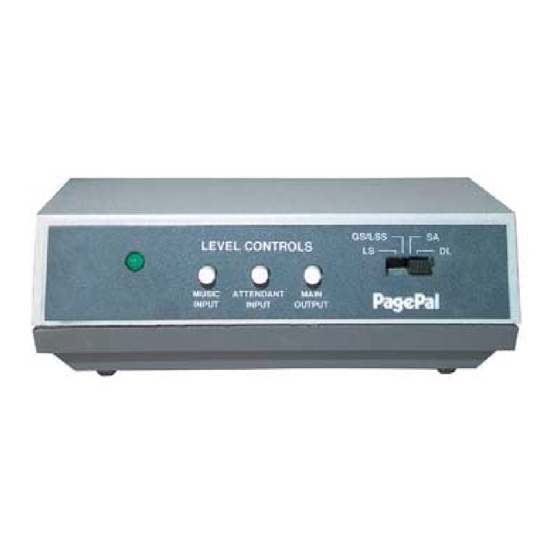

The PagePal unit interfaces most telephone
systems (PBX, KTS, Centrex) to virtually any
public address audio system. In addition,
PagePal furnishes inputs for customer provided
background music and auxiliary inputs (such as
an attendant microphone, a radio receiver,
recorded announcements). Control inputs are
provided for tones generated by the PagePal.
PagePal can be placed on a desk or shelf or
mounted to a wall.
Note: Only line level microphones may be used
with PagePal.

SPECIFICATIONS

FEATURES
• Telephone Access from:
- Loop start trunk port
- Ground start trunk port
- Analog PBX station, Centrex or CO lines
- Dry loop page ports (4-wire) with contact
closure
• Level controls to set attendant input and
background music, relative to telephone level
• Simplified connections via modular telephone
jack and lugless terminal block

Power Requirements

• Included power supply plugs into standard
AC outlet
Dimensions/Weight
• 2.50"H x 6.00"W x 4.00"D
(6.35cm x 15.24cm x 10.16cm)
• 2.0 lbs. (0.91 kg)
Environment
• Temperature: 0 to +40°C (+32 to +104°F)
• Humidity:
PAGEPAL
V-5335700
OPERATION
Inputs are routed to the output with the following
priority (highest to lowest):
1. Attendant access for emergency
announcements
2. Telephone access for general paging
3. Alert Tone 1 (Siren) for evacuation warning
4. Alert Tone 2 (Chime) for time clock, door bell,
security alert, etc
5. Night bell for after-hours calls to ring over the
public address system
6. Music input for background music
7. Override or busy tone is returned to the
telephone user if a higher priority input is
active
8. Call confirmation and preannouncement
tones may be optioned
9. An optional contact closure output is
provided to control auxiliary equipment
(music/page switching, recorder logging, etc)
10. Station access mode features:
- VOX (Voice Operated Switch)
- Maximum length off-hook timer
- Responds to open loop disconnect
- Dial tone detection and disconnect
11. Loop Start Supervised (LSS) access mode
provides VOX and maximum length off-hook
timers for use with a Loop Start Trunk Port
5 to 95%
