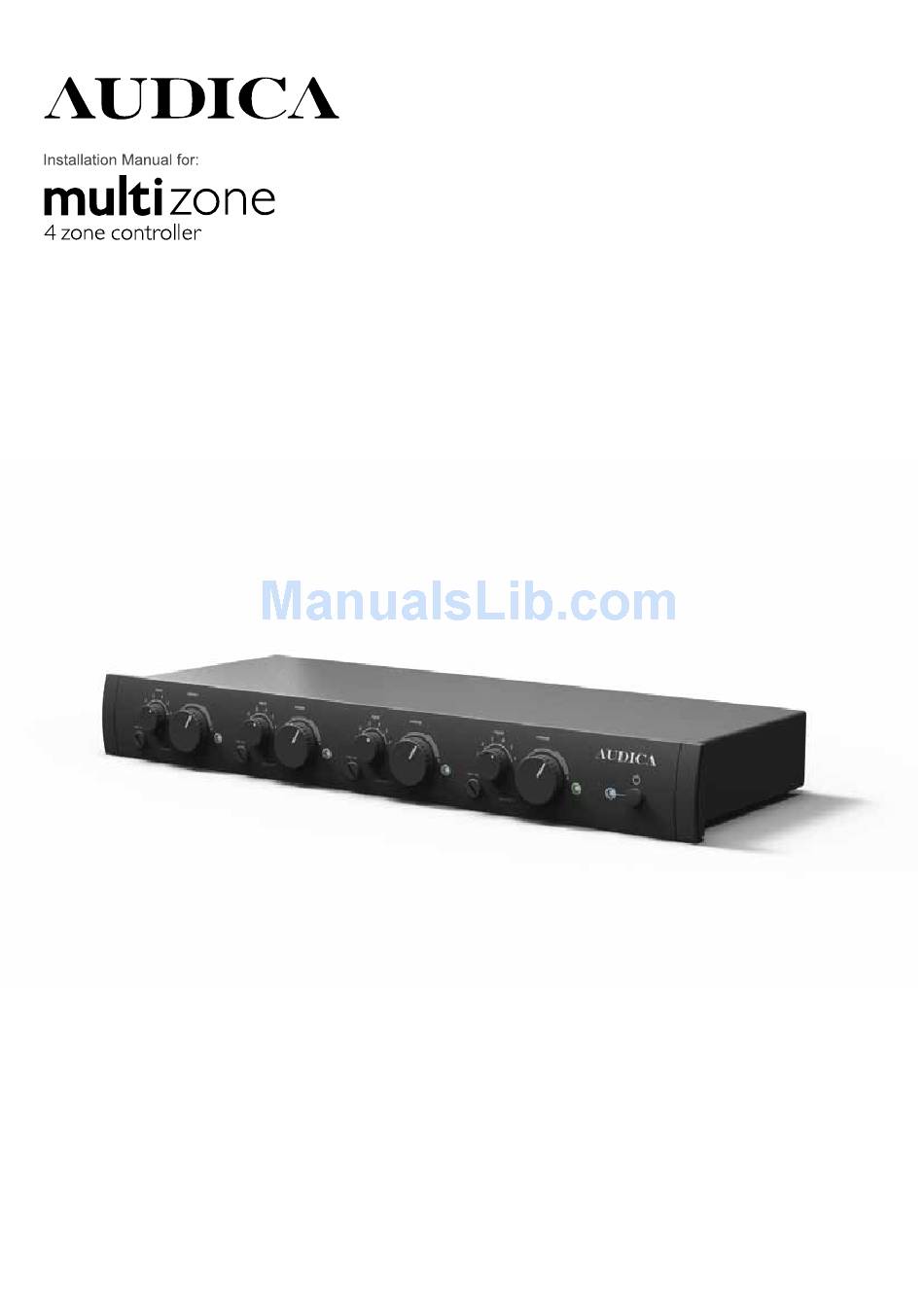

Audica multizone Installation Manual

4 zone controller
Hide thumbs Also See for multizone:

Advertisement

Quick Links

Download this manual
Designed and engineered in the United Kingdom

Advertisement

loading
Need help?

Need help?

Do you have a question about the multizone and is the answer not in the manual?

Questions and answers

Related Manuals for Audica multizone

Summary of Contents for Audica multizone

  • Page 1 Designed and engineered in the United Kingdom...
  • Page 2 LOOP input and output connections Appendix 4 RS-232 Interface Appendix 5 Operation with Audica Speaker Eq and Subwoofer Read these instructions. POWER CORD PROTECTION – Protect the power cord from being walked on Keep these instructions. or pinched, particularly at plugs, convenience receptacles, and the point Heed all warnings.

  • Page 3: Overall Description

    Overall Description: The Audica Professional MULTIzone is a zone control mixer with 4 zone outputs and 6 music inputs plus a microphone input for paging applications. Each of the 4 zone outputs can be independently con gured to provide music from one of the inputs plus the paging microphone, with the relative levels set by front panel controls.

  • Page 4: Front Panel Controls

    Four mono RCA phono sockets carry the Zone (Line) outputs. socket outlet with a protective earth connection. Each Zone Output can be selected to have a at frequency response or the Audica speaker EQ (AEQ) equalisation (see b) Line Inputs page 6 ).
  • Page 5 g) Microphone Input g4) BASS An XLR balanced input for a paging microphone. A 48V Low-mid tone control on microphone channel (centred at “phantom power” option is provided for active or condenser 150Hz). microphones – selected via the DIL switch (see next page). The microphone signal can be processed in various ways g5) DUCKER –...
  • Page 6 Appendix 5. **In a system with only a single MULTIzone unit, if DIP switch 5 is set ON then any microphone signal will “duck” the music signal in whichever zone(s) the microphone level is set above zero – but the microphone signal will not be heard.
  • Page 7 These are 15-pin D-type connectors (male for Loop out, female for Loop in) for looping the audio inputs (and optionally Mic, Mute and RS-232) to other units. Up to a total of 7 MULTIzone units can be linked in this way. When a unit has a loop cable connected to its LOOP IN socket it becomes a “Slave”.

  • Page 8: Appendix 1 Microphone Compressor And Ducker Operation

    Appendix 1 Microphone compressor and ducker operation A variable compressor e ect is provided to help level out di erences in loudness caused by di erent microphone users. This also helps prevent overload of the loudspeakers from any knock or pop noises received by the microphone or the di ering mic technique of various users.

  • Page 9: Appendix 4 Rs-232 Interface

    RS-232 control source. If this feature is required, then the user simply sets the RS-232 source to “LOOP” via the rear panel switch (DIP switch #4) and assigns a di erent address for each MULTIzone unit (DIP switches 1, 2 and 3). RS-232 data is then relayed to each looped unit using the same cable as the signal loop-through.
  • Page 10 Zone command format As a number of MULTIzone units can be looped together the zone command should refer to the absolute zone within the loop. i.e. in a system with three MULTIzone units, zone 2 of unit 3 would be referenced as zone 10.
  • Page 11 > Mutes every zone on every unit When MULTIzone is powered on, the previous status of the unit will be restored. If a particular zone of the unit was previously in RS-232 mode the particular settings for that zone will be restored, e.g. the source input, volume level, or mute. Alternatively, if a...

  • Page 12: Appendix 5 Operation With Audica Speaker Eq And Subwoofer

    Connect the WMC using a special RJ-45 remote control cable (wired as a simple “Y” – see below) to two remote control inputs on the MULTIzone (in this case Zones 1 and 2). Then set speaker EQ OFF on Zone 1 (DIP switch #7 OFF) to drive the subwoofer and EQ ON on Zone 2 (DIP switch #8 ON) to drive the full-range speaker.
  • Page 13 CASCADE 2 ZONES SOURCE Input gain ZONE 1 ZONE 1 Source signal Z1 output to Subwoofer Select set to suit Speaker Eq Volume Control 1 - 5 only source is “Master” Z1 output also to input 6 Z2 output SOURCE Set Input 6 ZONE 2 ZONE 2...
  • Page 16 w w w.audic ap ro.co. u k Our policy is one of continuous product improvement, we reserve the right to change the designs and specications without notice. All information is given in good faith. The manufacturer accepts no responsibility for errors, omissions or incorrect assumptions. This symbol means do not dispose of as municpal waste.
