Intelimax MA-2060 User Manual

M2m 3g serial modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Intelimax LITE User Manual
V1.02
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-2060 and is the answer not in the manual?

Questions and answers

Related Manuals for Intelimax MA-2060

Summary of Contents for Intelimax MA-2060

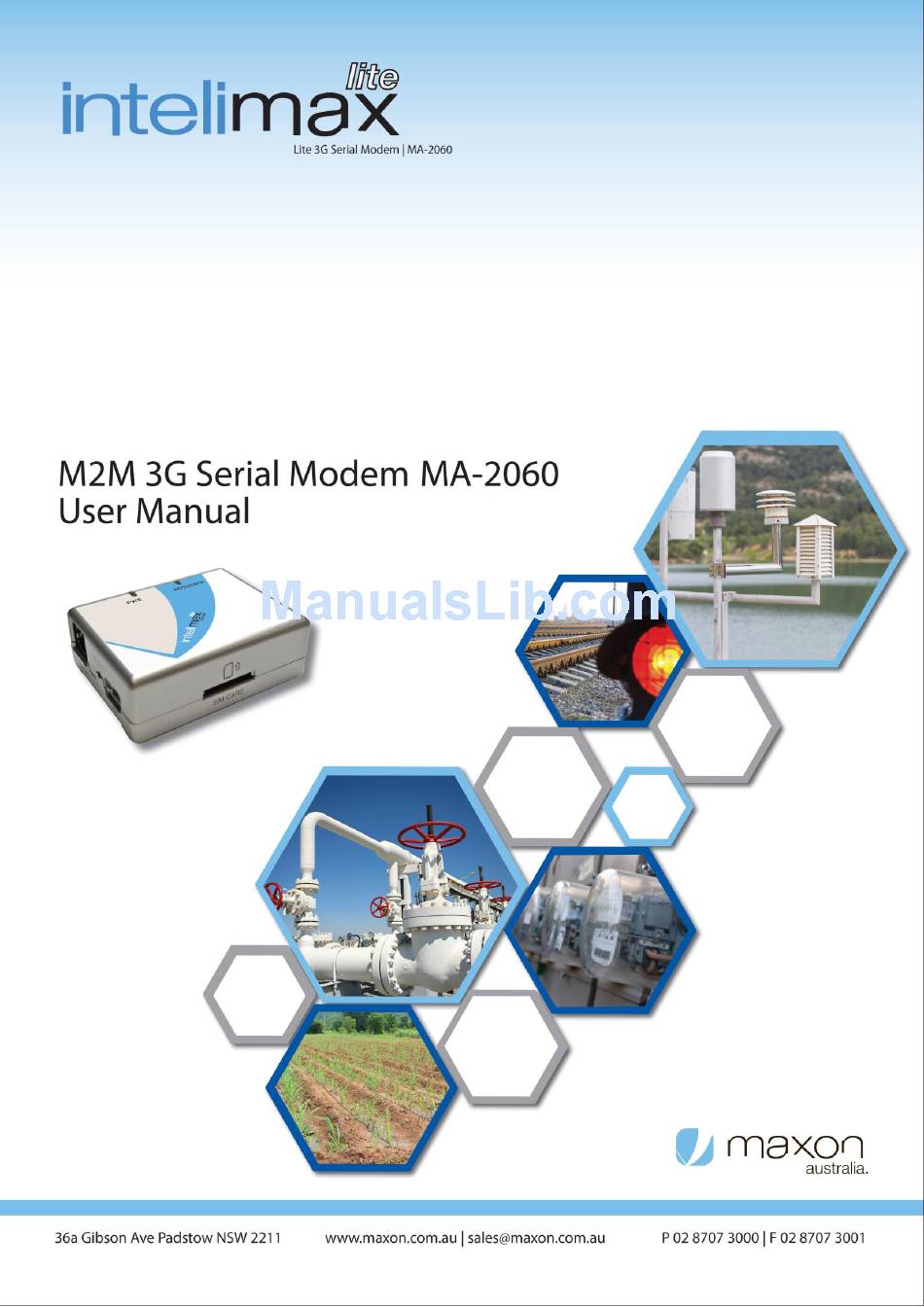

  • Page 1 Intelimax LITE User Manual V1.02 - 1 -...

  • Page 2: Table Of Contents

    INTRODUCTION ..................- 11 - Overview ..................- 11 - Intelimax LITE Features ..............- 11 - INTELIMAX LITE SET UP ............... - 13 - CONNECTING THE INTELIMAX LITE ............- 14 - Bootup Process ................- 14 - Serial Port Connection ..............- 14 - Remote Connection .................
  • Page 3 Intelimax LITE User Manual V1.02 Remote Connection Checking ............- 37 - REMOTE CHANGE FROM CSD MODE TO IP MODE ........- 38 - EXTENDED / INTELIMAXLITE SPECIFIC AT COMMAND SET (IP STACK MODES) ....................- 40 - EXTENDED / MODEM SPECIFIC AT COMMAND SET ........ - 48 -...

  • Page 4: Contact Information

    Intelimax LITE User Manual V1.02 C O N T A C T I N F O R M A T I O N In keeping with Maxon's dedicated customer support policy, we encourage you to contact us. TECHNICAL: Hours of Operation: Monday to Friday 8.30am to 5.30pm*...

  • Page 5: Rf Exposure & Electrical Safety Compliance

    Intelimax LITE User Manual V1.02 R F E X P O S U R E & E L E C T R I C A L S A F E T Y C O M P L I A N C E The use of this device in any other type of host configuration may not comply with the RF exposure requirements and should be avoided.

  • Page 6: General Safety

    Intelimax LITE User Manual V1.02 General Safety RF Interference Issues: Avoid possible radio frequency (RF) interference by carefully following safety guidelines below: Switch OFF the modem when in an aircraft. The use of cellular telephones in  aircraft is illegal. It may endanger the operation of the aircraft and/or disrupt the cellular network.

  • Page 7: Vehicle Safety

    Intelimax LITE User Manual V1.02 * The product needs to be supplied by a limited power source or the power supply provided. Otherwise, safety will not be ensured * Do not fixed the product in an open area where it is liable to lightning strike hazard.
  • Page 8 Intelimax LITE User Manual V1.02 Areas when the air contains chemicals or particles such as grain, dust or metal  powders Avoid using the modem in areas that emit electromagnetic waves or enclosed  metallic structures e.g. lifts. Any other area where you would normally be advised to turn off your engine ...

  • Page 9: Revision History

    Intelimax LITE User Manual V1.02 R E V I S I O N H I S T O R Y Product Intelimax LITE M2M 3G Serial Modem Model MA-2060 Document Type Current Version Number 1.02 Status of the Document Preliminary Release...

  • Page 10: Disclaimers

    Intelimax LITE User Manual V1.02 D I S C L A I M E R S All data and information contained in or disclosed by this document are confidential and proprietary information of Maxon Australia, and all rights therein are expressly reserved.

  • Page 11: Introduction

    V1.02 I N T R O D U C T I O N Overview Intelimax LITE is a unique and intelligent fusion of 3G capabilities with advanced functionality of a modem/router in a smart and compact design. Intelimax LITE Features General Features HSPA Wireless Module (7.2Mbps downlink, 5.6Mbps uplink)
  • Page 12 Intelimax LITE User Manual V1.02 Dimensions 71mm x 55mm x 26mm (without side brackets and antenna)  Connections RJ45 Connection  USB Connection  SIM Card Holder  Antenna connector: SMA female  Mounting Side mounting brackets  LED Lights Power ...

  • Page 13: Intelimax Lite Set Up

    I N T E L I M A X L I T E S E T U P Maxon Intelimax LITE serial modem supports a Winodws GUI, where by you can configure the modem via serial connection or remotely via the WAN IP.

  • Page 14: Connecting The Intelimax Lite

    8 bit Parity: None Stop bit: 1 bit Flow control: None Make sure to select the correct COM port and click the open button, the Intelimax LITE GUI will connect to the modem via the selected COM port. - 14 -...

  • Page 15: Remote Connection

    Intelimax LITE User Manual V1.02 Remote Connection Users can also access the Intelimax remotely via a static IP address (e.g. maXwan) or public dynamic (e.g. telstra.extranet APN) with IP address recovered using SMS, INTELIMAX.PARK.WANIP. - 15 -...

  • Page 16: Modem Configuration

    Intelimax LITE User Manual V1.02 M o d e m C o n f i g u r a t i o n Modem Status The modem status page displays modem information such as network registration and WAN connectivity status.
  • Page 17 Intelimax LITE User Manual V1.02 Module Version: Cellular engine’s firmware version Network registration: Shows registration status and carrier Network Band: Shows Network band in use PIN Status: Status of the SIM pin setting Area information: LAI, LAC, Cell ID Signal Level: Current signal strength in dBm.

  • Page 18: Wan Configuration

    (AUTO), be prompted to connect via AT commands (MANUAL), or work in pass through mode. The Intelimax LITE supports 3 operating modes: 1. IP Stack Auto (Modem connects to the 3G networks and acquires an IP address and then runs the IP STACK server or client mode) 2.
  • Page 19 Intelimax LITE IP Stack can be configured as a Server or Client mode. In Server mode the Intelimax LITE will act as a socket server. The modem will listen on a specific TCP/UDP port waiting for an incoming client socket connection.
  • Page 20  APN and dialup string  Username and password for IP WAN  Auto pin settings (Intelimax LITE will enter the PIN code if SIM pin is Enabled)  network authentication information  Band – At least one GSM band and one WCDMA band must be selected ...

  • Page 21: Serial Configuration

    Serial port speed setup should be set to match host (connected via serial port) configuration. With certain applications there may be a need to fabricate a custom serial cable to work between the host and the Intelimax LITE. The custom serial cable depends on the equipment requirements and settings.
  • Page 22 Specific AT Command Set”. Boot up Message The Intelimax boot up message “INTELIMAX READY” is a message that the modem sends to the host via serial port upon boot up. Using this option the user can disable or enable this message.

  • Page 23: Ip Stack Configuration

    IP Stack supports TCP and UDP, depending on your application requirement you can choose between TCP and UDP communication Mode Intelimax LITE supports two IP Stack operation modes: Server mode: In Server mode the modem will connect to a PPP session and will listen on a predefined port for incoming client requests.
  • Page 24 PPP connection, reboot and start all over again. Primary Server Define the IP Address or DNS address of the primary server the Intelimax LITE will try to connect to in Client mode, in server mode please leave this field as default.
  • Page 25 Intelimax LITE User Manual V1.02 Network Dormant Period or alternatively specify Wake up time in seconds. Network Dormant Period: By default the network puts the modem in dormant or standby mode within 20 seconds of no data activity. Keep Alive:...

  • Page 26: Admin Settings

    Intelimax LITE User Manual V1.02 Admin Settings System log  System log allow saving/viewing system logs plus enabling the remote system log function and UDP server IP address.  Save system logs in the internal memory by enabling System logs ...

  • Page 27: Save And Apply Configurations

    Intelimax LITE User Manual V1.02 Save and Apply Configurations Save Config to Modem When modem configuration is changed via GUI, users have to click the button to save the changes so that they will not be lost after reboot. It is recommended that users do save on every change being made as GUI reloads the status and configuration from modem every 15 seconds.

  • Page 28: System Information And Functions

    V1.02 System Information and Functions Output Info Output Information provides connection information to the Intelimax LITE over either COM port or IP WAN. The output information can be cleared or saved to a text file by the provided two buttons...
  • Page 29 Intelimax LITE User Manual V1.02 IP Stack Functions This is to provide a convenient way to send IP Stack related AT commands to the COM port via GUI. IP Stack Connect AT Command AT$$IPCTOS IP Stack Disconnect AT Command AT$$IPCTCS IP Stack Connect Button When IP Stack is Manual Mode, connect without AT Command input.
  • Page 30 Save the current modem configuration to Profile. Load Profile Load the saved Profile to the modem. Please note that users have to click “Save Config to Modem” to save the configuration to modem. Factory Setting Restore factory settings to Intelimax LITE. - 30 -...

  • Page 31: Firmware Upgrade

    Remote firmware upgrade (FOTA) Remote firmware upgrade is achievable via the GUI using a remote connection to the Intelimax Lite. The Intelimax Lite WAN IP address can be obtained with the SMS INTELIMAX.PARK.WANIP. To Upgrade the Intelimax LITE’s firmware, Click ‘F/W Upload’ button and select firmware file and open the file, the uploading screen appears.

  • Page 32: Local Firmware Upgrade

    Intelimax LITE User Manual V1.02 Local firmware upgrade Local firmware upgrades can be achieved by the following process. The exact files names and types to be confirmed by Maxon when firmware is provided. 1. Install Cinterion MES software. 2. Connect modem to PC using USB 3.

  • Page 33: Sms Commands

    INTELIMAX.PARK.RSSI SMS Commands in Serial Modem mode The Reboot and RSSI Intelimax LITE SMS command can be used to reboot the modem when in serial modem mode. For this to happen, the modem must be told to intercept the SMS messages using the AT$$STEALTHSMS command via serial port in advance.

  • Page 34: Change Mode Via Sms

    Intelimax LITE User Manual V1.02 Reboot Intelimax  SMS Syntax: INTELIMAX.PARK.REBOOT RSSI Info  SMS Syntax: INTELIMAX.PARK.RSSI  AT$$STEALTHSMS? $$STEALTHSMS: 0 AT$$STEALTHSMS=0 AT$$STEALTHSMS=1 – modem to intercept SMS reboot message (not others) Note SMS control commands in Serial Modem mode will be available in...

  • Page 35: Led Functionality

    Intelimax LITE User Manual V1.02 L E D F U N C T I O N A L I T Y Description Signal Strength Power LED Data LED IP STACK IDLE SIGNAL >= -84dBm IP STACK ONLINE SIGNAL >= -84dBm...

  • Page 36: Modem Debugging

    Intelimax LITE User Manual V1.02 M O D E M D E B U G G I N G Local Connection Checking In order to verify that the modem is operating correctly locally, follow the below steps: 1. Check that modem Power LED is either solid on or mostly on. The better the signal strength the more time the Power LED will stay on.

  • Page 37: Remote Connection Checking

    3. In either mode, send diagnostic SMS commands to the modem as below: a. Check RSSI: By sending INTELIMAX.PARK.RSSI to the modem, the modem will respond with the RSSI which should be better than -81 dBm. b. Check APN and WAN connection using: INTELIMAX.PARK.WANIP. The response “IP:<IP.IP.IP.IP>,APN:<APN>,ID:<ID>,PW:<PW>,Auth:<PAP,...

  • Page 38: Remote Change From Csd Mode To Ip Mode

    Dial out to the modem via a command line terminal session to your data modem using the data number of the SIM card in the Intelimax Lite. The sting will be as follows: ATDT0400123456. Once the ‘CONNECT’ message has been displayed you are connected.
  • Page 39 Once the modem reboots (approximately 2 minutes) if a public dynamic IP address has been used it can be found using the following SMS to the phone number (not data number) of the SIM in the modem: INTELIMAX.PARK.WANIP - 39 -...

  • Page 40: Extended / Intelimaxlite Specific At Command Set (Ip Stack Modes)

    Intelimax LITE User Manual V1.02 E X T E N D E D / I N T E L I M A X L I T E S P E C I F I C A T C O M M A N D S E T ( I P S T A C K M O D E S )
  • Page 41 0,1 Disable/Enable Reset (TCP Server Listening) – Server – If enabled will wait until client drops connection 0,1 Disable/Enable Reset (TCP Connected State) – Client – If enabled will wait until Intelimax client drops connection to a server or server drops connection 0,1 Disable/Enable Reset (At scheduled Time) HH:MM for Reset (At scheduled Time) Battery (12.3 volts ON, 11.9 volts OFF)
  • Page 42 Intelimax LITE User Manual V1.02 0,1~100 LCP Echo Failure Periodic reset AT$$RESET=24 $$RESET: 24 Parameters $$RESET: X 0 ~ 24 Hours of Periodic reset IP Stack setting AT$$WANSI? $$WANSI: 1,1,1,0,0.0.0.0,0.0.0.0,30000,1,300,20,0,0 Parameters $$WANSI: X,X,X,X,X,X,X,X,X,X,X,X 0, 1,2 None/Server/Client 0,1 Disable/Enable Notify Boot Message...
  • Page 43 Intelimax LITE User Manual V1.02 System AT$$SYSTS? $$SYSTS: admin,admin,Enable,23,Enable,Disable,192.168.0.50,Disable,+61427933242,+6142793324 2,+61427933242 Parameters $$SYSTS: X,X,X,X,X,X,X,X,X,X,X UserName Password 0,1 Telnet Disable/Enable Telnet Port Number 0,1 Syslog Disable/Enable 0,1 Remote syslog Disable/Enable Remote syslog server address 0,1 SSH Disable/Enable Phone number of Administrator Phone number of Administrator...
  • Page 44 Intelimax LITE User Manual V1.02 None, Hardware Flow control 0 Don’t Care Half, Full Duplex RS485 Engine Band AT$$BAND? $$BAND: 40000000 Parameters $$BAND: 1: GSM 850 2: GSM DCS SYSTEMS 4: GSM EGSM 900 8: GSM PGSM 900 10: GSM RGSM 900...
  • Page 45 Intelimax LITE User Manual V1.02 Check WAN IP address AT$$WAN $$WAN: 123.209.0.204 Signal Strength AT+CSQ? +CSQ: 17,99 Open PPP connection AT$$IPCTOP Close PPP connection AT$$IPCTCP Open TCP/UDP Socket AT$$IPCTOS Close TCP/UDP Socket AT$$IPCTCS Change Remote Server IP address AT$$IPCTRIP=0,ip,ad,dr,ess,<port> Example: AT$$IPCTRIP=0,123,456,789,01,30000 Change client/server mode AT$$IPCFL=4,<0,1>...

  • Page 46: Save And Reboot

    Intelimax LITE User Manual V1.02 IPStack Connection Settings AT$$IPSCFG? $$IPSCFG: 30,100,300 AT$$IPSCFG=? $$IPSCFG: X,X,X IPSTACK SEND DELAY: 1 ~ 2000 msec IPSTACK BUFFER SIZE: 32 ~ 1450 bytes IPSTACK SOCKET TIMEOUT: <0,10~3600> sec PPP DISCONNECT TIMEOUT: <0,30~3600> sec AT$$IPSCFG=30,100,200,301 AT$$IPSCFG?
  • Page 47 Intelimax LITE User Manual V1.02 Factory Reset AT$$FACTORY at$$factory Prepare modem for hard shutdown AT$$RTD This function is highly recommended when using the modem with an external controlled power supply. If the modem is going to have its power dropped regularly this AT command allows for the processor to perform housekeeping duties to ensure that the shutdown process does not damage the modem or internal cellular module.

  • Page 48: Extended / Modem Specific At Command Set

    Intelimax LITE User Manual V1.02 E X T E N D E D / M O D E M S P E C I F I C A T C O M M A N D S E T Modem Config...
  • Page 49 Intelimax LITE User Manual V1.02 Initiate a Data Call Command  Command ATD<phone_number>  CONNECT (Data call connected) Notify  Connect <Speed> if connect_baud is set. NO CARRIER (Data call failure) phone_number: for Packet Switched Data: *99# (Australia – requires authentication)
  • Page 50 Intelimax LITE User Manual V1.02 Getting S0 value in serial modem mode Please use ATS0? Command to get the S0 value. AT&V command will give you incorrect S0 Value: ATS0=2 ATS0? Single SMS AT command AT+MMC SMSMO <Phone number> <message><CR>...
