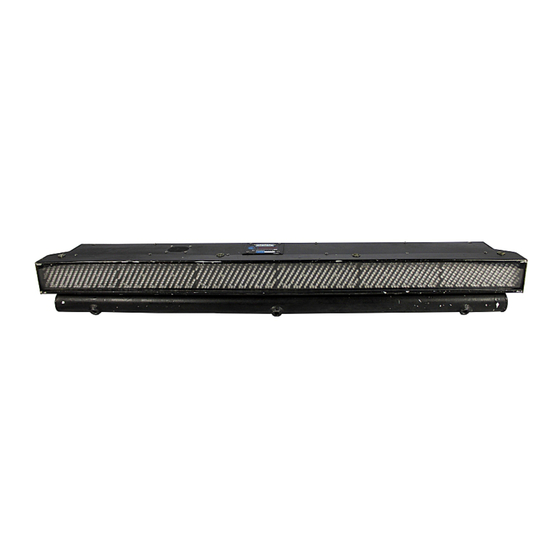

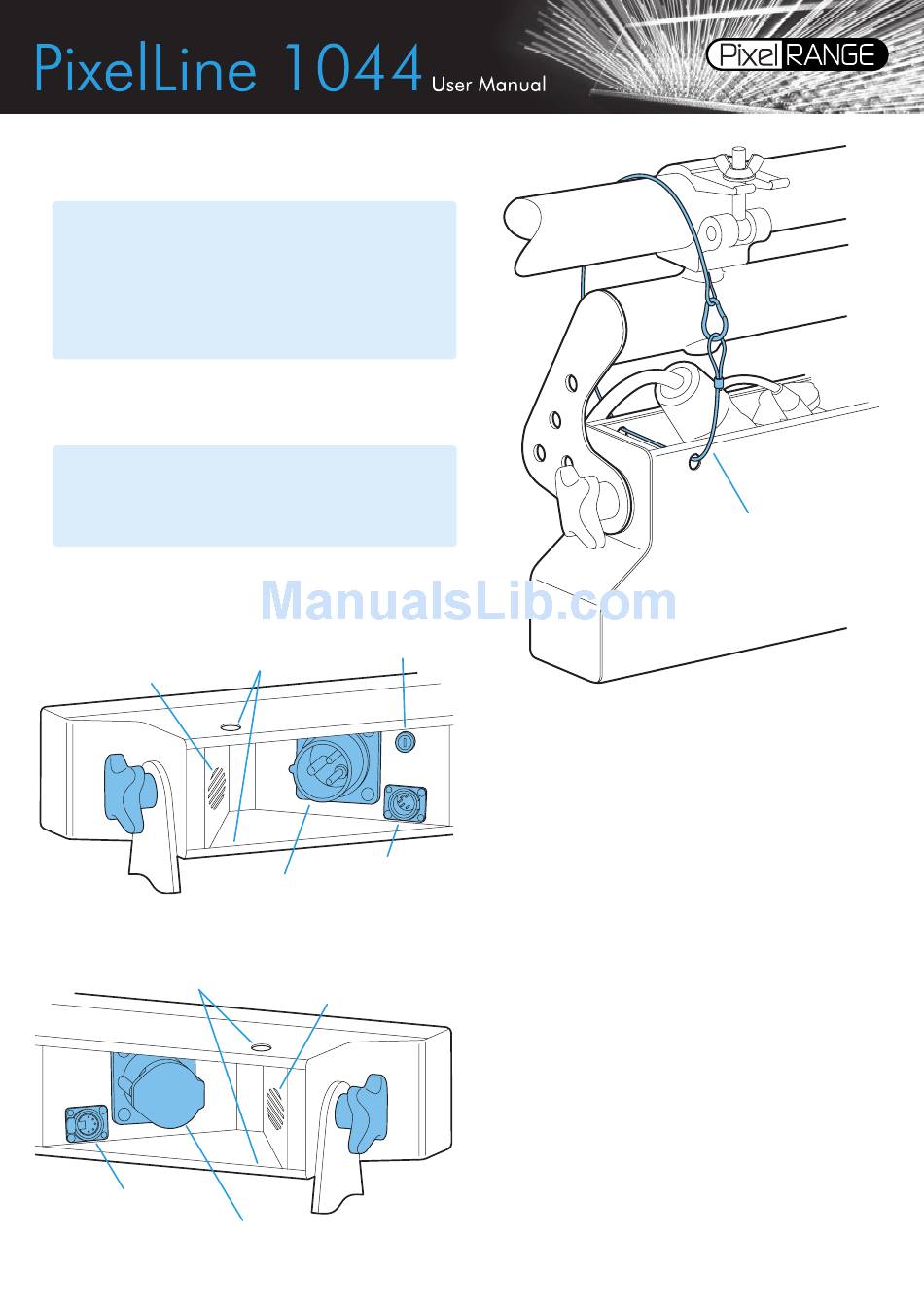

General set up
 Mount the fixture in the required position using the supplied
combi yoke or optional floor plate set (p/n: SSFLP).
Important
• When suspended off ground, always use safety wires rated
to a minimum of 55kg (121lbs) at both ends of the fixture
through the safety wire holes.
• Do not position the fixture close to fog machines. The fog
oil mist will be drawn in by the cooling fans and will short
out important components. The warranty will be void for all
fixtures returned in such a condition.
2 Connect the power in and DMX in leads at the left end of the
fixture.
3 Where multiple fixtures are to be daisy-chained, connect power
out and DMX leads at the right end of the fixture.
Important
• When daisy-chaining fixtures, do not exceed a total load of
3kW in a single daisy chain (subject to supply and cabling re-
strictions). Each PixelLine 1044 fixture has a maximum power
requirement of 140 watts.
4 When all fixtures are connected, apply power.
5 Use the control panel to access the internal menu and choose the
appropriate operation mode and related settings (see over).
Cooling fan
rear view
left end
Safety wire holes
DMX out
(XLR 5pin female)
connector
Fuse holder
Safety wire holes
DMX in
(XLR 5pin male)
16 amp power in
connector
connector
Cooling fan
rear view
16 amp power out
riGht end
connector
Version 1.07 firmware
Original control panel
Operation modes
The PixelLine 1044 provides a range of operation modes. These
are selected using the MODE section of the control menu:
Allows RGB control of all cells via DMX input. Using the
DMX
RES (resolution) option you can determine the number
of DMX channels required, from 54 channels down to
just 3 (the cell sizes are adjusted accordingly). Internal
chase effects are not available within this mode.
Provides control of RGB mixing on all 18 cells and se-
MAX1
lection of the dual internal chase effects via DMX input.
Requires 61 DMX channels.
Provides control of RGB mixing (the whole fixture acts
MAX2
as a single cell) and selection of the dual internal chase
effects via DMX input. Requires 10 DMX channels.
Provides RGB colour mixing independently of any exter-
MANU
nal control. Use the internal control menu (MAN section)
to select the required colour values.
Allows the display of the dual internal chase effects,
EF M
independently of any external control. Use the internal
control menu (PROG section) to select the required
chase effects, speeds and cross fades.
Superseded by (and operates in a similar manner to)
EF D
MAX2. RGB mixing and chase effects cannot be used at
the same time. Requires 10 DMX channels.
Superseded by (and operates in a similar manner to)
EX61
MAX1. RGB mixing and chase effects cannot be used at
the same time. Requires 62 DMX channels.
PixelLine 1044 personalities are available for a variety of
controllers. Please see www.pixelrange.com for details.
When suspended off
ground, always use safety
wires (rated to a minimum
of 55kg [121lbs]) at both
ends of the fixture.


Advertisement

loading
Need help?

Need help?

Do you have a question about the pixelline 1044 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PixelRange pixelline 1044

  • Page 1 Requires 61 DMX channels. Provides control of RGB mixing (the whole fixture acts MAX2 as a single cell) and selection of the dual internal chase effects via DMX input. Requires 10 DMX channels. Safety wire holes Provides RGB colour mixing independently of any exter- MANU Cooling fan nal control. Use the internal control menu (MAN section) to select the required colour values. Allows the display of the dual internal chase effects, EF M independently of any external control. Use the internal control menu (PROG section) to select the required chase effects, speeds and cross fades. Superseded by (and operates in a similar manner to) EF D MAX2. RGB mixing and chase effects cannot be used at the same time. Requires 10 DMX channels. Superseded by (and operates in a similar manner to) EX61 DMX out MAX1. RGB mixing and chase effects cannot be used at (XLR 5pin female) the same time. Requires 62 DMX channels. rear view connector 16 amp power out riGht end PixelLine 1044 personalities are available for a variety of connector controllers. Please see www.pixelrange.com for details.
  • Page 2: General Notes

    General notes Using the control menu Ensure that only one DMX device • When not in the menu, the four digit display shows • in the chain is set as master (e.g. the current DMX address e.g. A001 the lighting desk). The fixture is • Press to enter the menu. The four digit display will usually set to slave mode show ADDR. • If the fixture is used as a master, • Use and to move between menu options (or to DMX transmission will only occur change a value within an option). when the DMX address is dis- played (e.g. A001, A002, etc). • Press to enter an option (or to fix a changed value within an option and return to the previous option level). • The four digit display can be set to Note: If you do not press to fix a value, operation will fade out after 60 seconds, press revert to the previously set mode at the next power on.
  • Page 3 Control menu contents Sets the base DMX address from which the control channels will begin.    Shows the main processor software revision. No changes are possible within     this option. Shows the display controller software revision. No changes are possible within   this option. Selects the primary internal chase effect. See Chase effects for descriptions.     Select MODE > EF M to show the selected chase. Selects the cross fade speed between the steps of the selected   C1 chase effect. Selects the speed of the selected C1 chase effect.   Selects the master intensity level of chase effects C1 and C2.   Selects the secondary internal chase effect. See Chase effects for descriptions.  ...
  • Page 4: Specifications

    The single fuse is located next to the power and DMX input connectors. Use a small flat blade screw driver to twist the fuse holder anticlockwise until the carrier can be Pin  Pin 5 extracted to reveal the fuse. Ground Not used Pin 2 Pin 4 Data – Not used Pin 3 Data + Fuse type: 20mm 2A (T2AH) Documentation by Corporate Text & Design (www.ctxd.com) anti-surge, ceramic body Release 1.07b (original panel) UK +44 (0)1905 363600 USA +1 865 675 3955 sales@pixelrange.com salesUSA@pixelrange.com www.pixelrange.com...
