Martian Envoy User Manual

Hide thumbs Also See for Envoy:
Table of Contents

Advertisement

Quick Links

Sales & Support: 949 727 4288 - 9am - 6pm PST
a
U

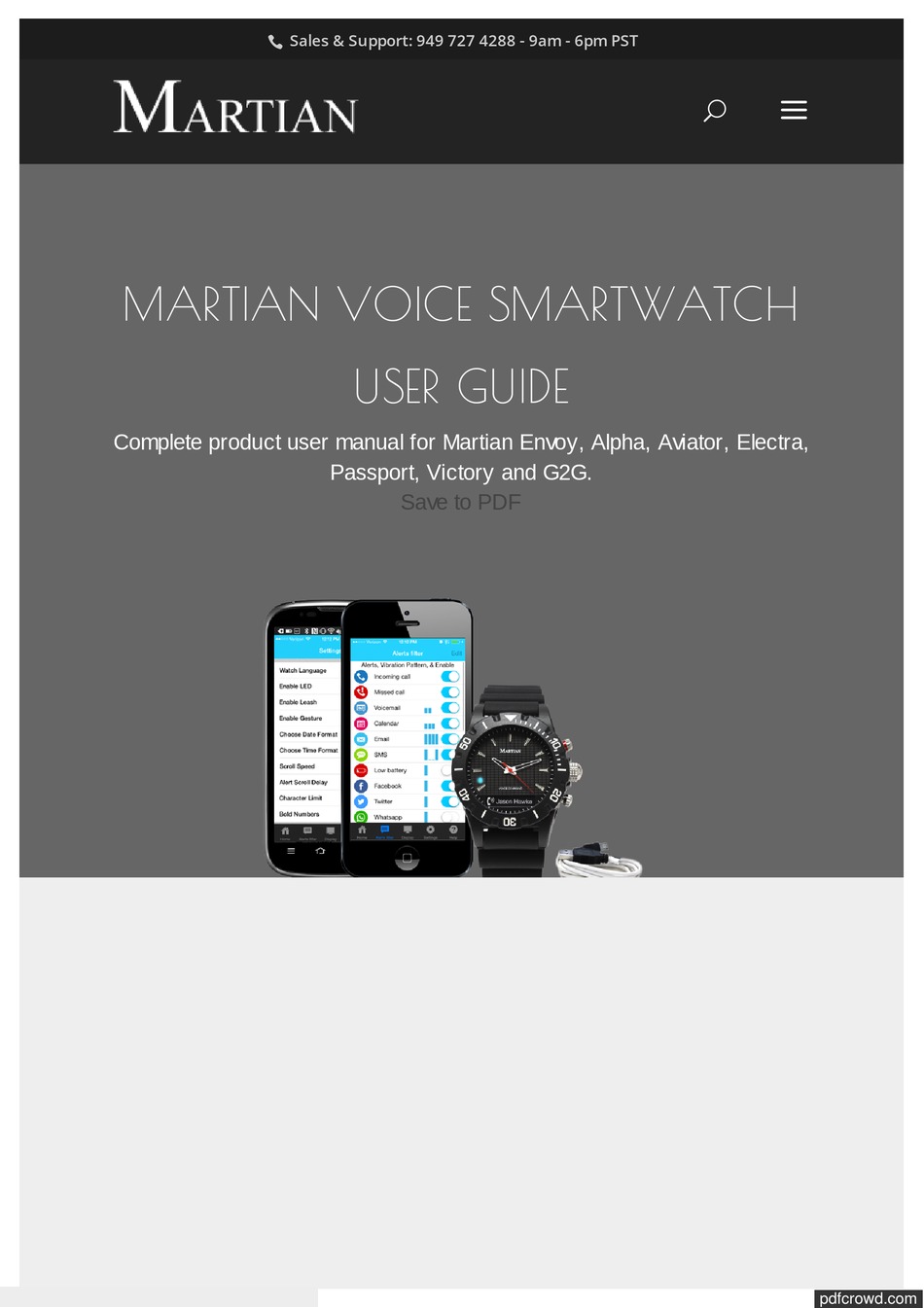

MARTIAN VOICE SMARTWATCH
USER GUIDE
Complete product user manual for Martian Envoy, Alpha, Aviator, Electra,
Passport, Victory and G2G.
Save to PDF
pdfcrowd.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envoy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martian Envoy

Summary of Contents for Martian Envoy

  • Page 1 Sales & Support: 949 727 4288 - 9am - 6pm PST  MARTIAN VOICE SMARTWATCH USER GUIDE Complete product user manual for Martian Envoy, Alpha, Aviator, Electra, Passport, Victory and G2G. Save to PDF pdfcrowd.com...

  • Page 2: Get Started

    GET STARTED What’s in the box Before you start using your MARTIAN VOICE COMMAND WATCH, make sure the following items are in the box: • Martian Watch • Micro USB Cable • Quick Connect Guide Mobile Device Compatibility Your mobile device’s operating system has an impact on the features on your watch functionality.
  • Page 3 Turning Your Watch On Press and hold the Bottom Left Button for 2 seconds. When the watch comes on, you will see the word “MARTIAN” in the display. If the watch does not turn on, it needs to be charged (see “Charging”).
  • Page 4 As technology changes and adapts, so does your Martian Voice Command. The firmware on your Martian watch is subject to new updates from time to time that may add new features, improve functionality, and more. Visit the link below to confirm that your Martian Voice Command firmware is up-to-date, and check back regularly to stay ahead of the pack.
  • Page 5 “Paired to [device name])”. c. Connect to the Martian Alerts App – If you have downloaded the Martian Alerts App from the App Store, another pop-up menu, “Martian” will appear stating that Martian would like to communicate with the Martian Watches Voice Command Watch.
  • Page 6 To un-pair on iOS, go to Settings > Bluetooth > Martian Watch > Tap the i icon > Forget This Device > Forget Device. You must also remove the Martian Smart device from your mobile device.

  • Page 7: Status Bar

    Martian to access your Messages; Tap “Yes”. If you do not see these pop-up windows, open the Martian Alerts App on your phone manually. Within the Martian Alerts App, tap the Connect button to Connect the App to your watch. At the top of the screen you should see “Connected.” You have finalize the pairing process.

  • Page 8: Watch Menu

    Watch Menu The Menu allows you to change the settings of select features on the Watch. To access and navigate the Watch Menu: • Press the bottom button twice quickly to view the Watch Menu. • Press the bottom button repeatedly to scroll through the available Menu items. •...
  • Page 9 Volume: Options are High (3), Medium (2), Low (1) and Clear Voice (C). The Clear Voice Volume Mode (C) is used for noisy or crowded situations to improve the call quality heard at the other end. This volume mode will lower the volume of the call on the Watch and improve the receivers call quality.
  • Page 10 Navigate to the Find Phone Menu item and tap the top button to play a bar of music on your mobile device if it is within Bluetooth range. The Martian Alerts App must be open on your mobile device for this feature to work.
  • Page 11 Date Format mm/dd Navigate to the Date Format option of the Setup Menu and tap the top button to select between the mm/dd or dd/mm date formats. LED Light On/Off: Navigate to the LED option of the Setup Menu and tap the top button to turn the LED On (check mark in box) or to turn the LED Off (no check mark in box).
  • Page 12 Bold Numbers. • Help Section including access to Product Registration, User Manual, Frequently Asked Questions, Sample Notifications and Check Firmware Version. The Martian Alerts App has five tabs: Home, Alerts, Display, Settings, and Help Home Tab Tap to Connect/Tap to Disconnect This switch connects or disconnects the Watch and App.
  • Page 13 possible statuses are “Connected”, “Disconnected”, and “Connecting”. Do Not Disturb: This switch sets Do Not Disturb to On (blue) or Off (white). If Do Not Disturb is On (blue) the Watch will only receive Silent Alarms. No other Notifications or Messages will be received on the Watch. Set Vibration Intensity This slider sets the Vibration Intensity level of messages coming through on the Watch.
  • Page 14 return to the Home tab. Silent Alarms Silent Alarms can be used as a personal morning wake-up without waking anyone else nearby or for reminders throughout the day. Tap the > to create up to 5 Silent Alarms. Adjust the slider on the Silent Alarm screen to set the Alarm Vibration Intensity.

  • Page 15: Alerts Tab

    has been dismissed. Note: If Only Dismiss From Phone is selected for the Silent Alarm in the App, long-pressing the top button of the Watch will not dismiss the Silent Alarm. In this case the Silent Alarm must be dismissed from the mobile device.
  • Page 16 App will appear within the Alerts Tab of the Martian Alerts App. • On the Alerts Tab of the Martian Alerts App turn the switch On (blue) next to the App name and future Notifications will be sent to the Watch.
  • Page 17 Location Services and switch the Locations Services to On (green). Then scroll down the list of Apps and tap the Martian Alerts App icon (blue M). Tap While Using the App to turn on Location Services for the Martian Alerts App only when the App is open on the mobile device.

  • Page 18: Settings Tab

    • If you are not in an area where your mobile device can provide your GPS location to the Martian Alerts App (e.g. inside a building), Today’s Weather will not appear on the Watch until your GPS location can be obtained.
  • Page 19 Enable or disable the red/green/blue LED light that flashes on your Watch by tapping the switch in order to turn the LED Light On (blue) or turn the LED Light Off (white). Tap Save in the top right of the Settings Tab to send your preference to the Watch. Leash: When the Leash is turned On, the Watch will vibrate when your mobile device is out- of-range and again when the mobile device re-connects.
  • Page 20 IMPORTANT: DO NOT FORGET YOUR 4-DIGIT PASSCODE! IF YOU LOSE IT, YOU CANNOT UNLOCK THE CHARACTER RESTRICTION YOURSELF. YOU MUST SEND THE WATCH TO MARTIAN WATCHES TO UNLOCK IT. THIS IS NOT COVERED UNDER WARRANTY – SEE “SERVICE & REPAIR FOR OUT-OF- WARRANTY PRODUCTS”...
  • Page 21 Email Log Report If you have an issue with the Watch, our Support team may ask you to Email Log Report from the Martian Alerts App to help diagnose the problem you are experiencing. Martian Alerts App for Android Mobile Devices Features: •...
  • Page 22 message above these buttons indicate if the App and Watch are connected. Accessibility Service This is an informational message that indicates if the Accessibility Service is On or Off. Do Not Disturb: This check box sets Do Not Disturb to On (checked) or Off (unchecked).
  • Page 23 • Check the Show notifications check box to turn Notifications On for the App selected. • On the Alerts Tab of the Martian Alerts App check the checkbox next to the App name and future Notifications will be sent to the Watch.
  • Page 24 Repeater Tab The Enable Hour Repeater check box sets the Hour Repeater to On (checked) or Off (unchecked). The Hour Repeater sends a double-vibration alert to your watch at the Target Minute of every hour during the range of hours selected. For example, create an alert labelled “Stretch!”...
  • Page 25 to select the hour, minute and AM/PM. • Tap Repeats to select the frequency the Silent Alarm should repeat (optional). Tap the checkbox next to each day of the week to set the repeat days. Tap Never to turn off the Repeat of the Silent Alarm.
  • Page 26 Settings > General > Application Manager. Scroll down the list of Apps installed on your mobile device and tap the icon for the Martian Alerts App. Scroll down through the information on this screen and ensure that precise location (GPS and network-based) is listed.
  • Page 27 • If you are not in an area where your mobile device can provide your GPS location to the Martian Alerts App (e.g. inside a building), Today’s Weather will not appear on the Watch until your GPS location can be obtained.
  • Page 28 Date Format: The date can be displayed as mm/dd or dd/mm on the Watch. Tap Date Format and select your preference from the pop-up window. Tap Confirm Changes at the bottom of the screen to send your preference to the Watch.
  • Page 29 Each of the features below requires a connection to the Internet. Product Registration Register your MARTIAN VOICE COMMAND WATCH from within the App or go to our website http://www.martianwatches.com/register. By registering your Watch you will receive updates about Firmware and App releases.

  • Page 30: Using Voice Command

    Email Log Report If you have an issue with the Watch, our Support team may ask you to Email Log Report from the Martian Alerts App to help diagnose the problem you are experiencing. Using Voice Command A key feature of your Watch is its ability to access your mobile device Voice Command functions.

  • Page 31: Text Messages

    When finished with the conversation, press the top button to end the call. The OLED will display “Call Ended”. Outgoing Call: Tap the top button. The Watch LED light will flash green to acknowledge a Voice Command request. Wait for the Watch to Beep then speak the desired Voice Command supported by your mobile device for Outgoing Calls.

  • Page 32: Additional Help

    ADDITIONAL HELP Master Reset To reset your watch plug the USB cable into a power source. Connect the USB cable to the Watch and immediately disconnect it again. Factory Restore Turn on your Watch then, press and hold both buttons on the Watch until the word “Restored”...
  • Page 33 You received a text message on your iPhone, but only received a green flashing  light – no vibration or display When speaking to someone on MARTIAN WATCH, the person on the receiving end  experiences your voice “cutting in and out”...

  • Page 34: Safety, Regulatory & Legal

    Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MARTIAN WATCHES is under license. Other trademarks and trade names are those of their respective owners. iPod®, iPhone®, iPad®...
  • Page 35 improper use of third-party accessories can be dangerous and may void your watch warranty. Radio Frequency (RF) Energy: Your watch contains a Bluetooth transmitter and receiver. When this feature is in use, it receives and transmits RF energy. Your watch is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.
  • Page 36 • Don’t leave your watch in your car. High temperatures may cause malfunction. • Avoid dropping your watch. Dropping it can potentially cause damage. • Contact a MARTIAN WATCHES representative if your watch or its battery has been damaged due to a drop, liquid exposure or high temperatures.
  • Page 37 The crystal of your watch is made of glass. This glass could break upon substantial impact. If the glass breaks, do not touch or attempt to remove. Stop using your watch and contact a MARTIAN WATCHES representative to have the glass replaced.

  • Page 38: Manual Disclaimer

    MARTIAN WATCHES at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.
  • Page 39 Tips & Tricks Firmware Updater Create Support Ticket Subscribe Get notify for Martian News, Events and Promotions Email  Subscribe Follow Us Company About Martian Awards Testimonials Product Reviews Press Release Martian Corporate News Martian Voice Command News Martian Notifier News...
  • Page 40 Copyright © Martian Watches 2015 All rights reserved. pdfcrowd.com...
