  • Page 1 Electronic-Key-System More than safety.
  • Page 2 Quality, reliability and precision are the tems engineering. hallmarks of our corporate philosophy. They represent concepts and values EUCHNER’s history began in 1940 with to which we feel totally committed. the establishment of an engineering At EUCHNER, quality means that all office by Emil Euchner.

  • Page 3: Table Of Contents

    Contents Electronic-Key-System (EKS) Application Key management using the Electronic-Key-Manager System overview All the advantages at a glance Approvals Integration Version FSA Electronic-Key adapter with serial Interface Electronic-Key adapter with USB interface Electronic-Key adapter with USB interface version FSA Electronic-Key adapter with Ethernet interface...

  • Page 4: Application

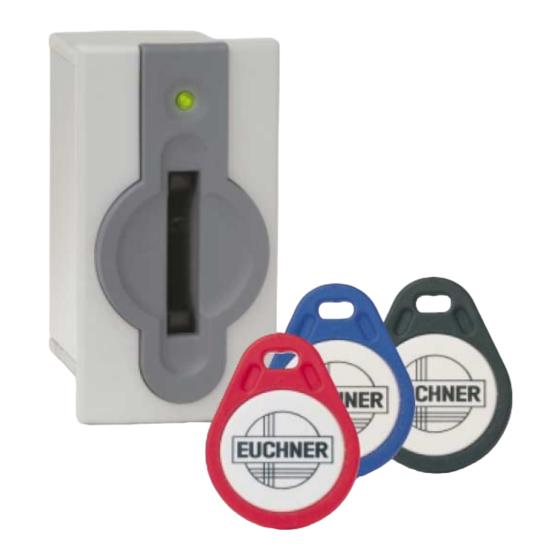

    Electronic-Key-System (EKS) Application System overview With the Electronic-Key System (EKS), it does not matter if In principle EKS comprises two components: an Electronic-Key a password is forgotten. EKS is used for electronic access and the matching Electronic-Key adapter. management on PCs and control systems.

  • Page 5: All The Advantages At A Glance

    FDA for straightforwardly writing and reading the Electronic-Key on standard 21 CFR part 11. EKS can be used in this context as an the PC. Furthermore, the Electronic-Key-Manager, a flexible electronic signature for personal confirmation of work steps.

  • Page 6: Electronic-Key Adapter With Serial Interface

    Electronic-Key-System (EKS) Electronic-Key adapter with serial Interface RS232 serial RS422 Dimension drawing Dimensions in mm max. 4 mm DIP-Schalter / DIP-switch 1,5 (Dichtgummi / washer) Typical applications Connection to PC. Interfacing via ActiveX ® module in Windows ® Connection to control system or micropro- cessor.

  • Page 7: Electronic-Key Adapter With Usb Interface

    DIP-switch 1,5 (Dichtgummi / washer) Typical applications Connection to PC. Interfacing via ActiveX ® module in Windows ® Virtual serial COM port. Communication identical to EKS serial Technical data General parameters Value Unit min. typ. max. Housing plastic (PA 6 GF30 gray)

  • Page 8: Electronic-Key Adapter With Usb Interface Version Fsa

    1,5 (Dichtgummi / washer) Typical applications Connection to PC. Interfacing via ActiveX ® module in Windows ® Virtual serial COM port. Communication identical to EKS serial Additional integration in the safety system Technical data General parameters Value Unit min. typ.

  • Page 9: Electronic-Key Adapter With Ethernet Interface

    Electronic-Key-System (EKS) Electronic-Key adapter with Ethernet interface ETHERNET Dimension drawing Dimensions in mm max. 4mm DIP-Schalter / DIP-switch 1,5 (Dichtgummi / washer) Typical applications ® Connection to PC. Interfacing via ActiveX module in Windows ® Remote installation Connection to control systems for special...

  • Page 10: Electronic-Key Adapter With Ethernet Interface Version Fsa

    Electronic-Key-System (EKS) Electronic-Key adapter with Ethernet interface version FSA ETHERNET Dimension drawing Dimensions in mm max. 4mm DIP-Schalter / DIP-switch 1,5 (Dichtgummi / washer) Typical applications ® Connection to PC. Interfacing via ActiveX module in Windows ® Remote installation Connection to control systems for special...

  • Page 11: Electronic-Key Adapter With Profibus Dp Interface

    Electronic-Key-System (EKS) Electronic-Key adapter with Profibus DP interface Dimension drawing Dimensions in mm max. 4mm DIP-Schalter / DIP-switch 1,5 (Dichtgummi / washer) Typical applications Connection to bus master of a control system. Interfacing via GSD file Remote installation Technical data...

  • Page 12: Electronic-Key Adapter With Profibus Dp Interface Version Fsa

    Electronic-Key-System (EKS) Electronic-Key adapter with Profibus DP interface version FSA Dimension drawing Dimensions in mm max. 4 mm DIP-Schalter / DIP-switch 1,5 (Dichtgummi / washer) Typical applications Connection to bus master of a control system. Interfacing via GSD file Remote installation...

  • Page 13: Electronic-Key Read/Write

    Electronic-Key-System (EKS) Electronic-Key read/write Memory 116 bytes E²PROM (programmable) plus 8 bytes ROM (serial number) Dimension drawing Dimensions in mm ∅ 25,40 ∅ 31 Special features The Electronic-Key contains a unique 8-byte serial number. This number is written by laser during the Electronic-Key production process and is stored absolutely indestructibly.

  • Page 14: Transponder Coding (Tc)

    Electronic-Key-System (EKS) Transponder Coding (TC) Software for writing to the Electronic-Keys Product description The Transponder Coding (TC) software is an ASCII/hex editor that can be used to read and write the Electronic-Key data on the PC. Overview Display of the programmed Electronic-Key data in ASCII and hex view as well as the serial number in hex view...

  • Page 15: Electronic-Key-Manager (Ekm)

    The database fields and the screen interface for entering the data can be configured as required. Write and read rights can be granted through user management. EKM can also be integrated into an existing EKS environment. All versions include:...

  • Page 16: Accessories

    133,5 - 0,5 Product description For installing the EKS Electronic-Key adapter in a PC. Dimensions: 148 mm x 42.5 mm x 142 mm (suitable for 5.25” drive bay) Housing: sheet steel 1 mm in accordance with EN 10111 Surface: front signal black matt RAL 9004 Incl.

  • Page 17: Software And User Manuals

    A commercially available, screened connection cable in accordance with USB 1.1 or USB 2.0 standard is used to connect the EKS Electronic-Key adapter via the USB interface. On the EKS end the cable must have a USB plug type B and on the PC end typically a USB plug type A.
  • Page 18 Aero Automation Co., Ltd. Tel. +91-80-28520711 600/441 Moo 14 Phaholyothin Rd. China Fax +91-80-28520900 Portugal Kukot, Lamlukka EUCHNER (Shanghai) Trading Co., Ltd. marketing@teknic-euchner.co.in PAM Serviços Tecnicos Industriais Lda. Patumthanee 12130 Unit C, Floor 20 Rua de Timor - Pavilhão 2A Tel. +66-2-536-7660-1...
  • Page 19 He a a a a a d offic d offic d offic e e e e e d offic d offic EUCHNER GmbH + Co. KG More than safety. More than safety. More than safety. Mor Kohlhammerstraße 16 70771 Leinfelden-Echterdingen than safety.
  • Page 20 EUCHNER GmbH + Co. KG Kohlhammerstraße 16 70771 Leinfelden-Echterdingen Germany Tel. +49-(0)711-7597- 0 Fax +49-(0)711-753316 info@euchner.de www.euchner.com More than safety.
