Eartec Simultalk 24G Manual

Specifications
GENERAL
Dimensions 2.5"w x 1"d x 4.25"h
Weight 5 oz
Modulation Frequency modulation
Tuning PLL Frequency synthesizer
Power 4.8V NiMh Battery, 700 mAH
Battery life Standby(70mA)=10 hours
Communication(150mA)=5 hrs
Charging time 150mA/hours fast,12 hrs for full
Range Up to 150 yards
Antenna Internal
Warranty
Eartec communication systems are warranted from malfunction due to manufacturing defects by the
original purchaser for the following periods after date of purchase:
Transceivers
Digicom 1 year
MC-1000 1 year
TD900 6 months
Simultalk 24G 6 months
What is Covered
If you require warranty service for your product within the warranty period ship your product pre-paid
only to Eartec. The end user is responsible for the initial shipping charges to our facility. Eartec will pay
the return ground shipping charges if the product is covered under the warranty.
This warranty covers defects in materials and workmanship in all Eartec products excluding:
(a) Damage from misuse, abuse, or general wear and tear.
(b) Repairs or product modifications by anyone not authorized by Eartec Co.
General Service
All repair work due to general wear and tear will be performed for the cost of replacement parts, radio re-
tuning and return shipping from the Eartec factory.
Service
Eartec Co.
145 Dean Knauss Drive
Narragansett, RI 02882
A letter explaining any problems and work to be performed must accompany each repair shipment with:
Name, Business, Complete Address, Telephone Number, Email Address
Returns
Eartec products may be returned for credit or refund only if received in the original packing and in "As
New" condition within 30 days of date of purchase.
EARTEC Co.
145 Dean Knauss Drive
Narragansett, RI 02882
Tel: 1-800-399-5994
In RI:401-782-4966
Fax: 401-789-7300
03/2010
TRANSMITTER
Output 50mV/m (FCC Part 15)
Deviation 30KHz/+-10KHz
Modular distortion <5%
Spurious radiation >50 dBC
RECEIVER
Sensitivity <-100dBm @ 12dB SINAD
IF bandwidth 180KHz
Image rejection >60 dB
Operating temp -10 to +40 C
O
Switches Off/Vol, Full/Standby
Headsets
Heavy Duty 1 year
Midweight 6 months
Lightweight 30 days
Rechargeable batteries 60 days
COD or Collect deliveries will not be accepted.
www.eartec.com 03/2010

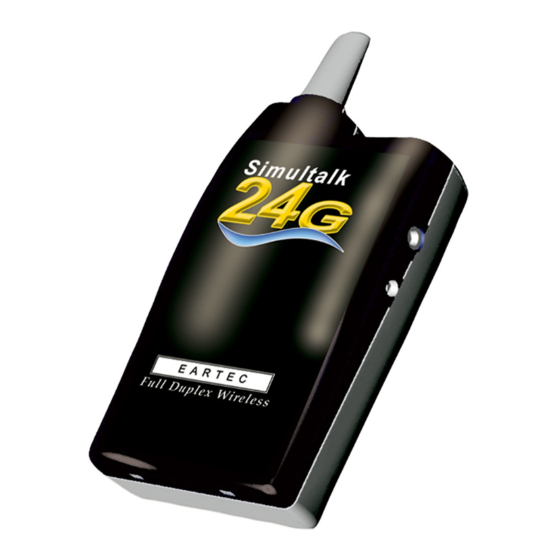

Simultalk 24G
Full Duplex
Wireless
Communication
System
www.eartec.com
