Innervision Technology Tough-PAC Assembly Instructions

Innervision Technology Ltd
Assembly Instructions
For iPad Air
Package Contents (assembled)
Front case: Support washers x2 Black
Support Blocks x2 Grey
Screen seal with home button
Rear Case: iPad shock support (moulded pad)
Sleep button
Antibacterial Screen protector
Case screws x10 (Pack)
Screw port plugs x10 (Pack)
Tools Required: T10 torx screwdriver (not included)
(If available a 0.5N.m Torque driver is preferred)
Warning: This package contains small parts and
plastic packaging that may present a danger or
choking hazard, not suitable for small children.
A competent person should do the assembly.
Please read these instructions completely
before assembly. Tough-PAC is designed to be
fitted as a semi-permanent case for iPad Air.
iPad Air Screen Protector
The antibacterial screen protector provided
should be fitted to iPad Air before case
assembly - see enclosed instruction sheet.
You may decide to use an alternative type of
screen protector or even not use one at all.
SOP002_Air_Assembly Instructions

Case Assembly

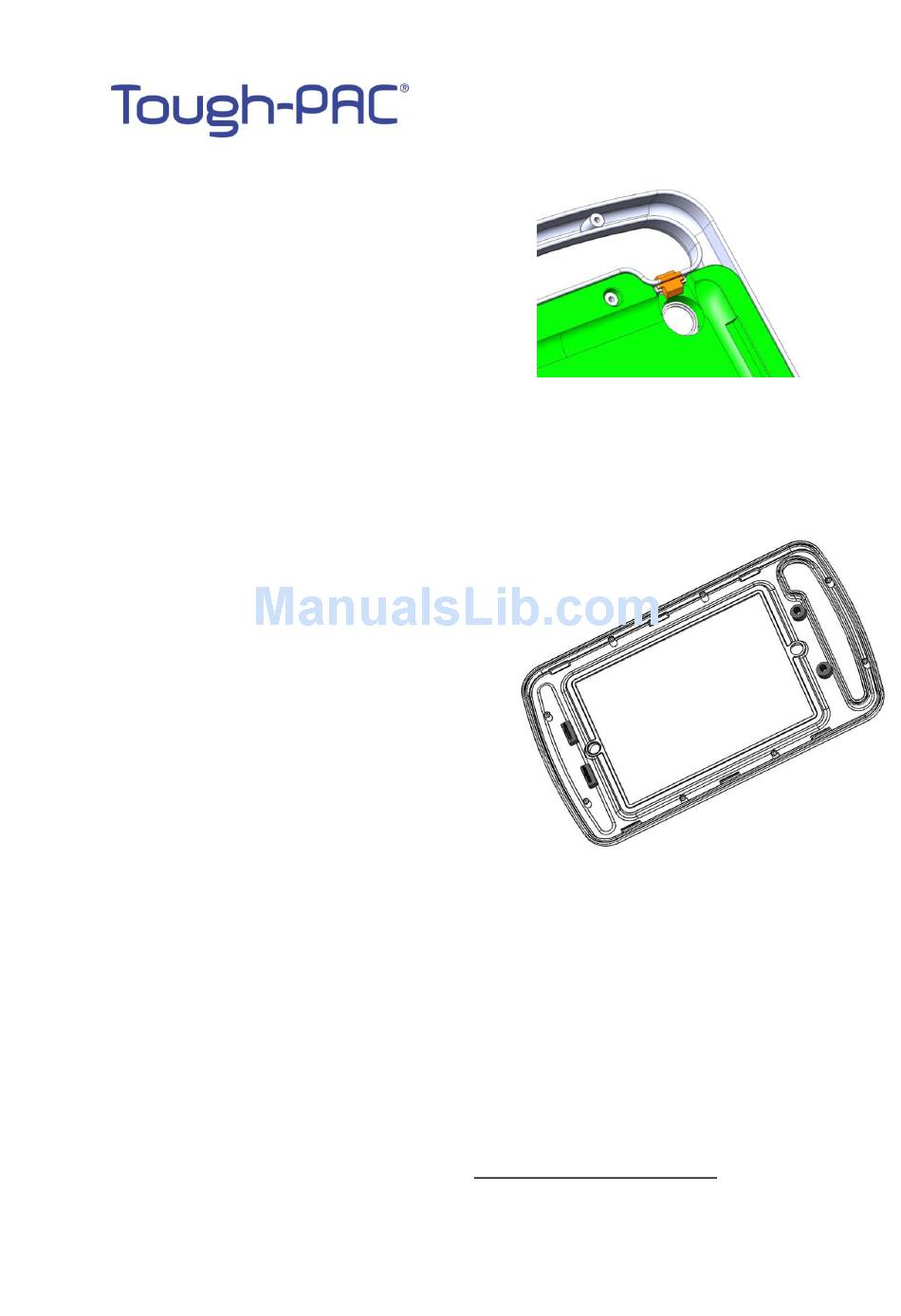

1. Check the sleep button is in the slot inside
the rear case as shown below.
2. Check that the camera window is free of
obstructions
3. Check the front case lower support blocks
and top washers are in place as shown.
4. Check that the screen seal and Home
button is properly seated into the lower
hole of the front case. The seal is shaped to
fit the case moulding; it should be carefully
positioned onto the case so the seal lip fits
snugly around the screen aperture - gently
press into position with your finger around
the inner edge.
1
If you do not wish to use the camera for confidentiality
reasons place a sticker or blanking disc over the camera
window.
Page 1
SOP002/F/MFG/280214
1
.
Effective Date 24/9/14
