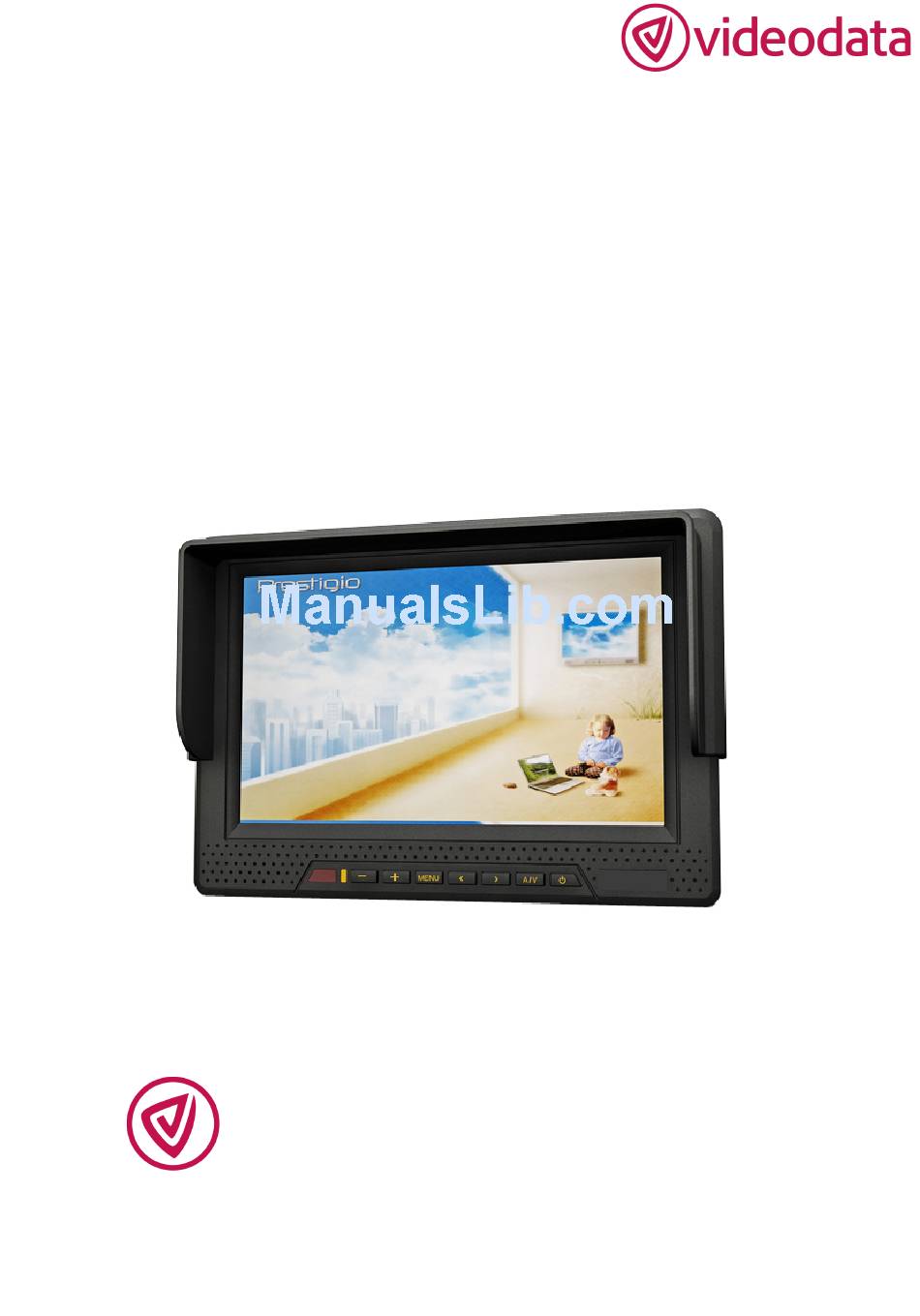

Lilliput 668 User Manual VDH Video Data Handels GmbH Kohlentwiete 14 22761 Hamburg www.videodata.de... - Page 2 DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.
-
Page 3: Table Of Contents
CONTENTS 1. PRODUCT DESCRIPTION -------------------- 2. REMOTE CONTROL---------------------------- 3. BATTERY INSTALLATION INSTRUCTION 4. MENU OPERATION ---------------------------- IN YPbPr MODE---------------------------------- IN HDMI MODE---------------------------------- IN AV MODE-------------------------------------- 5. ACCESSORIES ----------------------------------- 6. PARAMETER ------------------------------------- 7. TROUBLESHOOTING -------------------------- 8. REMARK-------------------------------------------... -
Page 4: Product Description
PRODUCT DESCRIPTION... - Page 5 1．Infrared signal receiver (work with remote control) 2．Battery indicator light (PS: light will be on when charging, becomes red, and turns to green when finished.) 3．-:Volume down or to adjust the value of menu setting function 4．+:Volume up or to adjust the value of menu setting function 5．MENU:To activate OSD (on-screen display) menu;...
-
Page 6: Remote Control
REMOTE CONTROL 1．MUTE 2．Display Mode：HDMI、YPbPr、VIDEO1、VIDEO2 switch 3． ：Left move，Volume down or to adjust the value of setting function 4． ：Down move, to adjust phase automatically under PC mode 5．POWER ON/OFF 6． ：UP move, to adjust the brightness directly under 6 classes 7．... - Page 7 Battery 2． Power line Please plug power line into main board’s battery socket. 3． Put the battery into slot when check the electricity. 4．...
-
Page 8: Menu Operation
Lock battery cover up to finish installation. 5． Battery control switch PS: please switch battery control off if non-use for a long-term. Battery Charging Instruction It shows battery status when switch button is ON. means battery means battery full 1. Press the switch button to “ON” to start charge, “OFF” to stop charge. Indicator light turns to red when charging, and turns to green when finished. -
Page 9: In Ypbpr Mode
IN YPbPr MODE Press “</>”on the unit or “ ” on the remote control to select item, eg. and it will be highlighted; and then press +/ - of the unit or to adjust the favorite values. BRIGHTNESS: to adjust the luminance of brightness CONTRAST：to adjust the level of contrast SATURATION: to adjust the level of saturation... -
Page 10: In Hdmi Mode
As follows: OSD MISCELLANEOUS OF YPBPR MODE picture over-turn to left or right picture over-turn to up or down mode shift between 4:3 and 16:9 EXIT OSD: select “YES” to exit IN HDMI MODE Press “</>”on the unit or “ ”... - Page 11 OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal direction OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical direction RESET: you can reset adjustment of the unit when click “YES” COLOR TEMPERATURE：choose color and temperature at first, such as: 6500 K, 7500 K or 9300...
-
Page 12: In Av Mode
IN AV MODE Press “</>”on the unit or “ ” on the remote control to select item, eg. and it will be highlighted; and then press +/ - of the unit or to adjust the favorite values. It shows current picture format(NTSC&PAL) below the dialog box. BRIGHTNESS: to adjust the luminance of brightness CONTRAST：to adjust the level of contrast... -
Page 13: Accessories
5. Accessories 1．2600mAh/7.4V Li-ion battery 1piece 2．Remote control 1piece 3．Bracket 1piece 4．12V 1.5A DC adapter 1piece 5．Sun shade 1piece 6．Manual 1copy 7．Shoe mount (for camera only) (optional) 1piece 6. Main Parameter Panel Size 7’’ TFT LED (16:9) Resolution 800×480, up to 1920×1080 Brightness 450cd/㎡... -
Page 14: Troubleshooting
Power Consumption ≤8W Input Resistance 75Ω Input Frequency H/30-60KHz,V/60-75Hz Audio Output ≥250mW Speaker ×1(front) Size:(LWD) 188×125×33mm Weight 542g / 582g (with sun shade) TROUBLE SHOOTING 1. Only black-and-white image Check the level of color saturation and brightness is proper. 2.Power on but no picture Make sure the PC、...
