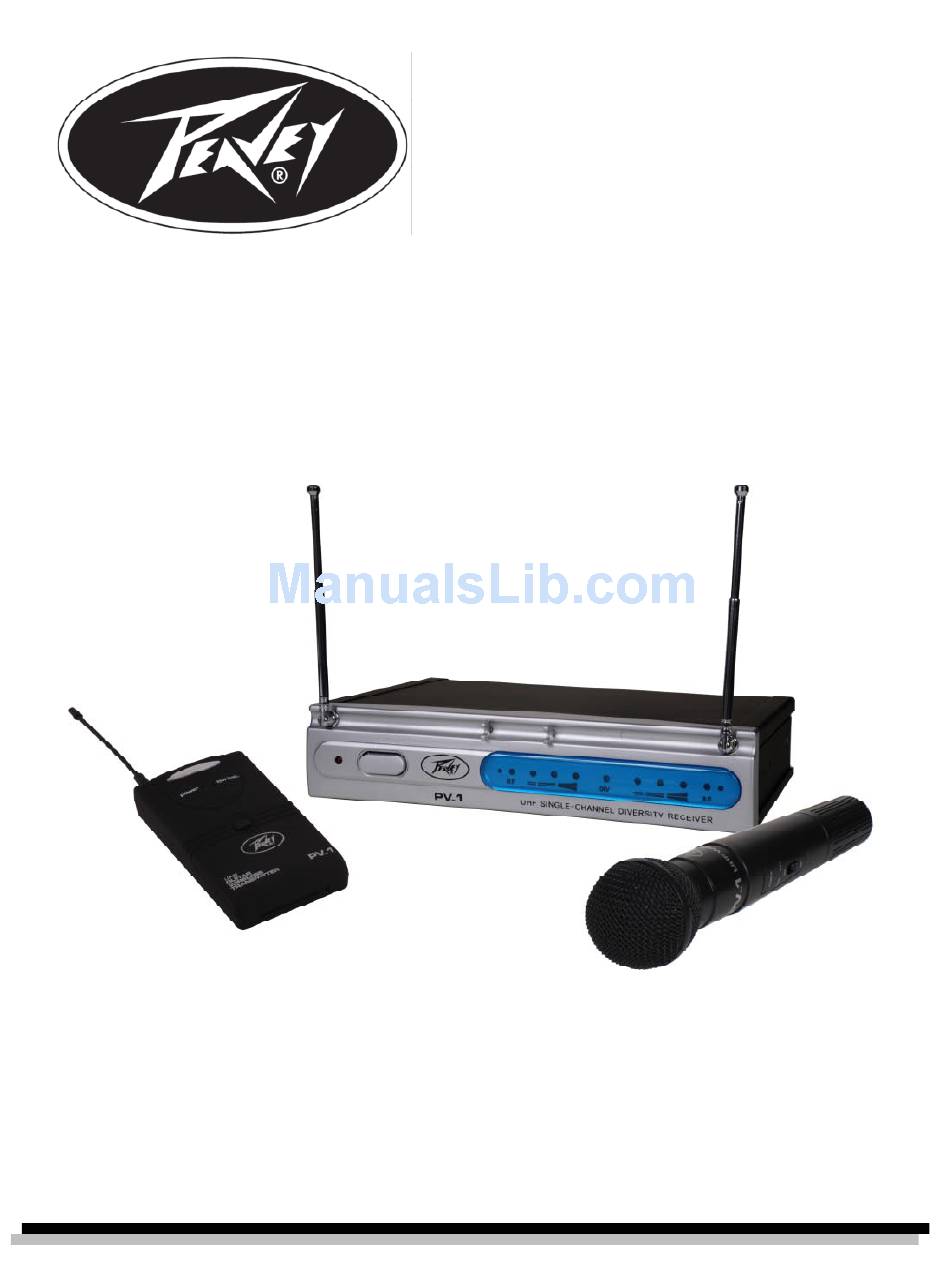

  • Page 1 PV™1 UHF Wireless microphone system...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION IMPORTANT SAFEGUARDS RECEIVER INSTRUMENT CONNECTION HANDHELD MIRCROPHONE BODYPACK TRANSMITTER OPENING BATTERY COMPARTMENT SPECIFICATIONS If your system is FCC Class B, the following applies: Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Introduction

    Thank you for purchasing a PEAVEY PV System. The PV-1 UHF wireless systems have user friendly features and are available in handheld, lavalier, headset and guitar models. • Clear channel UHF operation in three available frequencies. • The proprietary compander circuitry yields a dynamic range of up to 120dB •...

  • Page 4: During Operation

    To reduce the risk of fire or shock DO NOT remove the chassis cover. There are no user- serviceable parts inside. For all repairs refer unit to your authorized Peavey Service Center. To reduce the risk of fire or shock DO NOT place water or metal items on top of unit.
  • Page 5 Squelch Adjustment In normal operation, the SQUELCH CONTROL (6) should be set fully clockwise to the factory preset RF level (Max. Sens.). However, in areas of high RF activity, the squelch (or mute, as it is sometimes called) may need to be adjusted to compensate for the adverse conditions in a particular location.

  • Page 6: Instrument Connection

    HOLDER (14). Insert a fresh 9V ALKALINE BATTERY (15), observing the correct polarity as marked, and screw the cover back on to the microphone. Make sure the cover is screwed on completely. A fresh alkaline battery can last up to 10 hours in use, but in order to ensure optimum performance, it is recommended that you replace the battery after every 7-8 hours of use.

  • Page 7: Bodypack Transmitter

    The microphone is now ready to use. The A and/or B DIVERSITY LED INDICATORS (2) on the receiver should now be lit, indicating a received signal from the transmitter. When ready to speak, slide the transmitter switch to the ON position. Adjust the volume of the receiver as per the Audio Output Microphone Connection section of the above receiver instructions.
  • Page 8 A 47pf capacitor soldered across the hot to ground terminals of the guitar’s volume and tone pots will provide extra filtering. Microphone Use (with either a lavalier or headset microphone) Secure the connection from the LAVALIER (24) or HEADSET MIC CORD (23), to secure the...
  • Page 9 As the microphone cord also serves as the antenna, be sure to extend it fully. Rolling up or shortening the cord may reduce the effective operating range –...

  • Page 10: Opening Battery Compartment

    18. Battery Compartment 19. AA Batteries 21. 3.5 mm Locking Jack 22. Instrument Cord 23. Headset Mic 24. Lavalier Mic 25. Battery Indicator LED 26. On/Off/Standby Switch 28. Clip...

  • Page 11: Specifications

    • Frequency Response 50Hz – 15 KHz, +/- 3dB • Dynamic Range 120dB • Total Harmonic Distortion <0.6% • RF Carrier Frequency Range UHF, choice of single frequencies from 906.000 to 923.700MHz • Frequency Stability +/- 0.005%, Crystal controlled • Modulation FM (F3E), +/-20KHz •...
