PRODUCT MANUAL
8-Zone RGB Remote Control

Product Description

Solid Apollo's 8 Zone color changing RGB-W remote control is fully wireless and can control up to 8 different light zones using just one
remote control. The SenseControl color wheel allows easy color selection, and can be fine tuned to an exact color using the single color
buttons. The controller works great with any LED products which use four channels, such as RGBW (red, green, blue and white). A wall
holder is also included for secure and easy storage.
Main Functions:
• Control up to 8 Recievers (1 Included) individually or as a group
• Brightness levels can be controlled for each individual color/zone
• Built in Color Changing Programs with chase effects
• Memory Function remembers last setting if power goes out
• On/Off switch of individual zones or all lights
• Full Brightness Control
• 50 Foot Wireless Control
This manual reviews:
• Entire installation process
• Product features and primary uses
• Detailed functionality
• Troubleshooting options
• Technical Parameters
Toll Free: 866.592.3873
Email: sales@solidapollo.com
www.SolidApollo.com

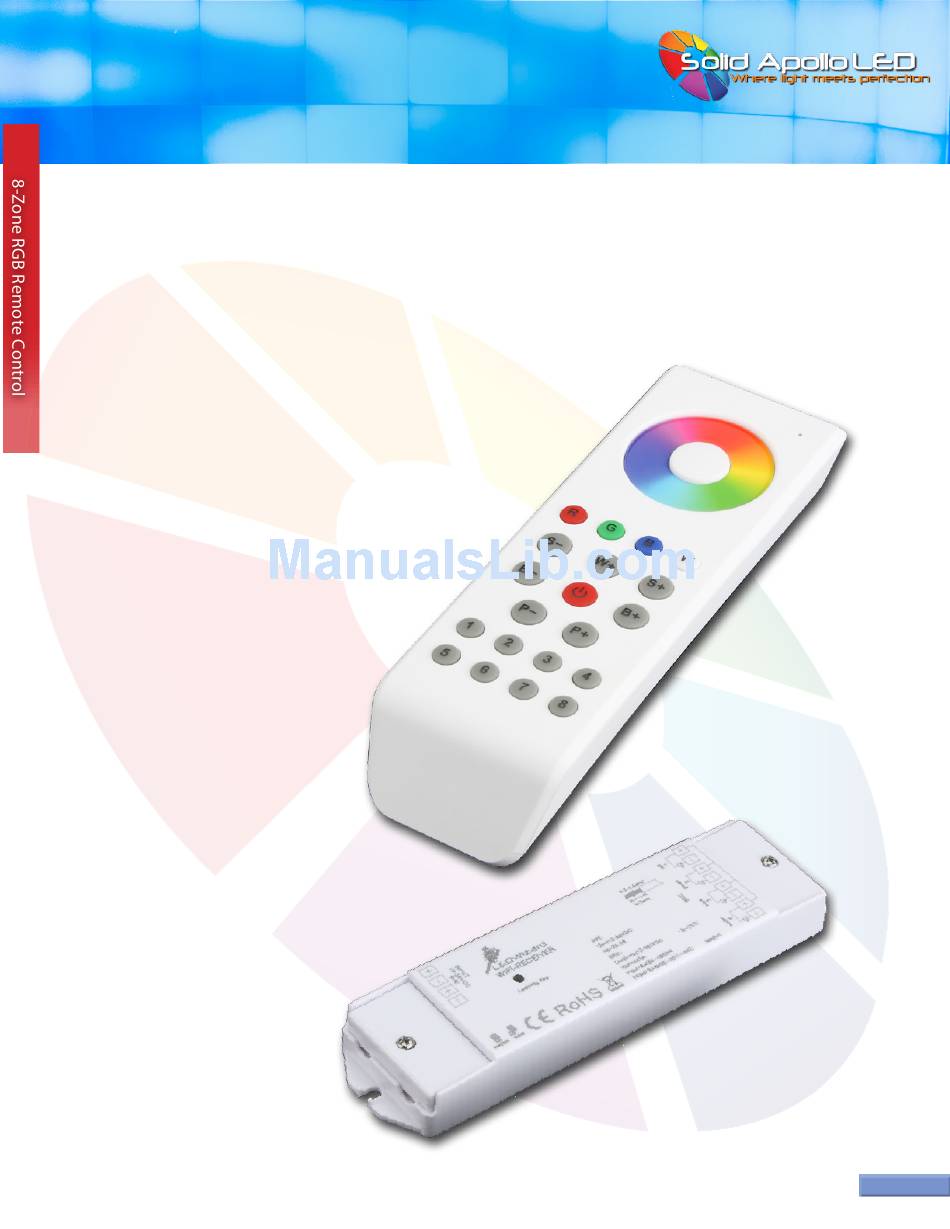

Remote Control
Reciever
Page 1
