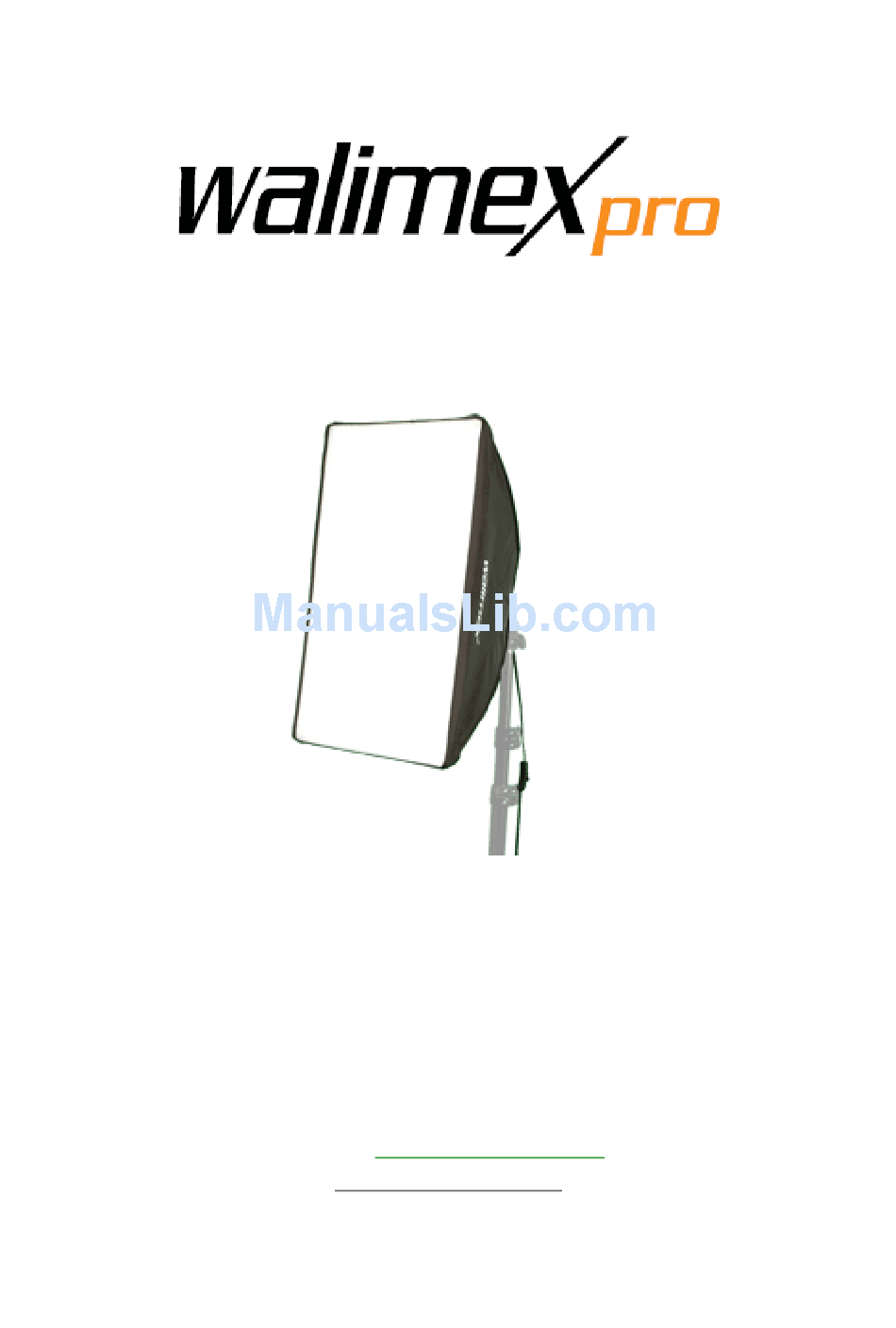

- Page 1 Copy of Instruction Manual Daylight 250 with Softbox 40 x 60 cm WALSER GmbH & Co.KG Gewerbering 26 86666 Burgheim Tel. +49 84 32 / 9489-0 Fax. +49 84 32 / 9489 - 8333 eMail: info@foto-walser.de www.foto-walser.de EN - Made in Germany, ES - Fabricado en Alemania, IT - Fabbricato in Germania...
-
Page 2: Table Of Contents
Content How to understand the instruction manual ........4 Markings on the device ..............4 Markings in the manual ..............4 Important safety notes ..............5 Unpack and check the device ............8 Overview about the parts ............. 9 Quick start guide ................9 Preparation for operation ............ - Page 3 Thank you very much for your confidence. We wish you much pleasure and success with your new device. The walimex pro Daylight 250 with Softbox 40 x 60 cm is a powerful, energy-saving continuous light, which is especially developed for ambitious beginners and professional users in film and studio photography.
-
Page 4: How To Understand The Instruction Manual
How to understand the instruction manual Markings on the device This marking mean, that your device meets the safety requirements of all relevant European Directives. This marking mean, that your device should be disposed in the local disposal points. Markings in the manual Marking Meaning Indicates the handling and consequences of safety... -
Page 5: Important Safety Notes
Important safety notes WARNING Risk of eye injury The optical radiation of the lamp could blind your eyes and lead to afterimages, if persons and animals look into the lamp directly. This could lead to injuries. Please avoid persons and animals looking into the flash directly. - Page 6 humidity or moisture. A short-circuit can warm up the conductors, so that there isolation will melt or even melt thoroughly. This could lead to fire. Please just use the original cables, which are included in delivery. They are aligned for your device and guarantee the necessary safety for you and your device.
- Page 7 Please just use accessories and spare parts, which are conform to the required specifications. See Technical Specifications. Lamps, which are damaged or deformed through heat, should be exchanged immediately. Remove easily inflammable materials, which are in close distance to the device.
-
Page 8: Unpack And Check The Device
Please handle the lamps with care to avoid bursting. Don´t touch the lamps with bare hands. Just touch the lamp at the plastic socket or wear clean cotton gloves or use a clean cloth. Avoid touching the flash tube accidentally when mounting or changing accessories. -
Page 9: Overview About The Parts
Overview about the parts Softbox Lamp Fastening Screw for tilt angle Fastening Screw for lamp tripod On/Off Tappet Switch Power Cord Front Diffuser Quick start guide ADVICE: The detailed instruction for the following operations can be found in the respective chapters in this instruction manual. Keep the sequences of the following operation steps when using the device for the first time to avoid damages on the device. -
Page 10: Preparation For Operation
WARNING Please note the safety notes in the respective chapters throughout operation. Mount the device on tripod (optional). Mount softbox. Screw in lamp. Adjust tilt angle. Connect to power supply. Switch the lamp on and off. Preparation for operation Mount on tripod (optional) ADVICE:... -
Page 11: Screw In And Out Of Lamp
Screw in and out of lamp WARNING Danger of cutting and splitting through breaking or bursting lamp Don´t let the lamp fall down. Don´t touch the lamps with bare hands. Just touch the lamp at the plastic socket or wear clean cotton gloves or use a clean cloth. ADVICE: Possible discolouration through burn marks on the lamps. -
Page 12: Operation Of The Device
Operation of the device Adjust tilt angle 1. Loose fastening screw for tilt lever. 2. Adjust required tilt angle. 3. Tighten fastening screw for tilt angle. Switch the device and lamp on and off The lamp can be switched on and off through the tappet switch on the power cord. -
Page 13: Solve Problems
Solve problems Problem Possible reason Remedy Device is switched on, Power cord is not Plug in the power but has no function plugged or plugged cord correctly incorrect Micro-fuse is defect Change micro-fuse, see Change micro- Lamp do not light up fuse Switch on lamp, see Lamp is switched off... -
Page 14: Cleaning
Before With every What you should do? every change operation Check, if the lamp is screwed in firmly In case of damage: WARNING! Danger of electric shock and fire through short-circuit. The device should be repaired by an electrician immediately Check, if the softbox is mounted correctly 10.2 Cleaning WARNING... -
Page 15: Change Lamp
10.3 Change lamp WARNING Please just use lamps, which are conform with the required specifications. See Technical Specifications. 1. Screw lamp out and in. See Screw in and out of lamps. 11. Accessories and options You can extensive accessories for your device in our webshop. 12. -
Page 16: Technical Specifications
14. Technical specifications Device Power supply AC 220 - 230 V / 50 Hz Weight approx. 1 kg Vertical pivoting radius 180 ° Dimensions incl. softbox approx. 60 cm x 40 cm x 49 cm (HxWxD) Accessories Lamp, front diffuser, instruction manual Lamp Spiral Daylight...
