Summary of Contents for FlexPoint FPR1207-F
- Page 1 FlexPoint FPR1207-F Technical Manual FlexPoint FPR1207-F 7W UPS Effective: February 2014...
- Page 2 Power Alpha Technologies ®...
- Page 3 FlexPoint FPR1207-F Technical Manual 010-344-B1-001, Rev. A Effective Date: February 2014 Copyright 2014 Alpha Technologies, Inc. member of The Group NOTE: Photographs contained in this manual are for illustrative purposes only. These photographs may not match your installation. NOTE: Operator is cautioned to review the drawings and illustrations contained in this manual before proceeding. If there are questions regarding the safe operation of this powering system, please contact Alpha Technologies or your nearest Alpha representative.
-
Page 4: Table Of Contents
Table of Contents Safety Notes .......................... 6 Introduction ......................... 7 List of Terms ..................... 7 Theory of Operation ..................7 System Features ....................8 Options......................9 Items Included ....................9 Installation ........................ 10 Installation and Connection................10 Battery Installation / Replacement Procedure..........12 Operation ......................... - Page 5 Fig. 1-3, System Block Diagram ................. 8 Fig. 1-4, Items Included with each unit ............... 9 Fig. 2-1, Unit Dimensions ..................10 Fig. 2-2, FPR1207-F Output Cables and Connections ..........11 Fig. 2-3, Function List (Inside Lid of Enclosure) ............11 Fig. 2-4, Battery Terminals ..................12 Fig.
-
Page 6: Safety Notes
Safety Notes Review the drawings and illustrations contained in this manual before proceeding. If there are any questions regarding the safe installation or operation of the system, contact Alpha Technologies or the nearest Alpha representative. Save this document for future reference. To reduce the risk of injury or death, and to ensure the continued safe operation of this product, the following symbols have been placed throughout this manual. -
Page 7: Introduction
A customer-provided 120Vac/230Vac, 50/60Hz power outlet provides primary power to the input of the FlexPoint unit. The AC voltage is then converted to a usable 12Vdc output. The power supply is to be installed near an AC power outlet. -
Page 8: System Features
Fig. 1-1, Front View Fig. 1-2, Rear View FlexPoint FPR1207-F Coaxial cable with Type-F connector 120Vac/230Vac Network Customer FPR1207-F Area Area 12Vdc UPS Up to 6’, (1.8 meters) FPR1207-F: Up to 5’ (~1.5 meters) Fig. 1-3, System Block Diagram 010-344-B1-001 Rev. A (2/2014) -
Page 9: Options
Introduction, continued Options The FlexPoint FPR1207-F supports three models of batteries: Optional Batteries AX-STDBAT-7 Battery 7.2AH AGM, 1-year Warranty AX-LONGBAT-7 Battery 7.2AH AGM, 3-year Warranty AX-LONGBAT-8 Battery, Longlife, 8Ah, AGM 3-year Warranty Items Included Verify the following items are included wth each unit. -
Page 10: Installation
“Keyhole” slots for 0.250" 3.0" easy mounting 6.35mm 76mm 2.5" 63.5mm 2.4" 61mm 3.0" 76mm 8.7" 221mm Center of Gravity (with battery installed) Fig. 2-1, Unit Dimensions (in/mm), FPR1207-F as viewed from back 010-344-B1-001 Rev. A (2/2014) -
Page 11: Fig. 2-2, Fpr1207-F Output Cables And Connections

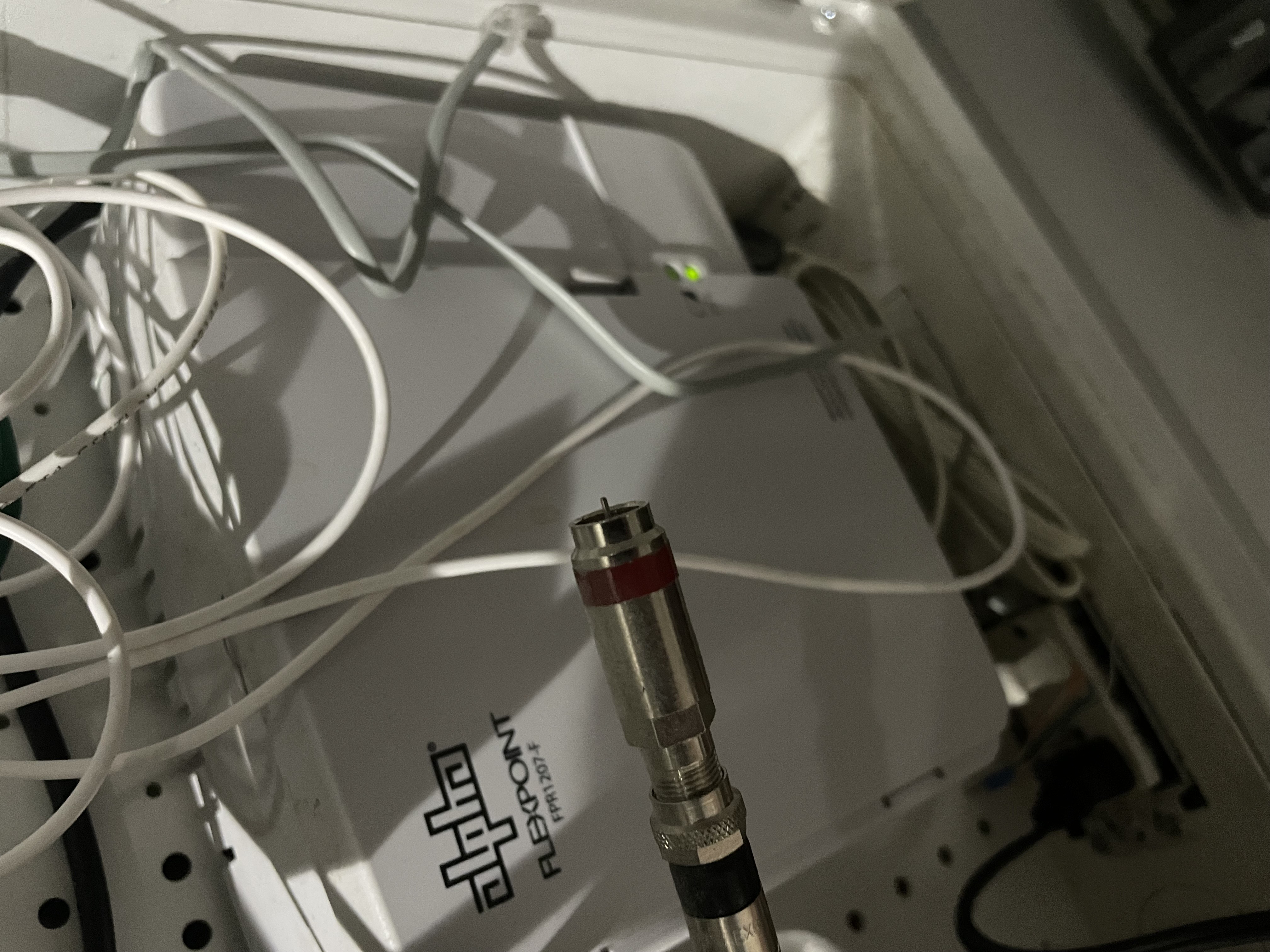

Output Coax Cable AC Input Connection AC Line Cord Cable tie 12Vdc Output Connection Cable tie Fig. 2-2, FPR1207-F Output Cables and Connections Fig. 2-3, Function List (Inside Lid of Enclosure) 010-344-B1-001 Rev. A (2/2014) -
Page 12: Battery Installation / Replacement Procedure
7. Verify the unit is functioning properly by unplugging the unit. The alarm should sound for one second and the Green LED should flash. The unit will be running on standby battery power. 8. Re-plug the FPR1207-F into an AC power outlet. The unit is ready to be placed into service. Locking tab Fig. -
Page 13: Operation
3.0 Operation Power On 1. Plug the unit into AC Power. 2. The green LED (2) should light. Additional LEDs on the front panel of the FPR1207-F indicate the state of the system. Their functions are: Remove cover to access silence alarm and battery emergency use buttons. -
Page 14: Operation, Continued
Operation, continued Audible Alarms and Visual Indicators The table below details the audible alarms and visual indicators of the FPR1207-F. Audible Condition Status LED Description Alarm Condition normal; AC powers load, NORMAL System LED (GREEN) charges battery. Battery LED (GREEN) -
Page 15: Operational Modes
Operation, continued Operational Modes 3.4.1 Normal Mode This mode is defined as a state where the load is being supplied from AC input, and the battery is floating, charging or in the process of being tested. When the unit is initially powered-up, or whenever the input supply has been restored after an outage, the unit operates in a charge mode. -
Page 16: Specifications
-20°C to +40°C (-4°F to +104°F) Battery Storage (six months max. storage duration at 25°C / 77°F without a recharge) WARRANTY FlexPoint FPR1207-F 3 year, repair or replace Battery Contact Alpha Technologies for model-specific warranty coverage 010-344-B1-001 Rev. A (2/2014) - Page 18 Alpha Technologies Inc. Alpha Technologies Ltd. Alpha Industrial Power Inc. 3767 Alpha Way 7700 Riverfront Gate 1075 Satellite Blvd NW, Bellingham, WA 98226 Burnaby, BC V5J 5M4 Suite 400 United States Canada Suwanee, GA 30024 Tel: +1 360 647 2360 Tel: +1 604 436 5900 United States Fax: +1 360 671 4936...
