Summary of Contents for Scantool 48

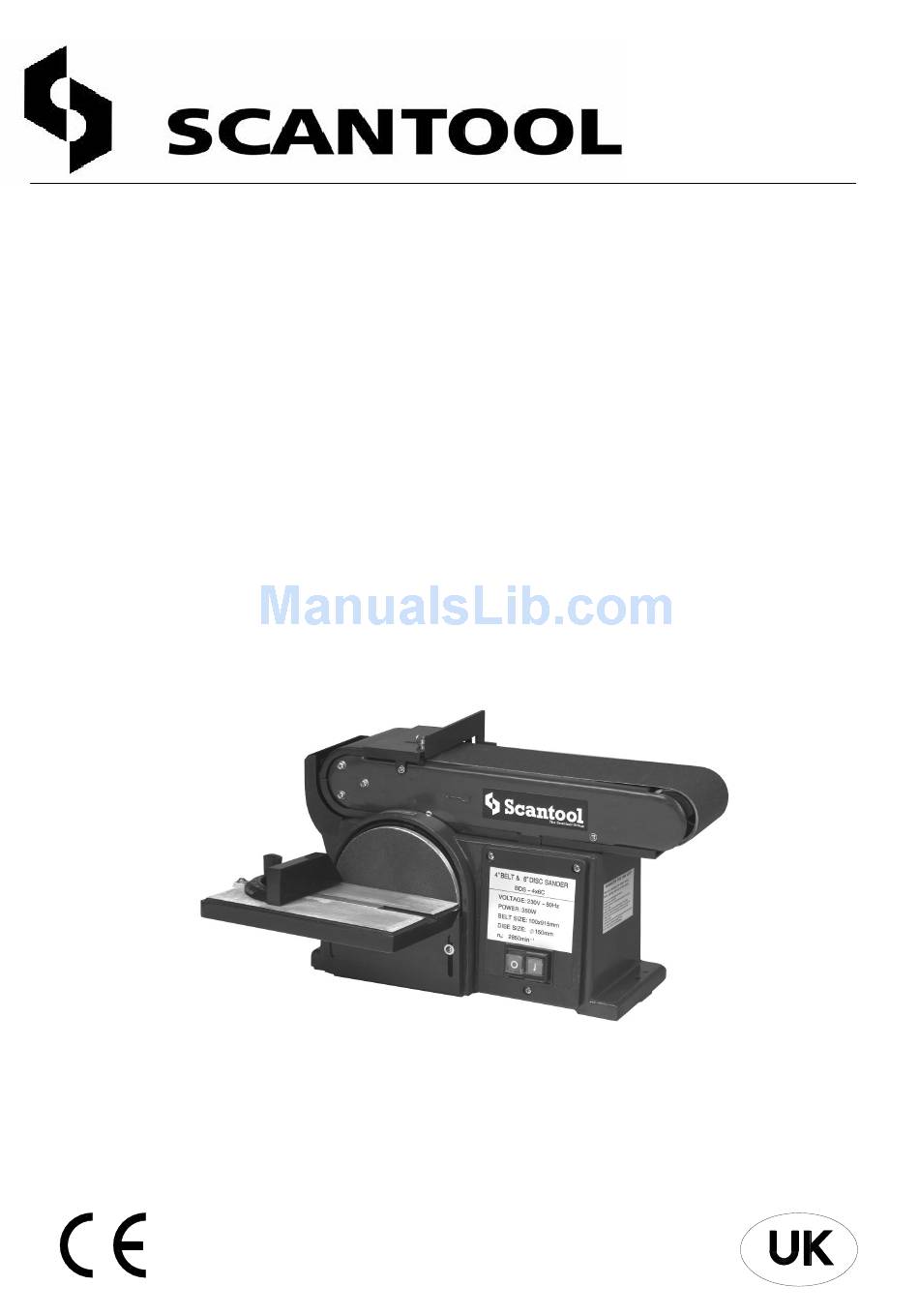

- Page 1 Industrivej 3-9 DK-9460 Brovst Tel.: +45 98 23 60 88 Fax: +45 98 23 61 44 Manual SCANTOOL 48 BELT and DISC SANDER...
-
Page 2: Ec Declaration Of Conformity
Fax.: +45 98 23 61 44 hereby declare that SCANTOOL 48 was manufactured in conformity with the provisions in the COUNCIL DIRECTIVE of 17. May 2006 (2006/42/EC) on mutual approximation of the laws of the Member States on the safety of machines (89/392/EEC as... -
Page 3: Table Of Contents
Table of Content EC DECLARATION OF CONFORMITY OPERATION AFETY RULES FOR STATIONARY POWER TOOLS 2. UNPACKING AND CHECKING CONTENTS 3. ASSEMBLY OUNTING BELT AND DISC SANDER TO WORKBENCH 4. CLAMPING BELT AND DISC SANDER TO WORKBENCH 5. ASSAMPLY 5.1 I NSTALLING SANDING DISC AND GUARD 6. - Page 4 10.3 PLAN AHEAD TO PROTECT YOUR EYES, HANDS, FACE, EARS 11. BASIC OPERATION 11.1 BEVEL SANDING 11.2 POSITIONING BELT BED 11.3 SURFACE SANDING ON THE SANDING BELT 11.4 END SANDING ON THE SANDING BELT 11.5 SANDING CURVED EDGES 12. BASIC OPERATION 13.
-
Page 5: Operation
Operation 1.1 Safety rules for stationary power tools. Follow them to achieve best results and full benefit from your new machine The very good craftsman respects the tools with which he works. He knows they represent years of constantly improved design. He also knows that they are dangerous if misused. - Page 6 9. Don’t force tool. It will do the job better and be safer at the rate for which it was designed. 10. Use right tool. Don’t force tool or attachment to do a job it was not designed for. 12. Always use safety glasses.
-
Page 7: Unpacking And Checking Contents
2. Unpacking and checking contents TOOLS NEEDED Separate all parts from packing materials and check each item with illustration and “Table of Loose Parts”. NOTE: Make certain all items are accounted for, before discarding any packing material. WARNING: To avoid injury, if any parts are missing, do not attempt to assemble the Belt and Disc Sander, plug in the power cord, or turn the switch on until the... -
Page 8: Assembly
3. Assembly 3.1 Mounting belt and disc sander to workbench If belt and disc sander is to be used in a permanent location, it should be fastened securely toa firm supporting surface such as a workbench. If mounting to a workbench, holes should be drilled throung supporting surface of the workbench using dimensions illustrated. -
Page 9: Clamping Belt And Disc Sander To Workbench
4. CLAMPING BELT AND DISC SANDER TO WORKBENCH The belt and disc sander can be clamped directly to a workbench using two (2) or more “C” clamps on base of unit (one clamp on each end of unit). 5. ASSAMPLY 5.1 Installing sanding disc and guard 1. -
Page 10: Installing Table Assembly
7. INSTALLING TABLE ASSEMBLY 1. Locate table support and (3) hex head screws, M6 x 1.0-14, washer and lockwashers among loose parts. 2. Position table support against table, aligning holes as shown. 3. Fasten table support to table as shown. 4. -
Page 11: Assembly
8. Use your Owner´s Manual as a spacer. Place ten pages of the Owner´s Manual between the Dise and the front edge of the table. Hold the table against the manual and tighten the three (3) Hex Washer Head screws. 8. -
Page 12: Installing The Sanding Beltensioning And Tracking
8.3 INSTALLING THE SANDING BELTENSIONING AND TRACKING WARNING: To avoid injury from accidental start, turu switch “OFF”, remove key and remove plug from power source outlet before removing or installing sanding belt On the smooth side of the sanding belt, you will find a “directional arrow”... -
Page 13: Getting To Know Your Belt And Disc Sander
9. GETTING TO KNOW YOUR BELT AND DISC SANDER WARNING: To avoid injury from accidental start, turn switch “OFF” and remove plug from power source outlet before making any adjustments. 1. Work Support. Supports the workpiece on the sanding belt. 2. -
Page 14: On-Off Switch
9.2 ON-OFF SWITCH The On-Off switch has a locking feature. THIS FEATURE IS INTENED TO HELP PREVENT UNAUTHORIZED AND POSSIBLY HAZARDOUS USE BY CHILDREN AND OTHERS. 1.To turn machine “ON” insert key into switch. NOTE: Key is made of yellow plastic, located in loose parts bag. -
Page 15: Basic Operation
10. BASIC OPERATION 10.1 BEFORE USING THE SANDER WARNING: To avoid mistakes that could cause serious, permanent injury, do not plug the sander in until the following steps are completed. · Assembly and alignment. (See pages 9-13) · Learn the use and function of the ON-OFF switch, table and work table tilt lock knob. -
Page 16: Plan Ahead To Protect Your Eyes, Hands, Face, Ears
· Adjust any work support to clear the sanding surface by no more than 1/16 of an inch. When checking clearance between the belt and work support, press the belt flat against the metal beneath if. · Make sure all clamps and locks are tight and no parts have excessive play. ·... - Page 17 10.6 Inspect your workpiece Make sure there are no nails or foreign objects in the part of the workpiece to be sanded. Plan your work to avoid THROWBACKS- when the workpiece catches on the sanding belt or disc and is torn from your hands. ·...
-
Page 18: Basic Operation
DON´T FORCE TOOL. It will do the job better and safer at its designed rate. Press the workpiece against the sanding material only hard enough to let it sand without bogging down or binding. 10.9 Before freeing any jammed material: ·... -
Page 19: Positioning Belt Bed
11.2 POSITIONING BELT BED A bed locking hex socket head screw locks the belt bed in a vertical or horizontal position. To adjust vertical position: 1. Remove the work support. 2. Loosen the hex socket head locking screw using a 6mm hex wrench. 3. -
Page 20: End Sanding On The Sanding Belt
11.4 END SANDING ON THE SANDING BELT It is more convenient to sand the ends of long workpieces with sanding belt in a vertical position. See “Basic Operation – Positioning Belt Bed” for adjusting the belt bed, and see “ Assembly – Installing Table Assembly”... -
Page 21: Maintenance
WARNING: For your own safety, turn switch “OFF” and remove plug from power source outlet before adjusting your sander. NOTE: Use a combination square to square the miter gauge to the face of the disc (combination square must be “true” – See “”Unpacking –... -
Page 22: Lubrication
13.1 LUBRICATION The BALL BARINGS in this machine are packed with grease at the factory. They require no further lubrication. Sleeve bearings should be lubricated with 30 weight oil or equivalent after each 10 hours of operation – see instructions below. OILING SLEEVE BEARINGS. - Page 23 4. Slightly tighten (3) screws. Adjust tension of belt by putting blade screwdriver in adjusting hole. Push up on screwdriver to tighten tension between pulleys. 5. Tighten screws being careful not to disturb belt. 6. Test belt tension by placing fingers on either side of belt and squeeze.
-
Page 24: Repair Parts
14. REPAIR PARTS... -
Page 25: Repair Parts
15. REPAIR PARTS Description Description Knob Table Washer, Rubber Support, Table Washer, Notched Lable, Scale Cord w/plug Screw, flat cross M5 x 0.8-35 Motor (1/3 HP) Screw, Hex M6 x 1.0-14 Connector, wire Lockwasher, Ext. M6 Nut, Hex M6 x 1.0 Washer, 6.5 x 17.8 x 1.6 Base Support, Work... -
Page 26: Guarantee
16.1 Guarantee If within 2 year of purchase this machine supplied by SCANTOOL A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: The product is returned complete to one of our Service Branches or Official Service Agents.
