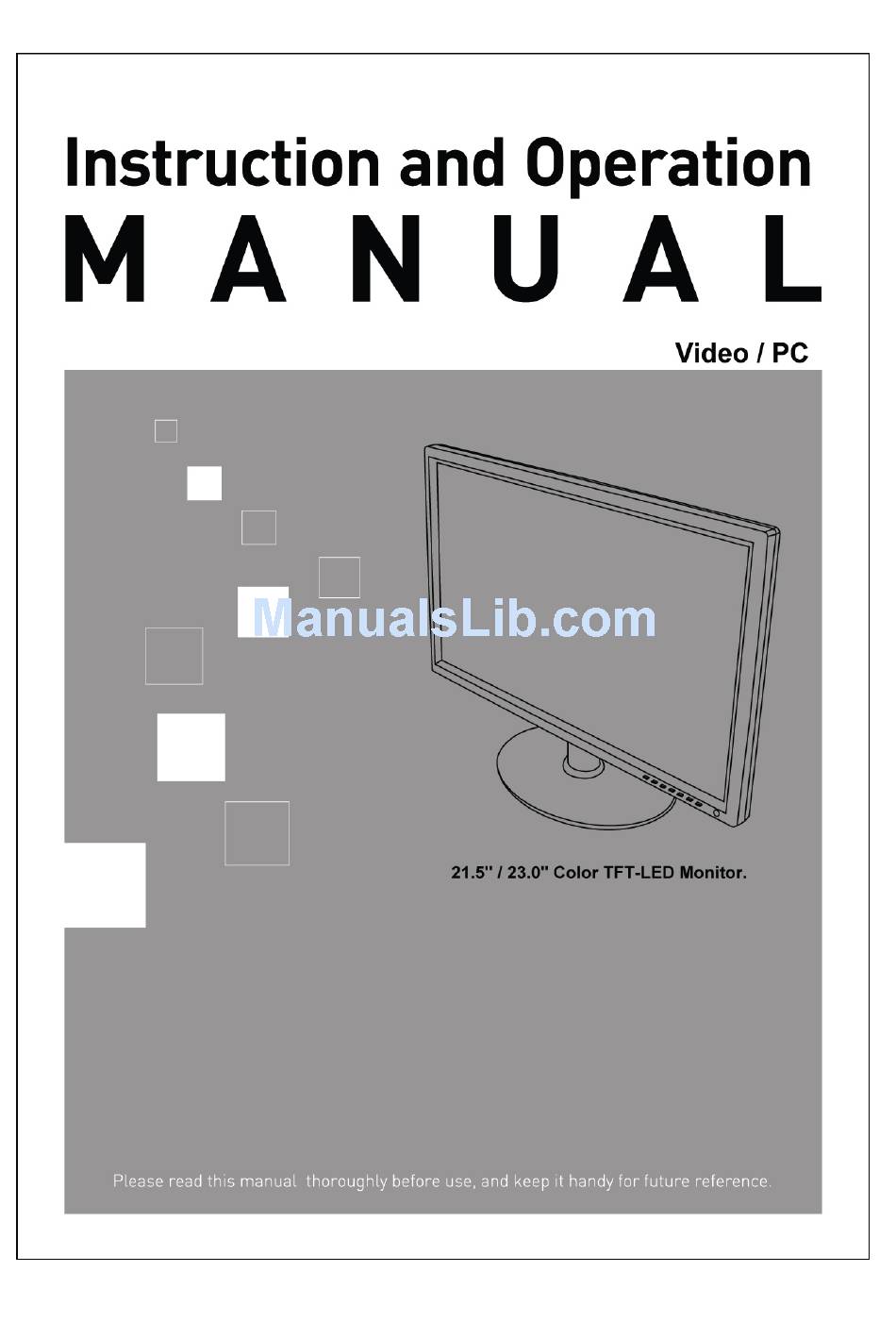

Security Dynamics LEDM23HD Instruction And Operation Manual

23.0'' color tft-led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDM23HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Security Dynamics LEDM23HD

  • Page 2: Ce Compliance Statement

    FCC COMPIANCE STATEMENT FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Warnings And Cautions

    Warnings and Cautions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.

  • Page 5: Table Of Contents

    Table of Contents 1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 2. Operating Instructions - Controls - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7~8 3.

  • Page 6: Features

    1. Features • High Quality Advanced CCTV LED Monitor • Incredible Resolution with 600TVL • De-Interlace technology Efficiently Eliminates Shaky and blurry image Progressive Scan • 3D Comb Filter Function Clear image • Superior Color Reproduction • VESA Wall & Ceiling mount Compatible •...

  • Page 7: Operating Instructions - Controls

    2. Operating instruction FRONT controls 1. Menu / Exit This button is used to bring up or disappear the controls menu. Exits from the OSD system and the selected function 2. Down / Brightness (▼/ Moves down the menu lists in the OSD / Selected brightness 3.
  • Page 8 REAR connection 1. DC JACK Place the plug from the supplied table-top power supply into the DC 12V connector. Input at the monitor is 12 volts DC from the TT universal AC supply. (100-240 Vac, see specifications table for AC/DC details) 2.

  • Page 9: User Controls - Menu Operations

    3. User Controls - Menu Operations 3.1. RGB (& DVR) Mode RGB Mode: General PC input mode DVR Mode: The optimized format to synchronize a monitor and a DVR for the best resolution. NTSC: 640x480 (60Hz), 672x480 (60Hz) PAL: 672x580(50Hz), 800x600 (75Hz) Press the MENU button to display the PC menu.

  • Page 10: Osd Menu

    • Alarm is s input for the Alarm Level (Max 5Vdc) of Sensor or any Alarm Device. - Alarm menu (pull-down menu) Enable is used ON or OFF the alarm function. Alarm Source Select the input source the alarm screen. Enable <...

  • Page 11: Cvbs (& S-Video) Mode

    • H position Adjust the PIP sub screen display position. (U_L / D_L / D_R / U_R) * PIP / PBP working condition Main CVBS1 CVBS2 S-Video HDMI × CVBS1 × CVBS2 S-Video × × × × × × × ×...
  • Page 12 ● Advanced Menu Advanced > Color Temp > Alarm > 3D NR < > Anti Burn > Recall < CVBS1 > Source Panel scale < Full > • Color Temp is used to control color temperature. (Normal, Warm, Cool, User) •...

  • Page 13: Hdmi Mode

    3.3. HDMI Mode Press the MENU button to display the HDMI menu. The follow setup menu will appears. ● HDMI menu HDMI Volume Contrast Brightness Tint Color Sharpness • Volume Controls the output of the internal speakers. • Contrast, Brightness Change the contrast &...

  • Page 14: Specifications

    4. Specification 21.5" Color TFT-LED Monitor ITEM SPECIFICATION LED Panel 21.5" TFT LED BLU Panel Active Display Area (Diagonal) 21.5 inches Pixel Format 1920(H) x 1080(V), RGB Vertical Stripe Pixel Pitch 0.248mm x 0.248mm Color Depths 16.7M Colors Contrast Ratio 1000 : 1 (Typical) Brightness 250 cd/m...

  • Page 15: Specifications

    Protection Glass 3T max (Option) 23.0" Color TFT-LED Monitor ITEM SPECIFICATION LED Panel 23.0" TFT LED BLU Panel Active Display Area (Diagonal) 23.0 inches Pixel Format 1920(H) x 1080(V), RGB Vertical Stripe Pixel Pitch 0.2655mm x 0.2655mm Color Depths 16.7M Colors Contrast Ratio 1000 : 1 (Typical) Brightness...

  • Page 16: Remote Control

    5. REMOTE CONTROL 1. Mute Cuts off the sound 2. Power Power on / off 3. Panel Scale Change the scale 4. Display Display the screen information 5. Freeze Freezes the screen temporarily 6. PIP Multi window activate or cancel the PIP function 7.
