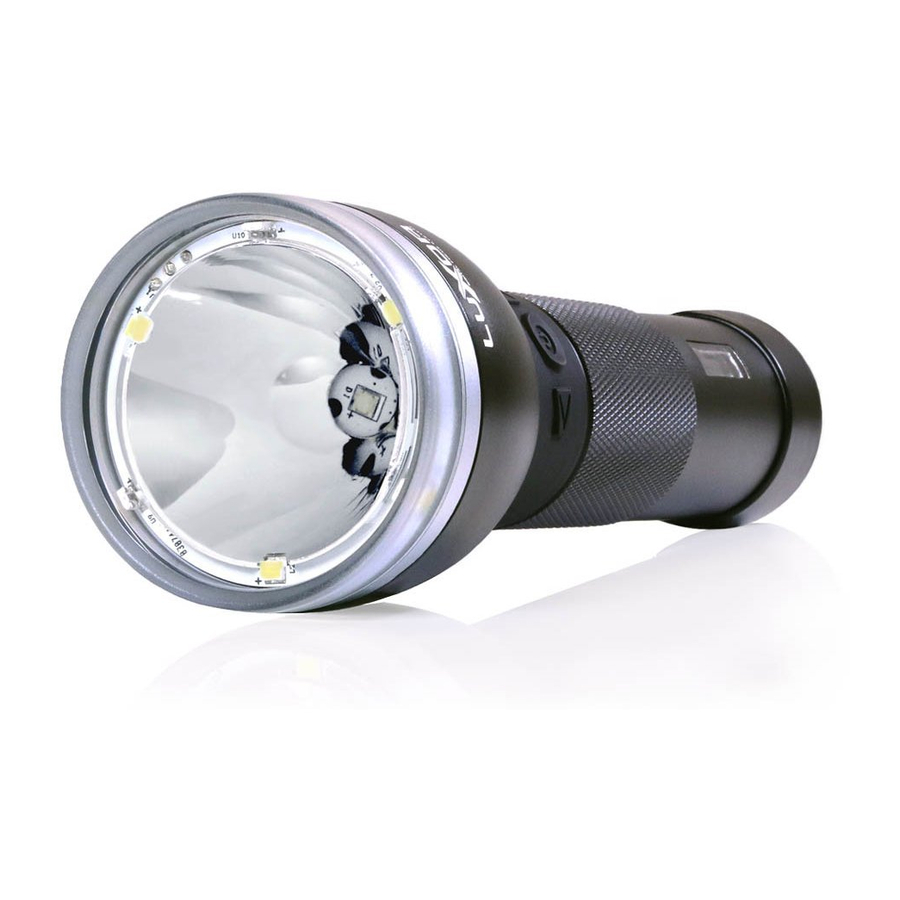

Summary of Contents for PLX Devices LUXOR 2
- Page 1 User Manual Patents Issued and Patents Pending © PLX Devices Inc. 2016 All Rights Reserved...
-
Page 2: Table Of Contents
Contents Introduction Patents Warnings Key features Package contents Overview Accessories General Operation Button function Light modes Light modes selection Intelligent OLED display Luxor menus Charging your Luxor Charging other devices with Luxor- reverse charge Changing your battery Additional features Product care and maintenance Storage Battery use and safety Disposal... -
Page 3: Introduction
Introduction Patents PLX Devices Inc. currently has issued patents and patents pending on the LED digital and automatic focus, and intelligent battery metering hardware, firmware, and algorithms. Warnings Each Luxor contains a Lithium Polymer (LiPo) battery. LiPo batteries are volatile. -
Page 4: Overview
Overview Accessories Included accessories Waterproof Tail Cap Charging Cable Reverse Charge Cable www.plxdevices.com... -
Page 5: General Operation
General Operation Button function Turn on/off: Press & release button Change light mode: Press & release button Decrease/Increase intensity: Press button Adjust focus for virtual focus: Hold & rotate Luxor (or press button) Change screen display: Hold & press button Lock/Unlock buttons: Press & hold buttons simultaneously for 5 seconds Activate/Deactivate light modes: Press & hold buttons simlatneously for 5 seconds Activate/Deactivate reverse charge: Press &... -
Page 6: Light Modes
Light modes Luxor has five light modes: auto focus, virtual focus, strobe, beam+flood, and beam+flood+lantern. Auto focus: In auto focus mode, Luxor detects where it is being pointed and automatically adjusts the focus of the light to deliver the best lighting for that application. Virtual focus: Virtual focus mode allows you to manually control the beam pattern of your Luxor. -
Page 7: Intelligent Oled Display
Intelligent OLED display Shows the percent charge remaining and the actual capacity remaining in mAh. Shows the amount of time (days:hours:minutes) remaining until Luxor becomes empty. Shows the amount of time (days:hours:minutes) remaining until Luxor becomes fully charged. Shows the amount of light emitted in lumens and graphically shows what percentage of maximum light output is being emitted from each set of LEDs (beam, flood, lantern). -
Page 8: Luxor Menus
Luxor menus Six different menus may be selected by the user on Luxor’s organic LED display. These menus include battery percentage, time remaining, electrical, health & charge mode, throw, and lumens. Battery percentage: The battery percentage menu will display the remaining battery capacity as a percentage of Luxor’s maximum battery capacity numerically and graphically. -
Page 9: Charging Other Devices With Luxor- Reverse Charge
Charging other devices with Luxor - reverse charge 1. Make sure reverse charge mode is activated. Pressing & holding the button for 3 seconds with Luxor on activates/ deactivates Reverse Charge. 2. Insert the micro USB end of your reverse charge cable into Luxor’s micro USB port. -
Page 10: Additional Features
Additional features Low battery indicator: Luxor has a low battery indicator that activates when your battery is critically low. When you battery is low, all active lights will blink twice (every 30 seconds) and a warning screen will display (every 6 seconds). All low battery indicators will be turned automatically off once your battery reaches a safe charge level. -
Page 11: Product Care And Maintenance
Product Care and Maintenance Luxor has been rigorously tested for confidence in any environment. The guidelines below will allow you to enjoy this product for years to come. Storage Luxor should be stored at room temperature in cool or shaded areas, ideally between 10°C (50°F) to 25°C (77°F). -
Page 12: Disposal
It is best to place the damaged battery inside a fireproof container until it can be properly disposed. PLX Devices, Inc. DOES NOT recommend disassembling the product and disposing/replacing the battery on your own accord. Disassembly of the product or battery can be dangerous if improperly handled. -
Page 13: Troubleshooting
Troubleshooting Problem turning on your Luxor If you are unable to turn your Luxor on: 1. Charge your battery. Your Luxor may not turn on if the battery level is too low. 2. If your screen does not turn on when you plug it in to charge, remove the tail cap and check to make sure the battery connector is completely clipped into place. -
Page 14: Resetting Your Luxor
Resetting Luxor If Luxor stops functioning properly, you may need to perform a factory reset on Luxor to regain functionality. Factory reset procedure: 1. With Luxor’s OLED on, press the button, button, and button simultaneously. The following display should appear. 2. -
Page 15: Technical Specifications
Patented with Patents Pending Technical Specifications Luxor LX850 Light Output 0-850 Lumens (Linearly Proportional Dimmable 0-100%) Light Source 1 LED Cree XTE, 6 LED Cree MLC Light Temperature 5500K (Cool White) Light Angle Focus 12-270 Degrees Modes Auto Focus; Virtual Focus; Strobe; Beam + Flood; Beam + Flood + Lantern Construction Anodized 6061 Aircraft Grade Aluminum and High Impact Polycarbonate 8”... - Page 16 Implementation and integration of the PLX products with any other device(s) must be done at your own risk. LIMITED WARRANTY – PLX Devices Inc. warrants this product to be free from defects for 1 year from the date of purchase. If applicable, non-serviceable items are excluded from stated warranty. Serviceable goods must be deter- mined by PLX Devices to be defective before any warranty or replacement is issued.
