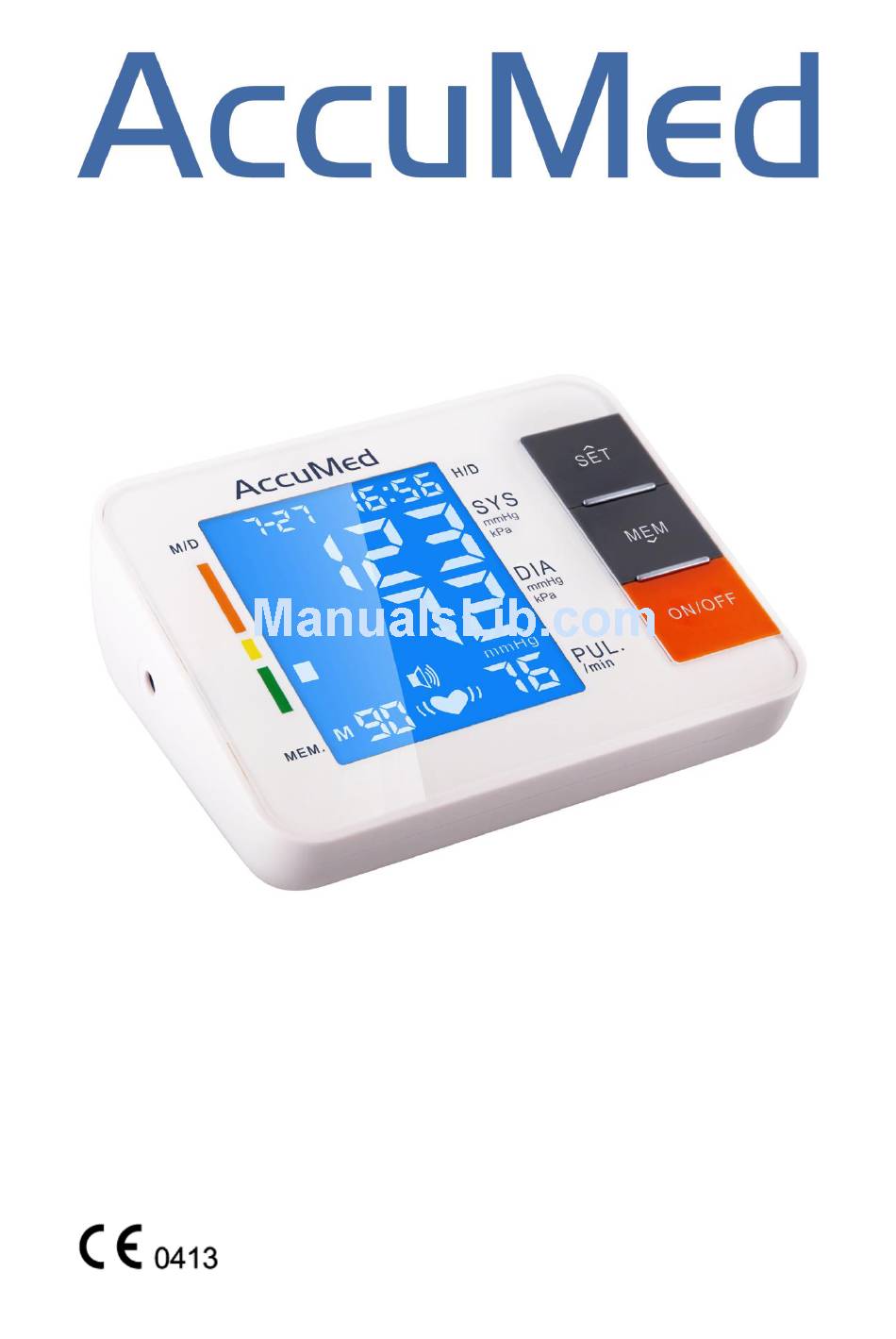

- Page 1 UPPER ARM BLOOD PRESSURE MONITOR Instruction Manual MODEL: ABP802 www.AccuMed.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................... 1 NOTES ON SAFETY ......................1 ABOUT BLOOD PRESSURE ....................3 PRECAUTIONS BEFORE USE ..................4 FEATURES OF THE PRODUCT ..................4 PARTS IDENTIFICATION ....................5 INSERT OR REPLACE BATTERIES................... 5 TIME AND VOICE ON/OFF OF SYSTEM SETUP .............. 6 UNIT CONVERSION mmHg/kPa DISPLAY ................ -
Page 3: Introduction
INTRODUCTION The Monitor uses the oscillometric method of blood pressure measurement. Measurement Automatic Electronic Blood Pressure Monitor is intended for use by medical professionals or at home to monitor and display diastolic, systolic blood pressure, and pulse rate on adults each time, with an arm cuff around the left upper arm according to the instructions in the “ATTACHING THE ARM CUFF”... - Page 4 Patient must follow doctor’s instructions and should not perform self-judgment and self-treatment by the measuring result. Self-diagnosis on measured results and treatment are dangerous. The device should not be used to judge illness, first aid, and continuously monitor measuring. This device cannot be used for patient transport and surgical care. It can be used in household or fixed places only.
-
Page 5: About Blood Pressure
ABOUT BLOOD PRESSURE 1. What is blood pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg). One's natural blood pressure is represented by the fundamental pressure, which is measured first thing in the morning while one is still at rest and before eating. -
Page 6: Precautions Before Use
Take measurements at the same time every day using the procedure described in this manual to determine your normal blood pressure. Many readings give a more comprehensive blood pressure history. Be sure to note date and time when recording your blood pressure. Consult your doctor to interpret your blood pressure data. -
Page 7: Parts Identification
PARTS IDENTIFICATION INSERT OR REPLACE BATTERIES 1. Remove the battery cover. 2. Insert new batteries into the battery compartment as shown, taking care that the polarities (+) and (-) are correct. 3. Close the battery cover. Use only LR6, AA batteries. Dispose of dead batteries to the authorized collecting party according to the regulation of each individual territory. -
Page 8: Time And Voice On/Off Of System Setup
* lf you are not going to use the unit for a long period of time (approximately three months or more), remove the batteries. * Replace worn batteries with their polarities in the correct direction. TIME AND VOICE ON/OFF OF SYSTEM SETUP 1. -
Page 9: Who Blood Pressure Classification Display
WHO BLOOD PRESSURE CLASSIFICATION DISPLAY Diastolic blood pressure reference material: journal of hypertension 1999. 17 No.2 ATTACHING THE ARM CUFF 1. Wrap the arm cuff around the upper arm, about (2-3) cm above the elbow, as shown. Place the cuff directly on the skin, as clothing may cause a faint pulse, and result in a measurement error. -
Page 10: How To Measure Blood Pressure
Do not measure right after physical exercise or a bath. Take a rest for twenty or thirty minutes before taking the measurement. The reading could be affected by the following: Within in an hour after dinner, after having wine, coffee, red tea, sports, bathing; talking, being nervous, being in unsteady mood, bending forward, moving, room temperature dramatically changing during measuring;... - Page 11 Do not use any abrasive or volatile cleaners. CAUTION * Do not submerge the device or any of the components in water. * Do not subject the monitor to extreme hot or cold temperatures, humidity, or direct sunlight. * Store the device and the components in a clean, safe location. * Do not subject the monitor to strong shocks, such as dropping the unit on the floor.
-
Page 12: Specifications
SPECIFICATIONS Measuring Method Oscillometric Measurement Indication Digital LCD display Measuring Range: Pressure:(30~280)mmHg Pulse:(40~199)Beat/min Accuracy: Static Pressure: ±3mmHg Pulse: ±5% Memory: 90 Memories Power supply: 4x1.5V Batteries (LR6 or AA) Using alkaline batteries will provide over 200 measurements. Operating condition: +5 ºC ~+40 ºC 15%RH~93%RH Atmospheric pressure: 70kPa~106kPa storage condition: -20 ºC ~+55 ºC 0%RH~93%RH... -
Page 13: Troubleshooting
MODEL ABP802 as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of the MODEL ABP802. 2. Warning that the MODEL ABP802 should not be used adjacent to or stacked with other equipment... - Page 14 Guidance and manufacturer’s declaration – electromagnetic emissions The MODEL ABP802 is intended for use in the electromagnetic environment specified below. The customer or the user of the MODEL ABP802 should assure that it is used in such an environment. Emissions...
- Page 15 Guidance and manufacturer’s declaration – electromagnetic immunity The MODEL ABP802 is intended for use in the electromagnetic environment specified below. The customer or the user of the MODEL ABP802 should assure that it is used in such an environment. Immunity test...
- Page 16 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MODEL ABP802 is used exceeds the applicable RF compliance level above, the MODEL ABP802 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the MODEL ABP802.
