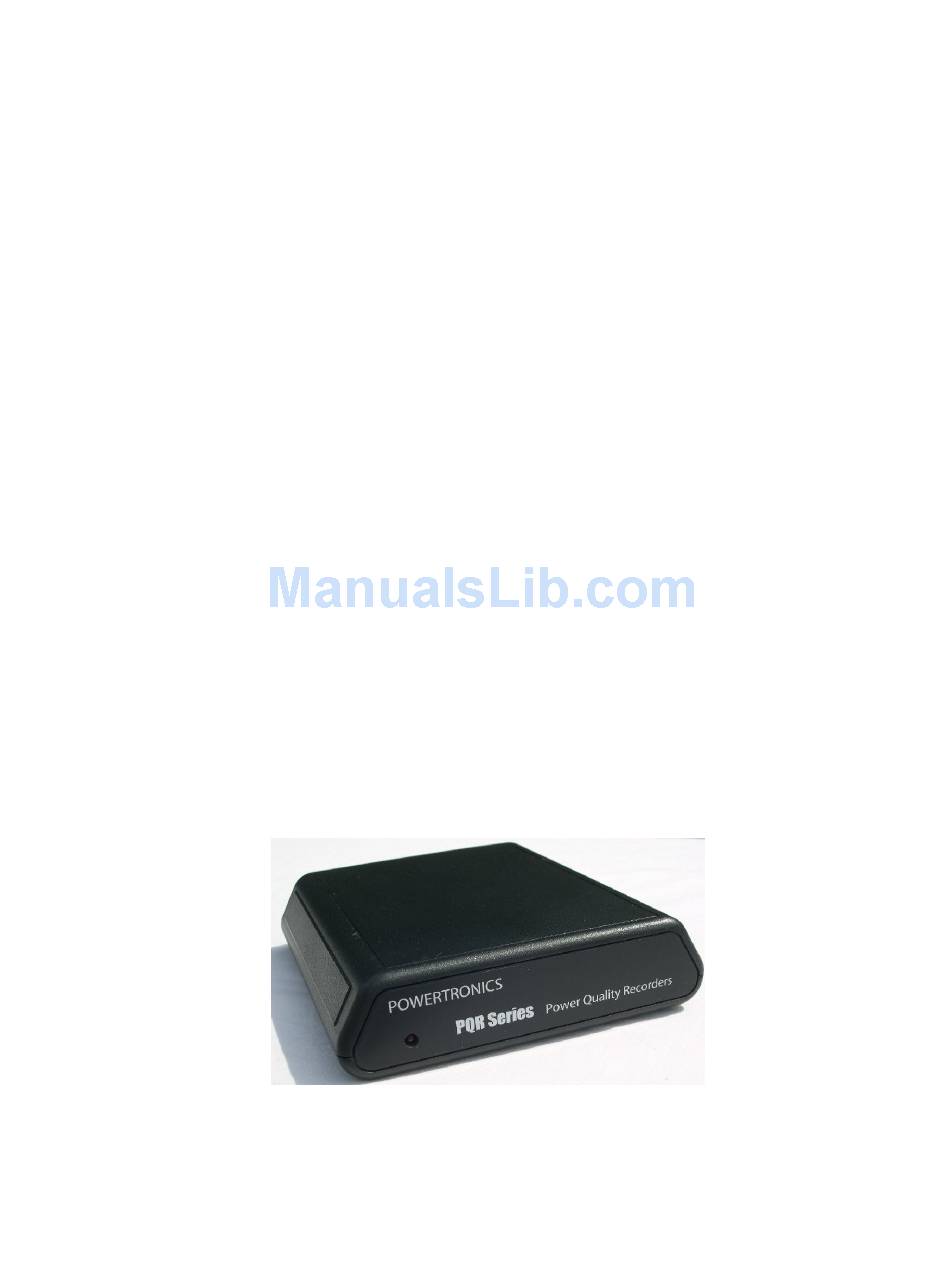

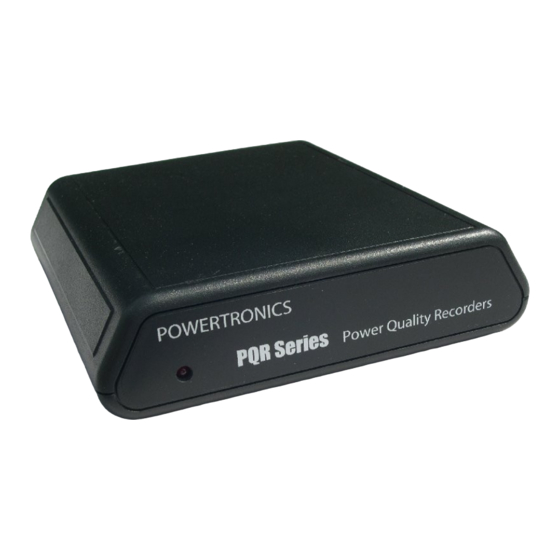

- Page 1 PowerTronics Series Model D52 User’s Manual PowerTronics 143 Raymond Road - Box 735 Candia, N.H. 03034 (603) 483-5876 http://www.powertronics.com...
- Page 2 SAFETY NOTICE The power cable attached to the device is supplied with a safety and reference ground. Do not use the PQR D52 when powered from an ungrounded outlet. High voltage exists at many points inside the cabinet. Qualified personnel ONLY! should open the covers.
-
Page 3: Table Of Contents
Table of Contents PQR D52 Table of Contents Warranty Introduction Calibration Features Testing with the PQR D52 Power Up Sequence Connecting to the PQR D52 PQR Host Communications Software Installing the PQR Host Communications Software File Menu View Menu Settings Menu... - Page 4 Model D52 Page 4 Chapter 3 (Specifications) Channel Specifications: Temperature & Humidity Specifications Operating Specifications: Mechanical Specifications: Interface Specifications: Chapter 4 (Power Terminology) Types of Power Problems Dropout - Power Failure Impulse Common Mode Noise Surge High Frequency Noise www.Powertronics.com V2.1...
-
Page 5: Warranty
18 MONTH WARRANTY Eastern Time Designs, Inc. (PowerTronics ) warrants to the original retail purchaser that each PQR D52 SERIES Power line analyzer sold by PowerTronics or any authorized representative is free from defects in material and workmanship for 18 MONTHS from date of purchase. -
Page 6: Introduction
To monitor the AC line with the PQR D52, plug the line cord provided into a standard 110 volt or 220 volt outlet. After running an internal self test, the unit will start testing the Hot and Neutral line and the Temperature and Humidity. -
Page 7: Calibration
Page 7 CALIBRATION The PQR D52 monitors are designed to test the Power Line with a high degree of accuracy. In this unit all measurements are referenced to a state of the art, temperature compensated voltage source. It is recommended that each unit be calibrated annually by the factory as certain components may require calibration. -
Page 8: Features
The power to operate the unit comes from any such as the Magnitude, Time, and standard 110v / 220v AC outlet. Once plugged in, the Date of each of the disturbances is PQR D52 immediately begins testing the signals on the also reported. input connectors. Features... -
Page 9: Testing With The Pqr D52
AC power connector located on the back of the unit. Data will continue to be gathered until the unit is unplugged. Long term voltage testing is known as Data Logging. The PQR D52 samples the voltage on each of the 4 inputs continuously, and stores the average voltage once each minute. There is enough data storage capacity in the unit to collect these readings on all 4 input channels for up to 20 days at 1 minute per sample. - Page 10 Status LED Apply AC Power: There is a Unit Status LED on the front of the PQR D52. This led is used to indicate system diagnostics status, and Unit operational status. When the PQR D52 is first connected to AC power (110VAC or 220 VAC), it will go through a series of power on diagnostics.
-
Page 11: Connecting To The Pqr D52
(Note, only one port on the PQR D52 can be utilized at a time). The serial port connector on the back of the PQR D52 is a 9 pin DB style RS232. The pinout is as follows:... - Page 12 Model D52 Page 12 PQR Host Communications Software: The PQR D52 is provided with the Powertronics Host Communications Software. When the PQR D52 is connected to a computer with a null modem cable, the Host software provides several functions: ...
-
Page 13: Installing The Pqr Host Communications Software
Model D52 Page 13 Installing the PQR Host Communications Software Go to www.powertronics.com, click on the support link and download the latest version of the software Put Disk 1 provided with your unit into your disk drive. SETUP Select or Double click on A series of files will be copied to your computer’s RAM... - Page 14 Clicking on CONTINUE will allow the installation to complete. The PQR Host communications software can now be started. Click on START Select PROGRAMS Select POWERTRONICS This Screen is the starting point for working with the PQR D52. www.Powertronics.com V2.1...
-
Page 15: File Menu
Select the "Save" menu item to save the active data file to its current file name and location. Save As... Select the "Save As..." menu item to save the active data file to a new file name and location. www.Powertronics.com V2.1... -
Page 16: View Menu
Status Bar Select the "Status Bar" menu item to toggle the status bar at the bottom of the main program window. The status bar displays the program's current COM port and baud rate settings. www.Powertronics.com V2.1... -
Page 17: Settings Menu
After inputting the desired date and time, pressing the "Okay" button will instruct the program to set the device to the specified settings. This process may take a few seconds. www.Powertronics.com V2.1... - Page 18 This process may take a few seconds. The program baud rate setting will also be set to the selected setting. When the rate is changed, the new setting is saved in FLASH RAM, and is used as the power up default until the next time the setting is changed. www.Powertronics.com V2.1...
- Page 19 Leaving a field blank will keep the threshold set to its current value. After specifying the desired settings, pressing the "Okay" button will instruct the program to set the device settings. This process may take a few seconds www.Powertronics.com V2.1...
-
Page 20: Communications Menu
PQR D52, and will then perform the selected function. For example, when you click on the Data Log report, the software will locate the PQR D52, and start downloading the data. The status of the download is reported as: The blocks will count up until all of the data is downloaded and saved in the data file. - Page 21 Neutral Lines as well as the readings from the Temperature and Humidity sensors. Notice that the Graph option now shows up on your toolbar. Since you now have data available, you can generate the charts and graphs that represent that data. www.Powertronics.com V2.1...
- Page 22 Select 1 or 2 of the available channels to graph Once the channels are selected, and the Okay button is clicked, the software will scan the data file and generate a chart showing the data in chart form. Data Log chart of Temperature and Humidity www.Powertronics.com V2.1...
- Page 23 You can drag your mouse, and create a ZOOM Area around your data. When you release the mouse button, data in the ZOOM area is expanded to fill the screen area. Double clicking on the chart will return it to original size. www.Powertronics.com V2.1...
- Page 24 After the transfer is complete, the program will automatically open a data window containing the downloaded data. Each event is described by the date, time, phase, event type, and magnitude of that disturbance.. www.Powertronics.com V2.1...
- Page 25 Each event is described by the phase, event type, magnitude, and quantity of that disturbance. Selecting the Chart options from this report allows you to generate a pie chart showing the distribution of the detected events. www.Powertronics.com V2.1...
- Page 26 The block count provides an approximate measure of the amount of data that has been transferred, and the actual size of a block depends on the baud rate setting. The user can cut a transmission short by simply pressing the "Cancel" button. www.Powertronics.com V2.1...
- Page 27 Model D52 Page 27 Other Communications In the event that you would like to communicate with the PQR D52 without using the PQR Host Communications software, you can connect using most other terminal emulator software. Commands: The PQR D52 will respond to commands received through the serial port. All commands are started with a C.
-
Page 28: C0 - Transmit The Command Menu
C0 - Transmit the Command Menu: This command will transmit the Command Menu back to the operator through the serial port. This is usually the first command to be issued when the operator is connected to the PQR D52. Transmit or type:... -
Page 29: C1 - Transmit The Version Number
Transmit or type: The PQR D52 will respond with: The Version Number refers to the Firmware Program stored in the PROM located inside the unit. This number is needed whenever the operator contacts PowerTronics technical support specialists. www.Powertronics.com V2.1... -
Page 30: C2- Transmit A Summary Report
C2 - Transmit a Summary Report: Transmit or type: The PQR D52 will respond by transmitting a report that is a count of all the disturbances detected since the unit was put on-line, and the RAM was cleared: Each event type is described by the Phase, Event Type, Magnitude, and Quantity of that disturbance. -
Page 31: C3 - Transmit A Detail Report
C3 - Transmit a Detail Report: Transmit or type: The PQR D52 will respond by transmitting the Detail Report of all disturbances saved since the unit was put on-line and the RAM was cleared: Each event is described by the Time, Date, Phase, Event Type, and Magnitude of that disturbance. -
Page 32: C4 - Transmit A Data Log
C4 - Transmit a Data Log of input channels: Transmit or type: The PQR D52 will respond by transmitting the Listing of the voltages measured on all input channels each minute since the unit was put on-line, and the RAM was cleared: The first line of the transmission has a header listing the Time and Date that the data logging was started. -
Page 33: C5 - Clear All Events, And Data Log
Data Logging will start tracking voltage again. Transmit or type: The PQR D52 will respond by transmitting the following message Are You Sure you want to CLEAR ALL DATA on this board ? Y To clear the data, answer this question with a CAPITAL Y The unit will then test and clear all internal RAM. - Page 34 Transmit or type: The PQR D50/52 will respond with: This Menu can be called up anytime the operator is connected to the unit. The Current Settings show how the PQR D52 are configured at the time. www.Powertronics.com V2.1...
- Page 35 Page 35 C6 - (Option 1) Set the Date and Time This command allows the operator to change the Time and Date setting inside the PQR D52. Select Option 1: The PQR D52 will respond by transmitting the following message:...
- Page 36 Note: Changing the baud rate breaks down the connection between the PQR D52 and the communications devices must be changed to match the new rate of the PQR D52. When the rate is changed, the new setting is saved in FLASH RAM, and is used as the power up default until the next time the setting is changed.
- Page 37 PQR D50/52 immediately to the new rate. Note: When the rate is changed, the new setting is saved in Non- Volatile Ram, and used as the power up default until the next time the setting is changed. www.Powertronics.com V2.1...
- Page 38 Temp channel - Surge Threshold..: (5%, 10%).. : 98 followed by a carriage return. The PQR D50/52 will respond (98), indicating that it will now trip at 98 degrees. Note: These settings are saved in Non-Volatile FLASH RAM, and are used as the power up default. www.Powertronics.com V2.1...
- Page 39 This command is helpful in confirming the unit is properly connected to the signals under test. To quit the test, send any character to the unit, or wait for 30 seconds when the unit will return to the on-line testing mode on it’s own. www.Powertronics.com V2.1...
-
Page 40: Cx - Hang Up The Phone
The PQR D50/52 will respond by transmitting the following: Thank you, and good bye. Having sent this message, the unit then sends the hang-up command to the modem. If there is a modem connected, and it had the phone off-hook, it would put the phone on-hook. www.Powertronics.com V2.1... - Page 41 2 volts peak, 10 Khz - 10 Mhz Accuracy: +/- 10% Response time: 1 milli second Line Frequency: Range: 40 - 400 Hz Accuracy: +/- 1% Response time: 1 AC cycle Threshold: +/- 2% deviation from average www.Powertronics.com V2.1...
- Page 42 +/- 1% Sample rate: Programmable - range 1 per second to 1 reading per 4 minutes Sags/Surges: Threshold: 5% and 10% of average Duration limits: 2 seconds Accuracy: +/- 1.5% Programmable User set levels www.Powertronics.com V2.1...
-
Page 43: Mechanical Specifications
6" wide x 7" deep, x 1.5" high Power Cord: 6 feet Serial Interface Specifications USB Port USB Connector RS232 Port: DB9 - RS 232C Baud Rate: 1200 -19200 (Programmable) Protocol: 8 Data, 1 Stop, No Parity bit www.Powertronics.com V2.1... - Page 44 The following pages describe several of the more common types of Power disturbances and list what some of the causes are. Dropout - Power Failure Impulse Common Mode Noise Surge High Frequency Noise Figure PT 1 Typical AC Waveform www.Powertronics.com V2.1...
- Page 45 POWER FAILURE When the duration of a dropout exceeds 1 cycle it is usually referred to as a Power Failure, or Blackout. This problem is the easiest to observe. Figure PT 2 - Dropout www.Powertronics.com V2.1...
- Page 46 Complete failure rarely occurs, and often the equipment user continues to operate the device, unaware of the potential logic circuit problems that may have occurred. Figure PT 3 - Sag www.Powertronics.com V2.1...
- Page 47 SCR (Silicon Control Rectifier) dimmers. Although properly designed equipment has some built-in spike protection, repeated hits by high energy spikes can eventually render these components useless. Figure PT 4 - Impulse www.Powertronics.com V2.1...
- Page 48 0 volts at the load. At a typical site, voltage is induced onto the neutral line by other equipment. This voltage can appear in the form of impulses, or a continuous pseudo sine wave. Figure PT 5 - Common Mode Noise www.Powertronics.com V2.1...
- Page 49 Line) for a half cycle or longer. Like the sag, the power surge is often caused by large inductive loads being applied on the same line. Power surges cause some of the most dangerous occurrences, and their results are the most difficult to correct. Figure PT 6 Surge www.Powertronics.com V2.1...
- Page 50 AC sine wave (normal mode noise). This noise can cause internal component degradation and eventual system failure. During this degradation period, system lockups, resets and data transfer will increase. Figure PT 7 - High Frequency Noise www.Powertronics.com V2.1...
- Page 51 The PQR Series of Power Quality Recorders are designed to meet a wide range of Power and Environmental testing needs. Models range from the simple - PQR D50, Single Phase to the Sophisticated - PQR 1010, Dual AC, Dual DC, Current, and Temperature recorder, with many Models in between. www.Powertronics.com V2.1...
- Page 52 * Data log 20 Days of readings In addition to full Text Detail and Summary reports, event information such as the Magnitude, Time, and Date of each of the disturbances is converted to useful Pie and Bar Charts on your IBM Compatible PC. www.Powertronics.com V2.1...
- Page 53 2) Plug the power cord into a grounded outlet 3) Periodically connect to a computer for reports Stores events in non-volatile FLASH RAM * 32,000 Event Storage * Stores the average reading every minute for up to 20 days on each channel www.Powertronics.com V2.1...
- Page 54 The power to operate the unit comes from any standard 110v / 220v AC outlet. Once plugged in, the PQR-2020 immediately begins testing the signals on the input connectors. PowerTronics www.Powertronics.com V2.1...
- Page 55 Immediate viewing of disturbance events and programming menus via the unit’s LCD display D300 and D200 will test Temperature, The Ground line and DC Voltage D300 is housed in a rugged carrying case, and has a built in printer www.Powertronics.com V2.1...
- Page 56 ON SITE. To fix the problems there’s no more guessing. The Power Investigator Solutions Guide Report helps you find the problems and make the right power protection decision. www.Powertronics.com V2.1...
- Page 57 The LEDs that are illuminated indicate the types of disturbances that may be affecting the equipment. The LEDs on the Probe “latch” in the ON position when device receives disturbance. www.Powertronics.com V2.1...
