Esse-ti Europa GSM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

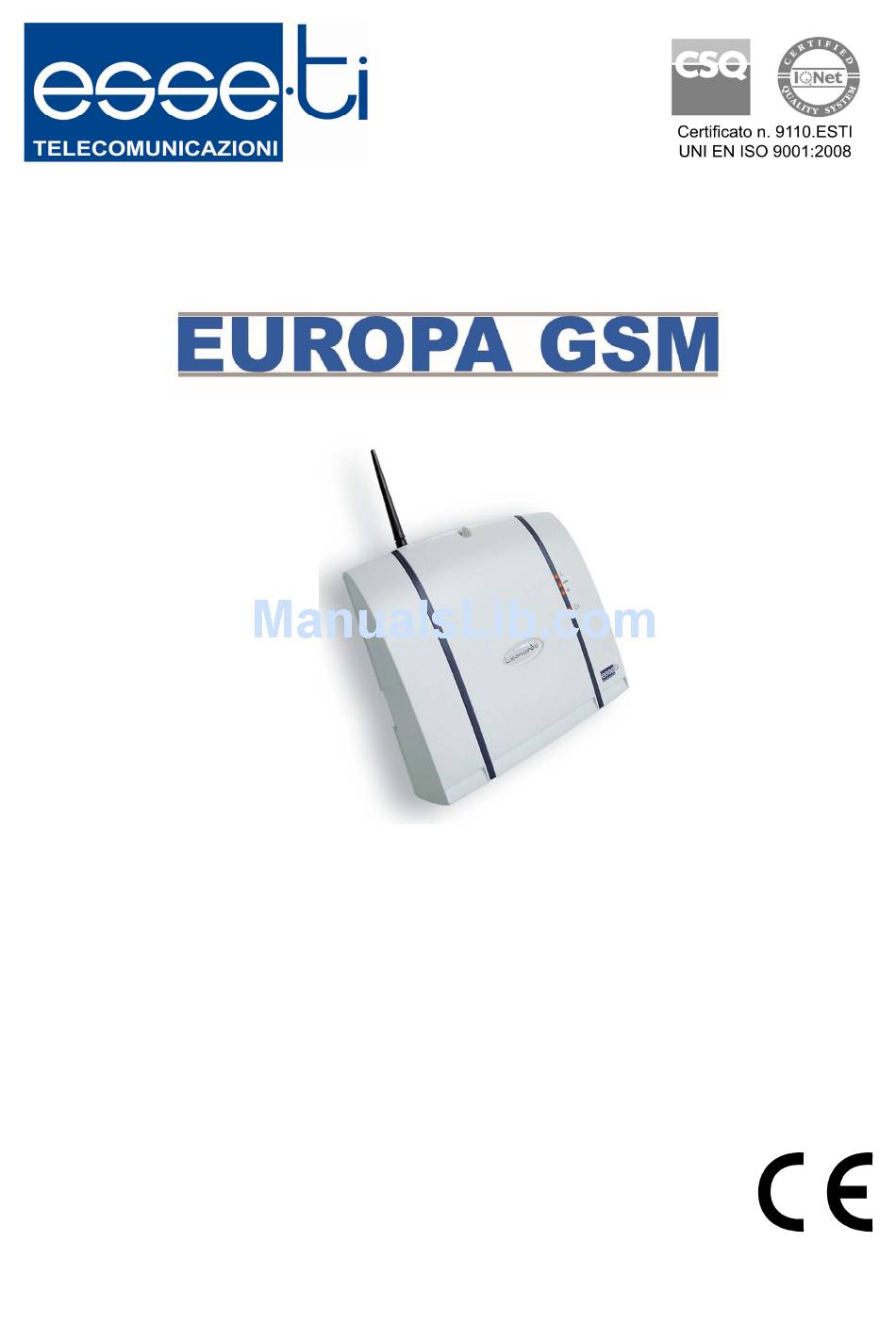

USER'S MANUAL
Installation and use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Europa GSM and is the answer not in the manual?

Questions and answers

Summary of Contents for Esse-ti Europa GSM

  • Page 1 USER’S MANUAL Installation and use...
  • Page 2 The User shall be responsible for defects arising from the use of the product. Esse-ti shall only be responsible for defects according to and within the limitations set by the Presidential Decree dated 24/05/1988 no.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General instructions for the installer..................10 General Notes........................10 Making the Installation.....................11 Warnings ..........................11 DESCRIPTION ........................12 Default configurations ........................13 User Profiles.............................13 Hardware description ........................14 Terminal board..........................15 Connectors ............................16 LEDs ..............................16 DIP switch............................17 INSTALLATION .........................18 Recommendations..........................18 Operations to perform ........................18 Switch-off............................23 Batteries ...........................23 Emergency mode operation ......................23...
  • Page 4 Setting an advanced default configuration................44 Advanced Home default configuration....................45 Advanced office default configuration ....................46 Expert user configuration.........................47 Clock ..........................48 Date ..............................48 Time ..............................48 Profiles ..........................49 Daily time band..........................49 Weekly time band ..........................51 Numbering........................52 Extension numbering ........................52 Handsfree terminal numbering ......................53 Internal call group ......................53 Call group numbering ........................54 Creating call groups .........................54...
  • Page 5 Deleting a service class........................83 LCR..........................84 Assigning the lines to a service class....................84 Assigning a provider to a service class....................85 Deleting a provider code........................85 GSM identification options ....................86 Setting the international code ......................86 Setting the international access code ....................86 Identification display mode ......................86 Identification restriction if connected user ..................87 Identification restriction if calling user ...................87 SMS options ........................88...
  • Page 6 Putting a call on hold – external calls................110 Putting an external call on hold .....................110 Putting an external call on hold and making an internal call ............111 Putting an external call on hold and making a call over the other external line ......111 Putting a second external line on hold...................112 Alternated call back......................113 Call transfer........................113...
  • Page 7 Automatic door opening ........................141 Actuator relays .......................141 Local activation..........................142 Remote activation ..........................142 Action sequences......................143 Digital inputs..........................144 Timer ..............................144 System events..........................144 Extension alarm events ........................145 Dialling function ......................145 Phonebook........................147 Calling a stored number .........................147 SUMMARY TABLES......................148 Tones..........................148 Call signals (RINGS)......................149 Timeout ..........................150 Numbering plan......................151 First digit ............................151 Suffixes ............................151...
  • Page 8 EDITING CRITERIA This paragraph describes the editing criteria followed in this manual, together with their meaning for easier user’s reference. The following table shows the printing styles on the left and their meaning on the right column. Example Meaning CHAPTER Style used for the title of chapters.
  • Page 9 Apart from these styles, this manual also includes illustrative images and symbols used to represent the operations to be carried out in a schematic way: Symbol Meaning Press the key that corresponds to the symbol on the telephone keypad. Indicates a telephone key: this symbol is used in programming to indicate the entries made by the operator.

  • Page 10: General Instructions For The Installer

    • The product must be EXCLUSIVELY used for the purpose it was designed for. Esse-ti shall not be responsible for damages arising from improper use. • The product has been designed in compliance with the regulations in force and must be installed in system that comply with the provisions of law.

  • Page 11: Making The Installation

    • When replacing the batteries, arrange for suitable disposal with similar waste. • Packing components (such as plastic bags, foam polystyrene, etc.) must be kept out of the reach of children because potentially dangerous. AKING THE NSTALLATION Internal telephone installations must be carried out by specialised personnel. installation connection telephone...

  • Page 12: Description

    DESCRIPTION Europa GSM is a system particularly suitable for home and small office use. Provided with an external line and a GSM line, it can be connected to a maximum of 6 phones (system, BCA o DECT telephones). Europa GSM is characterised by the following features and functionalities: •...

  • Page 13: Default Configurations

    During installation, it is possible to recall the chosen configuration with a single code, thus preparing the whole system to operate. User Profiles These profiles identify the Europa GSM behaviour according to the user’s needs: • PRESENT: the user is at home/in the office;...

  • Page 14: Hardware Description

    Hardware description 230V~ power supply terminals NiMH 7.2 V rechargeable batteries Battery connectors Antenna/antenna extension connector Tamper switch SIM card slot with front panel Terminal board Optionale doorphone board for connecting traditional doorphones RJ45/RJ11 connectors for connecting extension 42 RJ45/RJ11 connectors for connecting extension 41 RJ45/RJ11 connectors for connecting to external USB connector for connecting to pc Analogue external line board...

  • Page 15: Terminal Board

    Terminal board + 12: External battery - 12: External battery Tmp: Tamper switch VV +: Handsfree output VV -: Common handsfree All 4: Alarm 4 input All 3: Alarm 3 input All 2: Alarm 2 input All 1: Alarm 1 input Gnd: Not used Gnd: Not used + 5: Reference for alarm inputs...

  • Page 16: Connectors

    RJ45/RJ11 connector for connecting extension 41 RJ45/RJ11 connector for connecting extension 42 LEDs Europa GSM has 4 LEDs which are visible from outside the cabinet and 1 LED located near the SIM card slot. Electric mains power supply GSM signal intensity...

  • Page 17: Dip Switch

    Status GSM signal intensity Off: no signal 1 flash: low signal 2 flashes: medium signal 3 flashes: high signal Device status Flash: regular operation User profiles Off: PRESENT profile On: ABSENT profile Flash: RELAX profile SIM card Flash: SIM card registered On: SIM card not registered DIP switch Under the analogue external line board there is a DIP switch with 4 switches.

  • Page 18: Installation

    GSM system. - Do not install Europa GSM near other electronic or magnetic devices, since they could be affected by RF interferences coming from the device. - Do not lay the telephone cables near the 230 Vac mains.
  • Page 19 Place the main part of the lid back on and tighten the screw. Connecting the external line Connect, if present, the external telephone line to the RJ45/RJ11 connector located in the lower part of Europa GSM (LINE in the figure at page 16). Connecting internal telephones...
  • Page 20 Segn. + Pin 4 When the extension is connected to the Europa GSM terminal board, the first pair must be connected to the terminal marked with the number of the extension to be connected; the second pair must be connected to the “Segn. +/” terminals, paying attention on the polarity.
  • Page 21 Before inserting the SIM card, make sure to be electrostatically discharged to prevent any damage to the device. Please use all the necessary precautions to avoid electrostatic discharges. Insert the SIM card only when Europa GSM is switched off. Push the front panel of the SIM card downwards (until it unlocks) and lift it up.
  • Page 22 SIM card PIN is enabled, it must be disabled using a cell phone. Installing the antenna Europa GSM is provided with an antenna extension (1.5 m) and its relative fixing bracket. Fix the bracket to the wall in an area with sufficient GSM field.

  • Page 23: Switch-Off

    Switch-off To switch off Europa GSM, it is necessary to disable the internal backup batteries through a programming code. Pick up the handset of the system administrator extension (extension 41) and access programming. Dial the code 204 252 to disable the backup batteries.

  • Page 24: Replacing The Batteries

    Replacing the batteries Europa GSM is factory-equipped with 2 packs of 7.2 V NiMH rechargeable batteries. To replace the batteries: Pick up the handset of the system administrator extension (extension 41) and access programming. Dial the code 204 252 to disable the batteries.

  • Page 25: Operation Notifications

    144). CCESSORY CONNECTIONS Doorphone (traditional 4+1) Europa GSM can be interfaced with the most common doorphone systems (traditional 4/5 wire doorphones), thanks to the optional doorphone board. This board is equipped with 2 ringer inputs and 1 speech input. In presence of this board, relays 4 and 5 will automatically assume the function of a door opener (door 1 and door 2 respectively), but they may also be used as actuators.

  • Page 26: External Music Source

    Place the lateral part of the lid back on. External music source The switchboard can be connected to an external music source. Esse-ti A50 model A: Connector for A50 Loosen the right lateral part of the lid and rotate it downwards.

  • Page 27: Amplifier

    Note: for activation, please refer to the paragraph “External music source” Amplifier Europa GSM can be connected to an external amplifier, to be used as a pager. The amplifier must be provided with an AUX input with volume control. Disable the batteries with the relative procedure, and disconnect the power supply cable from the mains.

  • Page 28: Actuator Relays

    Digital inputs Europa GSM has 4 digital inputs (All 1 ~ All 4), which are programmable as normally closed or normally open. The use and configuration of these inputs are carried out through the remote programmer software.

  • Page 29: Handsfree Terminal

    Connect a potential-free contact between the +5 and the alarm contact (All) you wish to use. Handsfree terminal Europa GSM can be connected to an Esse-Ti handsfree terminal, for ambient listening. Loosen the right lateral part of the lid and rotate it downwards.

  • Page 30: Tamper Switch

    Place the right lateral part of the lid back on. Tamper switch Europa GSM is provided with a tamper switch that detects the opening of the lid. Connect the Tmp contact to +5 and the other Tmp contact to the alarm contact (All) to be used for signalling tampering.

  • Page 31: Connection To The Pc

    To install the USB port drivers, please refer to the remote programmer software manual. Using a USB cable, connect the Europa GSM USB port to a USB port of the PC. If a terminal emulation programme is used, the following parametres...

  • Page 32: Programmings To Be Performed During Installation Phase

    A default configuration is given by a set of programmings through which it is possible to establish the basic operation of the system. Europa GSM has five default configurations, which can be recalled by a single programming code: • HOME 10: for home installation;...
  • Page 33 . the incoming calls (except for the VIP calls) will make extension 41 ring only; . voicemail service is enabled on extension 41 (ten 20-second messages); Home 11 The Home 11 configuration has the same features of the HOME 10 configuration, plus: an external line, along with the GSM line;...
  • Page 34 an LCR system (automatic call routing: calls towards fixed line numbers are routed via external line, while calls towards GSM numbers are routed via GSM line); ABSENT profile . call forwarding towards a number to be programmed is enabled for incoming external calls; Office 22 The OFFICE 22 configuration provides for the same features of the OFFICE 21 configuration plus:...

  • Page 35: Programming For Call Forwarding

    Wait for the confirmation message and hang up. LARM DIALLER QUICK PROGRAMMING Europa GSM is factory programmed so that the closure of the alarm contact All 1 is sufficient to enable an alarm sequence. This sequence provides for a cyclic call to 4 different telephone numbers which must be set with the programmings described below.

  • Page 36: Programming Of The Switchboard Model And Of The Internal Connection To The Personal Phone

    The input and alarm sequence configurations can only be carried out through the remote programmer software. Telephone number programming (index) (telephone number) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 2930. Dial: to memorise the first telephone number to memorise the second telephone number to memorise the third telephone number to memorise the fourth telephone number.
  • Page 37 Select Select PBX model and press OK. Select Europa GSM and press OK. You will automatically access the internal connection programming screen. Insert the Europa GSM physical connection number (1~6) to which the telephone is connected and press OK. Programmings to be performed during installation phase...

  • Page 38: Programmings

    PROGRAMMINGS The following programmings allow customising Europa GSM according to your needs. To perform a programming, either an ST 600 Personal Phone system telephone, or a normal BCA telephone with multifrequency dialling can be used. Programming can be performed only from the system administrator extension, which is connected to extension 1 connection.
  • Page 39 Set the flash time of a non-type approved telephone; • Recall the PRESENT, ABSENT, and RELAX profiles. Only via the remote programmer software (connecting Europa GSM to a pc, or to the remote programmer device) you can: • Set the duration and the recording quality of the messages;...

  • Page 40: Access To Programming

    CCESS TO PROGRAMMING Enabling programming Allows you to access the programming mode. (installer password) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 2921. Dial the installer password (max. 5 digits). Wait for the confirmation tone and hang up. Note: the system administrator extension is the one connected to the extension 1 connection.

  • Page 41: Password

    ASSWORD Modifying the installer password The password allows accessing functions that require a high security level. DEFAULT: 12345. (old) (new) (new) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 207. Dial the digits (max. 5) of the current password. Dial # to confirm.

  • Page 42: Disabling The Batteries

    Dial the code 204 252. Wait for the confirmation tone and hang up. EVICE RESET Allows the Europa GSM functional reset. The reset does not modify the device programmings. (type) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 43: Restoring The Factory Settings

    ESTORING THE FACTORY SETTINGS The restoration of the Europa GSM factory settings is carried out by recalling one of the five basic default configurations (Home 10, Home 11, Office 20, Office 21 or Office 22), or one of the three advanced default configurations (Advanced Home, Advanced office, Expert user).

  • Page 44: Setting An Advanced Default Configuration

    ETTING AN ADVANCED DEFAULT CONFIGURATION Along with the five basic default configurations, Europa GSM is provided with three advanced default configurations. These advanced configurations can also be recalled with a single programming code, and can be customised via programming codes: •...

  • Page 45: Advanced Home Default Configuration

    Advanced office The ADVANCED OFFICE configuration provides for: outgoing premium service call barring (e.g. 144-166-899); PRESENT profile . the courtesy responder is enabled with the message: “all our lines are busy at the moment; please hold the line”; ABSENT profile .

  • Page 46: Advanced Office Default Configuration

    Pick up the handset of the system administrator extension (extension 41). Dial the code 200. Dial the installer password (max. 5 digits). Dial the code 5. In order to define the extension setup, dial: Unlimited extension setup (all extensions ring upon incoming calls; no dialling filtre activated except for premium service numbers) Limited extension setup (only the first 3 extensions ring upon incoming calls;...

  • Page 47: Expert User Configuration

    Dial the code 6. In order to define the extension setup, dial: No administrator extension (all extensions ring at incoming calls; no selection filtre activated, except for premium service numbers) Administrator extension (only the first extension rings at incoming calls; no selection filtre activated, except for premium service numbers) In order to define the criterion of line use, dial: GSM line use only...

  • Page 48: Clock

    Dial # to confirm. Wait for the confirmation tone and hang up. LOCK Note: the date/time setting is not password-protected. Date Allows you to update the date. (day) (month) (year) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 49: Profiles

    Daily time band Allows setting up the beginning and the end of 2 time intervals, in which Europa GSM will use the ABSENT or the RELAX profiles. Outside these 2 intervals, Europa GSM will use the PRESENT profile. Activating time band 1...
  • Page 50 Wait for the confirmation tone and hang up. E.g.: if during the lunch break, from 12:00 to 14:00, you want to use the RELAX profile, dial: 2021 1200 1400 2. Deactivating time band 1 (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 51: Weekly Time Band

    Weekly time band Allows you to set a period of the week during which Europa GSM can automatically activate a profile between ABSENT or RELAX. DEFAULT: disabled. Activating (start: day) (start: hour and minutes) (end: day) (end: hour and minutes)

  • Page 52: Numbering

    UMBERING Extension numbering This function allows assigning a conventional number to an extension (flexible numbering). Conventional numbering varies between 40 and 499. DEFAULT: numbering goes from 41 to 46 and corresponds to the position of the terminals on the device. (extension connection) (conventional) (confirm)

  • Page 53: Handsfree Terminal Numbering

    421, etc.) cannot be used for other extensions. NTERNAL CALL GROUP Europa GSM allows the creation of two internal call groups. The extensions belonging to a call group can be reached by the same internal call at the same time. This way, it is possible to look for a person in different rooms without having to call all the extensions one by one.

  • Page 54: Call Group Numbering

    Call group numbering Allows assigning a conventional number (flexible numbering) to a call group. Conventional numbering may vary between 40 and 499. DEFAULT: - group 1: number 40; - group 2: number 49. (call group) ] (conventional) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 55: Analogue Line Programming

    Pick up the handset of the system administrator extension (extension 41). Dial the code 240. Dial: for call group 1 for call group 2 Dial the two (or three) digits indicating the extension number. Dial: to REMOVE the extension to ADD the extension Wait for the confirmation tone and hang up.

  • Page 56: Extension Programming

    XTENSION PROGRAMMING Outgoing external calls Allows indicating the external lines which can be used by each extension for every profile. DEFAULT: all the extensions can use the lines that are present, no matter what profile. ] (extension number) (profile) (external line) (activation) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 57: Doorphone Calls

    Pick up the handset of the system administrator extension (extension 41). Dial the code 2179. Dial the two (or three) digits indicating the extension number. Dial: analogue line only GSM line only Alternate the two lines Preference for analogue line Preference for GSM line Wait for the confirmation tone and hang up.

  • Page 58: Unrestricted Numbers

    Dial: No access Call pick up and door opening Doorphone call and door opening Wait for the confirmation tone and hang up. Unrestricted numbers This function allows you to define the numbers that can be dialled for each extension. It also allows to associate service classes to the extensions (see “Service classes”).

  • Page 59: Service Activation

    DISA or DDI Allows the extension to access voicemail service. Voicemail Allows the extension to make announcements via the Amplifier amplifier connected to Europa GSM. Allows the extension to activate the automatic external External call call forwarding service. forwarding Allows the extension to activate the relays.
  • Page 60 Allows the extension to activate the “do not disturb” Do not disturb services. Allows the extension to activate the doorphone call Doorphone call forwarding service. forwarding Allows the extension to generate an alarm by pressing Alarm button (only the special button on the ST 350 telephone. with ST 350 telephones) Allows the extension to generate an alarm in case of no...
  • Page 61 ] (extension number) (profile) (service) (activation) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 22. Dial the two (or three) digits indicating the extension number. Dial: PRESENT profile ABSENT profile RELAX profile for all three profiles Dial: to enable unlimited phonebook recall to enable time call forwarding...

  • Page 62: Incoming Calls

    NCOMING CALLS The fully equipped Europa GSM is provided with two telephone lines for incoming calls: GSM line Analogue line. Furthermore, Europa GSM is provided with an automatic call distribution system (ACD) based on the number of calls. Thanks to the ACD system, it is possible to address incoming calls from a certain telephone number to a single extension, or to a group of extensions, or again, to a single extension first, and then to a group of extensions.
  • Page 63 - as for the Office 22 configuration, all the extensions will ring regardless of the profile and the line, except for extension 46 (FAX extension). ] (extension number) (profile) (line) (activation) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 64: Line Activation For External Call Forwarding

    INE ACTIVATION FOR EXTERNAL CALL FORWARDING It allows determining, for each external line, whether the incoming calls over that line can be diverted via the external call forwarding service. DEFAULT: - analogue line: call forwarding enabled only for ABSENT profile; - GSM line: call forwarding enabled only for ABSENT profile;...

  • Page 65: Enabling Doorphone Call Forwarding

    NABLING DOORPHONE CALL FORWARDING Allows determining to which external line the doorphone calls can be diverted, through the doorphone call forwarding service. DEFAULT: - PRESENT and RELAX profiles: on no line; - ABSENT profile: on GSM line, and, when possible, on analogue line. (profile) (doorphone station) (line) (confirm)

  • Page 66: Fax

    Europa GSM is provided with a FAX recognition service, which allows the automatic recognition of an incoming FAX. Note: FAXES can be received and sent only over the analogue line. Setting the FAX extension This paragraph describes how to programme the FAX extension.

  • Page 67: Enabling Fax Recognition

    (CLI) for the incoming calls over the line. ESSAGES Europa GSM is provided with 30 customisable messages, which are used by the DISA, the Response, and the Automatic operator services. As a default setting, messages 1~10 (with duration other than 0) are enabled for use.

  • Page 68: Creating Message Sequences

    DEFAULT: Type Name Duration Quality Protected Service unactive 6 kHz Protected Service active 6 kHz Protected Function performed 6 kHz Protected Not allowed 6 kHz Non-Protected Dialer 6 kHz Protected Control menu 6 kHz Protected DISA selection 6 kHz Protected Present responder 6 kHz Protected...

  • Page 69: Deleting Message Sequences

    Wait for the confirmation tone and hang up. Note: in the event you want to link together only two messages, the code for the last message will be 00. Note: only messages with duration other than 0 are enabled for use and therefore, can be linked together.

  • Page 70: Message Protection

    Note: compound messages (31 and 32) can only be played back. In order to customise them, it is necessary to record the single messages. Message protection Allows activating/deactivating protection on message recording. A protected message cannot be recorded. DEFAULT: messages from 01 to 10 are protected, except for message 5. (message) (activation) (confirm)

  • Page 71: Response Programming

    DEFAULT: - PRESENT profile: message 08, “all our lines are busy at the moment; please hold the line”; - ABSENT and RELAX profiles: message 09, “we are currently not in the office; please try your call again later”. (profile) (line) (message) (confirm) Pick up the handset of the system administrator extension (extension...

  • Page 72: Disa Service

    PRESENT, ABSENT, and RELAX profiles. Europa GSM is provided with an immediate and a delayed DISA service. As for the immediate DISA service, none of the extensions ring upon incoming calls and the caller immediately receives the message.

  • Page 73: Choosing The Disa Message

    seconds, the call will be diverted to the telephones enabled to receive calls over that line. Note: the DISA service messages are customisable. Note: the activation of the DISA service on a line does not inhibit showing the caller identification (CLI) on the display of the extension reached by the call.

  • Page 74: Disa Programming

    DISA programming Allows the activation of the DISA service over each line. DEFAULT: not enabled over any of the lines and for any of the profiles. (profile) (lines) (activation) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 75: Automatic Operator (Opa)

    Dial the line number: analogue line GSM line Dial: to DISABLE the service to ENABLE the service Wait for the confirmation tone and hang up Note: the delayed DISA service can be activated only over real lines, regardless of the profile used. (OPA) UTOMATIC OPERATOR The automatic operator allows you to browse through 10 customisable menus.

  • Page 76: Assigning A Menu To A Line

    Assigning a menu to a line This procedure assigns an OPA menu to a line for each profile. Note: to carry out this procedure, the menus must be appropriately programmed (see following paragraphs). (profile) (line) (menu) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 77: Choosing The Menu Prompting Message

    Dial the code 2160. Dial: PRESENT profile ABSENT profile RELAX profile for all three profiles Dial the line number: analogue line GSM line VIP1 line VIP2 line VIP3 line VIP4 line Dial: to DISABLE the service to ENABLE the service Wait for the confirmation tone and hang up.

  • Page 78: Prompting Message Recording/Playback

    Prompting message recording/playback Allows customising and playing back the prompting message of a menu. (menu) (action) Pick up the handset of the system administrator extension (extension 41). Dial the code 2804. Enter the menu index (01~10) Dial: to record to play back Press the R (flash) button, or hang up to end the procedure.
  • Page 79 the external user selects the # button the external user makes no selection and the menu message is over. Enter the operation to be performed: No operation Call to extension ( ) Call to FAX extension DISA call Incoming call Incoming call over VIP ( ) line Message playback ( ) and incoming call Message playback ( ) and free line...
  • Page 80 The message (01~32) defined by the parametre, is Message ( ) playback and incoming call played back and, once it has ended, the incoming call is diverted to the extensions enabled to ring for the present line. The message (01~32) defined by the parametre, is Message ( ) playback and free line played back and, once it has ended, the line is...

  • Page 81: Defining The "Operating Button" Event

    Note: we recommend inserting relay programming in a password- protected menu. Note: as a factory setting, the menus 01~09 are pre-set so that, when the caller presses the * button, and after having entered the user password, the control menu is recalled (menu 10). Defining the “Operating button”...

  • Page 82: Service Classes

    ERVICE CLASSES You can configure up to eight service classes allow or restrict dialling over the external and GSM lines. You can define unrestricted digits (area code, number, part of area code or number) for outgoing calls. Operating rules • Each group can be associated with more than one numeric sequence.

  • Page 83: Removing Filtre Sequences From A Service Class

    Dial the number of the service class (from 01 to 08). Dial the desired area code, the number, part of area code or number. Dial # to confirm. Wait for the confirmation tone and hang up. Note: repeat the operation to enter multiple filtre sequences in the same service class.

  • Page 84: Lcr

    Each service class must be associated with compatible lines. As for the analogue line, the service class can be also associated with a provider present over the line. Europa GSM will automatically dial the provider code. E.g.: a service class containing the sequence “3” (initial digit of cell phone numbers) should be assigned to the GSM line for cost optimisation.

  • Page 85: Assigning A Provider To A Service Class

    E.g.: to assign the provider with identification number 1055 to service class 3 dial: 21711 03 1055#. Note: in the event Europa GSM is an extension of another telephone exchange, you can enter the access code to the external line instead of the provider code.

  • Page 86: Gsm Identification Options

    IDENTIFICATION OPTIONS Setting the international code Allows you to set the international code, that is, the part of the number identifying the country. Through this programming, the caller identification, belonging to the same country, is displayed without the code. DEFAULT: 39. (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 87: Identification Restriction If Connected User

    (activation) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 2702. Dial: Identification not displayed Identification displayed Wait for the confirmation tone and hang up. Identification restriction if connected user You can decide whether to send your telephone number to the calling user, when answering an incoming call (COLP).

  • Page 88: Sms Options

    Number not sent Wait for the confirmation tone and hang up. OPTIONS Defining the system administrator Allows you to enter the system administrator number (cell phone or any other device enabled to send and receive SMSs). (number) (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 89: Deleting Messages In The Sim Card

    Dial: sms forwarding not allowed sms forwarding allowed Wait for the confirmation tone and hang up. Deleting messages in the SIM card Allows you to delete all the messages from the SIM card. (confirm) Pick up the handset of the system administrator extension (extension 41).

  • Page 90: Setting The Notification Message To The Administrator

    (activation) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 26001. Dial: notification NOT required notification required Wait for the confirmation tone and hang up. Setting the notification message to the administrator Allows sending a notification SMS on the completion of the programming to the administrator number.

  • Page 91: Actuator Relay Configuration

    CTUATOR RELAY CONFIGURATION Europa GSM has 5 actuator relays. Note: in presence of a traditional doorphone board, relays 4 and 5 can also be activated through the door opening function, if the impulse functioning is not enabled. This programming allows configuring each actuator relay:...

  • Page 92: St Series Telephones Memory Buttons

    SERIES TELEPHONES MEMORY BUTTONS ST series telephones (ST200, ST300, ST350 and ST400) are provided with 14 or 15 direct memory buttons, which can be used to activate Europa GSM services. This programming allows you to modify the factory settings, and to associate each button with a certain service.

  • Page 93: Assigning A Service To A Memory Button

    Doorphone Door 1 Door 2 Doorphone call forwarding Voicemail messages playback ABSENT profile Assigning a service to a memory button (button) (code) (confirm) Pick up the handset of the system administrator extension (extension 41). Dial the code 2871. Dial the button number (01~15). Dial the code of the service to be assigned to that button.

  • Page 94: Phonebook

    Wait for the confirmation tone and hang up. HONEBOOK Up to 100 numbers can be stored in the Europa GSM phonebook for quick dialling. Storing a telephone number (position in the phonebook)

  • Page 95: Assigning A Stored Number To An Extension

    Pick up the handset of the system administrator extension (extension 41). Dial the code 2931. Dial the three digits corresponding to the position in the phonebook (from 001 to 100) in which the number is stored. Wait for the confirmation tone and hang up. Assigning a stored number to an extension Allows diverting incoming external calls, from a number stored in the phonebook, to a certain extension.

  • Page 96: Printing The Call List

    Wait for the confirmation tone and hang up. RINTING THE CALL LIST Through a USB port, it is possible to connect Europa GSM to a PC to acquire information on incoming/outgoing calls stored in the buffer memory, and print it with the printer connected to the PC.

  • Page 97: Format Of The Data Displayed By The Pc

    To delete all the calls in the buffer memory, please refer to the paragraph “Deleting the buffer memory” at page 43. Format of the data displayed by the PC |..|..|..|..|..|..|..|..|... 001) PSTN (U) 41 0717506066 “Esse-Ti Telec. ” 12/06/2008 15:48:25 00:01:35 Number of Description Start column Format...

  • Page 98: Extension Flash Time

    Flash time refers to the clearing time of the line that allows placing the telephone conversation on hold. Europa GSM is able to acquire the flash time of an extension if it is associated with a non-approved telephone. The operation has to be carried out from the interested extension.

  • Page 99: Remote Programming

    EMOTE PROGRAMMING Remote programming can be accessed through user consent, or through a previously set OPA menu. Access through user consent The user must enable access to the Europa GSM remote programming with a code. (conversation) .(confirm) Call the service centre or the installer with remote programmer device from the Europa GSM extension, or make them call you.

  • Page 100: Sms

    All programmings that can be made through the system administrator telephone can also be made via SMS. Via SMS programming can be made from any cell number, or only from the system administrator number. A notification SMS of the completed programming can be required to both the number that sent the programming, and the system administrator number (see “SMS options”...

  • Page 101: Notification Message Format

    In the event the programming message format is correct, but the command sent is not valid, the notification message will be as follows: Europa GSM: command not accepted! Note: Europa GSM does not send any notification message if the programming message format or the entered password are incorrect.

  • Page 102: Services

    - alarm input (when automatic profile recall is set) - weekly time band - daily time band. Note: Europa GSM is factory set so that, whatever the default configuration, the closure of the alarm contact All 4 will recall the ABSENT profile. The configuration of the digital inputs is made via remote programmer software.

  • Page 103: Recalling A Profile Permanently

    Allows recalling the PRESENT, ABSENT and RELAX profiles permanently, or it allows enabling automatic profile recall according to the set time bands. Note: the profile used by Europa GSM can be displayed only through the ST 600 Personal Phone system telephone.

  • Page 104: Displaying Caller Identification

    The caller identification is displayed even when DISA, automatic operator, or automatic FAX recognition services are enabled, and when an external call is diverted from one extension to another. Note: Europa GSM displays also the internal caller identification. Page 104 SERVICES...

  • Page 105: Internal Calls

    It refers to the possibility for an extension to call an extension group at the same time. This way, it is possible to look for a person in various rooms, without having to call all the extensions one by one. Europa GSM is provided with two internal call groups.

  • Page 106: External Calls

    Outgoing external calls It refers to the possibility for the extensions to make calls over the external lines. Moreover, Europa GSM is provided with an automatic routing system (L.C.R.), which, once appropriately programmed, is able to automatically select the least expensive line for the call to be made.
  • Page 107 (when enabled) to manually access the analogue line (if present) to manually access the GSM line Dial the number of the desired subscriber. If it is free, you will receive a call tone. If it is engaged, you will receive an engagement tone. The conversation will start when the called person will pick up the handset.

  • Page 108: Incoming External Calls

    Incoming external calls Allows the extensions to answer calls from external lines. This service can be customised for each extension during the programming phase. Initial situation 1 The extension is programmed to receive external calls. (ring) The extension rings. Pick up the handset. Conversation starts.

  • Page 109: Call Pick Up Upon Waiting Tone

    Dial the two (or three) digits indicating the number of the extension that is ringing upon a call. Conversation starts. The called extension stops ringing. Note: Europa GSM can be programmed so that calls from specific extensions cannot be answered this way; see paragraph “Service activation”. SERVICES...

  • Page 110: Putting A Call On Hold - Internal Calls

    – UTTING A CALL ON HOLD INTERNAL CALLS It allows putting an internal call on hold, make a second call and then retrieve the first one. Initial situation Conversation with an internal user. ](extension number) Press R. You will hear the dialling tone. The other extension will hear the waiting tone.

  • Page 111: Putting An External Call On Hold And Making An Internal Call

    (after 10 seconds from putting on hold) To retrieve the conversation: if more than 10 seconds have elapsed from pressing R, press R twice, if not, press R once. Note: the external line can be put on hold immediately, in case of both incoming and outgoing calls.

  • Page 112: Putting A Second External Line On Hold

    Initial situation Conversation in progress over an external line. ( subscriber) (conversation) (ring) Press R to put the external line on hold. Dial 0 to engage the other external line, and then dial the number of the subscriber. Conversation with a second external user is established. Hang up when conversation ends.

  • Page 113: Alternated Call Back

    LTERNATED CALL BACK Allows you to switch quickly between two calls by putting one call on hold and resuming the other call. The conversations can be both over internal line, both over external line, or one over the internal line and one over the external line. Initial situation Conversation in progress over a line (internal or external) and conversation on hold over the other line (internal or external).

  • Page 114: Automatic Call Transfer

    Automatic call transfer Allows transferring a call to an extension automatically, without asking permission. Initial situation Conversation in progress over the external line. ](extension number) Press R to put the external line on hold. Dial the two (or three) digits indicating the number of the desired extension.

  • Page 115: Call Parking

    Establish the conversation with the called extension (call transfer with permission). Hang up to transfer the second external call to the called extension. The telephone will ring. Pick up the handset to resume the conversation over the first external line previously put on hold. ALL PARKING Allows placing an external call on hold and parking it.

  • Page 116: Conference

    ONFERENCE Allows establishing a conversation between three parties, which can be: • three internal users; • two internal users and one external user; • one internal user and two external users. Initial situation Internal or external conversation in progress; an extension or an external line on hold.

  • Page 117: Answering An External Call With Pick Up

    If the operation has been carried out correctly, you will receive the confirmation tone. Hang up. Note: when one of the two users clears the conversation, the second external line is also cleared. NSWERING AN EXTERNAL CALL WITH ICK UP This service allows an extension, provided with an ST 600 system telephone, to answer an incoming external call by pressing the special line button.
  • Page 118 Press the button on the ST 600 telephone corresponding to the line of the incoming call. Conversation starts. Any conversation in progress will be put on hold. Page 118 SERVICES...

  • Page 119: Auxiliary Services

    AUXILIARY SERVICES WARNING Europa GSM allows two external conversations and two internal conversations at the same time, but it allows to dial only one number at a time. Therefore, if picking up the handset you don't receive the dialling tone, hang up and wait for the other extension to finish dialling.

  • Page 120: Alarm Clock

    LARM CLOCK Allows you to activate an alarm clock on your extension. At the set time, the extension will ring for 2 minutes (if the user is engaged in a conversation, he will hear a waiting call tone) and the display will show the message “ALARM!”.

  • Page 121: Do Not Disturb

    ENABLE AUTOSET Wait for the confirmation message and the confirmation tone and hang Note: by selecting AUTOSET Europa GSM inverts the status of the service. Note: the extension must be enabled to use this service (see “Service activation” at page 59).

  • Page 122: Call Forwarding All Calls

    • Call forwarding all calls: all calls are automatically diverted to the programmed extension. • Call forwarding no answer (time call forwarding): the calls are diverted if the extension does not answer within 25 seconds. • Call forwarding on busy user: the calls are diverted if the called extension is engaged.

  • Page 123: Call Forwarding No Answer (Time Call Forwarding)

    (extension number)] (confirm) Pick up the handset and dial the code 3212. If necessary, enter a new destination extension. If the operation has been carried out correctly, you will receive a message that the service is enabled/disabled, and you will hear the confirmation tone. Hang up.

  • Page 124: Call Forwarding On Busy User

    (extension number)] (confirm) Pick up the handset and dial the code 3212. If necessary, enter a new destination extension. If the operation has been carried out correctly, you will receive a message that the service is enabled/disabled, and you will hear the confirmation tone. Hang up.

  • Page 125: Cancelling All Call Forwarding Services

    The call can be answered either from the extension or from the called number. Note: External call forwarding is available only if Europa GSM is equipped with both telephone lines (GSM and analogue).
  • Page 126 Dial the telephone number to which divert the call. Dial # to confirm. If the operation has been carried out correctly, you will receive a message that the service is enabled, and you will hear the confirmation tone. Hang up. Note: if you dial only the code 3581, the call will be forwarded to the last number entered.

  • Page 127: Doorphone Call Forwarding

    OORPHONE CALL FORWARDING Allows forwarding an incoming doorphone call on your extension to a telephone number. Upon incoming external call, the extension will keep ringing and, at the same time, the call will be diverted to the programmed number. The call can be answered either from the extension or from the called number.

  • Page 128: Booking On Busy User

    Pick up the handset and dial the code 3592. If necessary, enter a new destination extension. If the operation has been carried out correctly, you will receive a message that the service is enabled/disabled, and you will hear the confirmation tone. Hang up.

  • Page 129: Calling The Last Caller

    Initial situation Call attempt over the external line; engagement tone. (confirm) Press R. Dial the code 331. If the operation has been carried out correctly, you will receive a message that the service is enabled, and you will hear the confirmation tone. Hang up.

  • Page 130: Disa Service

    Once heard the message, the external user can dial the number of the desired extension. If Europa GSM does not detect any dialling within 5 seconds, or if the selected extension is not enabled to receive DISA calls, the call will be diverted to telephones enabled to receive calls from that line.

  • Page 131: Opa (Automatic Operator)

    The called extension picks up the handset and starts conversation. The reasons why a DISA call does not go through can be the following: 1. There is no extension with a number compatible with the dialled number. In this case, the call is diverted to the telephones programmed to answer incoming calls over the same line.

  • Page 132: Accessing Control Menu

    #. Initial situation: An external user is making a call from a multifrequency dialling telephone. Upon Europa GSM answer, the external user hears the automatic operator prompting message. The external user presses the button corresponding to the operation requested.

  • Page 133: Voicemail Service

    An external user is making a call from a multifrequency dialling telephone. DISA service, automatic operator or voicemail are enabled. Upon Europa GSM answer during the message, the external user dials the code * x...x, where x...x is the user password (factory setting 00000).

  • Page 134: Voicemail Activation

    Note: all extensions are enabled to use this service by default (see “Service activation” at page 59). Note: during the voicemail message it is possible to access the control menu (see “Accessing control menu” at page132). Voicemail activation Allows assigning a voicemail to an extension and activating it. Initial situation Voicemail NOT assigned, no set password.

  • Page 135: Clearing The Voicemail From Extension 41

    (voicemail password) Pick up the handset of the extension on which the voicemail is to be disabled. Dial the code 326. Dial 9 Dial the voicemail password. Wait for the confirmation message and the confirmation tone and hang Clearing the voicemail from extension 41 Allows clearing the voicemail of an extension from extension 41.

  • Page 136: Customising Voicemail Messages

    Dial the old voicemail password. Dial # to confirm. Dial the new voicemail password. Dial # to confirm. Dial the new voicemail password. Dial # to confirm. Wait for the confirmation message and the confirmation tone and hang Customising voicemail messages Allows you to customise voicemail messages.

  • Page 137: Examples Of Voicemail Operation

    • The caller can leave a message of the duration set via the remote programmer software. Europa GSM will take into account the interruption of the conversation by the caller. Initial situation Voicemail enabled, there are messages to listen to.

  • Page 138: Listening To Messages On The Voicemail

    - when it’s on, the voicemail has been assigned to an extension and it is activated; - when it’s off, the voicemail has not been assigned to an extension, or it has been assigned, but it is not enabled in the current time band. Listening to messages on the voicemail Allows listening to messages left on the voicemail.

  • Page 139: Doorphone Calls

    to skip to the next message to delete all messages to exit. OORPHONE CALLS Outgoing doorphone call Allows establishing a conversation with an external door station without receiving the doorphone call. Pick up the handset and dial the code 338. Conversation starts.

  • Page 140: Door Opening Commands

    OOR OPENING COMMANDS Europa GSM is provided with 5 actuator relays. In presence of a traditional doorphone board, relays 4 and 5 will automatically assume the door opener function, Door 1 and Door 2, respectively.

  • Page 141: Automatic Door Opening

    CTUATOR RELAYS Allows controlling (locally or from remote) the actuator relays. Europa GSM is provided with 5 actuator relays. In presence of a traditional doorphone board, relays 4 and 5 will automatically assume the door-opener function. In any case, they can be also used as actuators, by dialling the corresponding code.

  • Page 142: Local Activation

    Local activation (relay number) (option) [ (password) (confirm) Pick up the handset and dial the code 37. Dial the number of the desired relay (1~5). Dial: to turn the relay OFF (open contact) to turn the relay ON (close contact) to request an IMPULSE (relay on for a programmed amount of time) Dial the password if required by the relay configuration.

  • Page 143: Action Sequences

    - external call (see paragraph “Dialling function”) - switching to another action sequence - repeating the sequence in progress. DEFAULT: Europa GSM is provided with 4 pre-programmed sequences. - sequence 1: action 1: calling the number stored in position 97 of the phonebook;...

  • Page 144: Digital Inputs

    Digital inputs Europa GSM is provided with 4 digital inputs (All 1 ~ All 4) which can be programmed as normally closed or normally open. When ignition conditions occur (opening or closing the contact) Europa GSM will perform the associated action sequence, or it will recall a profile.

  • Page 145: Extension Alarm Events

    Note: the “discharged battery” alarm must be disabled if external batteries are used. Extension alarm events Europa GSM is provided with 2 alarm events that can originate from each extension: alarm button (only with ST 350 telephones) and no dial. When these events occur, an action sequence is initiated.
  • Page 146 Dial the two (or three) digits indicating the number of the extension or of the handsfree to be accessed (the first digit must be a 4). You will hear what is happening in the room and you can speak with a person in that room.

  • Page 147: Phonebook

    HONEBOOK Calling a stored number (001-100) (confirm) Pick up the handset and dial the code 12. Dial the position in the phonebook in which the number to be called is stored. If the line of the called user is free, you will hear the call tone. If not, you will hear the engagement tone.

  • Page 148: Summary Tables

    Dialling tone Indicates that Europa GSM is ready for dialling. Dialling tone with LCR enabled Indicates that Europa GSM is ready for dialling and that LCR is enabled. Call control tone Indicates that the call signal (ring) is sent to the selected internal line.

  • Page 149: Call Signals (Rings)

    Doorphone waiting tone Indicates an incoming doorphone call during a conversation in progress. Hold Indicates that the call has been put on hold. Conference Indicates that the extensions are connected to a conference call. Alarm clock Indicates that the alarm clock is going off during a conversation in progress.

  • Page 150: Timeout

    Time-out for the first digit on external dialling: when expired, the extension receives a dissuasion/congestion tone. Inter-digit time on external dialling: when expired, Europa GSM will consider the numbers as post- dialling suffixes. Time-out for return call. Time-out for the call to an extension for automatic call transfer.

  • Page 151: Numbering Plan

    UMBERING PLAN The switchboard provides for the use of the following numbering plan: First digit Access to programming Access to services Calls to extensions, handsfree terminal or call groups Call pick up Manual engagement of the external line Automatic engagement of the external line Suffixes Hold, call back for decadic telephones Hold, call back (flash) for multifrequency telephones...

  • Page 152: Power Supply

    Power supply Power used 30 W Mains voltage 230V +6% -10% Emergency batteries 2 rechargeable 7.2 V NiMH Battery duration in stand by 5 hours Battery duration during conversation 30 minutes Emergency external power supply 12 V, 500 mA Signalling system Impulse ratio 60/40 +/- 10% Impulse frequency...

  • Page 153: Dimensions

    EEPROM memory for data protection in the event of power cut Watch-dog system Cooling by natural convection CONFORMITY DECLARATION Esse-ti s.r.l., with registered seat in Zona Ind. Squartabue, I-62019 Recanati (Macerata), Italy, hereby declares that this device complies with the following standards: •...
  • Page 154 EUROPA GSM 21/11/2012 edition...
