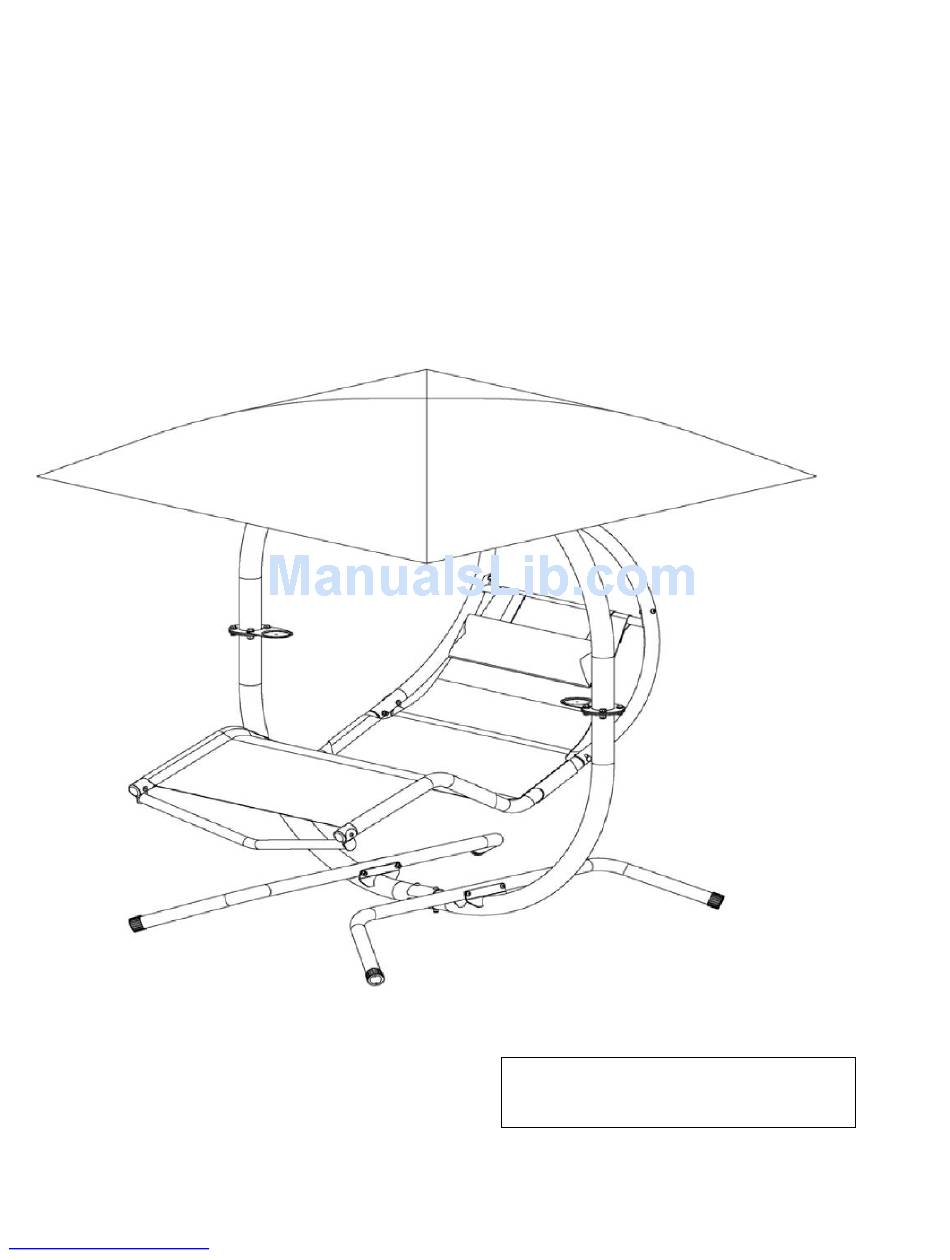

- Page 1 Sunset Swings By Health in Motion, LLC Assembly and Operation Manual Model 421 Lounge Swing Record Serial Number Here 1/30/2013 www.sunsetswings.com by Health In Motion, LLC.
- Page 2 READ! VERY IMPORTANT FOR ADULTS ONLY Ensure that the 421L swing is set up on a firm level surface. Make sure the swing has completely stopped before entering or exiting the swing. Be careful as the swing may shift while sitting down or getting up from the swing.
-
Page 3: Table Of Contents
Parts and Hardware List__________________________________________6 Assembly Instructions____________________________________________7-17 Leveling Instructions ____________________________________________18 General Maintenance and Safety Information________________________ 19 Label Reference_______________________________________________20 Limited Warranty______________________________________________21 Warranty Claim Procedure_______________________________________21 Sunset Swings by Health In Motion reserves the right to alter the specifications of this product at any time. -
Page 4: Positioning Your Swing
Positioning Your Swing The swing is designed to be installed on a level surface. There should be a minimum clearance of five feet in front and back, and two feet on each side of your swing. It should be placed in an area where children will not stray or walk into the path of the swing. -
Page 6: Hardware And Tool Diagram
Hardware and Tool Diagram... -
Page 7: Parts And Hardware List
Parts List Hardware List Part# Description Q'ty (pcs) Part# Description Q'ty (pcs) M10*3" Button Head Bolt Base Tube M12*1 3/8" Hex Head Bolt Lower Upright M8*1 3/4" T-nut Arc Splint M10*4 1/8" Carriage Bolt Upper Upright M10*2 3/4" Carriage Bolt Cup Holder M10*2 5/8"... -
Page 8: Assembly Instructions
Tighten all the hardware in Steps 1 and 2 at this time. Ensure that the drain holes in the center of the Base Tubes (Item 1) and between the mounting hardware are facing down towards the ground. -
Page 9: Cup Holder (
The Cup Holders (Item 5) can be placed as shown or they can be placed so that they face towards the front of the swing. Do NOT tighten the hardware in Steps 3 and 4 at this time. -
Page 19: Leveling Instructions
Leveling the Seat (Optional) Make sure the two set screws are loose and do not come in contact with the inner shaft. Then rotate the button head adjustment, with the Allen wrench, clockwise to tilt swing up and down until seat is level and visually pleasing. -
Page 20: General Maintenance And Safety Information
Velcro engagement region. Check Velcro adhesion each time before using swing. Ensure that the 421L swing is set up on a firm level surface. Be careful placing the swing too close to a structure as severe injury might occur if a person gets caught between the structure and the swing or damage might occur if the swing hits the structure. -
Page 21: Label Reference
Label Reference Images... -
Page 22: Limited Warranty
PLEASE KEEP THIS FOR YOUR RECORDS Sunset Swings By Health In Motion LIMITED TEN YEAR WARRANTY Sunset Swings warrants this product to the original purchaser to be free from defects in workmanship and/or materials under normal use. If at any time a component part is defective, Sunset Swings shall repair or replace it (at Sunset Swings option) within a reasonable period of time.
