Summary of Contents for ARRADA Farringdon 16

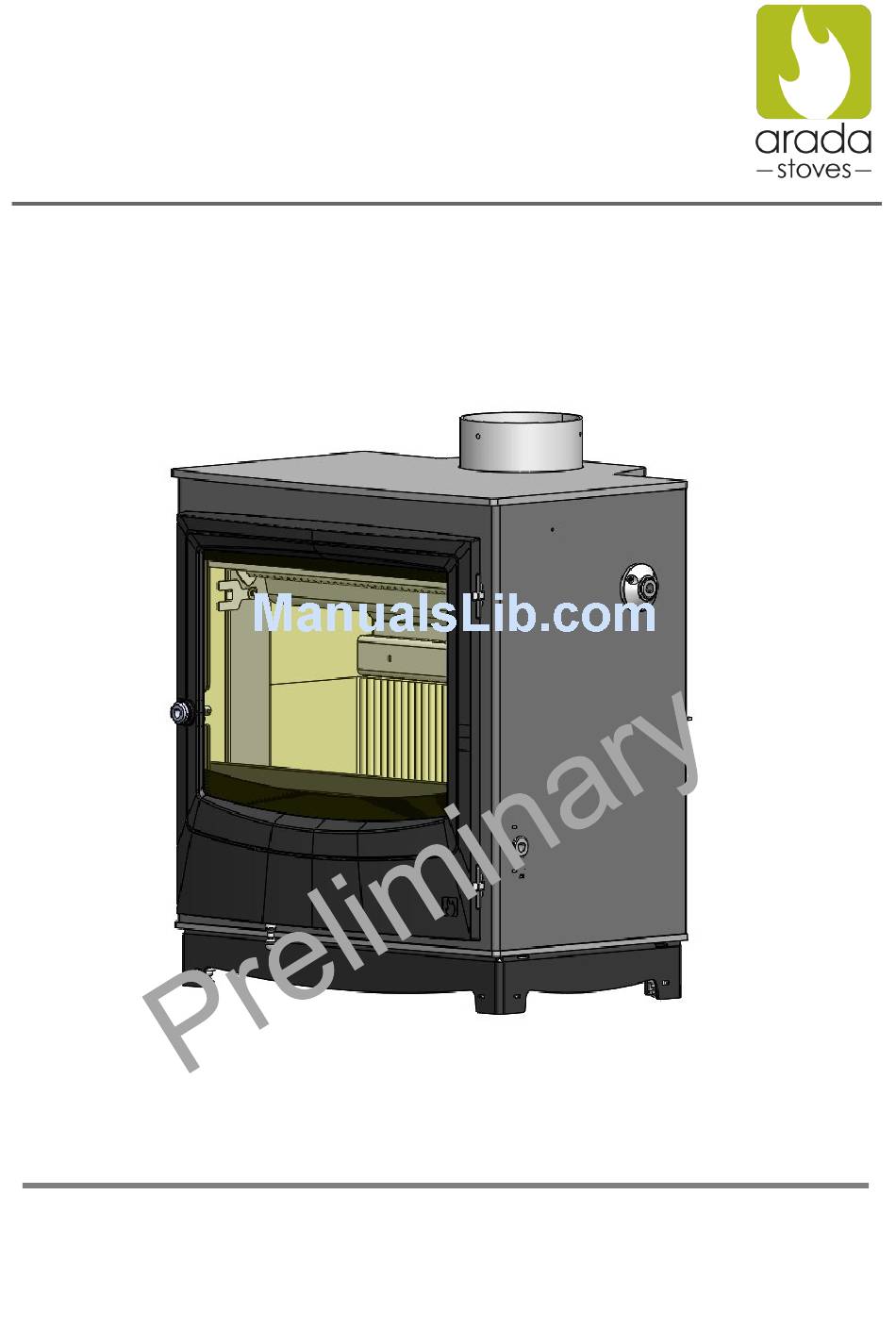

- Page 1 Operating & Installation Manual Farringdon 16 Wood Stove BK660 Rev 01 UL1482-11 or ULC S629-00 ver.01...
- Page 2 Congratulations on your choice of an Arada Stove. Read all instructions carefully before installing your wood burning stove. If you are in any doubt about the instruction to install your appliance correctly, we suggest to call a professional master installer. A wrong installation may result with a fire, burns and possible death. Keep these instructions.
-
Page 3: Table Of Contents
Contents Page No. Page No. INTRODUCTION SERVICE & MAINTENANCE Warning Notice Annual Maintenance Safety Notices Cleaning The Principle Of The Stove Chimney Sweeping Check List Door Glass Data Label Plate Information Outer Finish Technical data Fire Door Rope Replacement INSTALLATION Fire Door Glass Replacement 22-23 General Precautions... -
Page 4: Warning Notice
WARNING THIS STOVE MUST NOT BE CONNECTED TO A SHARED FLUE SYSTEM SERVING ANOTHER APPLIANCE TO ALL USERS THIS APPLIANCE IS SUITABLE FOR WOOD BURNING ONLY ANY FORM OF COAL SHOULD NEVER BE USED IN YOUR STOVE TO USE ANY FUEL OTHER THAN WOOD WILL INVALIDATE THE APPLIANCE GUARANTEE. -
Page 5: Introduction
INTRODUCTION SAFETY THE PRINCIPLE OF THE STOVE A fireguard should be used in the presence of Your Arada stove is built to the highest children and elderly or infirm people. standard of craftsmanship using the best Please note, This appliance should be used materials and the most modern equipment with the fire door closed at all times except available. -
Page 6: Check List
CHECK LIST Inside the appliance body you should find the following: Part Description & Visual Aid (not to scale) Farringdon 16 1. Fuel Retainer 2. Throat Plate 3. Ash Pan 4. Throat Plate Insulation Blanket 5. Instruction Manual Arada Farringdon Stoves... -
Page 7: Check List
CHECK LIST Inside the appliance you should find the following : Description & Visual Aid (not to scale) Farringdon 16 6. Back Side Liners 7. Front Side Liners 8. Rear Liner 9. Grate Bars 10. Stove Mitten ( Hot Glove) 11. -
Page 8: Data Label Plate Information
DATA LABEL PLATE Farringdon 16 Safety Label The Stove data label is manufactured from plated mild steel, laser etched with the information detailed below. and is permanently fixed to the top of the stove heat shield CONTACT YOUR LOCAL BUILDING OFFICIAL ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA CONTACTER VOTRE RESPONSABLE D’INSTALLATION LOCAL POUR CONNAITRE LES RESTRICTIONS ET INSPECTIONS DES INSTALLATIONS... -
Page 9: Technical Data
TECHNICAL DATA TECHNICAL DATA Farringdon 16 Maximum / Nominal Heat Output Kw Efficiency Nett (%) Mean Flue Gas Temperature °C Mean CO Emission @ 13% O2 (%) 0.15 Flue Mass Gas Flow (g/s) Minimum Distance To Combustible Rear - 400... -
Page 10: Installation
INSTALLATION GENERAL PRECAUTIONS HEARTH Note : All local regulations, including those The stove shall be installed on a floor with referring to National standards need to be com- adequate load bearing capacity. If the existing plied with, when installing the appliance. construction does not meet this prerequisite, suitable measures (e.g.: load distributing plate) Any Manufacturer’s Instructions must not... -
Page 11: Fitting The Flue Outlet & Hotplate
INSTALLATION FITTING THE FLUE OUTLET AND FLUES AND CHIMNEYS HOT PLATE (Where Provided) The flue draw is critical on any installation and should be checked to ensure that it matches what is specified. If it is higher than recommended, Note: provision must be made to correct the over draw. -
Page 12: Flues & Chimneys
INSTALLATION If the stove appears to be working hard but produc- The flue and chimney installation must be carefully es very little output to the room it is likely that ex- checked by a competent person before fitting the cess draw is present in the chimney, and that heat stove to ensure it is suitable and will work safely. - Page 13 INSTALLATION Typical Factory built chimney installation in a single family residence General. Factory built chimneys and chimney units must be installed in accordance with the tempera- ture and pressure conditions detailed in the manufacturers instructions. Temperature and pressure limits. Flue gas temperature and static pressure within the chimney must not exceed the limits used during listing tests Arada Farringdon Stoves...
- Page 14 INSTALLATION Typical Metal Insulated Chimney System Installed To The Chimney Manufactures Instructions A HT type factory-built chimney approved UL103 or ULC 629 with 6 inches diameter (15.24 cm) A code-approved masonry chimney with a flue liner with a 6 inches diameter (15.24cm) PLAN VIEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES...
- Page 15 INSTALLATION Masonry Chimney High Temperature prefabricated chimney cap High Temperature top plate Insulated High Temperature 6'' diameter Flue liner, rigid or flexible. Minimum 16' high. Connector, rigid or flexible (between flue collar of stove and flue liner) Sample installation into existing chimney. Chimney liner system has to be UL listed to UL 1777 in USA and ULC S635 in Canada.
-
Page 16: Floor Protection, Distance To Combustibles
INSTALLATION Floor Protection The stove must be installed on a non-combustible material plate to protect the floor and possible fire caused by Ejection of sparks and hot ashes when the stove door is opened for refuelling etc. Radiated heat caused by stove over firing ... - Page 17 INSTALLATION Stove clearances on floor protection plate The floor protection plate must be of Non-Combustible Material Minimum dimensions listed may be increased C (USA) D (Canada) 203mm 203mm 406mm 458mm 8ins. 8ins. 16ins. 18ins. Arada Farringdon Stoves...
- Page 18 INSTALLATION Stove clearances to combustible material. Minimum dimensions listed may be increased Straight Installation clearances 478mm 305mm 406mm 458mm 19ins. 12ins. 16ins. 18ins. Corner Installation clearances 458mm 267mm 18ins. 10.5ins. For Alcove Installation The ceiling can be 72ins (1828mm) above the base of the stove or 16ins (406mm) above the top of the stove Do NOT connect this unit to a chimney serving another appliance Arada Farringdon Stoves...
-
Page 19: Firebox Liner Panels
INSTALLATION Throat plate sat correctly on air tube and rear air bar. Note: Insulation blanket not Fig 3 shown for clarity FIREBOX LINER PANELS The Arada Farringdon stove uses firebox liner panels to the sides and back. The throat plate sits on top of the perforated air tube at the front and into two slots in the rear air bar. -
Page 20: Final Check List
INSTALLATION FINAL CHECK LIST SUMMER STORAGE / NON USAGE Before handing over the installation to the customer it is recommended that the appliance is Please ensure that your stove is left clean and lit and the functioning of the chimney system is moving components are well lubricated for the checked for satisfactory operation. -
Page 21: Service & Maintenance
SERVICE & MAINTENANCE ANNUAL MAINTENANCE be cleaned prior to lighting the fire after a prolonged shut down period. It is important that your appliance is regularly serviced in accordance with these instructions. DOOR GLASS Note: Only use original Arada components for service replacements, NEVER substitute parts The door glass should remain clear during normal for similar items... -
Page 22: Fire Door Rope Replacement
SERVICE & MAINTENANCE FIRE DOOR ROPE FIRE DOOR GLASS REPLACEMENT REPLACEMENT Periodically, visually check over the fire door rope seal for any damage, cuts or tears and any In the event of the door glass being broken it can detached sections. It is important to maintain these easily be replaced. - Page 23 SERVICE & MAINTENANCE Please Note: This should be carried out when the stove is cold and unlit. Fig. 10. Positioning The Glass Fig. 11. Tightening The Glass Clip The images used on pages 22 and 23 illustrating the door rope and glass replacement are generic images and may differ from the stove you have, but the procedure is identical.
-
Page 24: Service Record
SERVICE & MAINTENANCE Service Record Date of Visit Company Work Carried Out Signature Should you have any questions about your Arada Farringdon stove that have not been covered in this manual please contact your Arada dealer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits so they can complete the service record chart. -
Page 25: Operating Instruction
OPERATING INSTRUCTIONS FUEL : LIGHTING THE STOVE SAFETY NOTICE The most efficient use of this appliance is with Prior to lighting the stove for the first time, the fire door closed at all times, apart from re- check with the installer that : fuelling (when alight) or cleaning (when cold). -
Page 26: Burning Wood
OPERATING INSTRUCTIONS BURNING WOOD Please Note : To avoid chimney problems your appliance should not be burnt at a reduced burn rate without a period of fast burning. Set the fire by using rolled up newspaper and place a layer of dry kindling wood on top of this. Note: ... -
Page 27: Over Firing & Chimney Fires
OPERATING INSTRUCTIONS WARNING : The ash can be very hot. Empty OVER FIRING & CHIMNEY FIRES only into a metal container. Even if the ash appears cold, red-hot pieces of ash may be concealed and could easily start a fire or cause an DO NOT over fire your appliance. -
Page 28: Air Inlet Control
OPERATING INSTRUCTIONS AIR INLET CONTROL The Arada Farringdon 16kw stove air inlet control. The primary air inlet provides the main air supply to the fuel and the airwash system through the control slider located under fire door on the Left side. Placed fully to the LEFT is Low air, and to the RIGHT is High air. -
Page 29: Catalyst And Bypass Control
OPERATING INSTRUCTIONS Catalyst The Arada Farringdon 16kw stove is fitted with a ceramic catalyst to aid clean burning. The catalyst should be inspected for damage annually and if necessary replaced. The catalyst part number can be found in the parts list on page 31. Only replace with a genuine Arada Catalyst Catalyst Bypass Control. -
Page 30: Main Fire Door Handle
OPERATING INSTRUCTIONS MAIN FIRE DOOR HANDLE A stove mitten is supplied with your Arada Farringdon stove, this is provided for the operation of the fire door handle whilst the stove is in use. Care must be taken when opening and closing the fire door as any surrounding areas of the stove will be very hot. -
Page 31: Parts List
Parts List Farringdon 12 No. Description Part Number Description Part Number Liner Fastener AFS3650 Pilot Tube Clamp AFS3720 Airwash Tube Clamp AFS3655 Pilot Tube End Bracket AFS3725 Comb and Extension AFS3660 Fuel Retainer AFS3730 Rope Kit ARA019 Fluted Rear Liner AFS3735 Glass Kit AFS3665... -
Page 32: Guarantee ( Uk Only )
GUARANTEE Guarantee UK only If your appliance proves to be defective as a result of faulty materials or workmanship We would like to thank you for during the guarantee period, we will repair or buying an Arada Farringdon stove. replace it FREE OF CHARGE as long as the stove has been installed according to this When you buy an Arada stove, you are not only manuals instructions and the Final... - Page 33 UK Lifetime Guarantee † For your peace of mind Arada stoves gives a Lifetime Guarantee against manufacturing defects of the main body* † of its Farringdon range of stoves. Additionally, all other parts are covered by a one year no quibble replacement guarantee.
-
Page 34: User Notes
User Notes... -
Page 35: Factory Check List
Final Factory Check list Stove Model …………….……………… Serial No. ………………………………. Quality / Finish I’ve checked it Grate bars (12) and its O.K ! Fuel Retainer Firebox Liners (8) Throat Plate Throat Plate Insulation Blanket Assembled By………………………. Door / Riddle Handle Ash Pan Checked by…………………………..
