Summary of Contents for Ryobi RBC26SESB

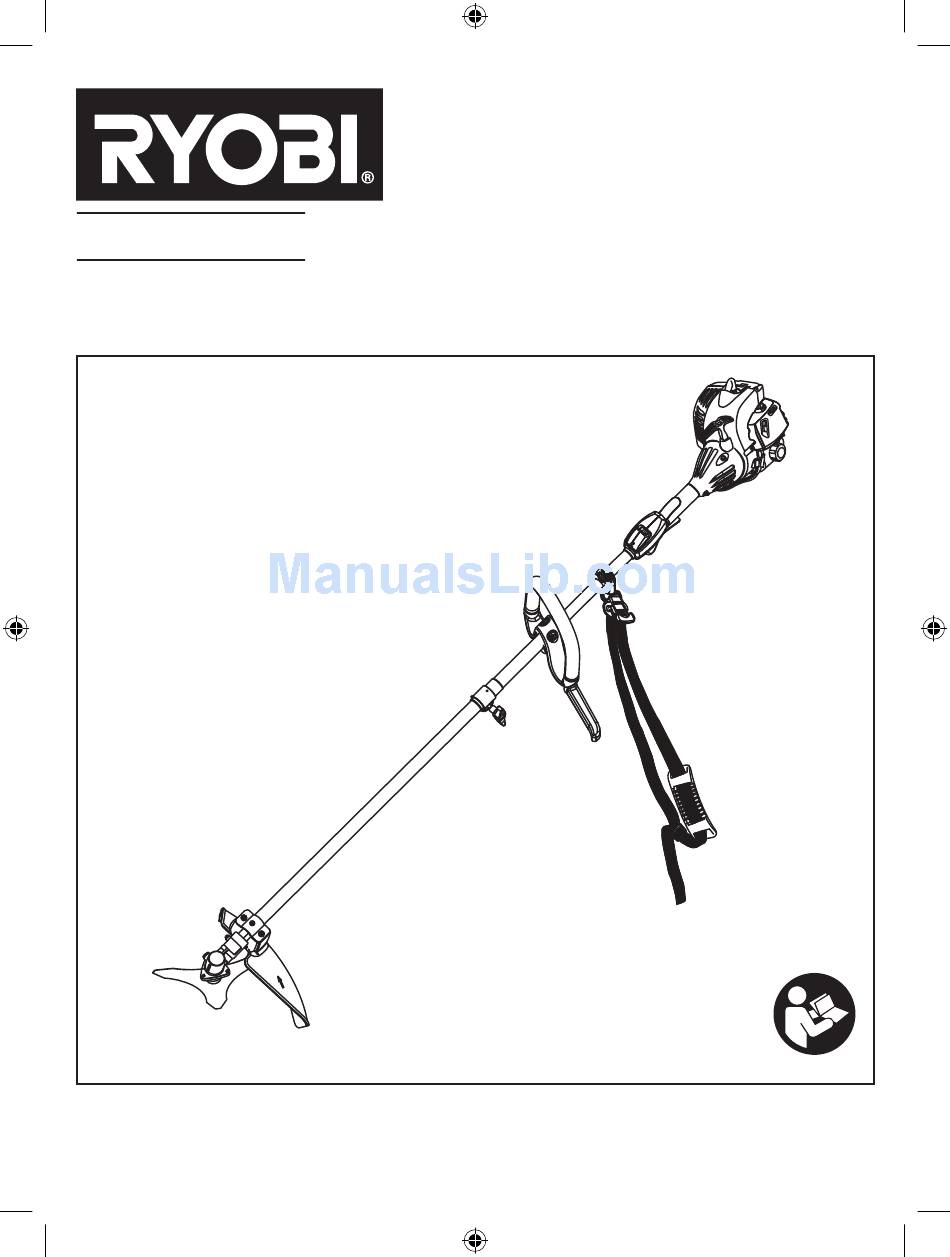

- Page 1 RBC26SESB STRING TRIMMER/BRUSHCUTTER ORIGINAL INSTRUCTIONS Important! It is essential that you read the instructions in this manual before assembling, maintaining and operating this machine. Subject to technical modifications.
- Page 2 English (Original Instructions) SYMBOLS Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. SYMBOLS NAME EXPLANATION Indicates danger, warning or caution.
- Page 3 English (Original Instructions) Blade hazard Keep hands away from blades Set the choke lever to “Run” choke position. Full choke position Half choke position Place the engine switch to the "I" position PRIME - press the primer bulb 10 times slowly. Squeeze throttle trigger to start/run.
-
Page 4: Intended Use
English (Original Instructions) Safety, performance, and dependability have been Keep all bystanders, children and pets at least 15 m ■ given top priority in the design of your string trimmer/ away. brushcutter. Do not operate this unit when you are tired, ill, or ■... -
Page 5: Residual Risk
English (Original Instructions) in any way. Be sure the bump head or blade is unexpected object or woody stock is encountered, properly installed and securely fastened. Failure to do this could minimize the blade thrust reaction. so can cause serious injury. Never cut any material with diameter over 13 mm. -
Page 6: Specifications
English (Original Instructions) SPECIFICATIONS RBC26SESB Weight (kg) - Without fuel, cutting attachment and harness 5.38 - Without fuel, with bump head 5.85 - Without fuel, with blade 5.59 [cm 3 or (L)] Fuel tank volume 250 or (0.25) Cutting swath... - Page 7 English (Original Instructions) - equivalent 92.0 / 91.2 dB(A) A-weight emission sound power level - Idling 87.1 dB(A) - Racing 105.7 dB(A) - equivalent 105.7 dB(A) Uncertainty 2.5 dB DESCRIPTION 41. Metal spark plug boot 42. Spark plug Please refer to figure sheet ASSEMBLY 1.
- Page 8 English (Original Instructions) assembling parts. depressing the latches. n Remove the line trimmer head cover, bump knob, and line spool and set aside. WARNING n Place the cutting head housing on the drive shaft. Never attach or adjust any attachment while the Make sure the housing is fully seated.
- Page 9 English (Original Instructions) clockwise to remove. n Adjust the shoulder strap hanger to a balanced position where the blade or cutter attachment will n Remove the upper bump head from the drive suspend between 100 mm to 300 mm above the connector.
-
Page 10: Operation
English (Original Instructions) contamination. n Install the upper bump head. Tighten spool retainer bolt. ■ Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap. n Install the spring, spool, bump knob and lower bump ■... -
Page 11: Maintenance
English (Original Instructions) and the left hand on the front handle. Keep a firm grip being cut. For cutting ease and safety, approach the weeds being cut from the right to the left. with both hands while in operation. In the event that an unexpected object or woody stock ■... - Page 12 English (Original Instructions) ■ Rotate the knob on the bump head clockwise to wind NOTE: The air filter should be replaced annually for the best performance. the string. ■ Wind the string until approximately 20 cm remains FUEL CAP protruding from the bump head. WARNING BLADE PROTECTOR (Fig.
-
Page 13: Troubleshooting
English (Original Instructions) TROUBLESHOOTING If these solutions do not solve the problem, contact your authorised service dealer. PROBLEM POSSIBLE CAUSE SOLUTION Engine will not start. 1. Power switch is off. 1. Make sure Switch is in the ON or “I” position. 2. - Page 14 English (Original Instructions) PROBLEM POSSIBLE CAUSE SOLUTION Engine starts, runs, Idle speed screw on carburetor and accelerates but will Contact servicing dealer if the problem persists. requires adjustment not idle. Line will not advance. 1. Line welded to itself. 1. Lubricate with silicone spray. 2.
- Page 15 4. For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer under- takes to send the product to the RYOBI service organisation.
- Page 16 AUTHORISED SERVICE CENTRES ACD PLANT LTD C J Sinclair Limited ToolTech Industrial Equipment 145 Southbank Road 44 Victoria Road 227 E Dunhill Road, Macosquin Coundon St Peters Coleraine, Co Londonderry Coventry, West Midlands Broadstairs, Kent BT514LQ CV6 1FG CT10 2UG Phone: 028 70359493 Phone: 02476 594348 Phone: 01843 869400...
-
Page 17: Declaration Of Conformity
Herewith we declare that the product String Trimmer / Brushcutter Brand: Ryobi Model number: RBC26SESB Serial number range: 44427501000001 - 44427501999999 is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 97/68/EC, 2002/88/EC, 2004/26/EC, 2010/26/EU, EN ISO 11806-1:2011, EN ISO 14982:2009, EN ISO 3744:2010 Measured sound power level: 107.5 dB(A) - Page 20 961478052-02...
