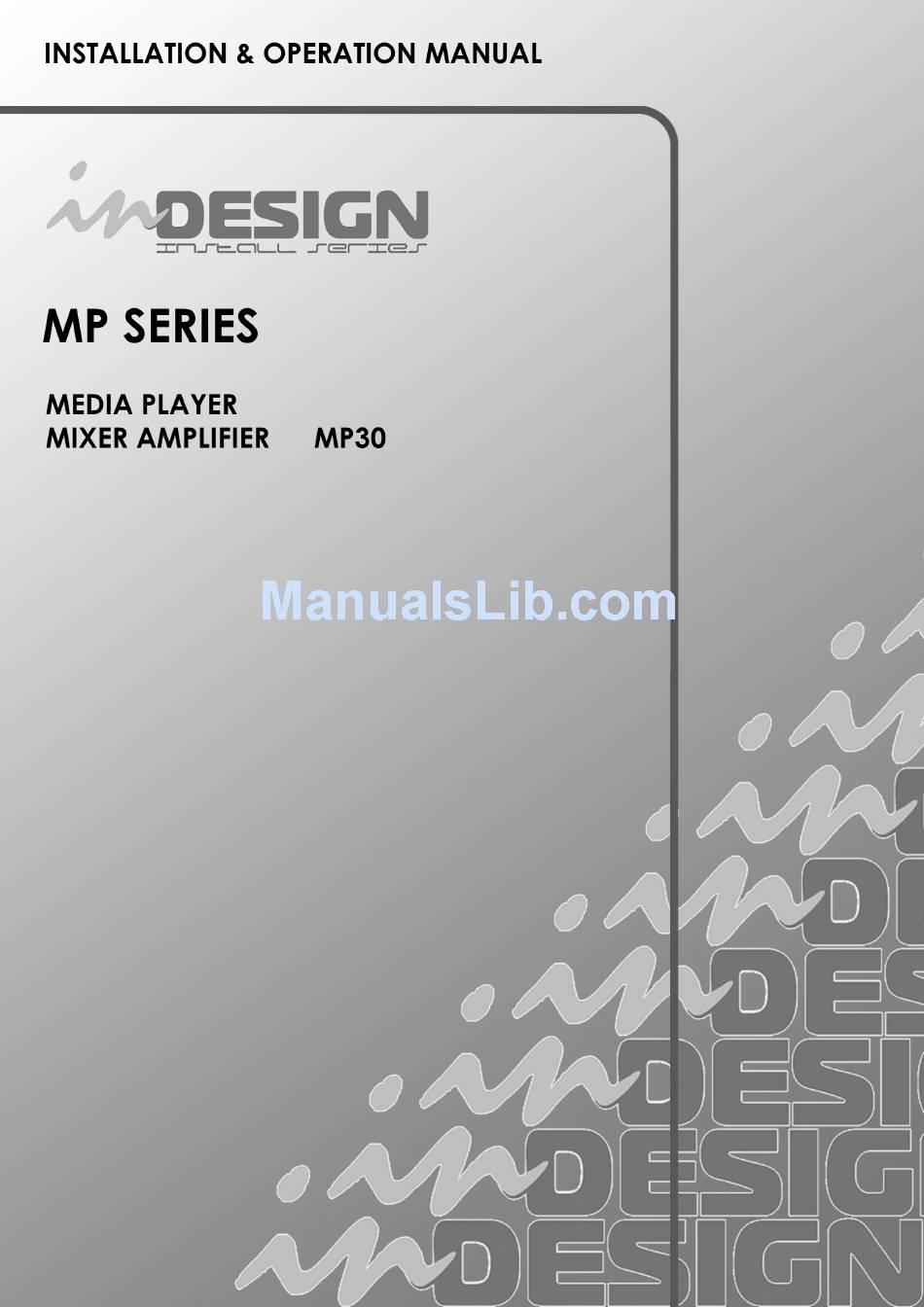

Summary of Contents for Design MP 30
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION INTRODUCTION The inDESIGN MP30 – 30 watt, all-in-one mixer amplifier is designed for small to medium installations where multiple IMPORTANT SAFETY playback sources are required. The in-built FM Tuner & USB/SD INSTRUCTIONS MP3 player allow easy playback of your favourite FM station, or music stored on a USB drive or SD card. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. To prevent injury please refer to these instructions for electrical and safety information before installing or operating the apparatus. 6. No naked flame sources such as lighted candles should be placed on the apparatus. 7. - Page 4 You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. >10cm >4in >10cm...
-
Page 5: Installation
INSTALLATION How to Calculate the correct load for a 100V Amplifier: When installing a 100V loudspeaker system, it is rather simple to calculate the number of loudspeakers that can be connected to a particular 100V amplifier. Each 100V loudspeaker has a 100V transformer that will have different power tappings, for example 1.5, 3 and 6W. -
Page 6: Front Panel
FRONT PANEL 1. Power Switch: Turns mains power on and off. The round LED light surrounding the Master Volume control indicates the unit is on/off. 2. Mode button: Press repeatedly to cycle through USB/SD/MMC/FM radio or Bluetooth media playback (Bluetooth mode automatically searches for external device; refer to your BT device manual for setup instructions). -
Page 7: Rear Panel
REAR PANEL 11. Mains Socket: The unit is connected to the mains circuit with a standard IEC type power lead. This socket contains a rated slow blow fuse. **NOTE: Only use a fuse equal to the marked rating. 12. Loudspeaker Outputs: When connecting low impedance loudspeakers use the COM and 8Ω... -
Page 9: Specifications
SPECIFICATIONS SPECIFICATION Output power 30 watts. 8Ω or constant voltage 100v/70v line AC power supply 110VAC - 240VAC Switchable Output low impedance 8 ohm Hi impedance output 70V / 161 ohm 100V / 333 ohm Input sensitivity Microphone 1mV Line 500mV Frequency response 90Hz –... -
Page 10: Warranty Info
The Specific Warranty Table Information outlines the warranty period, warranty type and any specific exclusions for your NAS product. NAS considers the warranty period specified in the Specific Warranty Table to be a reasonable warranty period having regard to the price, design, manufacture and expected use of the product.
