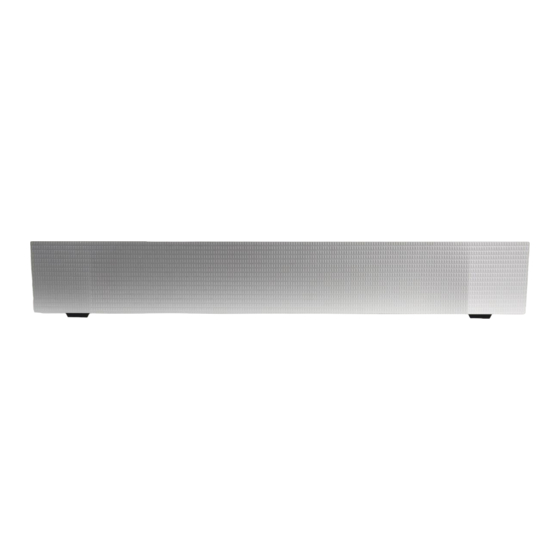

Summary of Contents for Constellation audio Performance Series DC Filter
- Page 2 CAUTION To reduce risk of electric shock, do not remove any of the DC filter’s cover plates or screws. There are no user serviceable parts inside. Contact qualified service personnel. WARNING To reduce risk of fire or electric shock, do not expose this DC filter to moisture, rain, or excessive humidity.
- Page 3 Thank you for adding the Performance Series DC Filter to your Constellation Audio system. This filter will work with any Performance Series line-level component: the Virgo II or Virgo III line stage, the Cygnus digital music player or the Perseus phono preamp.
- Page 4 5) Before you reconnect AC power, ensure all power supply, filter and audio connections are restored. How to connect the DC Filter The Performance Series DC Filter has three hard-wired cables and three jacks. The cables are a high- current PCOCC design tipped with Hypertronics connectors developed for aerospace applications.
- Page 5 Each cable is dedicated to a specific purpose: right channel, left channel or control. Be sure to connect the right-channel cable to the right-channel input, the left-channel cable to the left-channel input and the control cable to the control cable input. Start by connecting the three cables from the power supply to the three jacks on the DC Filter.
- Page 6 If your DC Filter does not function correctly, refer to the Troubleshooting section at the end of this manual. If you are still unable to resolve the problem, contact your Constellation Audio dealer. If any liquid is spilled on the DC Filter, or if any metal object (such as a staple or a paper clip) is inadvertently forced inside, immediately disconnect the AC power and contact your Constellation Audio dealer.
