- Page 1 EDIC-mini Tiny xD B68 Digital Voice Recorder OPERATION MANUAL Version: June, 2011 © TS-Market...
-
Page 2: Specifications

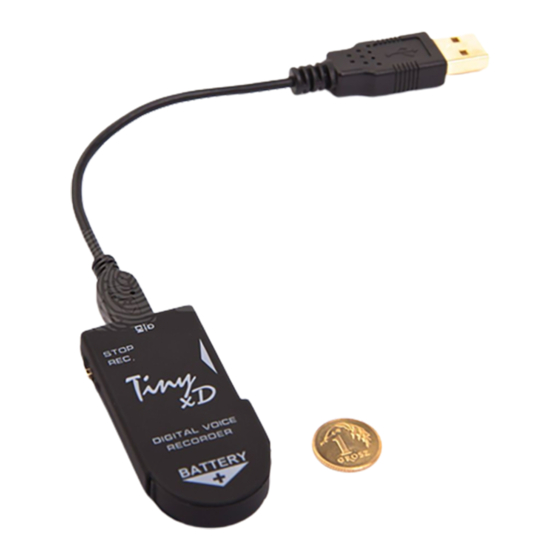

Short Operating Instruction for Digital Recorder EDIC-mini Tiny xD B68 Specifications: • VAS (Voice Activating System); • Circular recording mode; • Timers to start recording at the preset time; • Information protection system; • Remote microphone connection; • LED indication; • Reading data from the card by a special reader via USB (up to 5,5 Mb/sec) • Reading data directly from the Recorder via USB at the speed of 0,7 Mb/sec. - Page 3 Appearance Memory card compartment Rec-Stop Switch xDM memory card Battery micro-USB compartment plug Microphone...
-
Page 4: Technical Characteristics
Technical Characteristics: • Dimensions: 56х30х8 mm; • Weight: 9 g; • Case: Plastic; • Memory type: Replaceable Flash xDM card; • xDM card volume: From 150 to 600 hours;p • Audio codec: 10-bits Frequency band when recording: 100-10000 Hz; Sensitivity of built-in microphone: up to 9 m; Signal-to-noise ratio: -80 dB; Sample rate: up to 22 kHz; Power supply: CR 2450; Battery life in record mode: 100 hours (8 K Hz, without compression); In stand-by mode: 11 months, (250 mAh); Compression method: uLaw, ADPCM (2 or 4 bits). PC system requirements: operating systems Windows XP, Windows Vista, Windows 7. - Page 5 Installing the Battery and Memory Card Install memory card into the compartment as shown in the scheme. The Recorder operates under CR 2450 batteries. Open the Lid of the battery compartment, insert the battery observing the polarity (the positive battery contact is to be upward) and install the Lid up to the stop. Carefully observe the polarity! Otherwise the Recorder may malfunction. After the battery has been installed the Recorder carries...
- Page 6 Playing back the Recording Connect USB cable to the Recorder, then to the USB port of the PC. The system recognizes a new storage device. Launch «RecManager. exe» from it. The content of the Recorder is on the left side of the window. Select the recording, right-click and select “Copy to PC”. The recording will be converted to WAV and appears at the right side of the window.
-
Page 7: Optional Accessories
Optional accessories: 1. Remote Microphone with compressor; 2 Programmable remote microphone. In Box 1. Recorder; 2. xDM memory card; 3. USB cable to connect to the PC; 4. 2 CR 2450 batteries; 5. Instructions. 6. XD Reader...
