Summary of Contents for Xcooter Urban Rider

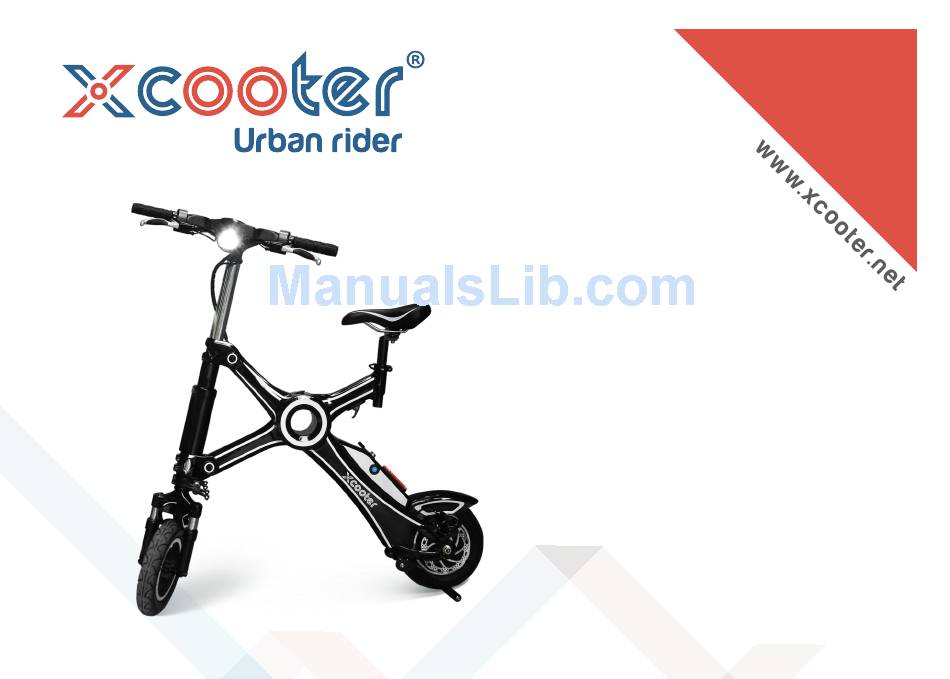

- Page 1 User manual Please read carefully before use.
-
Page 2: Table Of Contents
Table of contents Overall structure Precautions before use Basic parameters and performance Mileage display Electrical wiring diagram Battery and charger Use of key/beeper Instructions to assemble Fold & unfold Maintenance tips 12-15 Warranty information... - Page 3 Foreword Thank you for purchasing our foldable Xcooter . This Xcooter has been designed and ® ® perfected for two years by our senior engineers. The Xcooter is a stylish, folding electric scooter that provides an exciting alternative for your ®...
-
Page 4: Overall Structure
Overall structure 10-inch pneumatic tire Suspension fork Shock absorber Foldable slip joint Horn & light switch Brake handle bar (2) Mileage display and battery life Throttle Foldable latch Adjustable seat Charging socket Battery cover (includes battery, controller and burglar alarm) Back wheel hub motor Kickstand Footrest... -
Page 5: Precautions Before Use
Adjust the seat height properly to ensure that riding is comfortable and feet can reach the ground easily. Mount your Xcooter ® as you would a bicycle or motorcycle. Confirm whether the mechanical brake is working and the tire is filled fully. -
Page 6: Basic Parameters And Performance
Basic parameters and performance Finished scooter Battery Wheel base 2.55” Voltage 36 V 40.75”x 41.34” x 21.65” Capacity 8.7 AH (unfolded) Battery core Panasonic 18650 - 2900 PF 40.75”x 41.34” x 21.65” (folded) Maximum speed Cycle life More than 1.000 times 15 mph Discharging rate Maximum riding mileage... -
Page 7: Mileage Display
Mileage display Display Speed Power indicator Functions Total mileage Panel Light on/off Speed display Temperature Total mileage Horn LED light Power display... -
Page 8: Electrical Wiring Diagram
Electrical wiring diagram System structure general set Battery + Bold red Battery Battery - Bold black Bold blue Motor Bold green Charging Charger Bold yellow Battery connector Tiny red Motor Tiny yellow Tiny blue Hall Tiny green Tiny black Power Tiny red Speed measuring signal Light... - Page 9 Electrical wiring diagram Wiring diagram for controller (general set) Battery + Bold red Battery Battery - Bold black Bold blue Motor Bold green Bold yellow Tiny red Tiny yellow black Tiny blue Hall yellow green blue Tiny green 7021-2.8-11 Tiny black Power Tiny red Speed measuring signal...
-
Page 10: Battery And Charger
68º F - 100º F Please only use the original charger for charging. If other charger is used, it might cause fire, Battery is included in the Xcooter ® explosion or other hidden dangers. Non-professionals should not disassemble it and... -
Page 11: Use Of Key/Beeper
Use of key Function description This mechanical key is used Defense key when the electronic control key (Beeper/FOB) is invalid Locking key or damaged. Please keep Vehicle the spare key in a safe seeking key place. Separate from Start key Beeper/FOB. -
Page 12: Instructions To Assemble
Attach each footrest by inserting it on the hole on the frame near the front wheel and twist counter clockwise to tighten. Please check frequently and tighten as necessary. To view video on how to assemble go to: www.xcooter.net... -
Page 13: Fold & Unfold
Fold & unfold Seat can be adjusted up and down For latch to tip out (if not out) by realeasing the latch immediately use your palm and press down under the seat. on the frame. To close: release seat latch and move sideways. -
Page 14: Maintenance Tips
Xcooter and its accessories, a short circuit will be caused. Check the tire pressure regularly. Check to see if any joint gets loose. Xcooter can not be submerged in water. Charging should be conducted after the battery is used up. -
Page 15: Warranty Information
Smart-Rhino LLC (hereon after referred as to “we”, “us”, “our” or “this product” and the maker of this ® limited warranty) warrants to the original retail purchaser (also referred to as “you” or “customer”) of the Xcooter product that the product was delivered free from defects in material and workmanship when sold. This product shall remain in this condition for a period of 1 year from the date of the first retail purchase of this product. - Page 16 Xcooter ® Damages caused by neglect or improper use. Improper use of the Xcooter includes: ramp jumping, stunt jumping or any similar activity. Street, hill or dirt racing or any similar activity. Also riding on unpaved surfaces, dirt, sand and mud.
- Page 17 Smart-Rhino LLC be liable for incidental, contingent, special or consequential damages in connection with this warranty. ® The Xcooter does not offer an extended warranty. Updates or changes to this clause will be posted on our website: www.xcooter.net Smart-Rhino LLC recognizes that certain states disallow some damage exclusions, therefore, some of the above exclusions, inclusions or limitations may not apply to you.
- Page 18 www.xcooter.net...
