Summary of Contents for LP e-cruise

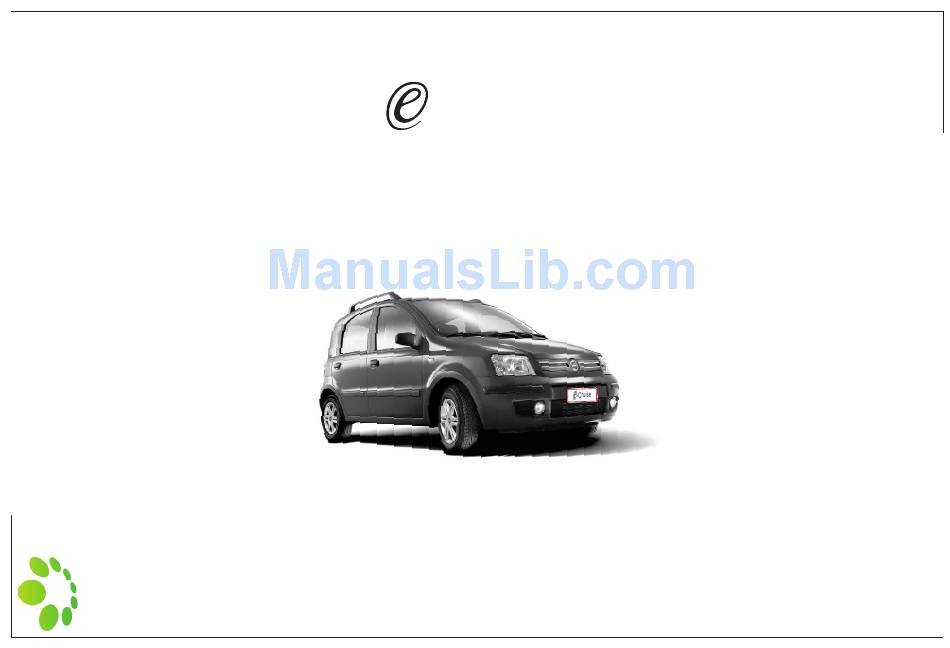

- Page 1 -Cruise Installation instructions for Fiat Panda 1.2 petrol type 169 model 2003 - 2010 www.lpdk.com Lindgaard Pedersen A/S 1530929 Rev. 2.2 Page 1 / 5...
-
Page 2: Before Installation
This installation instruction, contains information, how to install the E-Cruise, which is not a Do-It-Yourself job. · Always use the enclosed installation instruction for installing the E-Cruise. Modern cars are equipped with electronic, which can be costly damaged by inappropriate treatment. - Page 3 Fiat Panda 1.2 petrol type 169 model 2003 - 2010 Connector on brake pedal (Viewed from wire side) Purple/White Blue/White (Cold) (Hot) White/Brown Blue 1A fuse Connector on the accelerator pedal www.lpdk.com Lindgaard Pedersen A/S 1530929 Rev. 2.2 Page 3 / 5...
- Page 4 Fiat Panda 1.2 petrol type 169 model 2003 - 2010 Aftermarket clutch switch Only mount these wires on vehicles with manual transmission Otherwise cut off, and insulate Ground White Yellow Blue Purple In the small cable bundle Good ground below left entrancelist connection Black White...
-
Page 5: Troubleshooting Guide
1. Activate and hold down the brake pedal. 2. Activate SET briefly = test LED lights up red. 3. Activate SET briefly again = test LED lights up orange. E-Cruise is set for automat gear. The test LED will flash in all 3 colors, provided that no If this function is activated by mistake.
