Summary of Contents for Solaris smart 54w

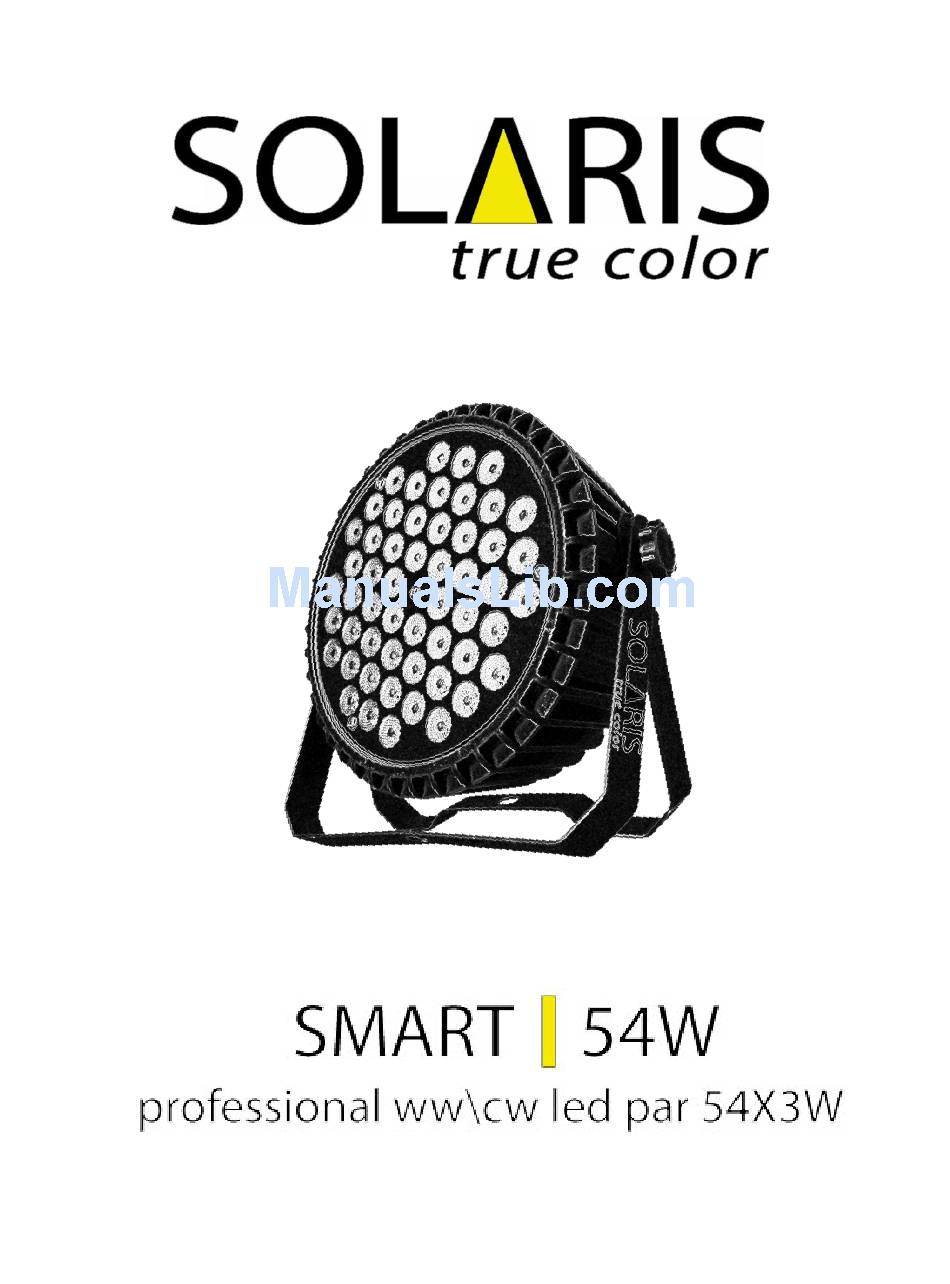

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
PAGE NO. SAFETY INFORMATION INTRODUCTION INSTALLATION AC POWER FIXTURE OVERVIEW DMX DATA LINK CONNECTING AND USING DMX DATA LINK FIXTURE OPERATION 10-11 TOKENS FIXTURE MENU STRUCTURE CHART DMX MODES CHARTS MAINTENANCE SMART 54W SPECIFICATIONS 14-15 INCLUDED ITEMS SOLARIS® SMART 54W™... -
Page 3: Safety Information
· Make sure there are no flammable materials close to this product while MOUNTING & RIG- GING it is operating. · Always carry this product by the handles. Do not carry from the head. · When hanging this product, always secure to a fastening device using a safety cable. SOLARIS® SMART 54W™... - Page 4 · The maximum ambient temperature is 120 °F (49 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product imme- diately In the unlikely event that your GLOW® product may require service, contact GLOW® Technical Support. SOLARIS® SMART 54W™...
-
Page 5: Introduction
INTRODUCTION The SOLARIS® Professional SMART 54W™ is a high-performance 3 X 54W cold white warm white Led Par lighting fixture. A compact design makes it ideal for Venue Installations, Theat- rical, Cinema, TV and Stage Use. The fixtures is deemed for its silent operation achieved by temperature detectors and silent fans. -
Page 6: Installation
Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through and around a secure metal anchoring point. SOLARIS® SMART 54W™... -
Page 7: Ac Power
250 V, 5 A. The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. SOLARIS® SMART 54W™... -
Page 8: Fixture Overview
5 Aluminum body with fan and Heat sink Press UP to change current value DOWN Press DOWN to change current value MENU Press MENU to toggle between modes ENTER Use ENTER to save the parameter after you made the desires adjustments SOLARIS® SMART 54W™... -
Page 9: Dmx Data Link
1. Connect the DMX data output from the controller to the first fixture’s male XLR DMX input connector. 2. Connect the first fixture’s DMX output to the DMX input of the next fixture and contin- ue connecting fixtures output to input. SOLARIS® SMART 54W™... -
Page 10: Connecting And Using Dmx Data Link
This section explains the fixture settings and utilities that the user has access to when us- ing the control panel. Settings are retained when the fixture is powered off. The SOLARIS® SMART 54W™ can function in different modes: DMX 3 CHANNEL MODE. When operated in DMX 3 channel mode the fixture back screen will show A001 when first accessed. -
Page 11: Tokens
TOKENS® according to the fixture’s qualities. Those marks can be especially useful and informative for the technicians using Solaris fixtures. The TOKENS® are located above the digital screen on the back panel of the fixture. -
Page 12: Fixture Menu Structure Chart
3 CHANNEL DMX MODE FUNCTION CHANNEL COLD WHITE DIMMER DARK TO BRIGHT WARM WHITE DIMMER DARK TO BRIGHT STROBE SLOW TO FAST 2 CHANNEL DMX MODE FUNCTION CHANNEL COLD WHITE DIMMER DARK TO BRIGHT WARM WHITE DIMMER DARK TO BRIGHT SOLARIS® SMART 54W™... -
Page 13: Maintenance
Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. 4. Check that the fixture is dry before reapplying power. SOLARIS® SMART 54W™... -
Page 14: Smart 54W Specifications
SMART 54W SPECIFICATIONS FEATURES Strobe Strobe Effect 01-16 Dimmer 0 – 100% Full Linear Dimming INSTALLATIONS Location Indoor Use Only, Must be fastened to surface or structure Mounting points Two adjustable bracket with clamp insertion point Orientation LAMP Lamp type... -
Page 15: Included Items
180W OPTICS Beam Angle 25° Degrees CONSTRUCTION Color Black IP Rating IP20 CONNECTIONS AC Power Input Power-Con Power cable (included) DMX512 Data 3-pin locking XLR, 1 Input, 1 Output INCLUDED ITEMS User Manual 3 ft. PowerCon Cable SOLARIS® SMART 54W™... - Page 16 2015 SOLARIS BY GLOW® PROFESSIONAL. INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. SOLARIS BY GLOW® PROFESSIONAL DISCLAIM LIABILITY FOR ANY INJURY, DAMAGE, DIRECT OR INDIRECT LOSS, CONSEQUENTIAL OR ECONOMIC LOSS OR ANY OTHER LOSS OCCASIONED BY THE USE OF, INABILITY TO USE OR RELIANCE ON THE INFORMATION CONTAINED IN THIS MANUAL.
