INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
For Vented Lead-Selenium Standby Batteries (SR & STT-series)
Commissioning by: .......................................
Number of cells/blocks: ................................

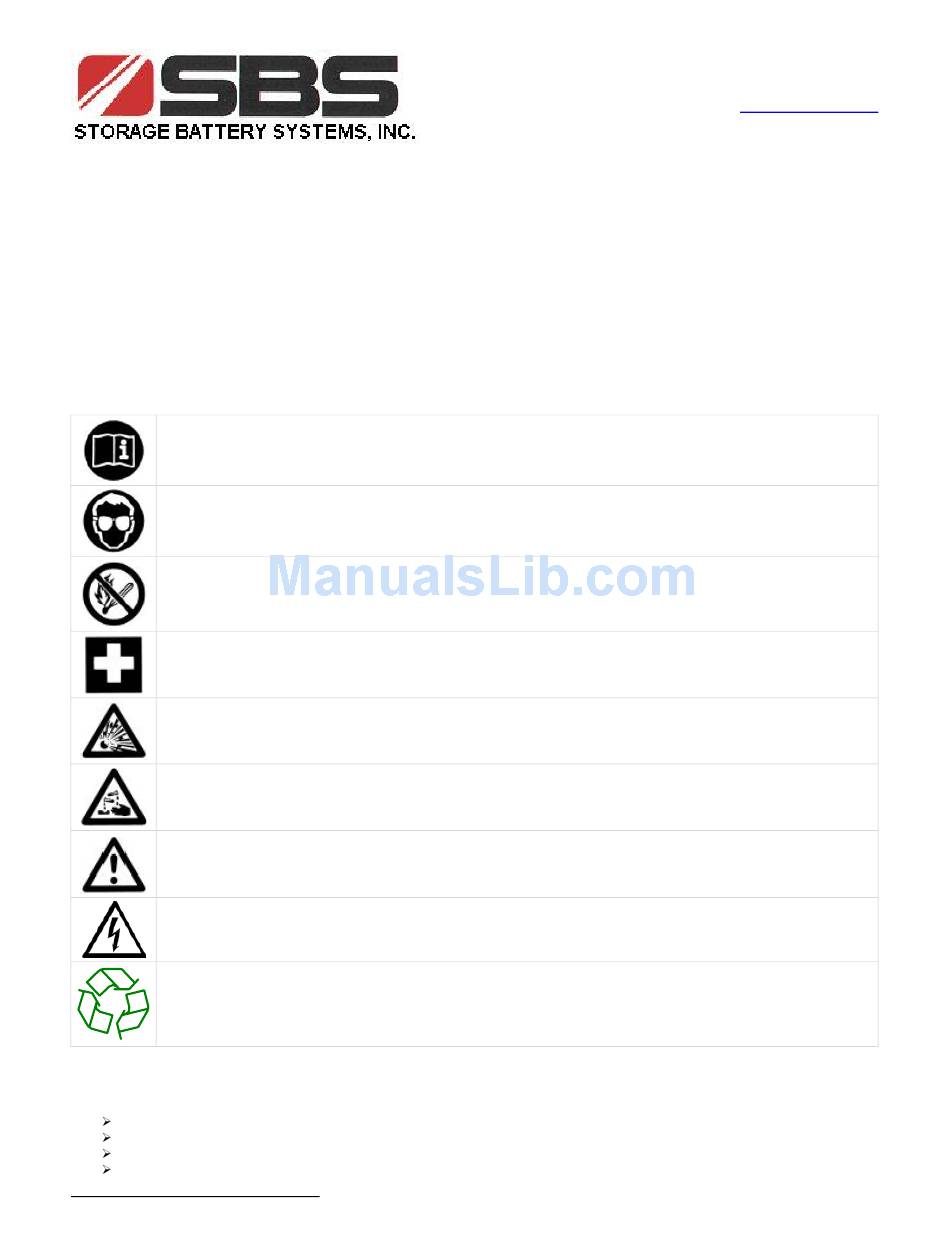

SAFETY PRECAUTIONS & WARNINGS
Familiarize personnel with battery installation, charging and maintenance procedures. Display operating
instructions visibly near the battery system. Restrict access to battery area, permitting trained personnel only, to
reduce the possibility of injury.
Wear rubber apron, gloves and safety goggles (or face shield) when handling, installing, or working on batteries.
This will help prevent injury due to splashing or spillage of sulfuric acid. Observe all accident prevention rules.
Prohibit smoking. Keep flames and sparks of all kinds away from the vicinity of storage batteries as liberated or
entrapped hydrogen gas in the cells may be exploded, causing injury to personnel and/or damage to cells.
Wash all acid splashes in eyes or on skin with plenty of clean water and seek immediate medical assistance. Acid
splashes on clothing should be washed out with water. Acid on skin or clothing should also be immediately
neutralized with a solution of baking soda and water.
Explosion and fire risk. Avoid short circuits. Never place metal tools on top of cells, since sparks due to shorting
across cell terminals may result in an explosion of hydrogen gas in or near the cells. Insulate tool handles to protect
against shorting. Prior to making contact with the cell, discharge static electricity by touching a grounded surface.
Electrolyte is highly corrosive. Promptly neutralize and remove any electrolyte spilled when handling or installing
cells. Use a baking soda/water solution (1 lb. per gallon of water) to prevent possible injury to personnel.
Block and single cell batteries are extremely heavy. Exercise care when handling batteries. When lifting use
appropriate mechanical equipment to safely handle batteries and avoid injury to personnel.
Dangerous voltage. Whenever possible, when making repairs to charging equipment and/or batteries, interrupt AC
& DC circuits to reduce the possibility of injury to personnel and damage to system equipment. This is particularly
import with high voltage systems (110 volts and above).
Recycle and Dispose of Used Batteries
Used batteries contain valuable recyclable materials. They must NOT be disposed of with domestic waste. Modes
of return and recycling shall conform to the prevailing regulations in operation at the site where the battery system is
located. Call SBS for recycling options.
1
Warranty
Any of the following actions will invalidate the warranty:
Non-adherence to the Installation, Operating and Maintenance Instructions
Repairs carried out with non-approved spare parts or by non-approved personnel
Application of additives to the electrolyte
Unauthorized interference with the battery.
Date: ..............................................
Type: .............................................
Specifications subject to change without notification.
Corporate Office
N56 W16665 Ridgewood Dr.
Menomonee Falls, WI 53051
www.sbsbattery.com
(800) 554-2243
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SBS SR series
Summary of Contents for SBS SR series
- Page 1 Used batteries contain valuable recyclable materials. They must NOT be disposed of with domestic waste. Modes of return and recycling shall conform to the prevailing regulations in operation at the site where the battery system is located. Call SBS for recycling options. Warranty...
-
Page 2: Delivery And Storage
DELIVERY AND STORAGE Delivery Unpack the batteries as soon as they are delivered. Do not lift by the terminal posts! Batteries should be lifted by handles or supplied lifting straps. In addition at all times, exercise care when handling batteries to prevent scratching of plastic jars and covers. - Page 3 Note: If a SBS spill containment is also supplied the rack will fit into the spill pans. If the rack is being anchored to the floor drill through the spill containment system and caulk hole with a silicon sealant to avoid possible leaks.
- Page 4 Battery Required Type Spacing SR series .40" STT series .50" Table 1 Check that all contact surfaces are clean and corrosion free. If required, clean with a brass brush. Tighten the terminal screws with an insulated torque wrench in accordance with Table 2.
-
Page 5: Boost Charge
a) The IU method of boost charging. At a raised voltage of 2.33 – 2.40Vpc, the charging time will be 4-24 hours depending on the charging current and initial charge conditions. The current must be limited to 30% the 8hr AH rating. b) Float Charging. -
Page 6: Charging Current
Float Charge The recommended float charge voltage is 2.23Vpc at 77˚F. However, the batteries can be floated as low as 2.15Vpc or as high as 2.25Vpc. Floating the batteries under the recommended 2.23Vpc will lead to an occasional equalize charge being required, as well as slightly reduced capacity. Floating the batteries above 2.23Vpc will lead to additional watering being required, as well as a shorter life. -
Page 7: Special Applications
Temperature correcting factors: Discharge 32°F 41°F 50°F 60°F 77°F 86°F 95°F 104°F Time 5 – 59 min 0.60 0.71 0.81 0.91 1.00 1.05 1.10 1.12 1 – 24 hrs 0.80 0.86 0.91 0.96 1.00 1.03 1.07 1.08 Table 3 Example: A battery with a capacity of 200Ah at 77°F (SR06200) for a 5 hour discharge will have a capacity of 182Ah when discharged at 50°F (200 x 0.91). -
Page 8: Maintenance And Testing
MAINTENANCE & TESTING Water Topping Under ideal operating conditions, lead-selenium flooded batteries should require watering every 1 to 3 years. This depends on temperature, charging rates, and number and depth of discharges. Note: DO NOT ADD WATER TO A BATTERY WHICH ISN’T FULLY CHARGED. This is especially important as the battery is being installed. - Page 9 Note: Keep a logbook in which the measured values can be noted as well as power cuts, discharge tests, equalize charges, topping up dates, storage times and general conditions. To obtain the full capacity and service life from your SBS stationary battery system, the performance of complete and timely periodic maintenance is essential. Temperature extremes, improper electrolyte levels, charging voltage and specific gravity imbalance are a few of the items which can have a negative effect on the system.
-
Page 10: Standard Warranty
SBS warrants that within 1 year of the date of shipment to the original purchaser, it will repair, F.O.B. its factory, or replace without charge F.O.B. its factory, a new battery or any part of a new battery assembly which is proven to the satisfaction of SBS to have been defective at the time it was sold and which defect is found within 1 year from the date of shipment to the original Purchaser provided that SBS is notified within 15 days of the said determination of the defect.
