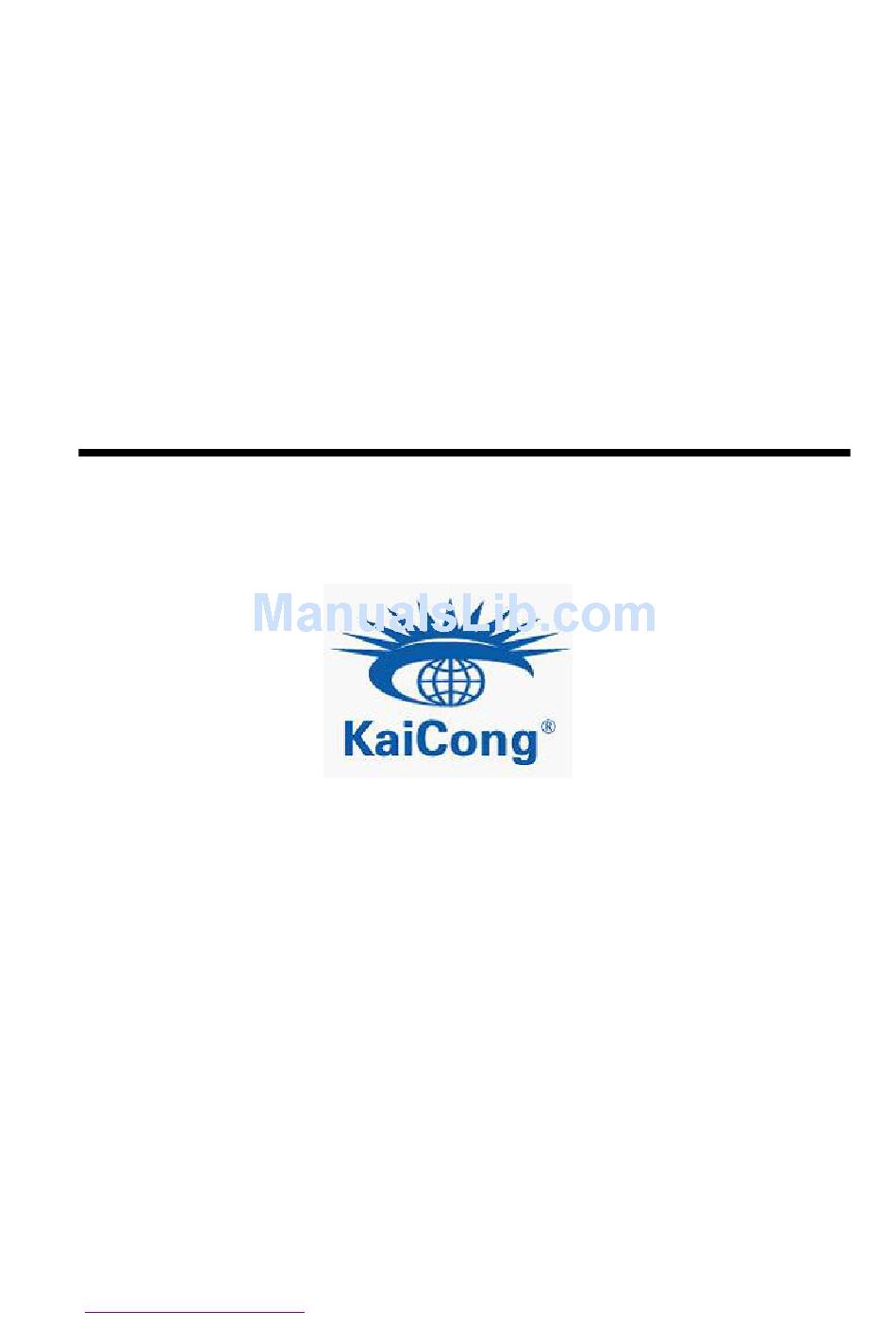

Kaicong-Nothing important than safety!
IP Camera
(KaiCong IP camera SIP1406)
KaiCong
U
s
e
r
m
a
n
u
a
l
U
s
e
r
m
a
n
u
a
l
SIP1406
2013-03-22
V1.0
Anything else, please contanct me.

Advertisement

Table of Contents
loading

  Summary of Contents for KaiCong SIP 1406

  • Page 1 Kaicong-Nothing important than safety! IP Camera (KaiCong IP camera SIP1406) KaiCong SIP1406 2013-03-22 V1.0 Anything else, please contanct me.
  • Page 2 Kaicong-Nothing important than safety! Index Product Instruction--------------------------------------------------1 Equipment connection diagram ----------------------------------2 Search IP Camera----------------------------------------------------3 LAN monitoring, control installation, monitoring screen introduction ----------------------------------------------------------4 Device System Settings ---------------------------------------------5 Remote Setup --------------------------------------------------------6 CMS Watch ----------------------------------------------------------7 SeeSeeSee--------------------------------------------------------------8 Anything else, please contanct me.
  • Page 3 Kaicong-Nothing important than safety! 1. Product Instruction 1.1. Brief introduction This series products are designed for network video surveillance system, including wired box IP camera, wireless box IP camera, IR dome IP camera, IR waterproof IP camera etc. .They adopt high performance chip to ensure high quality media processor which can process audio and video collection, compression and transmission at the same time.
  • Page 4 Kaicong-Nothing important than safety! List of articles: IP camera----------------------------------------------------------------------1 Bracket (to be equipped by the model)------------------------------------1 WIFI antenna(for wireless model)-------------------------------------1 Power adapter-----------------------------------------------------------------1 Qualification certificate------------------------------------------------------1 1.3 Appearance and interface 1.3.1 Product appearance Anything else, please contanct me.
  • Page 5 Kaicong-Nothing important than safety! 1.3.2 Interface introduction Tail-board of interface: Long press the reset button more than 15 seconds, the device will restore default setting, and automatically restart. In the meantime, please don't power off,otherwise,cause damage to equipment firmware. After the restart, the equipment user name and password are returning to the default for "admin"...
  • Page 6 Kaicong-Nothing important than safety! anywhere. 2.2. Advanced function introduction * Adopt the latest and High-density programmable multimedia processor, support H.264 Main Profile video coding * Support up to 25 fps * Adopt H.264 video compression format, which can realize high-quality image transmission...
  • Page 7 Kaicong-Nothing important than safety! Software environment System: 32 or 64 bit Windows2000/Windows XP/Windows2003/Windows Vista/Windows 7. Browser: Internet Explorer/Mozilla Firefox/Google Browser TCP/IP network protocol 3. Installation According to most of usage mode, we summary 2 kinds of networking ways to connect IP camera.
  • Page 8 Kaicong-Nothing important than safety! 3.1. Connection of network cable and power adapter Step 1: Connect the crystal head of network cable to RJ45 interface of IP camera Step 2: Connect the power adapter to the electrical outlet of the IP camera and power on 3.2.
  • Page 9 Kaicong-Nothing important than safety! Check the Ethernet connection of RJ45 interface and if the orange LED light is on or not, if connecting the LAN successfully, the LED light will be on. If there're any data transmission or network activities, the green LED light will flash.
  • Page 10 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 11 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 12 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 13 Kaicong-Nothing important than safety! Software Interface Area A: Local computer network parameters and Route IP Area B: A list of network cameras Area C: Choose an IP Camera, set it. Anything else, please contanct me.
  • Page 14 Kaicong-Nothing important than safety! Set IP Camera ----Choose and setting an IP Camera Name:Camera Name; Port:Default port "80", please modify as a "non-80 port. The camera's Port is 9605. IP: Camera IP must and router in a gateway. The camera's IP address is 192.168.1.229.
  • Page 15 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 16 Kaicong-Nothing important than safety! Select the language "English", use the IE browser, click "ActiveX mode" , other non-IE core browser, please select "Sever Push mode". Browser Control Installation At the first login in a computer network camera, the camera will automatically in the computer to...
  • Page 17 Kaicong-Nothing important than safety! install a ActiveX control, if the control is blocked, you can not watch the monitor screen. Click "Tools" --- "internet options" --- "security", about the " ActiveX controls and plug-ins " sub option all elected enabled, click "OK ", restart the browser.
  • Page 18 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 19 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 20 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 21 Kaicong-Nothing important than safety! After setting, restart your browser again log on to the network cameras can monitor viewing Web pages. If the antivirus software during the installation of the control alarm, control added to the white list of anti-virus software.
  • Page 22 Kaicong-Nothing important than safety! Control Interface Introduction A、PTZ control; B、Multi-window switch; C、Voice, capture, video; D、Settings button。 Remote Monitoring Login IP Camera, followed by clicking "Network" & "UPnP" ,then, login the router, start the router's UPnP. Anything else, please contanct me.
  • Page 23 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 24 Kaicong-Nothing important than safety! Login route, open UPnP In order to ensure the stability of a remote connection, Recommendations set "port forwarding" in the router. Anything else, please contanct me.
  • Page 25 Kaicong-Nothing important than safety! View IP Camera DDNS Anything else, please contanct me.
  • Page 26 Kaicong-Nothing important than safety! Wireless Setting login the camera, Click on " Options " and "wireless LAN settings" Click "Scan", choose select the correct SSID, type a key for the wireless connection. Finally, click "submit", after the restart the camera, unplug the network cable.
  • Page 27 Kaicong-Nothing important than safety! 3、Select the Use of Wireless LAN 4、Enter the wireless key Two-way voice and Local record Two-way voice Anything else, please contanct me.
  • Page 28 Kaicong-Nothing important than safety! Local record click the record button, start in the local hard disk video. Camera local video file format for " .H264 ", you can use the M-Player play. Anything else, please contanct me.
  • Page 29 Kaicong-Nothing important than safety! Motion detection and TF card record (一)TF card record Prepare a TF card, partition format FAT32.In the case of the camera is powered off, the TF card into the camera TF card slot. Login camera setting interface, click "Device Information", to see whether the TF card is recognized by the camera.
  • Page 30 Kaicong-Nothing important than safety! Enter the " Scheduled Record ", select the TF card video mode. Must choose period, the TF card will video. If checked "mobile video", in the picture someone or object moves, will video. 1、Cover the record :When the TF card storage space full, new video files will be covering old files, in order to achieve recycling memory space;...
  • Page 31 Kaicong-Nothing important than safety! "Video Information" option in the setup interface, you can view the TF card video files, and can be downloaded to a PC, use M-Player to play. Anything else, please contanct me.
  • Page 32 Kaicong-Nothing important than safety! (二)Motion Detection "Alarm Service Settings" to enter the camera settings interface, open camera mobile alarm functions. The schedule must be set, the camera only to a set period of time in the schedule, the camera will open the message alarm function. Video motion detection and recording TF card, also need to set the motion detection.
  • Page 33 Kaicong-Nothing important than safety! (三) Mail Service Settings Camera must set up mobile detection and alarm mail, camera alarm will send alarm mail.。 Completed, click on the "set", then click on the "test", when the show " " said set success.
  • Page 34 Kaicong-Nothing important than safety! use Chinese for camera named, may result in centralized monitoring terminal display garbled. Anything else, please contanct me.
  • Page 35 Kaicong-Nothing important than safety! OSD setting After checked the camera monitoring picture display the current time and camera name. Anything else, please contanct me.
  • Page 36 Kaicong-Nothing important than safety! Setting Date & Setting of Camera Users Settings admin privileges: The highest authority. Anything else, please contanct me.
  • Page 37 Kaicong-Nothing important than safety! Operator privileges: PTZ control / Recording and Playback / Watch Video User privileges: Watch Video. Multi-Device Setting Anything else, please contanct me.
  • Page 38 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 39 Kaicong-Nothing important than safety! Centralization control download CMS http://kaicong.net/download/KaicongCMS.zip Register and Login Open “KaiCongCMS_EN.exe” This version of client need a computer linked to the Internet and registered and activated Cachon DDNS server. Anything else, please contanct me.
  • Page 40 Kaicong-Nothing important than safety! Kai Cong DDNS server will automatically send an activation email to the registered email, landing register to use the mailbox to find the activation email, activate account Cachon CMS. Login CMS Anything else, please contanct me.
  • Page 41 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 42 Kaicong-Nothing important than safety! Search IP Camera Anything else, please contanct me.
  • Page 43 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 44 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 45 Kaicong-Nothing important than safety! Playback and video Anything else, please contanct me.
  • Page 46 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 47 Kaicong-Nothing important than safety! "SeeSeeSee" Manual Instruction In App store, search "seeseesee". Find "seeseesee", click "Install App store." Being installed, After the download, double-click the icon of "seeseesee" open. Start page. Anything else, please contanct me.
  • Page 48 Kaicong-Nothing important than safety! Click the Add In the pop-up page, select "OK". Anything else, please contanct me.
  • Page 49 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 50 Kaicong-Nothing important than safety! Select the device model. Anything else, please contanct me.
  • Page 51 Kaicong-Nothing important than safety! This case to SIP1018 as an example. Anything else, please contanct me.
  • Page 52 Kaicong-Nothing important than safety! Here, we can choose the serial number mode login. Enter the serial number of the IP camera, a user name and password. Anything else, please contanct me.
  • Page 53 Kaicong-Nothing important than safety! Anything else, please contanct me.
  • Page 54 Kaicong-Nothing important than safety! Click on "Save" Anything else, please contanct me.
  • Page 55 Kaicong-Nothing important than safety! After saving, we added the camera to play. Anything else, please contanct me.
  • Page 56 Kaicong-Nothing important than safety! Playback Click on the arrow keys, you can adjust the direction of the camera lens. Anything else, please contanct me.
