Summary of Contents for UPair Chase

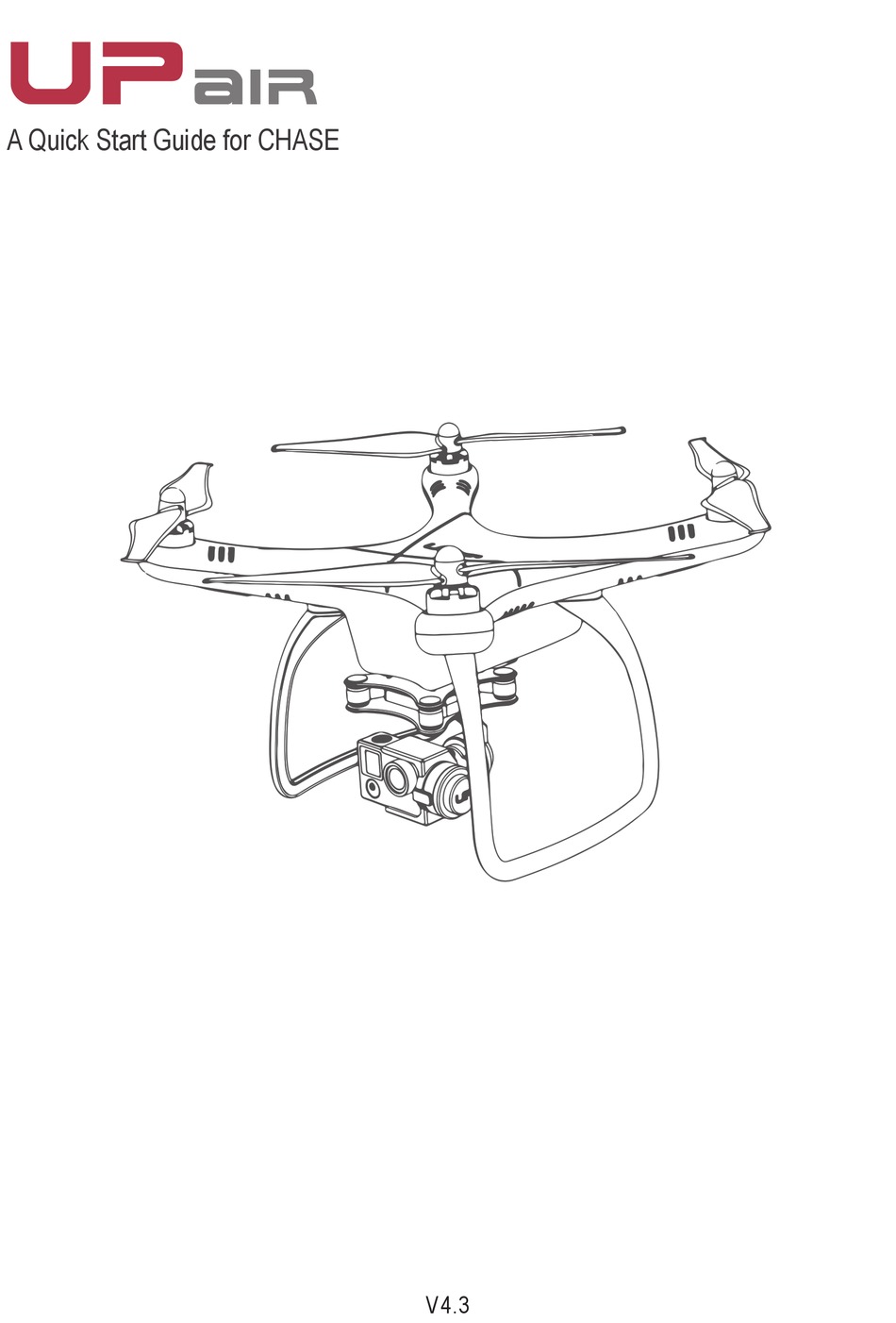

- Page 1 A Quick Start Guide for CHASE V4.3...
-
Page 2: Table Of Contents
Contents Contents ................................... Instructions Before Use ............................. A General Introduction ............................... Aircraft ................................. Aircraft Parameter ............................. Indicator Descriptions ............................Remote Controller ..............................Operation of the Remote Controller(Mode2) ......................Operation of the Remote Controller(Mode1) ......................The Parameter of the Remote Controller and Real-time FPV ................FPV Screen .............................. -
Page 3: Instructions Before Use
4. Before each flight, please make sure the remote controller, the camera and the aircraft are fully powered. 5. It is advised to operate Chase in open areas, away from buildings, high-voltage power lines, in order to avoid interference between the remote controller and communication base stations, Wi-Fi etc. -
Page 4: A General Introduction
A General Introduction Aircraft Developed by UPair, Chase is a quadcopter equipped with a gimbal,a camera and a built-in flight control system; It is capable of auto return, ascending/descending, pitching, shooting, video recording with the unique function of failsafe auto return or auto return triggered by low battery voltage. -
Page 5: Indicator Descriptions
[12] [12]Remote Controller On(left) Remote Controller Off (mid-point) FPV and Remote Controller On(right) [13] [13]Ventilation Hole [14] [14]FPV FM Button (Figure4) [8] is a specially designed interface for Upair FPV, into which no other device is allowed to be inserted... -
Page 6: Operation Of The Remote Controller(Mode2)
Operation of the Remote Controller(Mode2) Remote Controller Aircraft Althold/Poshold/Easy Mode Push up the joystick on the left(illustrated as the red arrow) to make the aircraft ascend. Pull down the joystick on the left(illustrated as the blue arrow) to make the aircraft descend. Push the joystick leftward(illustrated as the red arrow) to make the aircraft rotate counter clock-wise. -
Page 7: Operation Of The Remote Controller(Mode1)
Operation of the Remote Controller(Mode1) Remote Controller Aircraft Althold/Poshold/Easy Mode Push up the joystick on the left(illustrated as the red arrow)to make the aircraft fly forward. Pull down the joystick on the left(illustrated as the blue arrow) to make the aircraft fly backward. Push the joystick leftward(illustrated as the red arrow) to make the aircraft rotate counter clock-wise. -
Page 8: The Parameter Of The Remote Controller And Real-Time Fpv
FPV Screen Chase Remote Controller is equipped with a built-in 5.8GHz FPV receiver, which works correspondingly with a built-in 5.8GHz transmitter of the aircraft, so the real-time images can be streamed from the camera to the FPV... -
Page 9: Charging The Remote Controller
(Figure6) (Figure7) Charging the Remote Controller 1. Slide down the rear cover of the RC battery compartment(Figure10), pull the battery out. 2. Charge the RC battery(Figure8) by connecting the RC battery with the charger(Figure9). 3. When the charger indicators turn red ,it indicates charging is in process ;when the charger indicators turn green, it indicates the battery has been fully charged. -
Page 10: Gimbal
Gimbal Powered by a flight intelligent battery , the Chase two-axis stabilization gimbal is designed for carrying a camera; Gimbal angle can be adjusted by the corresponding button of the remote controller during a flight. [1]Anti-vibration Device [2]Camera Box [3]Gimbal Motor... -
Page 11: Camera
Camera Powered by the flight intelligent battery, Chase camera proper has the function of shooting and video recording, which can also be done by the corresponding buttons of the remote controller. Chase Camera supports single shooting, continuous shooting, time-lapse shooting, and HD 1080P video. -
Page 12: Menu Description
Menu Description Video resolution: Adjustable: 4K@24FPS、2.5K@30FPS、1080P@60FPS、720P@120FPS; 2K 1080P@30FPS、720P@60FPS. Time-lapse video: to start/stop time-lapse video at 0.5 or 3 second intervals. Cycle recording: If cycle recording mode is selected, the video will be cut into 5-minute segments. The earliest files will be covered when the TF card is full. USB Power Up Auto-record: If this function is on, it will automatically start recording when connected to external power source via USB.(This mode is advised to be used in aerial photography.) WDR (Wide Dynamic Range): WDR function is suggested to be used in cloudy/dark environment. -
Page 13: Camera Functions
Time Stamping: This option allows you to stamp the time on the photos or videos. TV output format: PAL / NTSC. Wi-Fi Output: When your mobile device(such as smart phone/tablet) has been connected to Wi-Fi , you can use it to view photo(s)/video(s) or make your mobile device capture photos or record videos (Note: A long distance between WIFI and camera might cause image loss.) USB Auto power-off: The power will be automatically turned off in 30 seconds after the USB power supply is cut. -
Page 14: Intelligent Battery
Intelligent Battery Chase is powered by an UPair approved intelligent lithium battery which has a full capacity of 5400mAh and a voltage of 11.1V; It must be charged with an UPair approved charger. [1]Charging Interface [2]Battery Box Clip [3]Battery Level Indicator... -
Page 15: Battery Level Indicator Status
100% Cautions Regarding the Use of the Intelligent Battery: ● Please immediately charge the intelligent battery and the remote controller after unpacking, always use Upair approved charger . ● When the current battery has been charged and discharged over 300 times, please replace it with a new one; If the battery is to be left idle for a long period, please make sure the battery capacity is below 50% when the storage begins. -
Page 16: Before A Flight
Before a Flight Installing the Propellers 1. Match the black-nut propeller with the motor with a hole in the center, then tighten the propeller by screwing it down counter clock-wise.(Figure19) 2. Match the grey-nut propeller with the motor without a hole in the center, then tighten the propeller by screwing it down clock-wise.(Figure20) black-nut propeller grey-nut propeller... -
Page 17: Installing And Powering On The Intelligent Battery
Installing and Powering on the Intelligent Battery 1.Push the battery into the battery compartment(Figure22) until you hear a sound “click” , make sure the battery is tightly and correctly placed in the battery compartment. 2.When the battery is off , short press the power switch(Figure23), then hold the button down for at least 2s to power on the battery. -
Page 18: About The Flight
About the Flight Now you can start your flight, please strictly follow the instructions above (refer to page 5) to ensure a safe flight. In order to minimize misoperation, dead space has been made for the joystick of the throttle and direction, including throttle-up:10%, throttle-down:10% ;... -
Page 19: Cautions Before/During A Flight
After-sale Service All of Chase products carry after-sale service guarantee, if you have any problems or questions when using our product, please contact UPair authorized distributors or UPair Customer Service.
