FULL HD VISUALIZER

Model: TC-51D

Table of Contents

Need help?

Do you have a question about the TC-51D and is the answer not in the manual?

Questions and answers

Summary of Contents for NewLine TC-51D

Page 1 Manual FULL HD VISUALIZER Model: TC-51D...
Page 2: Precautions
Precautions Please follow these precautions: 1.To prevent fire or shock hazard, do not expose the unit and power adapter to rain or moisture. 2.To prevent electrical shock, do not open the cabinet. Refer to qualified personnel for service only. 3.Do not use the unit continuously for more than 24 hours with camera auto focus on. It may cause damage to the camera lens.
Page 3: Table Of Contents
Contents Precautions Contents Understand the Visualizer Control Panel Remote Control Basic Preparations Making Connections System diagram 8 Connect power source 8 Connect to a projector 9 Connect to a desktop computer 9 Connect USB 10 Connect a Wireless Tablet 11 Connect VIDEO OUT 11 Connect to an external microphone 12 Menu Operating Instructions...
Page 4 Auto adjustment 16 Text/image mode 16 Color and b&w mode switch 16 HDMI/VGA/CAM inputs 16 Projector on/standby 16 Projector inputs selection 17 Image rotation 17 Image reversion 17 Infrared remote control 17 Installing Visualizer software 17 USB Port USB image/video capture 18 Controlling Visualizer by computer 18 Controlling Projector by Visualizer Folding the Unit...
Page 5: Understand The Visualizer

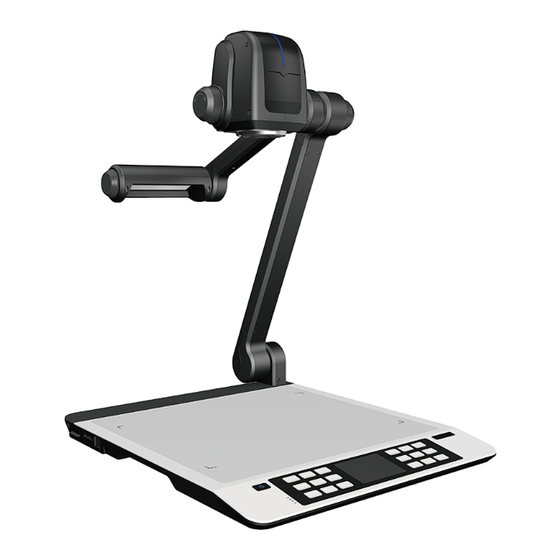

Understand the Visualizer Knowing the parts Arm Lamp Brightness Control Work Stage Arm Lamp Pilot Light Zoom In/Zoom Out Control Panel Camera Head IR Receive Area Anti-theft Slot Built-in MIC Connection Panel SD Card Slot Camera Stand - 4 -...
Page 6: Control Panel
Control Panel Button Operation Instruction Button Function Power on Visualizer (Press and hold 3 seconds to turn off). Capture a still image and save in RAM or SD Card (Default). Record a video clip and save in SD Card ( Press it again to stop recording). Power on Projector (Press and hold 3 seconds to turn off).
Page 7: Remote Control
Remote Control Power on Visualizer (Press Move the image up and hold 3 seconds to turn off) Move the image down To auto adjust brightness, auto white balance and Rotation the image auto focus 0°,90°,180°,270° Power on Projector (Press Setting the Visualizer and hold 3 seconds to turn off) Select Visualizer output...
Page 8: Basic Preparations
Basic Preparations Set up Visualizer 1.Place one hand firmly on the base of the Visualizer, while carefully lifting up the camera stand using the other hand. 2.Set up arm lamp and camera head to desired position. - 7 -...
Page 9: Making Connections
Making Connections Before making any connection, please ensure that the Visualizer along with all other equipment to be connected are turned off. ● System diagram ● Connect power source Plug in the power adapter to the device DC 12V IN power socket first and then connect the AC power cord to a stand 100V~240V AC power source.
Page 10: Connect To A Projector
● Connect to a projector Connect the HDMI OUT 2 port to the projector's HDMI IN port using the HDMI cable. You can also control a projector using the controls on the Visualizer by connecting the projector to the Visualizer using a 6Pins-9Pins RS232 cable. Note: 1.You can also connect the VGA OUT port to the projector's RGB IN port using the RGB cable.
Page 11: Connect Usb
Mode 2: Connect HDMI cable Use HDMI cable to connect HDMI IN1/ HDMI IN2 port on the Visualizer to the HDMI OUT port on the computer. Note: The signal HDMI IN1 just pass through out from HDMI OUT1. ● Connect USB A USB connection enables the computer to capture still images and video streams from the Visualizer.
Page 12: Connect A Wireless Tablet
● Connect a Wireless Tablet(Option) All function on the tool bar can be operated by using a Wireless Tablet. Connect a Wireless Tablet to the mouse port. Note: 1. If you use the Wireless Tablet the first time, be sure to put batteries into the Tablet and Pen.
Page 13: Connect To An External Microphone
● Connect to an external microphone Plug a 3.5mm mono microphone to MIC IN port on the product. Note:The built-in microphone will be disabled when an external microphone is connected. - 12 -...
Page 14: Menu Operating Instructions
Menu Operating Instructions ● Operation the Visualizer by tool bar 1.Use remote control or button on the control panel（ )to bring up tool bar. 2.Use left and right arrow button ( ) as the selection keys. 3.Use confirm button（）to confirm. 4.Use backspace ( ) to return to the previous menu.
Page 15: Basic Operation
Basic Operation ● PAL/NTSC video outputs You can set PAL or NTSC mode in the setting dialog box. ● Working on the stage 1.Place your material on the platform. 2.Select the enlargement required using the "zoom In/zoom out" knob. 3.Adjust the focus using the "AUTO" button. ●...
Page 16: Light
● Light Each time you press the "LAMP" button, the lighting changes occur as demonstrated. The arm lamp turn on The back lamp turn on All the lamp turn off Use arm lamp brightness control knob to adjust brightness. ● Working with negatives The Visualizer is automatically set to display normal materials on the screen when the power is on.
Page 17: Freezing Image
● Freezing image To show a still image on the screen, when the output signal is from Camera, press the " " button. The frozen image can't be adjusted (Zoom in/out,color adjustment, etc.). ● Brightness adjustment If the image effect is not satisfactory, you can adjust the brightness to get a better image effect.
Page 18: Projector Inputs Selection
● Projector inputs selection When the projector is connected to several input sources, use the PROJECTOR Source " " button to switch between projector signal inputs. ● Image rotation In order to rotate the image, press the " " button once,the displayed image will be rotated clockwise.
Page 19: Usb Port
USB Port The USB port can be used to store still images and video clips from the Visualizer in a computer. Connect the Visualizer to your computer with the supplied USB cable. The Visualizer software is available on the supplied CD-ROM. * Please pay attention to the following: 1.Computer hardware requirement: 1.8 GHz Intel (R) Core Duo processor, 2GB RAM, Independent display card with 1GB of Video RAM, USB 2.0 port, Hard disk 40G or more,...
Page 20: Controlling Projector By Visualizer
Controlling Projector by Visualizer The code writing software is used to inputting projector's control code, then can control various projector with the Visualizer. 1.Connect the Visualizer to the projector with the RGB/HDMI cables. 2.Connect the RS232 cable to the computer's RS232 port with the Visualizer's RS232 port. 3.After completion of the connection, turn on the Visualizer, click [start] - [All Programs] - Visualizer and the following dialog box appears as below: When the indicator of "Current RS232 Connection Status"...
Page 21 If you can not find your particular projector model in the "Projector", please do the following: ① Select "Baud rate" and "parity" and input the projector control code. (The baud rate, parity and control code is supplied by projector's manufacturer, please refer to the projector manual).
Page 22 In the POWER ON box, input 'POWR 1',0d,0a Remarks: There are 3 spaces after POWER,0d,0a is enter. Input other codes in the same way. c.If the data is in the numerical value and character format, then synthesize the above-mentioned formats. ③...
Page 23 Connect the Visualizer to a computer with a RS232 cable (Please disconnect the projector from the RS232 port first) and select the Baud Rate and Parity based on the projector's Baud Rate, then click the "TEST" button to pop up the Projector Code Test dialog box, input the Baud Rate and Parity based on the projector's Baud rate, then click "Open".
Page 24: Folding The Unit
Folding the Unit Fold the arm light down until the arm light is parallel to the camera stand. Rotate the camera head until the camera head is parallel to the camera stand, then down onto the control panel . Cautions:a.Do not lay the unit down flat. b.Do not try to stand it on its rear or sides.
Page 25: Trouble Shooting
Trouble Shooting Check the solutions below if you are having trouble using the Visualizer : Problem Possible causes Solutions The device does The power adapter is not connected Make sure the power adapter is not turn on in correctly to the device or the power connected correctly to the device and normal condition.
Page 26: Specifications
Specifications Resolution SXGA,XGA,WXGA,720P,1080P Lens 12 x optical zoom,10 x electrical zoom Motorized Camera Head Camera Rotation Vertically 330° Focus Auto/manual selectable White balance Auto Negative/positive conversion Black/white and color selection Image Split Image Freeze Image Rotate 0°,90°,180°,270° RAM: about 32 frames Image Save &...
Page 27 HDMI (1.3 compliant) (2) VGA (DB15FLC) (1) Output Connectors VIDEO (RCA) (1) AUDIO (Mini Jack) (1) Operating System Win7, Win8 CPU higher than 2.4GHz Hardware Requirement Memory higher than 1 GB Frame Rate 60 frames/sec USB Port USB 2.0, type B Mouse Port USB 2.0, type A RS-232 Connector...
