UDI R/C U28W Manual

Wifi 720p 120 wide-angle hd camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U28W
catalog
2-3
4-5
4
4-5
5
6-7
6
6-7
7
8
8-9
9
9-12
12
13-19
13
13
14-19
19
20
20
21
22
23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U28W and is the answer not in the manual?

Questions and answers

Related Manuals for UDI R/C U28W

Summary of Contents for UDI R/C U28W

  • Page 1: Table Of Contents

    13-19 1. Download and install the APP 2. Frequency Pairing between Mobile Phone and Drone WiFi 14-19 3. Introduction for Mobile Phone Control APP SETTINGS Help Operation for Video Recording and Photo Taking U28W Spare Parts Exploded View Troubleshooting Guide...

  • Page 2: Notice

    Notice: (5) Keep away from heat The RC drone is made of metal, fiber, plastic, electronic components etc. 1. Important Statement: Keep away from heat and sunshine to avoid distortion and damage. (1) This product is not a toy but a piece of complicated equipment which is (6) Please do not touch the hot motor to avoid being burnt.

  • Page 3: Name Of Parts

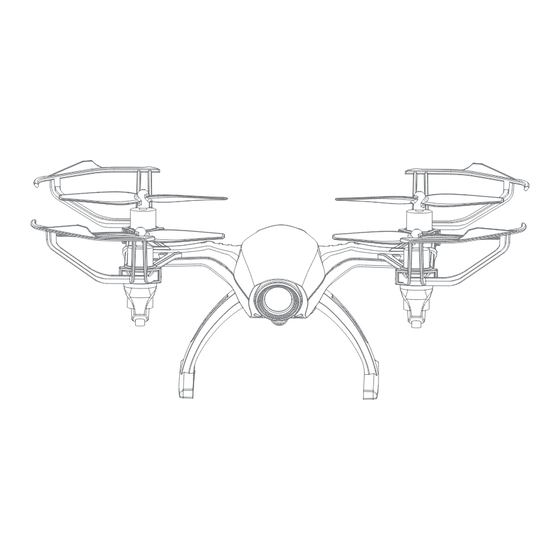

    Name of Parts Lens Hood 1. Drone Blade Guard Motor Headless Mode High/Medium/Low Speed Battery Cover (Press Down) Mode (Press Down) Blade Drone Body Picture 5 Camera Body Light Landing Gear Mobile Phone Holder Picture 1 One Button Return 360°Flip in Four Directions (Under Headless Mode) Picture 6 Indication Direction of Power Switch...

  • Page 4: Transmitter Installation

    Transmitter Installation: 3. Insert the lens hood into the slot and make sure the lower edge of the lens hood is as close to the mobile phone as possible (Picture 12). Battery installation: open the battery cover on the back side of the transmitter and put 4 alkaline batteries (not include) into the box in accordance with electrode instructions(See Picture 8 and 9).

  • Page 5: Frequency Pairing

    Frequency Pairing: 4. Do not move the Throttle Stick before successful calibration. Push the Forward/Backward/Left/Right Stick as shown below (See Picture 17). The 1. Turn on the transmitter switch and its indicator light begins to flash quickly. drone body light flashes, which indicates that the drone is calibrating. When Push the Throttle Stick all the way up, then all the way down.
  • Page 6 3. Push the Forward/Backward/Left/Right Stick up 4. Push the Throttle Stick to the left to rotate the 9.Headless Mode to fly the drone forward, and pull the Stick down drone to the left, and pull the Stick to the right to Drones generally have a front and rear indicated by LED lights or colored blades.

  • Page 7: Installation And Replacement For Blade

    Operation Instruction for Mobile Phone WiFi Press Return Home buttom, the drone will fly back to the users. Pull down the throttle stick slowly to land the drone when the drone fly back and close to the user. Download and install the APP: udirc-FPV The APP is suitable for mobile phone with iOS or Android system, please download from the mobile phone software store: 11.

  • Page 8: Introduction For Mobile Phone Control

    Introduction for Mobile Phone Control 4. High/Low speed mode Tip: Following “ Frequency Pairing” before entering mobile phone control function. 1. To go back to main menu Touch the icon (Low Touch the icon to return, Speed), to switch to the icon (High Speed).
  • Page 9 7. To fly up and down 10. To fly forward and backward Move the Direction Control Ball Move the Throttlel Ball up to fly up to fly the drone forward and the drone up and move the move the ball down to fly Throttlel Ball down to bring the backwards.

  • Page 10: App Settings

    12. To turn on Headless Mode 15. If the drone rotates to left or right Ajust thethe Left/Right Rotation Trim to the right if the drone rotates left; and adjust the trim to the right to balance if the Touch icon to enter drone rotates right.

  • Page 11: Help

    3. Then turn on “WiFi” and Connect to the AP of this Product. 4. Enter the control interface of this APP,you would see the real-time video from the Picture 27 U28W-01 U28W-02 U28W-03 U28W-04 aircraft camera,and you Upper Cover Lower Cover...

  • Page 12: Exploded View

    Exploded View Troubleshooting Guide Problem Problem Cause Solution 1. The transmitter battery is too low. 1. Replace battery. 2. The battery positive pole and negative 2. Install the battery in accordance with the transmitter pole are in reverse order. user manual. indicator light is off 3.
