Quickstart LubMon Connect
Read the safety instructions and operating instructions in the manual
prior to commissioning!
For any questions please contact:
ARGO-HYTOS GMBH
Sensors & Measurement division
Industriestraße 9
76703 Kraichtal-Menzingen
Tel.
+49-7250-76-0
Fax
+49-7250-76-575
E-Mail:
info.de@argo-hytos.com
V1.00.13
Advertisement
Table of Contents
Related Manuals for Argo-Hytos LubMon Connect
Summary of Contents for Argo-Hytos LubMon Connect

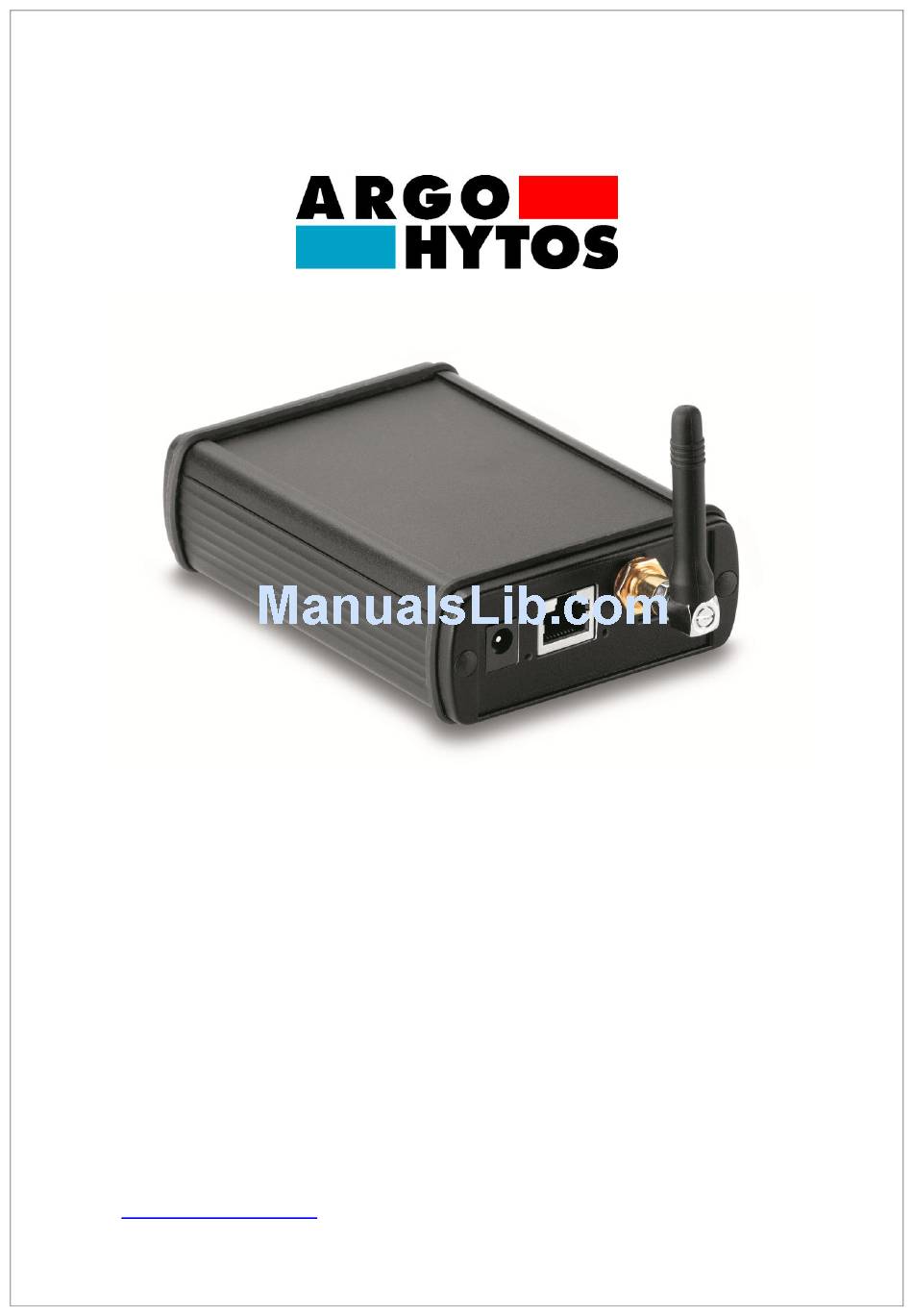

- Page 1 Quickstart LubMon Connect V1.00.13 Read the safety instructions and operating instructions in the manual prior to commissioning! For any questions please contact: ARGO-HYTOS GMBH Sensors & Measurement division Industriestraße 9 76703 Kraichtal-Menzingen Tel. +49-7250-76-0 +49-7250-76-575 E-Mail: info.de@argo-hytos.com...
-
Page 2: Quick Start
Product design is subject to change without notice. 1. Quick Start The steps that must be executed for commissioning the LubMon Connect gateway are described below. The following components are necessary for this: 1. Gateway LubMon Connect 2. - Page 3 B) Connecting LubMon Connect to the Internet 2. Connect LubMon Connect to the power supply and then correctly connect your power supply to line voltage. 3. Now establish a connection between LubMon Connect and the Internet. You can find detailed information about this in the manual.
-
Page 4: Technical Data
2. Technical data Data Range Unit Environmental conditions, operation: 5..50 °C Temperature 0…95 % r.H. Humidity Environmental conditions, storage: 0..60 °C Temperature 0…95 % r.H. Humidity 12…28 Power supply <0.2 typ.; <0.3 max. Power consumption CAN interface Connector SUB-D9 Bus speeds 100 / 125 / 250 / 500 kBaud Protocol... - Page 5 Fig. 2.1: Dimensional drawing...
-
Page 6: Installation
Please note the following guidelines with respect to the installation position and location of the device in order to ensure proper function. LubMon Connect is not protected against penetration by moisture and dust, meaning that a suitably shielded installation location should be chosen. ... -
Page 7: Electrical Connection
The permissible operating voltage is between 12V and 28 VDC. The sensor cable must be shielded. Pin 8 und Pin 9 are for the power supply of LubMon Connect and not for the power supply of the connected bus devices.
