Sanibel Electric Stove Heater

To order, call

1-800-642-2112

West Chester, OH 45069

Thanks for shopping with Improvements

Item #470245

Made in China

1113



If you have questions regarding this product, call

1-800-642-2112 Mon.-Fri. 9:00-5:00 EST (Ohio)

and ask for our product specialists, or e-mail:

productspecialist@improvementscatalog.com

See many more products on the Internet!

www.ImprovementsCatalog.com

If you have any questions regarding this product,

call 1-800-642-2112 and ask for our product

specialists (Mon.-Fri. 9:00-5:00 EST) or e-mail:

Table of Contents

Need help?

Do you have a question about the 470245 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanibel 470245

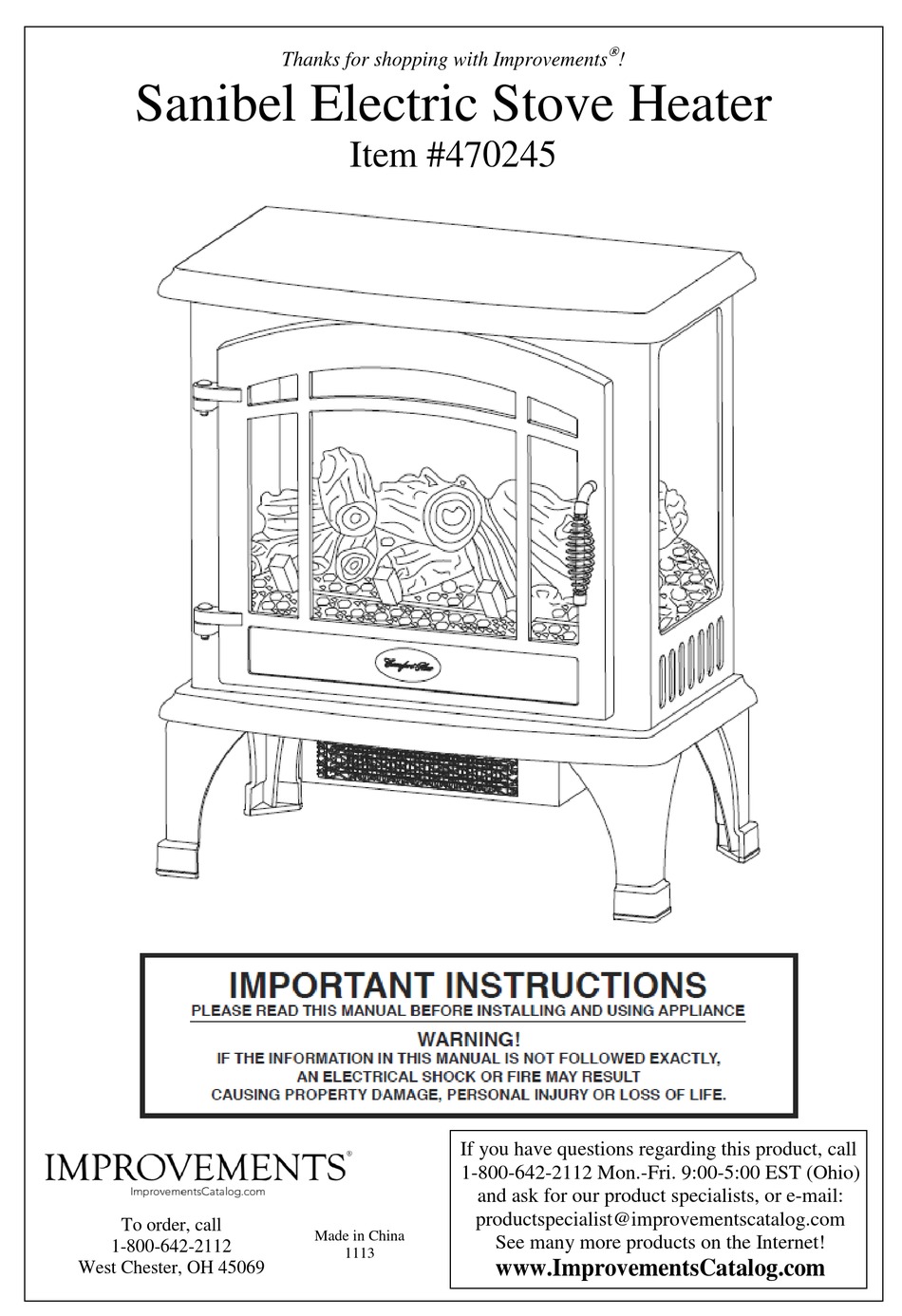

Page 1  Thanks for shopping with Improvements Sanibel Electric Stove Heater Item #470245 If you have questions regarding this product, call 1-800-642-2112 Mon.-Fri. 9:00-5:00 EST (Ohio) and ask for our product specialists, or e-mail: productspecialist@improvementscatalog.com To order, call Made in China...
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ..........................3 Package Contents ..........................5 Hardware Contents .......................... 5 Stove Dimensions ..........................6 Safety Information ........................... 7 Preparation ............................7 Assembly Instructions ........................7 Operating Instructions ........................8 Care and Maintenance ........................9 Electric Wiring Diagram ........................10 Troubleshooting ..........................
Page 3: Safety Information
SAFETY INFORMATION SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. Read all instructions before using this appliance. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance.
Page 4 SAFETY INFORMATION DANGER Electrical Connection A 15 Amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes standard with a 6 ft. (1.8 m) long, three-wire cord, Always plug the unit into a wall outlet/receptacle.
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Electric Stove Screw Qty. 8...
Page 6: Stove Dimensions
STOVE DIMENSIONS TECHNICAL SPECIFICATIONS REF. ALL MODELS Voltage 120V AC Frequency 60Hz 11 in. (27.94 cm) Amps 12.5A 23 in. (58.42 cm) Rating 1500W 20 in. (50.8 cm)
Page 7: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service CLEARANCE TO COMBUSTIBLES WARNING Sides 4 in. (101.6 mm) near its desired location. Floor 0 in.
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Read All Instructions Before Use Check that the heater outlet grill is not covered or obstructed in anyway, and make sure the power to the unit is switched on. NOTE: and should not occur again unless the heater is not used for an extended period of time. Control Panel The control panel is located behind the door of the stove.
Page 9: Care And Maintenance
CARE AND MAINTENANCE Cleaning Always turn the heater OFF and unplug the power cord from the outlet before cleaning. Use a vacuum soft, slightly damp cloth and buff with a dry cloth. Never use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Page 10: Electric Wiring Diagram
ELECTRIC WIRING DIAGRAM Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes. CIRCUIT DIAGRAM TEMPERATURE THERMAL THERMAL CONTROL CUTOFF FUSE BULB 1 BULB 2 HEATER ELEMENT MOTOR AC120V / FLAME EFFECT...
Page 11: Troubleshooting
TROUBLESHOOTING If you have any questions regarding the product, please call customer service PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Stove does 1. The stove is not 1. Make sure the stove is plugged in not operate. plugged in. to a standard 120V outlet. 2.
Page 12: Warranty
The manufacturer warrants that your new electric stove is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric stove must be installed and operated at all times in accordance with the instructions furnished with the product.
Page 13: Replacement Parts
REPLACEMENT PARTS LIST - ALL MODELS For replacement parts, please call customer service PART DESCRIPTION PART # PART DESCRIPTION PART # Back panel EFES323001ST Handle EFES322005ST Screen EFEST332T001ST Rivet EFES323013ST Flame panel EFEST332T002ST Leg (Design 3) EFEST333T003ST Logset EFEST332T003ST Fan heater box EFES323015ST Top panel EFES323005ST...
