DIAGNOSIS (SELF–DIAGNOSIS) FUNCTION
The ECM is provided with a self–diagnosis function, whereby it illuminates the check engine lamp in the combination
meter when there is an abnormality in an input signal, providing notification of the occurrence of an abnormal condition.
Further, when control is performed based on this abnormal signal, there is a possibility that engine trouble may occur
and driving may not be possible, so the failsafe function is provided which secures minimal driving performance using a
standard signal in the ECM, ignoring this signal.
CODE NUMERAL 12
1
LAMP ON
LAMP OFF
0.3
2
1.0 0.3 3.0

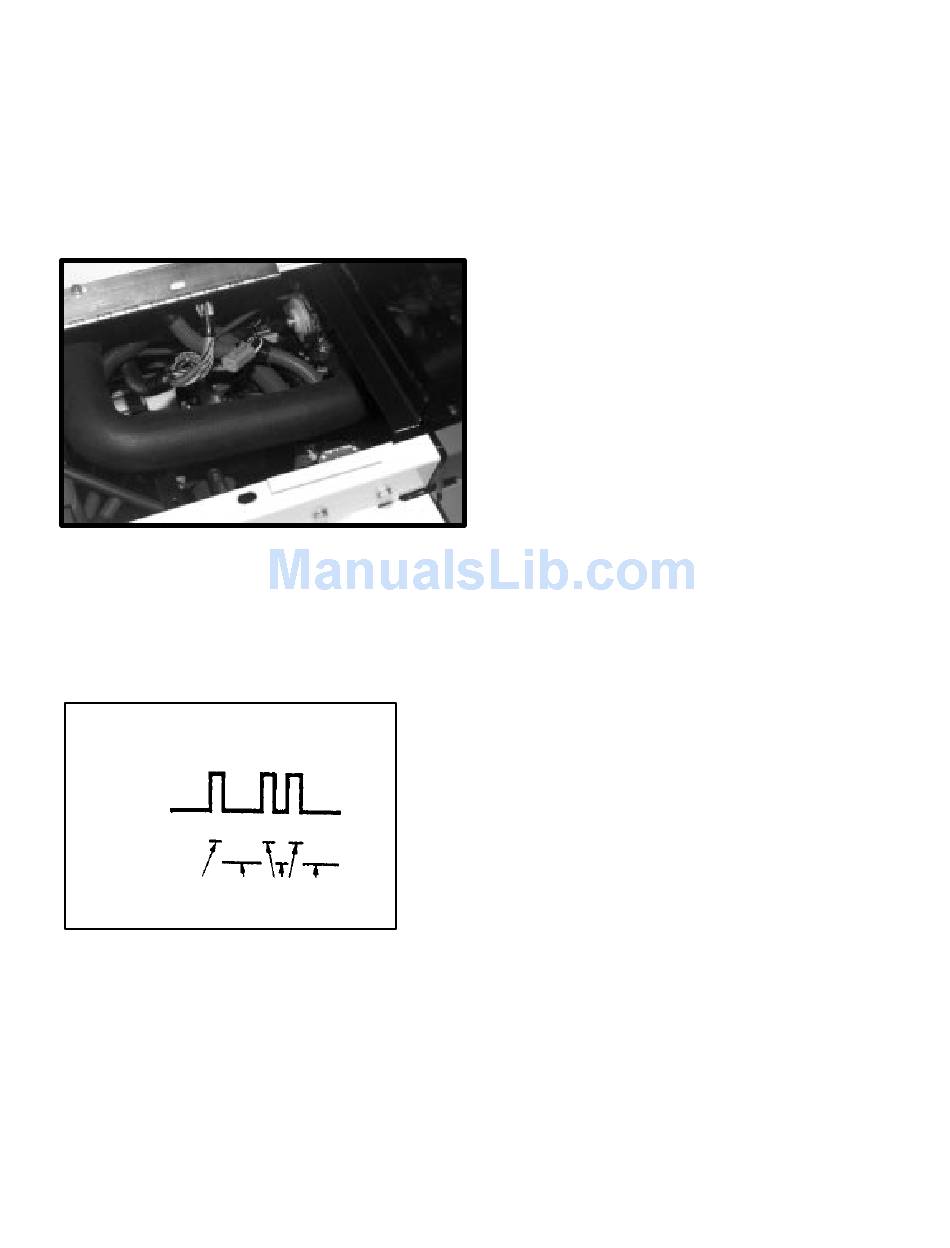

CODE DISPLAY/DIFFERENTIATION METHOD

S
Insert diagnostic jumper (P.N. 2700920) and differ-
entiation is achieved by the blinking frequency of the
check engine lamp in the combination meter.
S
Code differentiation is performed in the
regions shown to the left.
Note: The codes are displayed three at a time in
order of priority.
113
