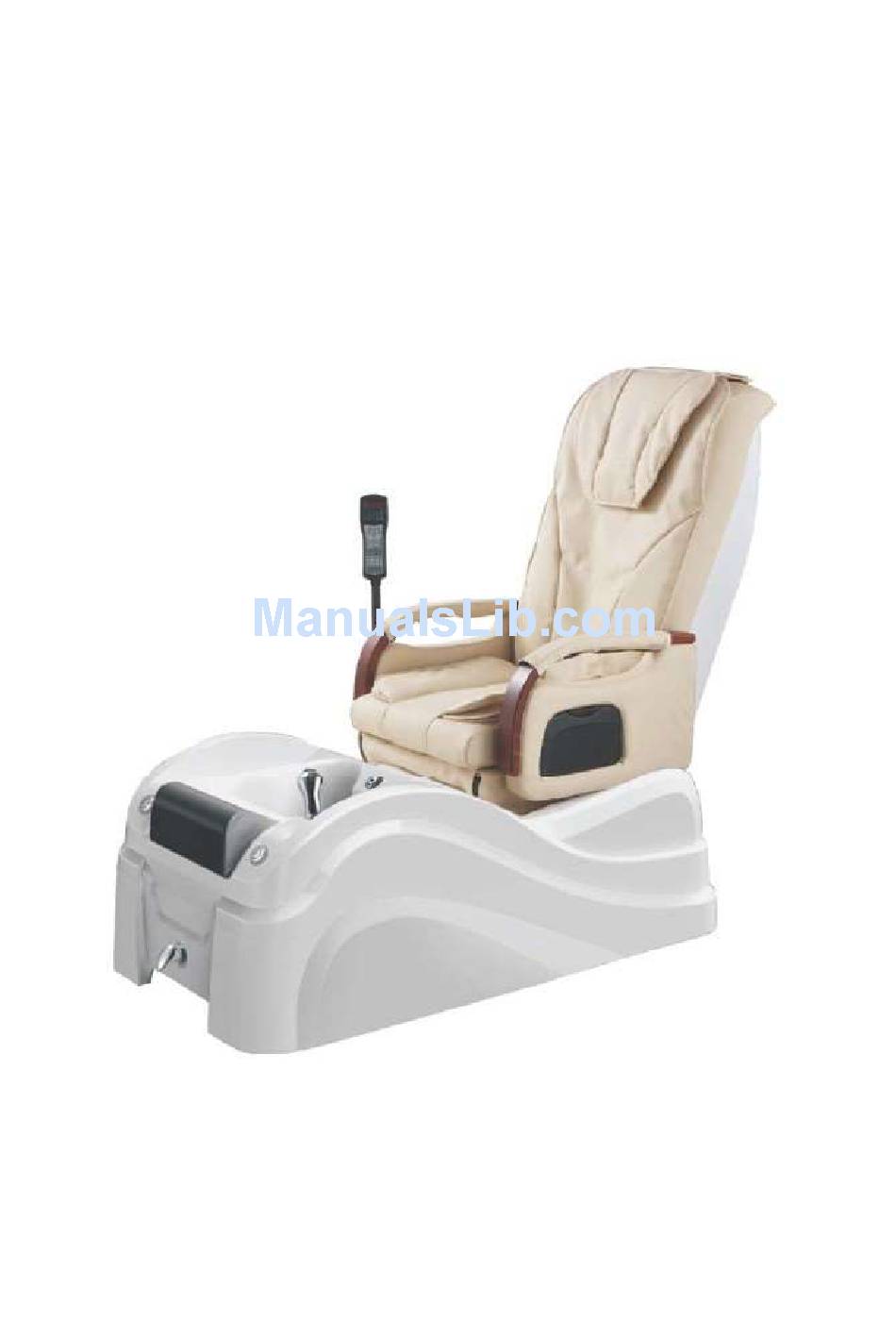

- Page 1 User Manual for 4122B/4122C Foot SPA Chair...
-
Page 2: Packing List
Packing list Part Picture Part Picture Shower Head Allen Key Hand Seal Ring Controller 5 X20 Tapping Seal Ring Screw Drainage Pipe Power Cord M10X35 Inner Hexagon Screw Gasket Spring Gasket Rubber Gasket... -
Page 3: Installation Steps
1. Installation Steps 1） Open the packing carton, connect and tighten the water pipe with shower head. (See as illustration 1) 2） Assemble switch A as the installation diagram below. Put the metal cover on the square plastic strip. And then screw the inner hexagon screw on square plastic strip through the cover hole. - Page 4 3） Assemble the drainage pipe and inflow pipe as following. (Left is for cool water, right is for hot water) a) See illustration 2 for the standard configuration. Illustration 2 b) Put the end of drainage pipe into the floor drain outlet. (See as illustration 3） c) Plug the power supply on.
- Page 5 4） Put the base of massage chair on the foot SPA. Use Allen key to screw the 4PCS* M10 inner hexagon screws together with the gaskets. STEP 1 Put the base of massage chair on the foot SPA. STEP 2 There’s a hole at the backside of base.
- Page 6 STEP 3 Spring Gasket Gasket M10X35 Inner Hexagon Allen Key Screw Assemble the backrest of foot SPA chair as illustrations below.
- Page 7 Assemble the upholstery for the backrest as illustration below. Put the cushion on the seat, while connecting the air pipe. Plug the motors on the control box corresponding to the number marked.
- Page 8 Screw the hand controller on the right armrest. 2. Operation Instruction Pipeless pump with underwater and whirling massage Water overflow opening Multicolor LED light Manual drainer outlet Button of shower jetting Button of SPA massaging Button of draining pump and LED light Switch for cool and hot water exchanging (left for hot water, right for cool water) Foot support with PU...
- Page 9 Draining function: turn the knob of manual drainer firstly when you want to drain water. And then press the button of drain pump which has the function of timekeeping. Switch for cool and hot water exchanging---- adjust the water temperature by rotating it in clockwise or anticlockwise direction.
- Page 10 · Adjustable Option Voice for player Height of Massage Speed of Knocking Speed of Kneading Intensity of Air Massage · Optional Massage for the Part of Body Adjustment for the Height of Seat Adjustment for the Angle of Backrest Adjustment for the Angle of Seat Adjustment for the Massaging area It lights up when the area is doing air massage It lights up when the area is doing massage...
-
Page 11: Main Functions
2） Buttons of the Hand Controller Main Functions Vibrating (Unavailable for this moment) Power on The intensity of Massage keeps following the rhythm of music (Unavailable for this moment) Heating (Unavailable for this moment) Height of Massage, 5 optional degrees Time setting, including 5min, 10min, 15min, 20min as options Chair Adjustment... - Page 12 · Massage Options Finger Massage Kneading Tapping Knocking Kneading + Knocking Kneading + Tapping · Other Options The adjustable distance between massaging hands Knocking Speed, 5 degrees as option Kneading Speed, 3 degrees as option Start/ Stop air massage Optional air massaging area (Unavailable for this moment) Intensity of the air massage, 3 degrees as option ·...
- Page 13 6、 Do not use product in the place where is doing some painting/ coating or oxygen supplying. 7、 Switch off the device before unplug the power cord from socket. 8、 Do not open or disassemble foot SPA without authorization, so as not to be hurt by electric shock. 4.
-
Page 14: Cautions On Operation
5. Cautions on Operation!! [Note: In order to prevent product from damaging due to improper operation, please pay attention on following items.] 1、 The components of foot SPA chair may be damaged if it is over-loaded. So please note that the specifications mentioned as below. -
Page 15: Maintenance
12．Signs of Error： a) There is “E1/ E2/ E3” showed on the timer , and it keeps flashing. Meanwhile, all buttons don’t work. b) There is “88” showed on the timer , and it keeps flashing. Code of Error Motors for movement Motor controlled for Four-wheeled massage Hand controller doesn’t...
