Summary of Contents for Discovery Telecom 47019

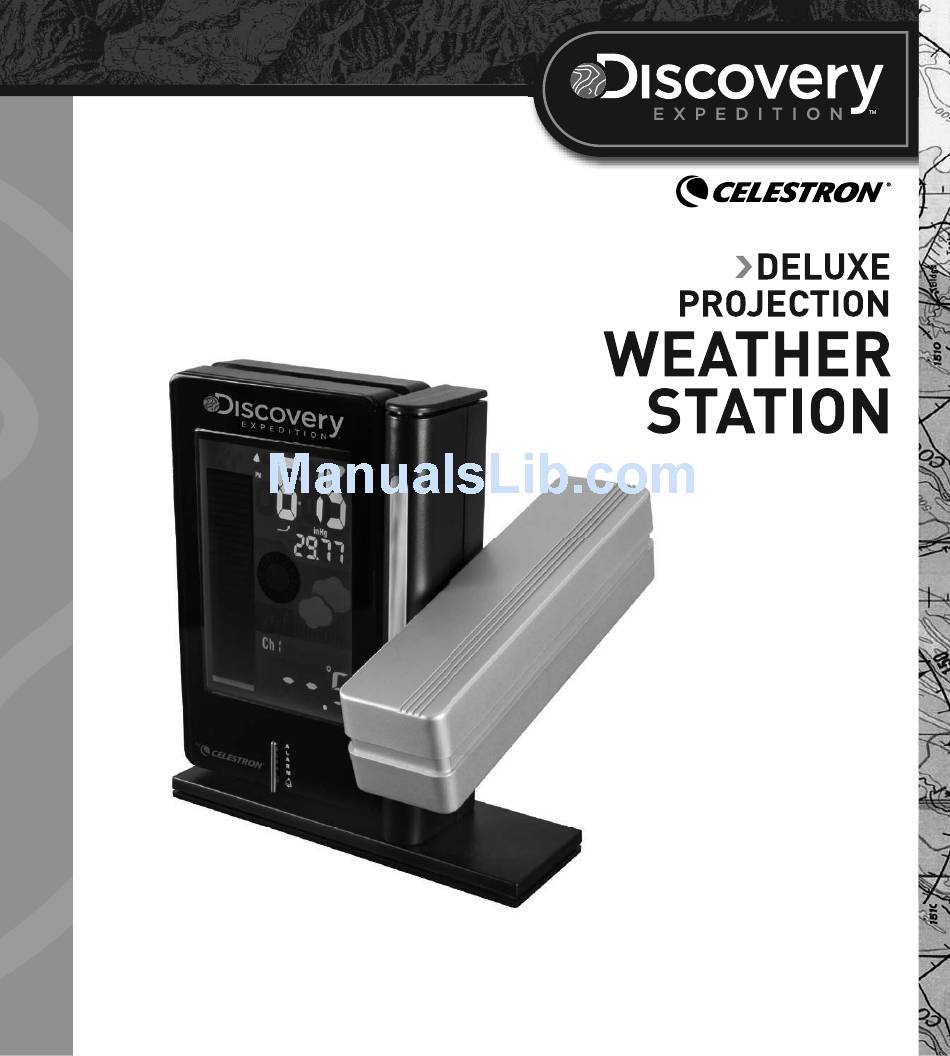

- Page 1 INSTRUCTION MANUAL MODEL #47019...
- Page 2 introdUction Congratulations on your Discovery Expedition by Celestron Deluxe Projection Weather Station purchase. Please read the instructions prior to use. We hope it brings you many years of enjoyment. Note: This product was designed and intended for ages 13 and older!
-
Page 3: Powering The Receiver
poWering the receiver Remove the protective plastic fi lm from the LCD. Plug the socket of the AC Adapter into the back of the Receiver unit. Insert the plug into an AC wall type socket, and the display will be seen on the Receiver. The Receiver uses three AAA batteries (user supplied) so that the time and other settings will remain in memory if the Receiver loses power for any reason. - Page 4 poWering and adJUsting settings for the WireLess reMote sensor Remove the protective plastic fi lm from the LCD. Remove the two small screws from the rear door of the sensor with a small Phillips head screwdriver. Insert two AAA batteries (user supplied) according to the polarity as indicated on the sensor.
- Page 5 settings and operation of the receiver Barometer/Altitude Setting – After battery installation of the Receiver, it will enter altitude setting mode directly. Press the UP or DOWN arrows on the side of the Receiver to select the barometer units in “inHg”...
- Page 6 Data displayed in “C” or “F” – On the rear of the Receiver, you will see a button you can push to change from “C” (Centigrade) or “F” (Fahrenheit) for the display you desire. Clock and Calendar – Press CLOCK on the side of the Receiver and hold down for a few seconds to enter the setup mode.
- Page 7 Weather Forecast and Barometric Pressure Trend – The weather station has a built-in barometer to measure atmospheric pressure and forecasts the weather with icons for Sunny/Partly Cloudy/Cloudy/ Rainy/Stormy. The unit predicts the weather conditions of the next 12 to 24 hours based on the atmospheric pressure and is about 70% correct.
- Page 8 Light Bar/Night Light – To turn on the blue colored light bar, turn the LIGHT BAR switch on the rear of the Receiver to the ON position. This function is only available when the AC Adapter is powering the receiver. To turn off the light bar, turn the switch to the OFF position. When the switch is in the OFF position, you can turn the light bar/ night light on for about 15 seconds by pressing the SNOOZE/LIGHT button on top of the light bar.
-
Page 9: Specifications
Image Projection (Red Color) – To project the time image on a wall or ceiling, press the SNOOZE/LIGHT button, and the projection will display for about 15 seconds. The projection unit can be rotated to any position within a 90° range. If you want to keep the projection on all the time, slide the PROJECTION switch (on the rear of the Receiver) to the ON position. - Page 10 Receiver and 2 AAA batteries (user supplied) for Wireless Remote Sensor • Transmission = RF434 MHz, up to 100 feet (30 meters) in an open area • Dimensions = Receiver – 4.7” x 1.5” x 5.2” (119 mm x 38 mm x 132 mm) Sensor –...
