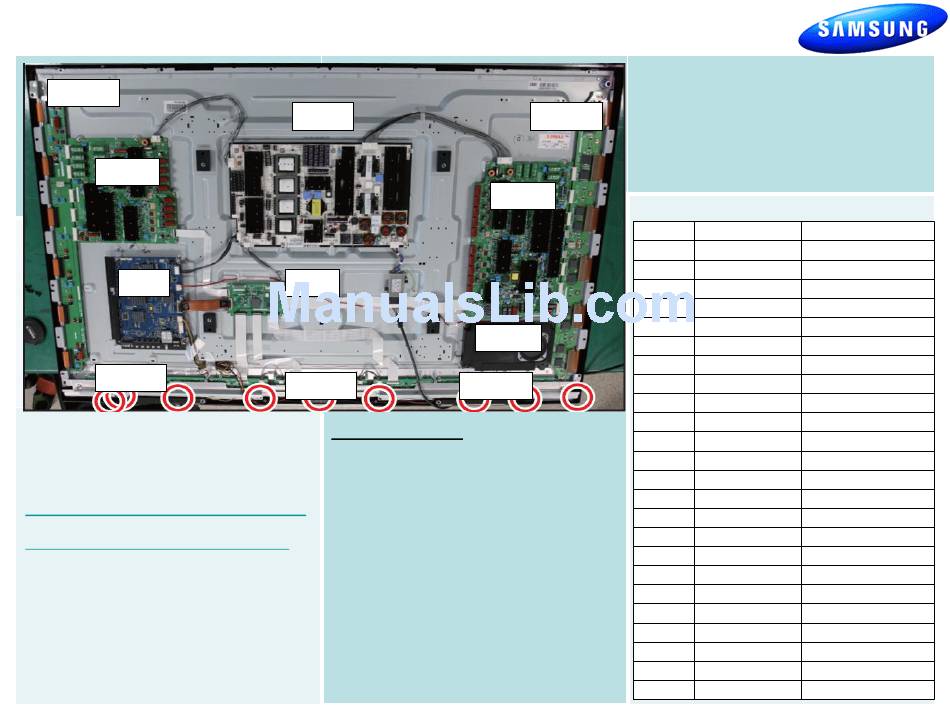

PN58C6400TFXZA
X Buffer
X Main
Main
Buffer E
HELP
:
1-888-751-4086 (Tech Support)
1-866-894-0637 (FE)
GSPN
http://gspn3.samsungcsportal.com
PLUS ONE
http://my.plus1solutions.net/clientPortals/samsung
HOT TIPS
-Power On Problems: (pg. 3)
-Video Problems: (pg. 4)
Fast Track Troubleshooting Manual, Rev. 1/10/12
SMPS
Logic
Buffer F
Buffer G
Latest Firmware: Please check
Samsung.com for latest update!
2010 PDP Firmware for Valencia 1G (T-
VALAUSC, 1030.1)
■ Firmware for Valencia 1G Model
Version : 1030.1
Folder Name: T-VALAUSC
Description: Enhance streaming performance
for Internet @TV Apps 'MLB'
And this firmware prevents below issues:
- USB Power Overload' message pops up
even USB port is not connected
-Plug & Play is displayed when ever turning
on TV.
-HDMI 2 is activated when HDMI 1 port is
connected.
No Service Bulletins
Y Buffer
Please check GSPN for parts update!
Y Main
Quick Parts List:
Version
I001
I001
I001
I001
I001
Woofer
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
I001
Parts No
Short Description
BN44-00334A
SMPS
BN94-03316M
Main PCB
BN96-12687A
Buffer F
BN96-12688A
Buffer G
BN96-14111A
Logic Main PCB
BN96-14336C
Function & IR PCB
BN96-14977A
X Main
BN96-14978A
Buffer X
BN96-14979A
Y Main
BN96-14980A
Y - Upper
BN96-14981A
Y - Lower
BN96-14982A
Buffer E
BN96-13433A
Panel
BN96-12993A
Front Cover
BN96-13009C
Rear Cover
BN96-13020B
Stand Base
BN96-13635A
Stand Guide Neck
BN40-00162A
Tuner
BN96-12723S
LVDS Cable
BN96-12942B
Speaker
BN96-13273B
Speaker
BN59-01042A
Remote
BN96-09872R
Power Cord
BN96-10788A
Accessory Pack
Advertisement
Related Manuals for Samsung PN58C6400TFXZA
Summary of Contents for Samsung PN58C6400TFXZA
- Page 1 Y Main I001 BN96-14980A Y - Upper Latest Firmware: Please check HELP 1-888-751-4086 (Tech Support) I001 BN96-14981A Y - Lower Samsung.com for latest update! 1-866-894-0637 (FE) I001 BN96-14982A Buffer E 2010 PDP Firmware for Valencia 1G (T- GSPN I001 BN96-13433A Panel VALAUSC, 1030.1)
- Page 2 PN58C6400TFXZA Fast Track Troubleshooting Manual Power On Sequence: STBY 5V (CN801, #2, 5v) PS_ON (CN801, #1, 3.3v-0v) VS_ ON (CN802, #6, 0-3.3v) Panel should illuminate briefly...
- Page 3 Fast Track Troubleshooting Manual PN58C6400TFXZA Sample “VITAL SIGNS” When troubleshooting, It’s very important to first check Vs, Va, Vsc & Ve is missing (0V), disconnect power and check for short. Use ohm Power Supply Trouble Shooting Notes: meter to measure resistance while disconnecting Y-Board & X-Board supply feeds one at a time.
-
Page 4: Troubleshooting Video Problems
PN58C6400TFXZA Fast Track Troubleshooting Manual TROUBLESHOOTING VIDEO PROBLEMS 1. Verify Video Operation 2. Using Test Patterns in Service Mode Customer Picture Test (if available) - ENTERING SERVICE MODE – “Display” (If display is OK source is suspected) Customer Remote: Service Remote:... -
Page 5: Special Notes
Fast Track Troubleshooting Manual PN58C6400TFXZA ALIGNMENTS & OPTION BYTES : Check/Adj. VS, VA, VE, & VSC according to Panel Label DIFFUSION TEST/ADJ. (cell miss-firing, older and Diffusion test. (see bulletins for any special notes units) before making changes) - Allow the unit to warm up 15 to 20 minutes Check/Set Option Bytes: - Access the Burn Protect Sig.
