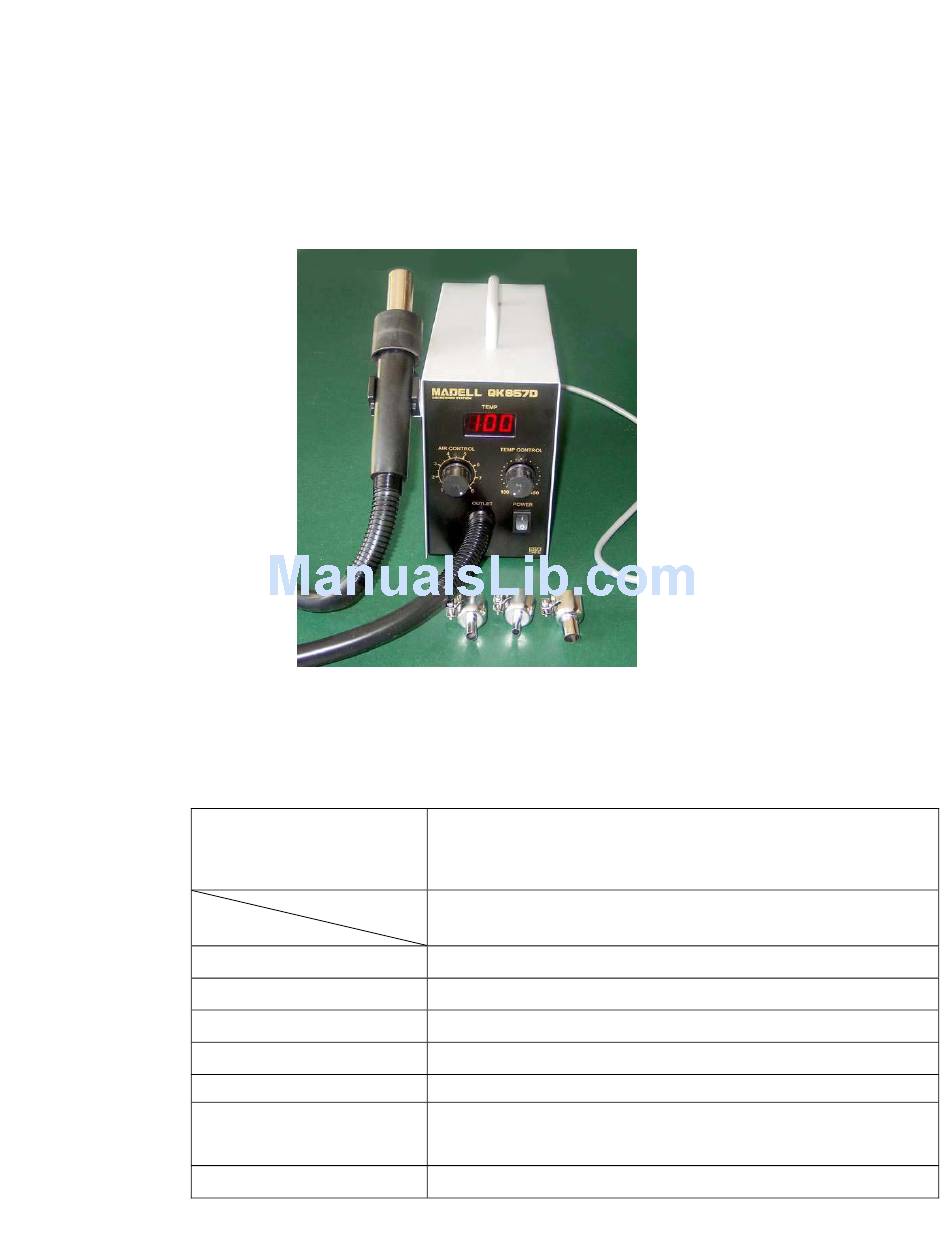

DOUBLE VORTEX SOFT BLOWER HOT AIR REWORK STATION
1，Summary of product
1-1,Specifications
OPERATION and MAINTENANCE MANUAL
MODEL
TYPE
ITEM
Power consumption
Air pump
Air volume
Temperature range
Display
Length of handle
assembly
Noise
MADELL QK857D
Digital display CPU controlled temperature
DC Motor, double vortex blower
Digital display（resolution 1℃）
1
857D
580W
100 l/min(Max)
100℃--450℃
110cm
<78dB
Advertisement
Table of Contents
Summary of Contents for Madell QK857D
- Page 1 MADELL QK857D DOUBLE VORTEX SOFT BLOWER HOT AIR REWORK STATION OPERATION and MAINTENANCE MANUAL 1，Summary of product 1-1,Specifications MODEL 857D TYPE Digital display CPU controlled temperature ITEM Power consumption 580W Air pump DC Motor, double vortex blower Air volume 100 l/min(Max) Temperature range 100℃--450℃...
- Page 2 1-2.Features 1.Closed loop sensor feedback, temperature is controlled by zero voltage triggering mode and is not affected by air volume. Powerful, rapid heating up, accurate and stable. 2.Wide range of hot air volume adjustment. 3.Electromagnetic inductor switch inside the handle starts the hot air when the handle is picked up.
- Page 3 2-2.Operational guide 1.Place the handle on the holder. 2.Plug the power cord into the power socket of the unit. 3.Supply power to the rework station. 4.Select and mount appropriate nozzle. 5.Set power switch to ”I” position, the unit will start working. 6.Set temperature as needed.
- Page 4 modify the power plug or use an ungrounded power socket. If an extension cord is necessary, use only a 3-wire extension cord that provides grounding. To prevent accidents and failures, be sure to observe the following precautions: 1. The air outlet and surrounding maybe very hot. Please take great care against being hurt.
- Page 5 6.Replaceable Parts Part Number Part Name Description 47131 Air Pump 24 VDC 47149 Heater (Heating element 560W 220V/230V and sensor assembly) 47150 Heater (Heating element 560W 110V and sensor assembly) 18050.220 Transformer 220VAC 18050.110 Transformer 110VAC 47151 Handle Holder Assembly 47152 Handle Assembly Heater, Plastic Handle,...
