Summary of Contents for CHENGDU VANTRON TECHNOLOGY VT-Tablet-5101

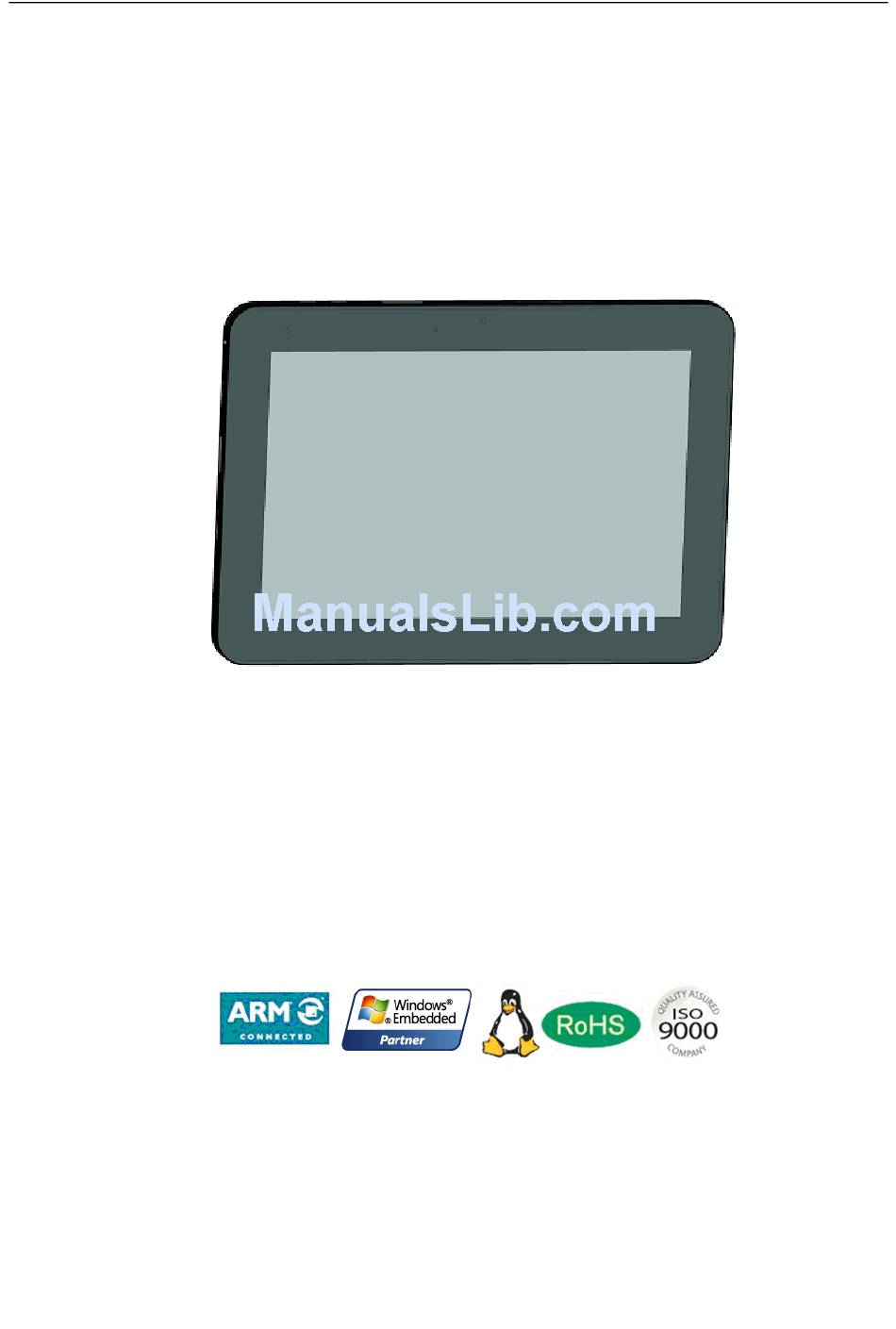

- Page 1 VT-Tablet-5101 User’s Manual Chengdu Vantron Technology Ltd. Co. 2013.08.22 All Rights Reserved...
-
Page 2: Table Of Contents
VT-Tablet-5101 Table of Contents 1 REVISION HISTORY: .............................. 2 2 FOREWORD ................................. 2 2.1 C ................................ 3 OPYRIGHT OTICE 2.2 N .................................... 3 OTES 2.3 S .................................. 4 TATEMENT 2.4 D .................................. 4 ... -
Page 3: Revision History
VT-Tablet-5101 Revision History: Version Description Date V1.0 First release 8/22/2013 V1.1 Add ordering information 10/15/2013 V1.2 Modify Specification description 3/18/2014 V1.3 Update the mechanical picture 4/9/ 2014 2/ 20... -
Page 4: Foreword
VT-Tablet-5101 1 Foreword 1.1 Copyright Notice While all information contained herein have been carefully checked to assure its accuracy in technical details and printing, Vantron assumes no responsibility resulting from any error or features of this manual, or from improper uses of this manual or the software. -
Page 5: Statement
VT-Tablet-5101 1.3 Statement It is recommended to read and comply with this manual before operating VT-Tablet which provides important guidance and helps decreasing the danger of injury, electric shock, fire, or any damage to the device. 1.4 Disclaimer Vantron assumes no legal liability of accidents resulting from failure of conforming to the safety instructions. -
Page 6: Precautions
VT-Tablet-5101 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens. Do not try repairing this product unless declared in this manual. Keep away from heat source, such as heater, heat dissipater, or engine casing. Do not insert other items into the slot (if any) of this device. -
Page 7: Safety Instructions For Power Cables And Accessories
VT-Tablet-5101 1.8 Safety Instructions for Power Cables and Accessories Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. -
Page 8: Overview
VT-Tablet-5101 2 Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Tablet,enables the interaction between operators/users and applications, connects industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 9: Product Series
VT-Tablet-5101 2.2 Product Series 2.2.1 Product Order Coding Rule VT-Tablet- ABBC-D-E E：Temperature suffix: Bank: Normal Temperature I: Industrial Version D：Minor version suffix C：Type suffix: 1: Basic type; BB:Screen size: 2: Enhanced type or other 07, 10: for LCD in 7, 10inches. A: Product series: 5：IMX6x multi-core ARM cortex A9 platform 10inches. -
Page 10: Vt-Tablet-5101Hardware Instructions
VT-Tablet-5101 3 VT-Tablet-5101Hardware Instructions 3.1 Product Appearance FrontView Back View 9/ 20... -
Page 11: Specifications
VT-Tablet-5101 3.2 Specifications Specifications CPU Processor Freescalei.MX6QQuad core 1.2GHz Memory On Board RAM 2GB DDR3 On Board 16GB EMMC Flash External 1x Micro SD, USB 2.0 OTG Display LCD 10.1" Wide Screen, TFT LCD, 1280x800 Resolution 1280x800 24bit Color Contrast 600:1 Brightness 350 cd/m2(Auto brightnessby Light sensor) View Angle 89U/89D, 89L/89R Touch Screen Cap‐touch, multi‐point Interfaces Ethernet 10 /100‐BaseT, Micro USB type External 1xmicro SD USB 1X USB OTG COM Port 1xDocking port(2xRS232, 1xdebug port, ... - Page 12 VT-Tablet-5101 Environment Temperature Operating:‐10℃ ~ +70℃ Condition Humidity Storage: ‐20℃ ~ +70℃ 10‐85%RH (Non‐Condensation), operating Vibration 2G, 9‐26Hz (10 times in X,Y,Z directions) 11/ 20...
-
Page 13: Interface Instructions
VT-Tablet-5101 3.3 Interface Instructions 3.3.1 Top side View MIC in USB OTG DC 5V IN 10/100M ETH Micro HDMI 3.3.2 left side View 3.5mm earphone jack Docking port SIM card slot MicrSD card slot 12/ 20... -
Page 14: Front Side View
VT-Tablet-5101 3.3.3 front side View Light sensor hole 5M Front camera Multi-color LED 3.3.4 Back side View Vol- Vol+ On/off 5M Back camera Speaker 3.4 Dimension Whole device Size: 262x184x16 mm3 13/ 20... -
Page 15: Interface Description
VT-Tablet-5101 3.5 Interface Description 3.5.1 5Vadapter Input DC-056 typeadapter power Jack Structure mark: +5V Description centre diameter Ground 3.5.2 Internal MIC in Interface Structure mark: MIC. This hole is used to the onboard MIC in, but this hardware version is not support 3.5.3 10/100M Ethernet Connector (micro USB instead) ... -
Page 16: Mm Earphone Jack With External Mic In
VT-Tablet-5101 3.5.6 3.5mm earphone Jack with external MIC in Structure mark: It is a standard 4-pole 3.5mm earphone Jack with external MIC in , every pole signal define is below 3.5.7 Micro SD card slot Structure mark: It is a standard micro SD card slot. You can insert a micro sd card to increase external storage. -
Page 17: Packing List
VT-Tablet-5101 3.6 Packing List No Part Description Quantity Type CD_ROM 5V power adapter Charge cable USB client cable 16/ 20... -
Page 18: Software Instructions
VT-Tablet-5101 4 Software Instructions 4.1 Brief Introduction VT-Tablet-5101 has been pre-loaded with Android image, so that the system can run mfg tool method to updates system image; please reference to SW-UM 17/ 20... -
Page 19: Tips
VT-Tablet-5101 5 Tips Waste Disposal It is recommended to disassemble the device before abandoning it in conformity with local regulations. Please ensure that the abandoned batteries are disposed according to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put in common waste canister. - Page 20 VT-Tablet-5101 Notice Considering that reasonable efforts have been made to assure accuracy of this manual, Vantron assumes no responsibility of possible missing contents and information, errors in contents, citations, examples, and source programs. Vantron reserves the right to make necessary changes to this manual without prior notice.
