Summary of Contents for RBF Industries Bathmate

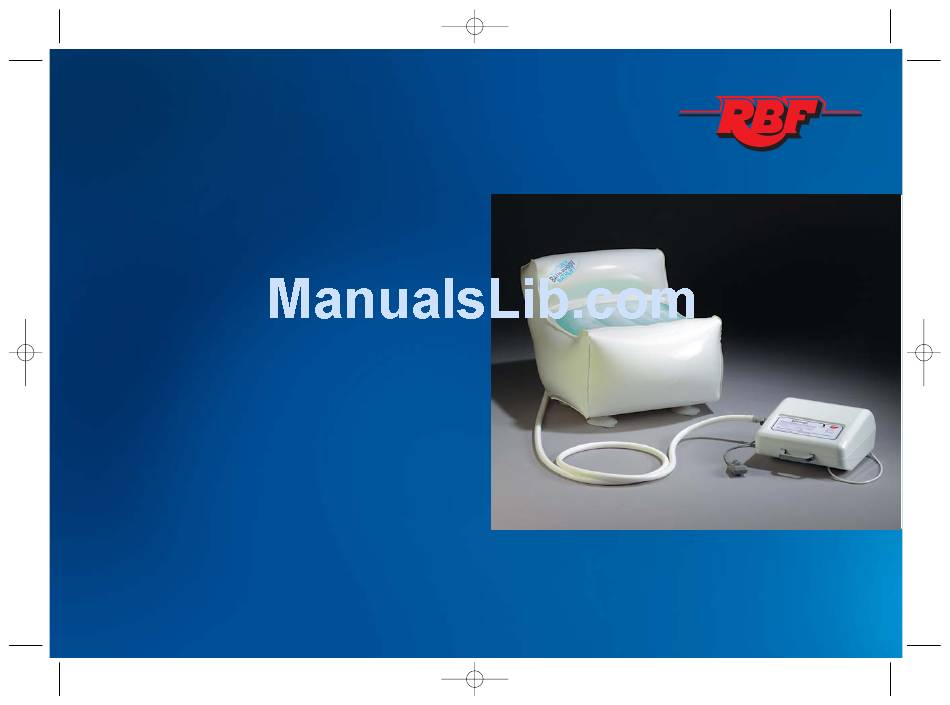

- Page 1 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 1 Bath-Buddy / Bathmate Instruction Book...
- Page 2 Page 2 Thank you for purchasing a Bath-Buddy/Bathmate portable bath lift from RBF Healthcare. We hope you have many years of satisfied use from this excellent product. To help keep it in good condition please refer to the following instructions. A handy operating guide is included to enable you to use the Bath-Buddy/Bathmate as quickly as possible.
- Page 3 Safety - Critical Information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety and understands the hazards involved.
- Page 4 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 3 Inventory - Upon opening the box, the following items should be included The Bath-Buddy/Bathmate consisting of: Other items include e t i i t c t e l t i n...
-
Page 5: Electrical Safety
UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 4 Electrical Safety AC 50Hz electricity supply. WARNINIG Should the power cord need to be replaced, this should be carried out by the manufacturer, ‘’Hard wiring’’ of the blower unit within the bathroom must comply with the current safety standards, the procedures described in the enclosed installation instructions for hard wiring This appliance required a 13 amp fuse. - Page 6 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 5 Setting Up Making sure the main blower unit is OUTSIDE of the bathroom connect the mains plug into the nearest wall socket (unless the blower unit has been professionally installed by an electrician in accordance with our electrical installation instructions) To ensure the cushion sticks to the bath surface correctly, both suckers and surface should be clean and free from deposits left by cleansers.
-
Page 7: Filling The Bath
UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 6 Filling the bath Once you are sure the cushion is in the correct position water may be added to the bath. It is recommended that approximately 8 - 10 inches (20 - 25 cm) of water is added initially, however, this can be adjusted by the user according to individual needs , and the size and depth of the bath being used. - Page 8 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 7 Getting into the bath - continued *IMPORTANT A central sitting position on the cushion is vital whilst being raised or lowered. Leaning forwards slightly will help maintainstability. Please do not lean backwards as this may result in an uneven descent or elevation.
- Page 9 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 8 Technical Cushion Stroke height (Tall) 1.5 to 380mm (455mm) W to 345mm t i n D to 334mm Cushion Dimensions (Tall) H to 380mm (455) D to 590mm (590) Operating pressure + 5% Normal to 105 mbar i t a Pressure switch rating...
-
Page 10: Troubleshooting Guide
UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 9 Trouble Shooting Guide The cushion inflates in a stop and start The hand control ON button is not being fully depressed, or the hose in kinked. fashion. Keep pressing the button until the motor stops automatically, check hose is not kinked. The cushion is fully inflated but the motor is Release the UP button, which will stop the motor running. -
Page 11: Accessories & Spares
UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 10 Routine Maintenance & Servicing The following should be carried out at the intervals specified: Remove the cushion from the bath after every use and clean the cushion and suckers as per the instructions on page 5. - Page 12 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 11 Notes for Guidance 1. As a safety measure the blower unit will switch off once the correct pressure has been obtained. The cushion will no longer inflate even if the control unit UP button is continuously depressed. In the unlikely event of this failing air will automatically bleed back through the motor, thus ensuring over inflation does not occur.
- Page 13 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 12 Appendix A Recommended Bath Sizes The Bath-Buddy lift is suitable for most baths. As a guide to whether a tall or standard cushion is required, please refer to the diagram below. If a bath falls outside of the guidelines below please contact your dealer or manufacturer for advice.
- Page 14 UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 13 Appendix B Grab Rail Fitting Instructions The following should act as a guide to positioning the grab rail when used with the Bath-Buddy. A grab rail should only be fitted by a qualified workman in accordance with the manufacturers specifications. All dimensions are approximate and are for reference only.
-
Page 15: Cautionary Notes
UK RBF Bath buddy instruction 16pp 21/9/07 09:07 Page 14 Cautionary Notes 1. Temperatures higher than 50°C (122°F) will damage the cushion. If the cushion becomes distorted and the distorted area changes colour or appearance do not use the equipment, contact your supplier for advice. - Page 16 UK RBF Bath buddy instruction 16pp 21/9/07 09:08 Page 16 RBF Healthcare 55 Vanguard Way, Shoeburyness Essex SS3 9QY Tel: +44 (0)1702 527 401 Fax: +44 (0)1702 420 240 Email: Sales@rbfhealthcare.co.uk BB0208-Rev.E Why not visit our Website at www.rbfhealthcare.co.uk...
