iPower SUWP50 Operation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

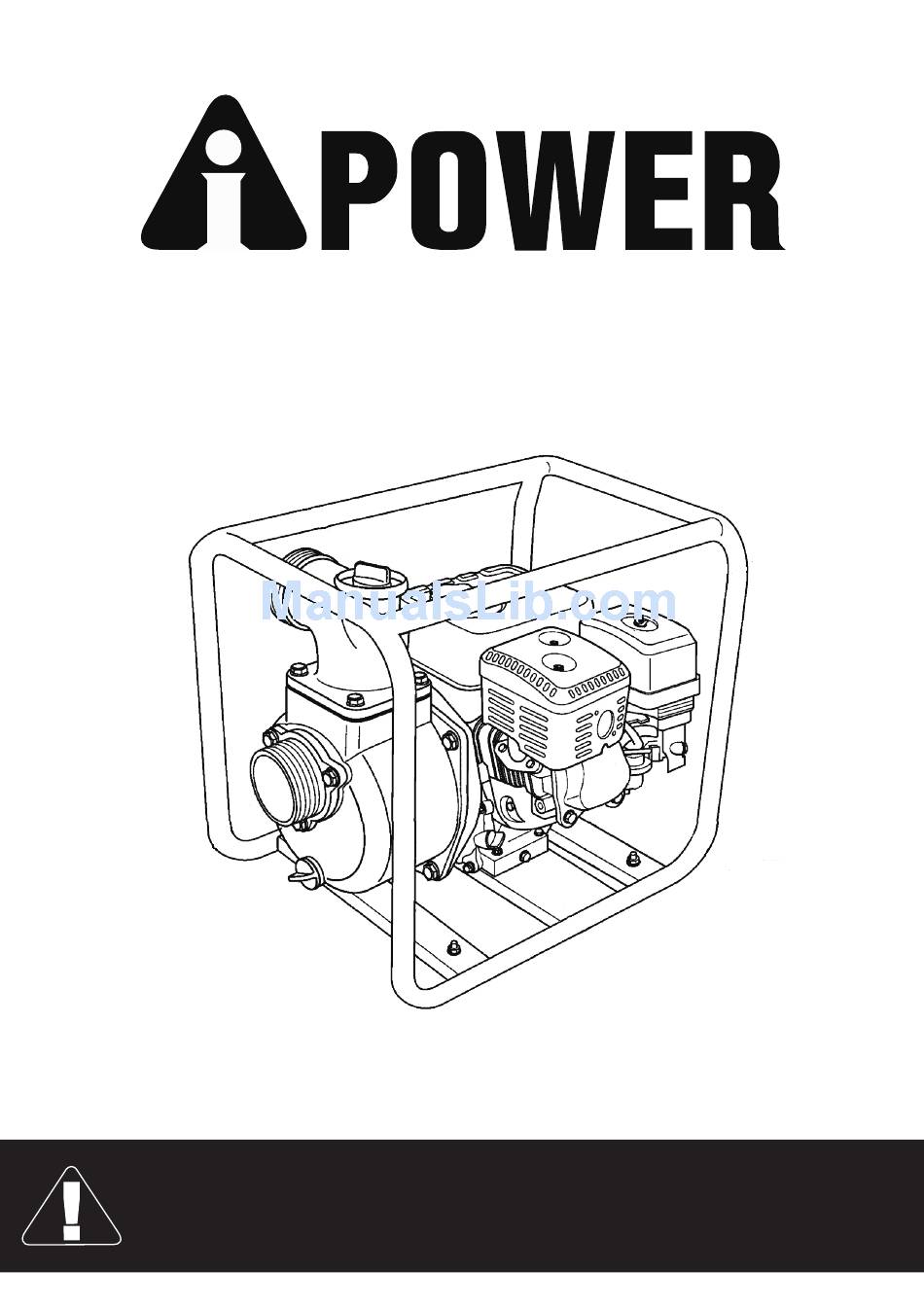

WATER PUMP OPERATION INSTRUCTION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE
AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND ALL CAUTIONS,
WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS
PERSONAL INJURY AND/OR PROPERTY DAMAGE
10/2014 0201100_A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUWP50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iPower SUWP50

Summary of Contents for iPower SUWP50

  • Page 1 WATER PUMP OPERATION INSTRUCTION THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE 10/2014 0201100_A...
  • Page 2 Thank you for purchasing a water pump. This manual covers the operation and maintenance of water pump The information and specifications included in this publication were in effect at the time of approval for printing. No part of this publication may be reproduced without written permission. This manual should be considered a permanent part of the pump and should remain with the pump if it is resold.

  • Page 3: Table Of Contents

    CONTENTS 1. PUMP SAFETY ………………………………………………………………….. 3 2. COMPONENTS & CONTROL LOCATIONS ………………………………… 5 3. CONTROLS …………………………………………………...…………………6 4. CHECK BEFORE OPERATION ..............8 5. OPERATION ……………………………………………………………………..12 6. STARTING THE ENGINE ..............……15 7. STOPPING THE ENGINE ................17 8. MAINTENANCE ................... 18 9.

  • Page 4: Pump Safety

    1. PUMP SAFETY Your safety and the safety of others are very important. And using this water pump safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
  • Page 5 Always make a pre-operation inspection before you start the engine. You may prevent an accident or equipment damage. Most accidents can be prevented if you follow all instructions in this manual and on the pump. The most common hazards are discussed below, along with the best way to protect yourself and others.

  • Page 6: Components & Control Locations

    2. COMPONENTS & CONTROL LOCATIONS DISCHARGE PORT THROTTLE LEVER FUEL FILLER CHOKE LEVER FUEL VALVE LEVER STARTER GRIP OIL FILLER CAP/DIPSTICK IGNITION SWITCH FRAME PRIMING WATER FILLER CAP AIR CLEANER MUFFLER SUCTION PORT OIL DRAIN PLUG PUMP DRAIN CAP...

  • Page 7: Controls

    3. CONTROLS Read and understand this manual. Know what the controls do and how to operate them. Familiarize yourself with the pump and its operation before you begin pumping. Know what to do in case of emergencies. Fuel Valve Lever The fuel valve opens and closes the passage between the fuel tank and the carburetor.
  • Page 8 Choke Lever The choke lever opens and closes the choke valve in the carburetor. The CLOSED position enriches the fuel mixture for starting a cold engine. The OPEN position provides the correct fuel mixture for operation after starting, and for restarting a warm engine. CHOKE LEVER OPEN CLOSE...

  • Page 9: Check Before Operation

    4. CHECK BEFORE OPERATION Be sure of what you are pumping. This pump is designed to pump only fresh water that is not intended for human consumption. For your safety, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the pump to check its condition.
  • Page 10 OIL FILLER CAP/DIPSTICK LOWER LIMIT Running the engine with a low oil level can cause engine damage. Engine oil capacities： SUWP25:0.35L SUWP50,SUWP80:0.6L SUWP100:1.1L AIR FILTER INSPECTION A dirty air filter will restrict air flow to the carburetor, reducing engine and pump performance.
  • Page 11 Remove the air cleaner cover and inspect the filter. Clean or replace dirty filter elements. Always replace damaged filter elements. If equipped with an oil-bath air cleaner, also check the oil level. Reinstall the air filter and air cleaner cover. Be sure all the parts shown below are in place.
  • Page 12 MAXIMUM FUEL LEVEL Do not fill above the shoulder of the fuel strainer (maximum fuel level). FUEL RECOMMENDATIONS Use unleaded gasoline with a pump octane rating of 86 or higher. These engines are certified to operate on unleaded gasoline. Unleaded gasoline produces fewer engine and spark plug deposits and extends exhaust system life.

  • Page 13: Operation

    5. OPERATION SAFE OPERATING PRECAUTIONS To safely realize the full potential of this pump, you need a complete understanding of its operation and a certain amount of practice with its controls. Before operating the pump for the first time, please review the IMPORTANT SAFETY INFORMATION on page 3 and the chapter titled CHECK BEFORE OPERATION.
  • Page 14 SUCTION HOSE INSTALLATION Use a commercially available hose and hose connector with the hose clamp provided with the pump. The suction hose must be reinforced with a non-collapsible wall or braided wire construction. Do not use a hose smaller than the pump’s suction port size. Minimum hose size: WP25(25mm),WP50.CP50.HP50(50mm),WT80.WP80(80mm),WP100(100mm).
  • Page 15 DISCHARGE HOSE INSTALLATION Use a commercially available hose and hose connector, and clamp provided with the pump. HOSE CONNECTOR It is best to use a short, large-diameter hose, because that will reduce fluid HOSE CLAMP friction and improve pump output. A long or small-diameter hose will increase fluid friction and reduce pump output.

  • Page 16: Starting The Engine

    6. STARTING THE ENGINE 1. Prime the pump (see page 14). 2. Move the fuel valve lever to the ON position. FUEL VALVE LEVER 3. To start a cold engine, move the choke lever to the CLOSED position. To restart a warm engine, leave the choke lever in the OPEN position. CHOKE LEVER CLOSED 4.
  • Page 17 6. Pull the recoil starter grip lightly until resistance is felt, then pull it briskly. Do not allow the recoil starter grip to snap back against the engine. Return it gently to prevent damage to the starter. RECOIL STARTER GRIP 7.

  • Page 18: Stopping The Engine

    7. STOPPING THE ENGINE To stop the engine in an emergency, simply turn the ignition switch to the OFF position. Under normal conditions, use the following procedure. 1. Move the throttle lever to the SLOW position. THROTTLE LEVEL SLOW 2. Turn the ignition switch to the OFF position. IGNITION SWITCH 3.

  • Page 19: Maintenance

    THE IMPORTANCE OF MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. Improperly maintaining this pump, or failing to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations and schedules in this owner’s manual.
  • Page 20 Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential hazards: －Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you operate the engine. －Burns from hot parts. Let the engine and exhaust system cool before touching.
  • Page 21 Fuel tank capacities： SUWP25:1.6L SUWP50,SUWP80:3.6L SUWP100:6.5L With the engine stopped and on a level surface, remove the fuel tank cap and check the fuel level. Refill the tank if the fuel level is low. MAXIMUM FUEL LEVEL Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool.
  • Page 22 ENGINE OIL CHANGE Drain the used oil while the engine is warm. Warm oil drains quickly and completely. 1. Place a suitable container below the engine to catch the used oil, and then remove the oil filler cap/dipstick, drain plug and sealing washer. 2.
  • Page 23 SAE Viscosity Grades AMBIENT TEMPERATURE The SAE oil viscosity and service classification are in the API label on the oil container. We recommend that you use API SERVICE category SJ oil. The recommended operating range of this pump is 23 ° F to 104 ° F ( －5 ° C to 40 °...
  • Page 24 3. Inspect the spark plug. Replace it if the electrodes are worn, or if the insulator is cracked or chipped. SPARK PLUG WRENCH 0.70-0.80mm SEALING WASHER SPARK PLUG 4. Measure the spark plug electrode gap with a suitable gauge. Correct the gap if necessary, by carefully bending the side electrode.
  • Page 25 1. Remove the two 8 mm nuts, and remove the muffler. 2. Remove the four 5 mm screws, and remove the muffler protector from the muffler. 3. Remove the 4 mm screw from the spark arrester, and remove the spark arrester from the muffler.

  • Page 26: Transporting/Storage

    9. STORAGE/ TRANSPORTING STORAGE PREPARATION Proper storage preparation is essential for keeping your pump troublefree and looking good. The following steps will help to keep rust and corrosion from impairing your pump’s function and appearance, and will make the engine easier to start when you use the pump again.
  • Page 27 Fuel Gasoline will oxidize and deteriorate in storage. Old gasoline will cause hard starting, and it leaves gum deposits that clog the fuel system. If the gasoline in your engine deteriorates during storage, you may need to have the carburetor and other fuel system components serviced or replaced.
  • Page 28 2. Remove the carburetor drain bolt and sediment cup, and then move the fuel valve lever to the ON position. FUEL VALVE LEVEL O-RING WASHER DRAIN BOLT SEDIMENT CAP 3. After all the fuel has drained into the container, reinstall the drain bolt and sediment cup.
  • Page 29 STORAGE PRECAUTIONS If your pump will be stored with gasoline in the fuel tank and carburetor, it is important to reduce the hazard of gasoline vapor ignition. Select a well-ventilated storage area away from any appliance that operates with a flame, such as a furnace, water heater, or clothes dryer.

  • Page 30: Troubleshooting

    10. TROUBLESHOOTING ENGINE Engine Will Not Start Possible Cause Correction Move fuel valve lever to Fuel valve OFF. ON position. Move choke lever to Check control Choke open. CLOSED position positions. unless engine is warm. Turn ignition switch to Ignition switch OFF. Out of fuel.
  • Page 31 PUMP No Pump Output Possible Cause Correction Check pump Pump not primed. Prime the pump (p. 14). chamber. Hose collapsed, cut or Replace suction hose punctured. (p. 13). Sink the strainer and Strainer not completely the end of a suction underwater.

  • Page 32: Specifications

    11. Specifications Model SUWP50 SUWP80 SUWP100 Dia.of discharge port 2＂(50mm) 3＂(80mm) 4＂(100mm) Dia.of suction port 2＂(50mm) 3＂(80mm) 4＂(100mm) Lift 82 ft. (25m) 92 ft. (28m) 115 ft. (35m) Delivery volum （m³/h) （m³/h) （m³/h) Suction 16.4＂(5m) 16.4＂(5m) 16.4＂(5m) Engine model AP168FB...
  • Page 33 12. TECHNICAL & CONSUMER INFORMATION Carburetor Modification for High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.
  • Page 34 You may use gasoline containing up to 10% ethanol by volume. Gasoline containing ethanol may be marketed under the name ‘‘Gasohol’’. MTBE (methyl tertiary butyl ether) 15% by volume You may use gasoline containing up to 15% MTBE by volume. METHANOL——(methyl or wood alcohol) 5% by volume You may use gasoline containing up to 5% methanol by volume as long as it also contains cosolvents and corrosion inhibitors to...
  • Page 35 Problems That May Affect Emissions If you are aware of any of the following symptoms, have your engine inspected and repaired by your servicing dealer. ·Hard starting or stalling after starting. ·Rough idle. ·Misfiring or backfiring under load. ·Afterburning (backfiring). ·Black exhaust smoke or high fuel consumption.

  • Page 36: Consumer Information

    Control Warranty for additional information. Descriptive Term Applicable to Emission Durability Period 50 hours (0－65 cc) Moderate 125 hours (greater than 65 cc) 125 hours (0－65 cc) Intermediate 250 hours (greater than 65 cc) 300 hours (0－65 cc) Extended 500 hours (greater than 65 cc) The Air Index Information hang tag must remain on the pump until it is sold.
  • Page 37 A-iPOWER WARRANTY CLAIM FORM www.a-ipower.com support@a-ipower.com Primary Information Internal Use Circle one: Serial Number Consumer Dealer Service Did you send in your Warranty Card? If not, proof of purchase is required. Have you ever had a warranty issue with the same unit before?
  • Page 38 1477 E. Cedar Street #B, Ontario, CA 91761, U.S.A. Phone: 626-888-3598 support@a-ipower.com www. a-ipower.com...
