Summary of Contents for UHP UHP-1200

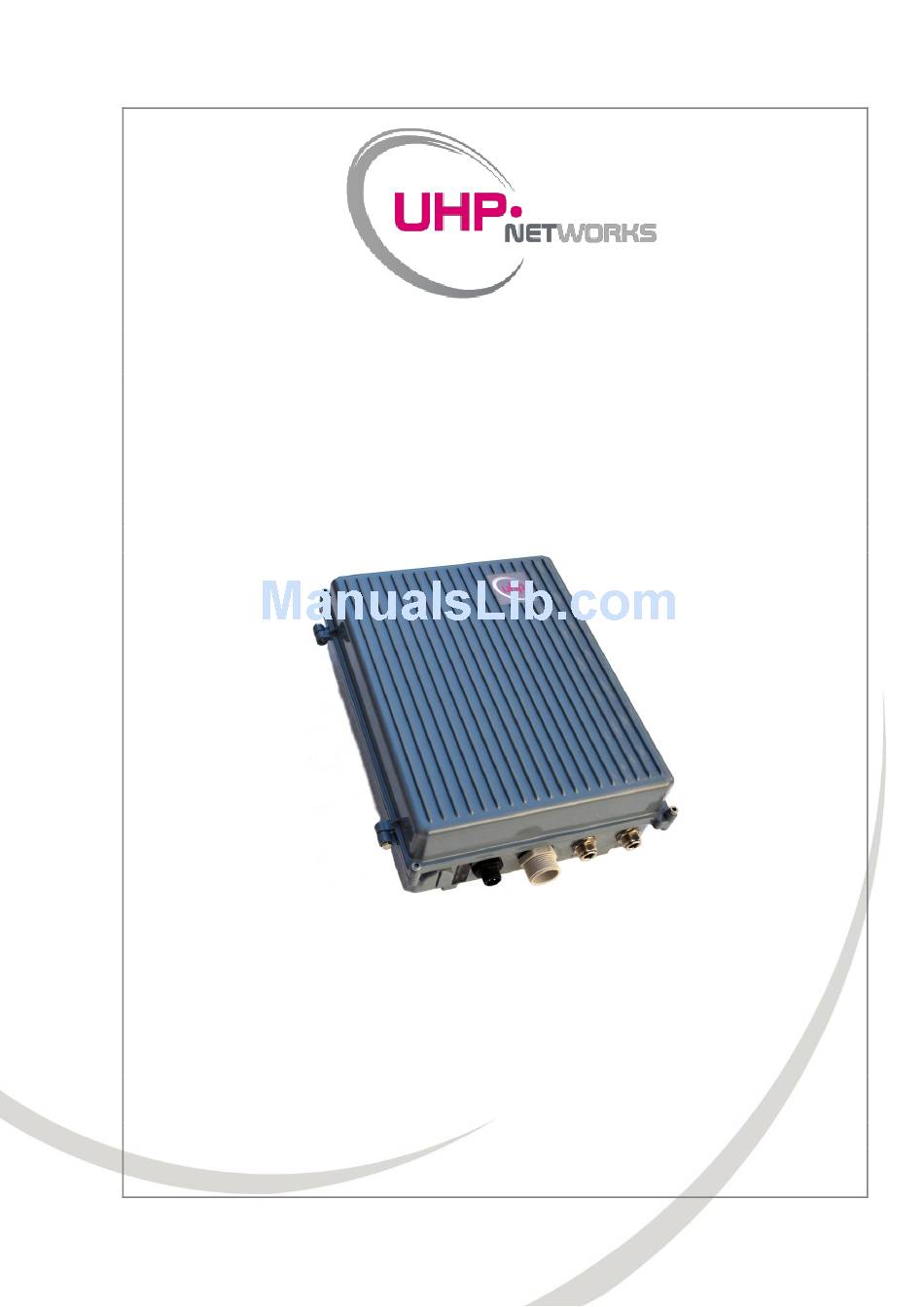

- Page 1 OUTDOOR SATELLITE ROUTER UHP-1200 GENERAL DESCRIPTION AND INSTALLATION GUIDE DOCUMENT RELEASE 3.2 [UHP.OR32.EN] AUGUST 2015...
-
Page 2: Table Of Contents
UHP-1200 OUTDOOR SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 CONTENT Acronyms and Abbreviations ......................4 Introduction ............................. 6 Required level of qualification ........................6 Document version and applicability ......................6 Copyright ..............................6 General description ......................7 System overview ........................7 Measurement equipment, tools and accessories .............. - Page 3 Figure 2 UHP-1200 Outdoor Satellite Router ....................7 Figure 3 Labeling of UHP-1200 satellite router ..................... 8 Figure 4 UHP-1200 Architecture ........................8 Figure 5 UHP-1200 series modem – rear view ....................9 TABLES Table 1 Operational limits ........................... 10 Table 2 Pinout of 8P8C LAN interface (RJ45) ....................
-
Page 4: Acronyms And Abbreviations
Main station of Hubless network. Master allocates bandwidth and performs stations acquisition. MCPC Multiple channels per carrier. All TDM carriers generated by UHP can be treated as MCPC. Even if they are called SCPC. Mesh Capability of station allowing to receive other stations via TDMA link. - Page 5 Time format used by UHP. Plus sign at the beginning (+HH:MM:SS or +NN d HH:MM:SS)denotes relative time from some event or UHP start-up. If UHP has time synchronized to hub or SNTP absolute time can be displayed. Time zone affects absolute time.
-
Page 6: Introduction
UHP VSAT platform is based on the universal satellite router UHP, which is available in different fully-compatible hardware modifications. UHP satellite router is a basic element of any network architecture and can be used in any combinations and at any hierarchy level. Router functional capabilities and its operating modes are determined by the installed software and its configuration. -
Page 7: General Description
Measurement equipment, tools and accessories The router can be accessed via LAN. Standard computer (notebook) is required to configure and monitor status of UHP-1200 satellite router. The computer must be equipped with a LAN interface, and also have the following software installed: ... -
Page 8: Packaging And Content
1.5.1 Overview UHP-1200 Satellite router has a weatherproof, sealed housing and without any serviceable parts inside. External devices should be connected through connectors on the bottom interface of the device. The LAN port is used both for connection to the user’s network and for configuration and control of the router. -
Page 9: Power Connector (Dc In)
1.5.2 Power connector (DC IN) UHP-1200 router is powered with 24 VDC. AC/DC Power supply adaptor is not supplied. The router can be powered from different DC power sources (batteries, DC-DC converter). The router can provide power to RF hardware within the current according to the specifications of the router. -
Page 10: Operations
2.2.2 Installation UHP-1200 Router is designed for installation on any flat, stable surface or on an antenna mount with the included universal installation kit. The router should be installed in a place protected from direct sunlight. Table 2 Pinout of 8P8C LAN interface (RJ45) Пин... -
Page 11: Powering On
Remote access to the configuration can be performed using Telnet protocol. The connection can be provided to any of IP addresses that are set on the router. UHP-1200 supports simultaneously only one Telnet session. In order the hang session does not block access to the device forever in case on non-activity (pressing ENTER key), the router auto-terminates the session after a certain time of inactivity. -
Page 12: Operations
All connectors must be properly attached and secured. Software updates One of the key advantages of UHP satellite routers is the ability to extend the functionality by updating the software. Software updates also include fixes for known bugs and improving the algorithms of the system. -
Page 13: Troubleshooting
UHP-1200 OUTDOOR SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 4. TROUBLESHOOTING Table 3 Troubleshooting guide Symptoms Possible reasons Actions Router doesn’t work DC power beyond the limits of allowed Check DC power voltage values Power cord is broken Check the power cable and output voltage. - Page 14 UHP-1200 OUTDOOR SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 Symptoms Possible reasons Actions Transmission of the terminal is not Contact Hub administrator allowed by Hub (only for TDM/TDMA terminal) Station is not IF Tx cable failure Check Tx cable and make sure that its connectors transmitting are properly connected to the BUC and the router.
-
Page 15: Storage, Transportation And Disposal
UHP-1200 OUTDOOR SATELLITE ROUTER GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 5. STORAGE, TRANSPORTATION AND DISPOSAL Storage and transportation of satellite routers must be performed in original packaging. Equipment can be stored and transported in pallet with height not more than 10 devices.
